RPGB-10101-01 F A xis Belt Replacement Procedure
RPGB-10101-01
F Axis Belt Replacement Procedure
[Installment]
Press the parts feed assembly against the main
frame assembly.
RPGB-10101-01
F Axis Belt Replacement Procedure
RPGB-10101-01
F Axis Belt Replacement Procedure

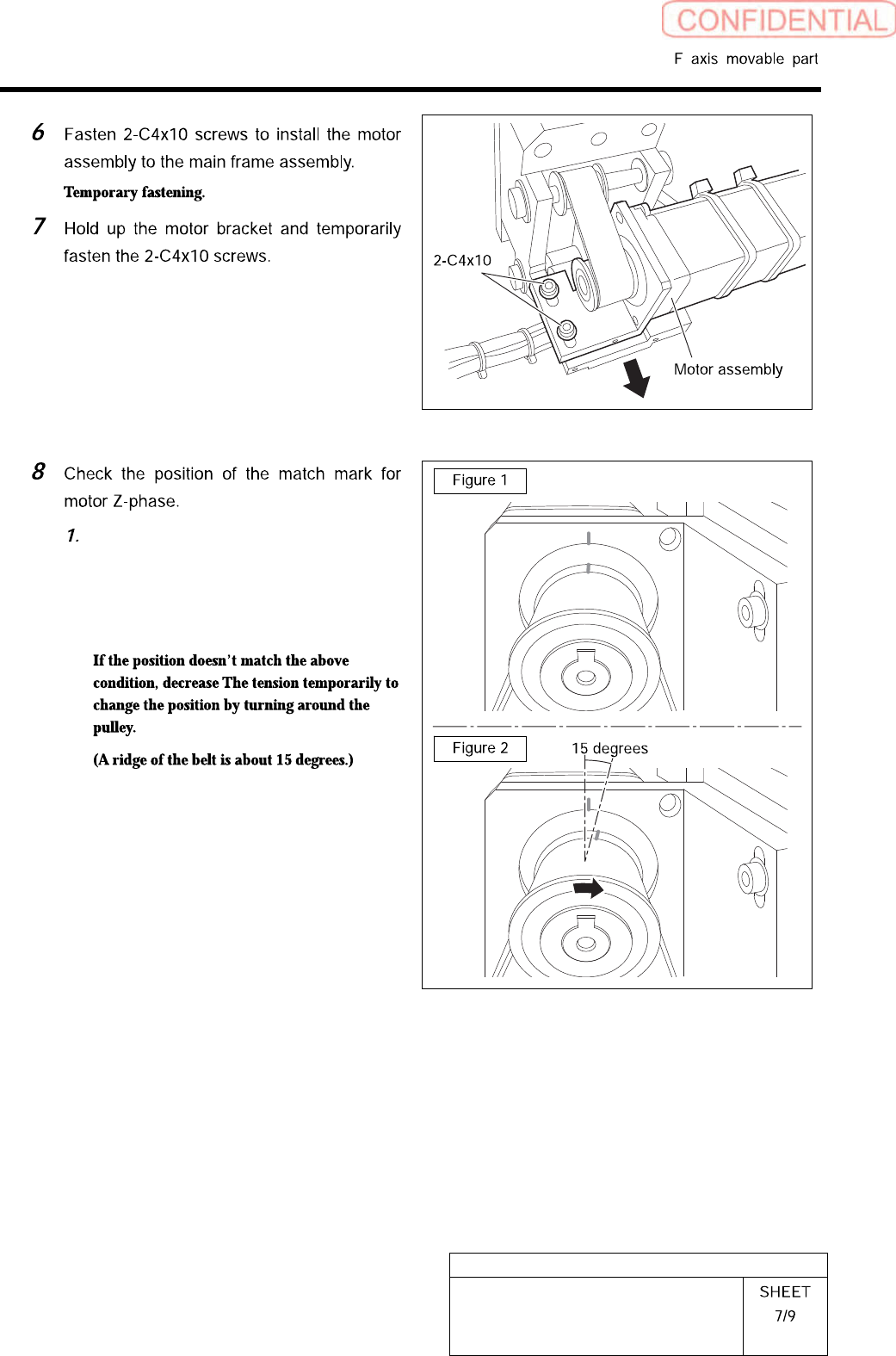

Turn around the pulley in the arrow
direction as shown in Fig. 2 and check
that discrepancy with the match mark
is about 15 degrees when the pulley hit
the at the mechanical end.
