RPGB-10201-01 Pickup Check Camera Up/Down Cylinder Replacement [Removing the Cylinder] For the F-axis unit removal procedure, refer to “F-Axis Belt Replacement Procedure [RPGB-10101-01]”. Disconnect connector CAM2- UF (C…

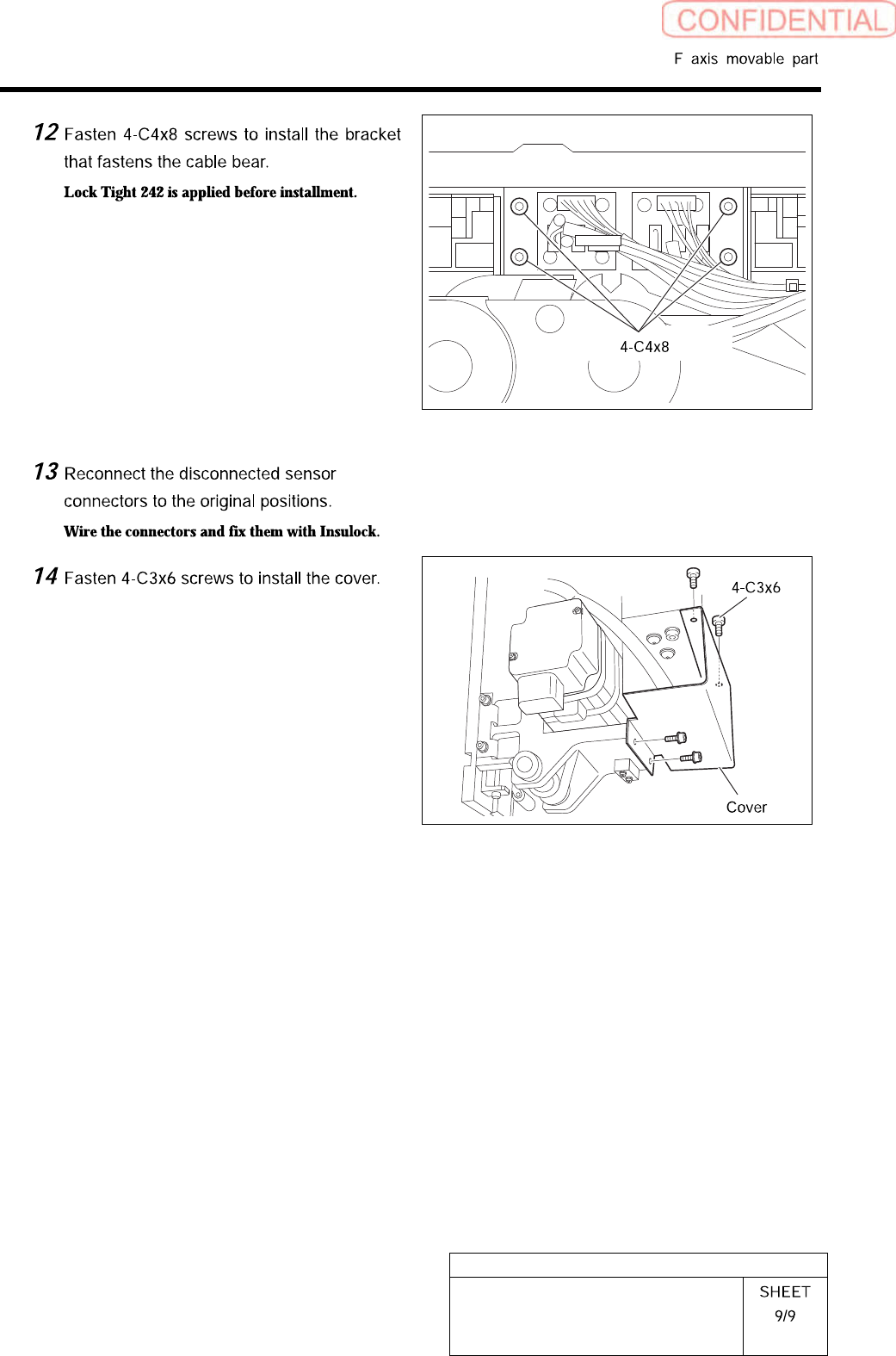

RPGB-10101-01
F Axis Belt Replacement Procedure
[Adjustment]
Conduct setup.
For setup procedure, refer to HLGB-10206 “F axis setup”.
RPGB-10201-01
Pickup Check Camera Up/Down
Cylinder Replacement
[Removing the Cylinder]
For the F-axis unit removal procedure, refer to “F-Axis Belt Replacement Procedure [RPGB-10101-01]”.
Disconnect connector CAM2-UF
(CAM2-UR) on the camera cable.
Loosen 2-CP4x8 to remove the pickup
check camera.
Remove the cable tie (Insulock) from SSB-2 and
SSB-4 cables as well.
RPGB-10201-01
Pickup Check Camera Up/Down
Cylinder Replacement
Mark the tubes before disconnecting.
The attachment screw is located to the side of
the LM guide of the H-axis.
