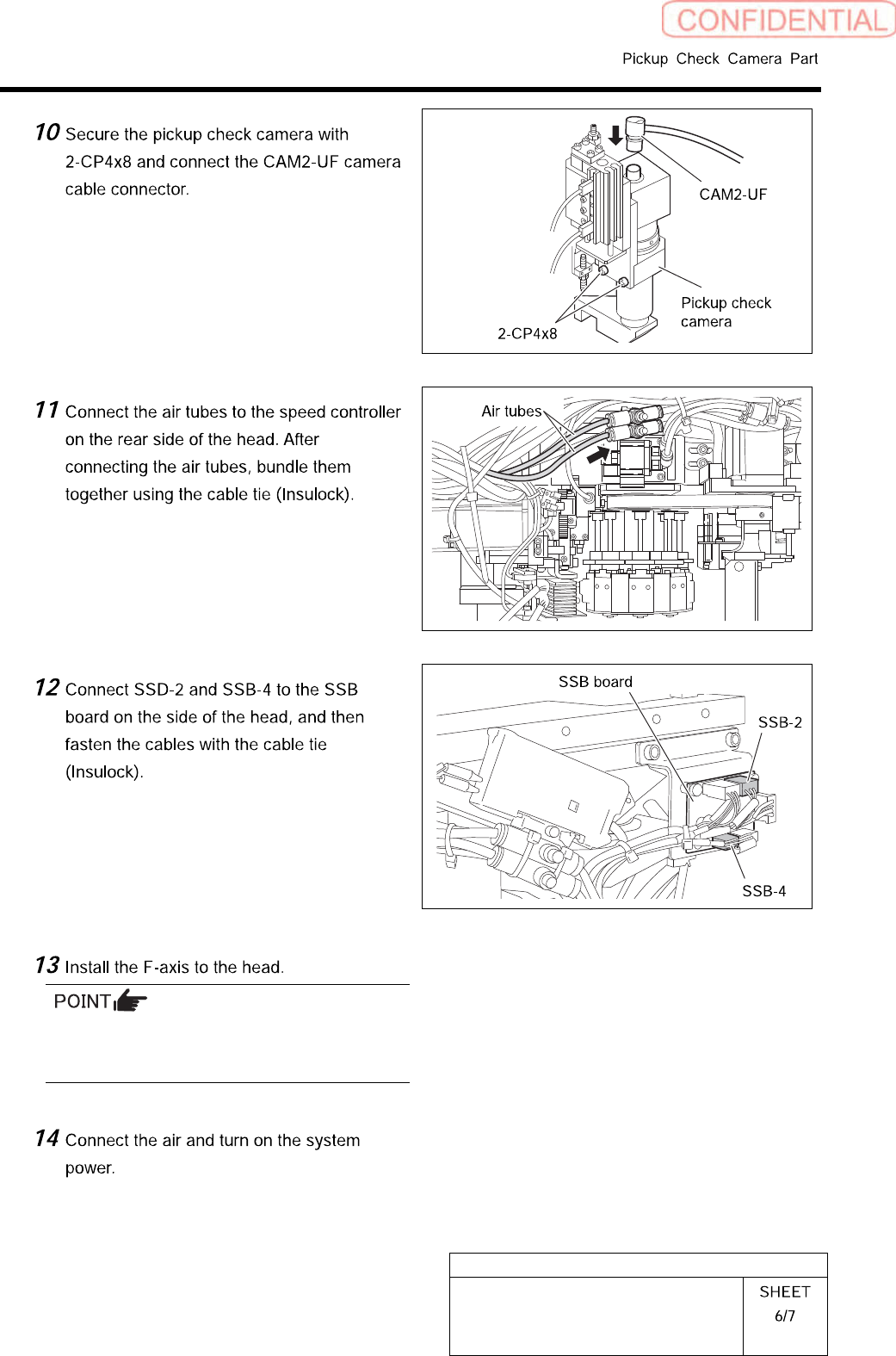

RPGB-10201-01 Pickup Check Camera Up/Down Cylinder Replacement Apply AFC grease thinly t o the pin press-fitted in the camera holder . SSB-4 comes top and SSB-2 comes bottom.
RPGB-10201-01
Pickup Check Camera Up/Down
Cylinder Replacement
[Reassembling Procedure]
Tightening torque: 54[cNm]
RPGB-10201-01
Pickup Check Camera Up/Down
Cylinder Replacement
Apply AFC grease thinly to the pin press-fitted
in the camera holder.
SSB-4 comes top and SSB-2 comes bottom.
RPGB-10201-01
Pickup Check Camera Up/Down
Cylinder Replacement
For the F-axis unit removal procedure, refer to
“F-Axis Belt Replacement Procedure
[RPGB-10101-01]”.
