Special Design 2 Assembly instructions Special des ign for manual tray on X2 at location 1 or 3 04/2007 Edition 21 2 The following restrictions on the tray height (inc lu ding component) app ly if one or two con tact pla…
2 Assembly instructions Special design for manual tray on X2 at location 1 or 3 Special Design
04/2007 Edition
20
: If no second nozzle changer is present, mount the carrier for the second nozzle changer first.
2
2
2
2
2
2
2
2
2
2
2
2
Special Design 2 Assembly instructions Special design for manual tray on X2 at location 1 or 3
04/2007 Edition
21
2
The following restrictions on the tray height (including component) apply if one or two contact
plates are installed beneath the tray holder: 2
– 1 plate 3.5 mm to 16 mm
– 2 plates 0.0 mm to 13.5 mm.
There is a risk of a head crash if these restrictions are not applied. 2
2
2
2
2
2
2
2
2
2 contact plates
1 contact plate
2 Assembly instructions Special design for manual tray on X2 at location 1 or 3 Special Design
04/2007 Edition
22

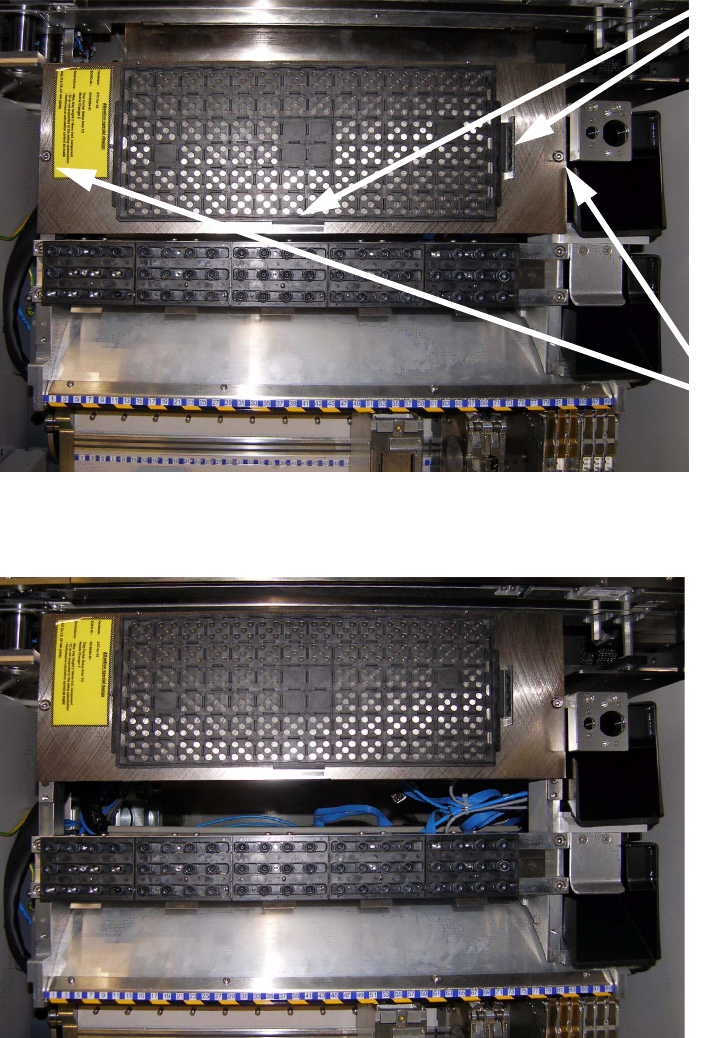

: The arbitrary tray carrier can be installed in two positions. Apply the tray holder on the holder
in one of the two possible positions and fix it with two of the hexagon screws.
: Attach the JEDEC tray to the carrier and fix it with two of the magnets like shown on the pictures
below.
2
2
Two
magnets
Two
hexagon
screws
First possible position
Second possible position
