1002-002 73 Key No. P AR T No. P AR T NAME Q’ty REMARKS OLD P AR TS No. NOTE VL-1 1 010B 0 020 ASSY ,FRAME 1 753VL-010-001 630 105 8313 2 216F 0 230 PIN,GUIDE(REEL BINDER) 1 753VL-010-002 630 044 1871 3 221A 0 267 BOL T …
0108-001
72
大リールホルダ
RL-3210L LARGE REEL HOLDER RL-3210L
Fig. VL-1 32mm
幅テープフィーダ用
FOR 32mm
TAPE FEEDER
2
1
3
18
5
8
7
16
19
9
4
15
6
17
A
B
A
B
1002-002
73
Key No. PART No. PART NAME Q’ty REMARKS OLD PARTS No.
NOTE
VL-1
1 010B 0 020 ASSY,FRAME 1 753VL-010-001 630 105 8313
2 216F 0 230 PIN,GUIDE(REEL BINDER) 1 753VL-010-002 630 044 1871
3 221A 0 267 BOLT,HEX-SCT 2 753VL-010-003 630 095 6849
4 216S 2 141 LEVER 1 753VL-010-004 630 095 6856
5 216E 0 238 PIN,LOCATE 1 753VL-010-005 630 040 4623
6 222N 1 014 SPRING,TORSION 1 753VL-010-006 630 045 5861
7 216J 0 206 HOOK 1 753VL-010-007 630 040 4630
8 216F 0 199 PIN,GUIDE 1 753VL-010-008 630 040 4647
9 016S 0 511 ASSY,LEVER 1 753VL-010-009 630 105 8351
15 221K 0 098 RING E 5 1 753VL-010-015 411 001 0201
16 221E 0 526 SCR TRS 3X10 1 753VL-010-016 411 113 6009
17 221E 0 044 BOLT(FLT HEX-SCT) 3 753VL-010-017 630 036 0967
18 221F 0 108 NUT HEX 6 2 753VL-010-018 411 004 6903
19 221H 0 280 WASHER SPR 3 1 753VL-010-019 411 086 4408
RL-3210L
1002-003
74

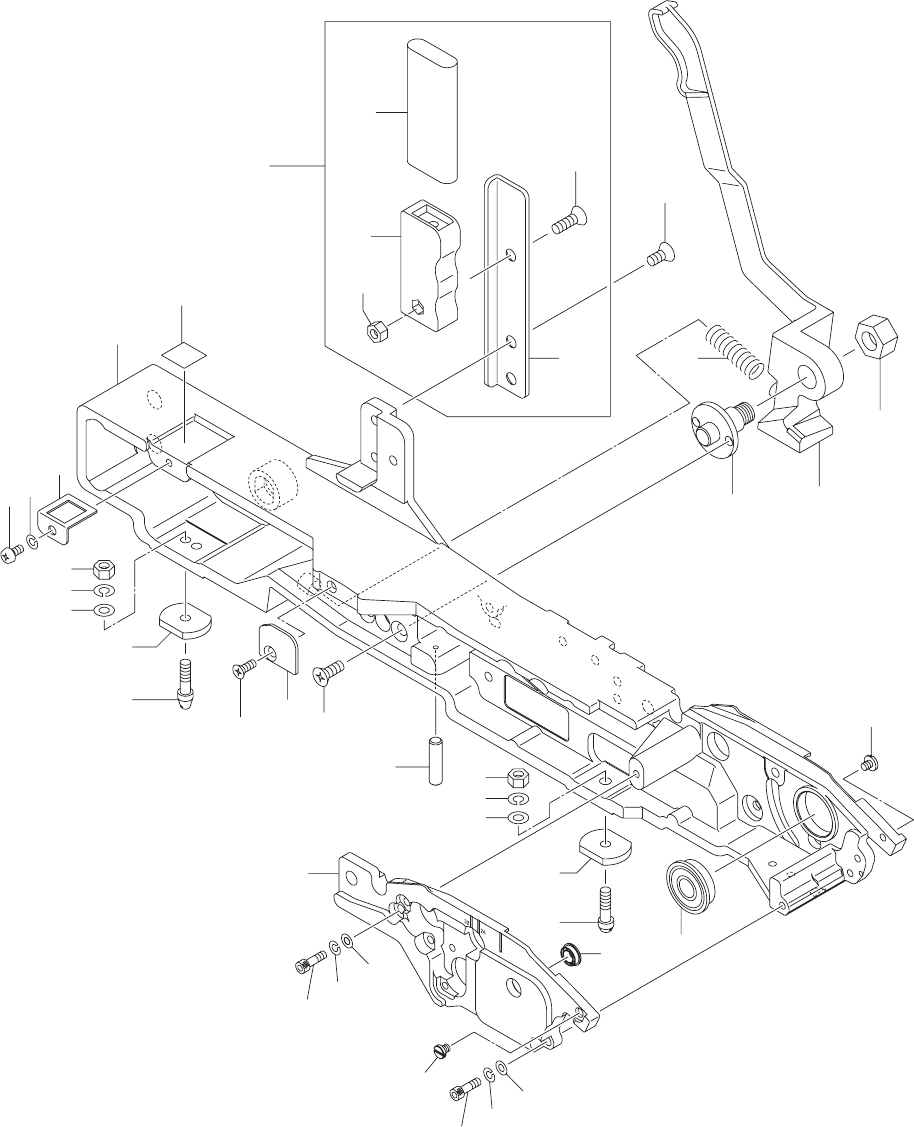

テープフィーダ
TAPE FEEDER
TF-4410, 4411 TF-4410, 4411
Fig. Q-1
フレーム部
Frame Section
5
1
18
10
1
1
12
13
2
4
24
9
25
19
11
12
13
2
3
22
23
20
15
16
8
6
17
7
14
5-04
5-02
5-03
5-01
5-05
21
21
27
26
28
27
26
28
