Scope of Delivery
Software package Setup Center Basic Package
Installation Manual SIPLACE Setup Center 2.3
7
2 Scope of Delivery
2.1 Setup Center Basic Package
2.1.1 Software package
The basic software package SIPLACE Setup Center (Item No. 116921-02) contains the following
components:
1 CD-ROM "SIPLACE Setup Center 2.3", which contains:
– SIPLACE Setup Center Setup
– Microsoft MSDE SP3a and higher
– Sontheim PCI CAN Driver V3.038
1 CD-ROM "Activation CD Forced Setup Control and CLI" (Item No. 00382442-01)
– Activate the forced setup verification and component level indicator for the station software
versions:
Basic documents
– "Getting Started with SIPLACE Setup Center 2.3"
(Item No. 00195517-01 [German], 00195518-01[English])
– "Software Version Description SIPLACE Setup Center 2.3"
(Item No. 0095406-01 [English, German])
– "Installation Manual SIPLACE Setup Center 2.3"
(Item No. 00195397-01 [English])
– "User Guide SIPLACE Setup Center 2.3"
(Item No. 00195401-01 [German], 00195402-01[English])
– "Installation Manual SIPLACE Setup Center 2.3 SIPLACE Setup Selection Assistant"
(Item No. 00195616-01 [English])
– "Installation Manual SIPLACE Setup Center 2.3 SIPLACE Trace Config Assistant"
(Item No. 00195617-01 [English])
– "XML-Import SIPLACE Setup Center 2.2 SP1”
(Item No. 00195379-01 [English])
– "Installation Manual WLAN Infrastructure
(Item No. 00194606-01 [German], 00195607-01 [English])
2.1.2 Hardware package
1 DATALOGIC DRAGON™ M101/D 433MHz Barcode Scanner
1 DATALOGIC OM-DRAGON™ Radio Cradle
1 Serial Cable
1 Power Supply
2.2 Optional: Docking Station
Hardware package:
CAN BUS – PCI card:
CAN BUS card for Setup Center PC Item No.: 00116931-01
– 1 Power CAN PCI card for SC
Scope of Delivery
System requirements SIPLACE Setup Center GUI
8 Installation Manual SIPLACE Setup Center 2.3
– 1 CAN BUS cable for up to 4 docking stations
X docking station:
Docking station for SIPLACE X component trolley Item No.: 00116933-01
– 1 docking station for X-series
– 1 power supply cable 230 V AC (EU)
– 1 power supply cable 125 V AC (US)
– 1 pneumatic connection coupling
2.3 System requirements
The following hardware is required for a successful SIPLACE Setup Center installation.
2.3.1 SIPLACE Setup Center GUI
The same Hardware is recommended as used for SIPLACE Pro Client installations.
The following Software is required:
Windows 2003 Server or Windows XP Professional
Microsoft .NET Framework 2.0
SIPLACE Pro Interface 3.2, 4.1 und 5.0
2.3.2 SIPLACE Setup Center Database
The same Hardware is recommended for SIPLACE Setup Center Database as used for SIPLACE Pro
Server.
The following Software is required:
Windows XP Professional + service packs
Microsoft SQL Server 2005 Express SP1
Microsoft MSDE 2000 with SP3a and higher
Microsoft .NET Framework 2.0
NOTE:
A hard disk with 500 MB or more free space should be used for installation (without the
operating system installed there should be at least 1 GB free space).
NOTE:
A hard disk with 500 MB or more free space should be used for installation (without the
operating system installed there should be at least 1 GB free space).
The size of the database will grow constantly as additional data is stored, this should be taken
into consideration.
Navigation Guide for Installation
SIPLACE System
Installation Manual SIPLACE Setup Center 2.3
9
3 Navigation Guide for Installation
3.1 SIPLACE System
Please use the following documents to lead you through the installation procedure for SIPLACE System.
3.2 SIPLACE Setup Center 2.3

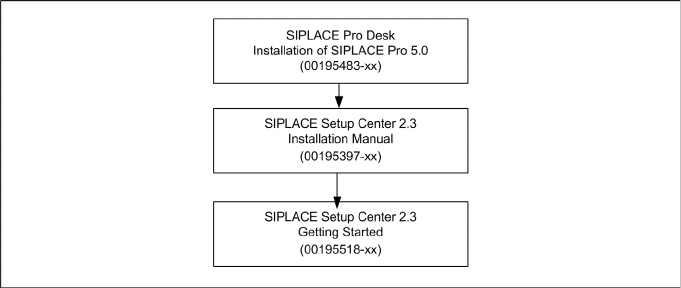

The installation procedure is divided into several parts (see the following Figure):
1. Installation of hardware
Barcode scanner
– Dragon Scanner's Cradle or Symbol MC70 2D barcode scanner
Optional: Docking Station
2. Installation of software
Setup Center, with setup type
–GUI
– Database
– Complete
Setup Center "Forced Setup Verification"
3. Settings
Station software, see SIPLACE Setup Center 2.3 User Guide (item no. 00195402-xx)
Dragon Scanner or Symbol MC70 2D Barcode scanner (see the chapter "Scanner Configuration")
Setup Center, see SIPLACE Setup Center 2.3 Getting Started (item no. 00195518-xx)
SIPLACE Pro, see SIPLACE Setup Center 2.3 User Guide (item no. 00195402-xx)
Barcode Label Wizard, see SIPLACE Setup Center 2.3 User Guide (item no. 00195402-xx)
