Installation Hardware Installation Optional: Docking Station 40 Installation Manual SIPLACE Setup Center 2.3 See the connection scenarios below for CAN Bus cable connection. CAN Bus Cable Connection Examples Connection E…
Installation
Optional: Docking Station Hardware Installation
Installation Manual SIPLACE Setup Center 2.3
39
Setting the CAN Bus Address
You need to set a CAN Bus address for each docking station. This CAN Bus address must be different
for each docking station.
X Set the CAN Bus address for the docking station.
5-12: Docking station: CAN bus addresses
X Make sure that you only assign each address once, when setting the CAN Bus address.
Establishing a Data Connection
Establish a data connection between the docking station and the SC PC. This data connection is realized
via a CAN Bus. Ensure that you have already installed the CAN card in your PC.
Connect the CAN cable to the docking station and the PC. This CAN cable has 5 connections, one of
which you can use for the PC. This leaves 4 other connections, allowing you to connect up to 4 docking
station with this cable.
X Connect the CAN cable to the CAN connection at your docking station. This can be found on the
back of the docking station.
X Connect the CAN cable to the CAN card on the PC (CAN Bus 1 or 2).
WARNING:
Do not connect the device during placement or when installed inside the placement machine.
DANGER:
Never cover the air discharge opening in the integrated fan and the ventilation slits on the side
of the device!
Covering these could lead to overheating and destruction of the power pack.
Installation
Hardware Installation Optional: Docking Station
40 Installation Manual SIPLACE Setup Center 2.3
See the connection scenarios below for CAN Bus cable connection.
CAN Bus Cable Connection Examples
Connection Example 1
5-13: Connection example 1: CAN bus cable
Legend:
1. CAN Bus Address Switch
2. CAN Connection
NOTE:
The integrated terminal resistor can be connected and simultaneously connects / disconnects
the outgoing bus cable when deactivating / activating. This allows an easy start up of the bus
system one segment at a time.
Installation
Optional: Docking Station Hardware Installation
Installation Manual SIPLACE Setup Center 2.3
41

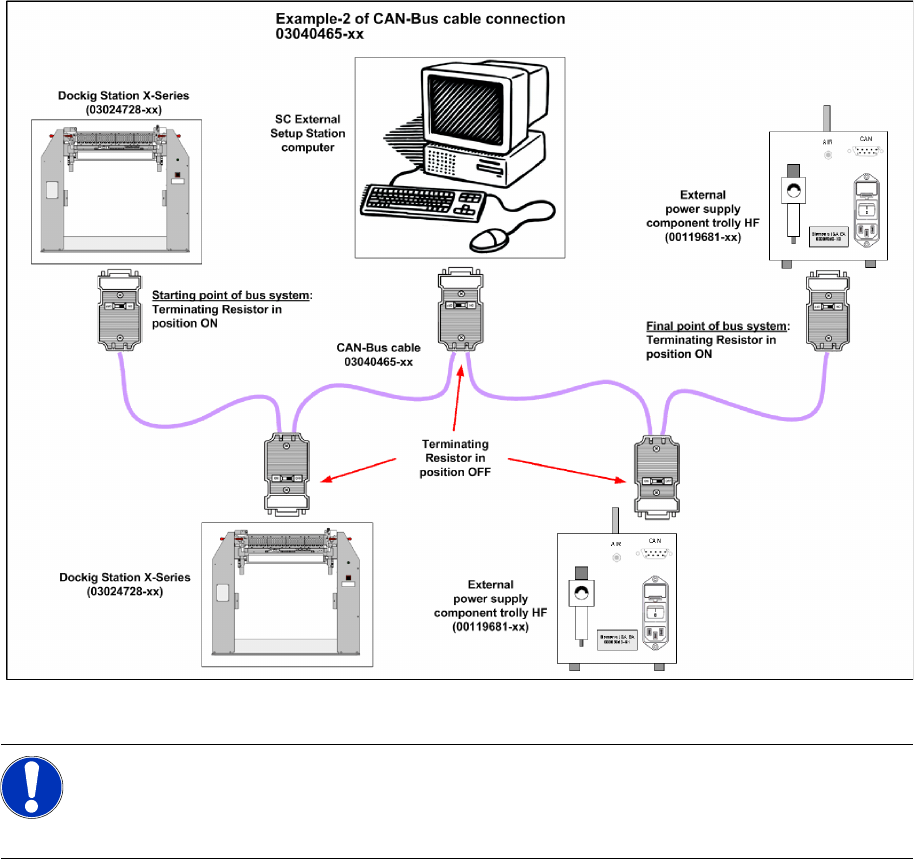

Connection Example 2
5-14: Connection example 2: CAN bus cable
NOTE:
The integrated terminal resistor can be connected and simultaneously connects / disconnects
the outgoing bus cable when deactivating / activating. This allows an easy start up of the bus
system one segment at a time.
