10. Safety

YSM20R (SESMK18400-00) v2.001

10.5 Keeping hands away from moving parts

During use of this machine, the customer’s equipment and operating conditions might allow the operator’s

hands to come into contact with moving parts.

Use the following safety measure options to avoid possible danger where openings or gaps are found on the

machine.

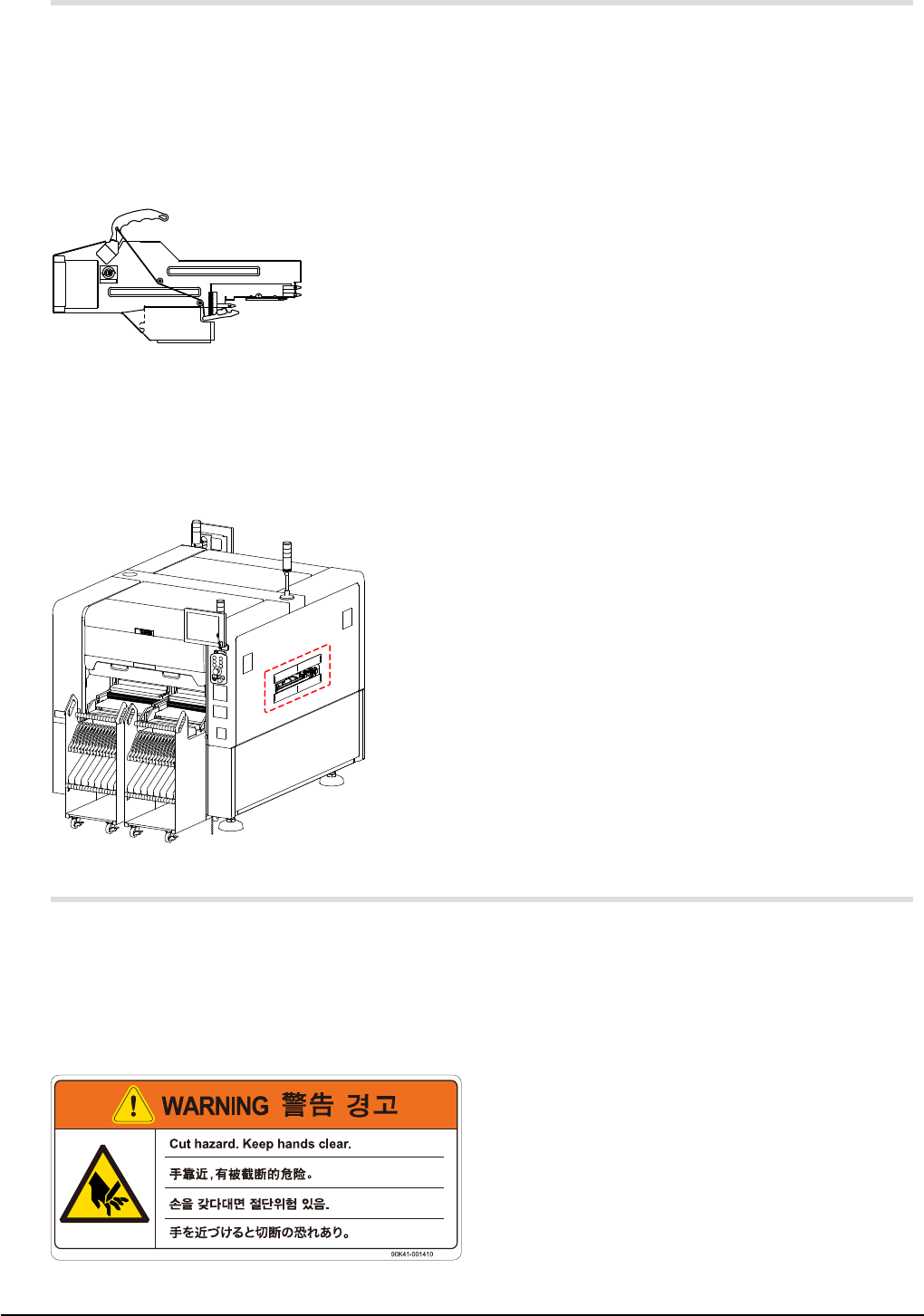

Dummy feeder

Use dummy feeders as safety measures to fill a gap between tape feeders. Install dummy feeders on the

feeder plate the same way as normal feeders in order to prevent hands from entering.

One-stop cover (for machines designed for use with feeder exchange carriage, excluding YSM40/YSM40R)

If not using a feeder exchange carriage in the machine that is to be used with feeder exchange carriages,

install a one-stop cover in the position where a feeder exchange carriage is to be installed.

Muzzle plate

Use these plates as a safety measure for the board conveyor entrance and exit openings.

Each plate is movable, so adjust the mounting position to match the boards to be produced.

10.6 Warnings regarding tape cutter

Operating the built-in tape cutter in an incorrect manner can be extremely hazardous.

Always observe the following rules:

* Never supply electrical power and air to the machine while the covers for the tape cutter are removed.

* Tape cutter maintenance tasks must be performed by YAMAHA service personnel.

Tape cutter warning label

10. Safety

YSM20R (SESMK18400-00) v2.001

10.7 CE marking

This equipment conforms to the EU Machinery Directive 2006/42/EC (*1) and EMC Directive 2014/30/EU

(*2).

However, this equipment does not bear CE marking if a custom-order item (with the special specifications)

was installed.

*1 Cautions regarding the official language of EU countries and the language used in operation manuals,

CE declarations, operation screen characters, and warning labels when this equipment is installed in an

EU country.

Warning labels only have pictograms or else include warning messages in English, Chinese, Korean and

Japanese language.

*2 Description of EMC (Electro Magnetic Compatibility)

• Electromagnetic immunity (Immunity)

Complies with test standards as specified by EN 61000-6-2.

• Electromagnetic emissions (Emission)

Complies with test standards for ISM category: Group 1, Class A, as specified by EN 55011.

Class A equipment is intended for use in industrial environments. If used in other environments, ensuring

electromagnetic compatibility (EMC) might be difficult. Refer to EN 55011 standards for detailed

information.

11. Specications

YSM20R (SESMK18400-00) v2.001

11. Specifications

11.1 Major specifications

Machine

type and

model

Type PV :

YSM20R-2 model : KMK-000

YSM20R-1 model : KMK-100

Type SV :

YSM20R (SV)-2 model : KMK-500

YSM20R (SV)-1 model : KMK-600

Outside

dimensions

L 1,374 x W1,857 x H1,445 mm (Main unit only)

Weight

Approx. 2,050kg (Main unit only / 2 beams, Dual-stage specifications)

Approx. 1,950kg (Main unit only / 1 beams, Single-Lane specifications)

Approx. 70kg (32-feeder exchange carriage)

Approx. 160kg (cATS10)

Approx. 250kg (sATS30)

Approx. 290kg (sATS30NS)

Noise to be

generated

78dB (A) or less

* The dimensions exclude any removable projecting parts.

* For detailed dimensions or dimensions with various options installed, see the figure below.

* The following figure shows the machine with various options installed, such as feeder exchange carriage.

1270

(The space necessary

to move cATS10.)

1057

(During sATS30NS

operation)

1857

864

4184

2975 345

228

900

(Hight of Trandport)

400

450

1541

60 140

1744(Both Side External CONV.)

1559(R Side External CONV.)

1559(L Side External CONV.)

1372(Standard CONV.)

EL POWER SUPPLYAIR SUPPLY

EL POWER SUPPLY

AIR SUPPLY

1850

1445

1621

1340(Monitor)

1045(Keyboard)

927

1347

1797

30 1797 30

1857187

124 1125

686

343

436 742

2975

225

435

200

658(SL,DS)

413

CONVEYOR

(SL,DS)
