11. Specications
YSM20R (SESMK18400-00) v2.001

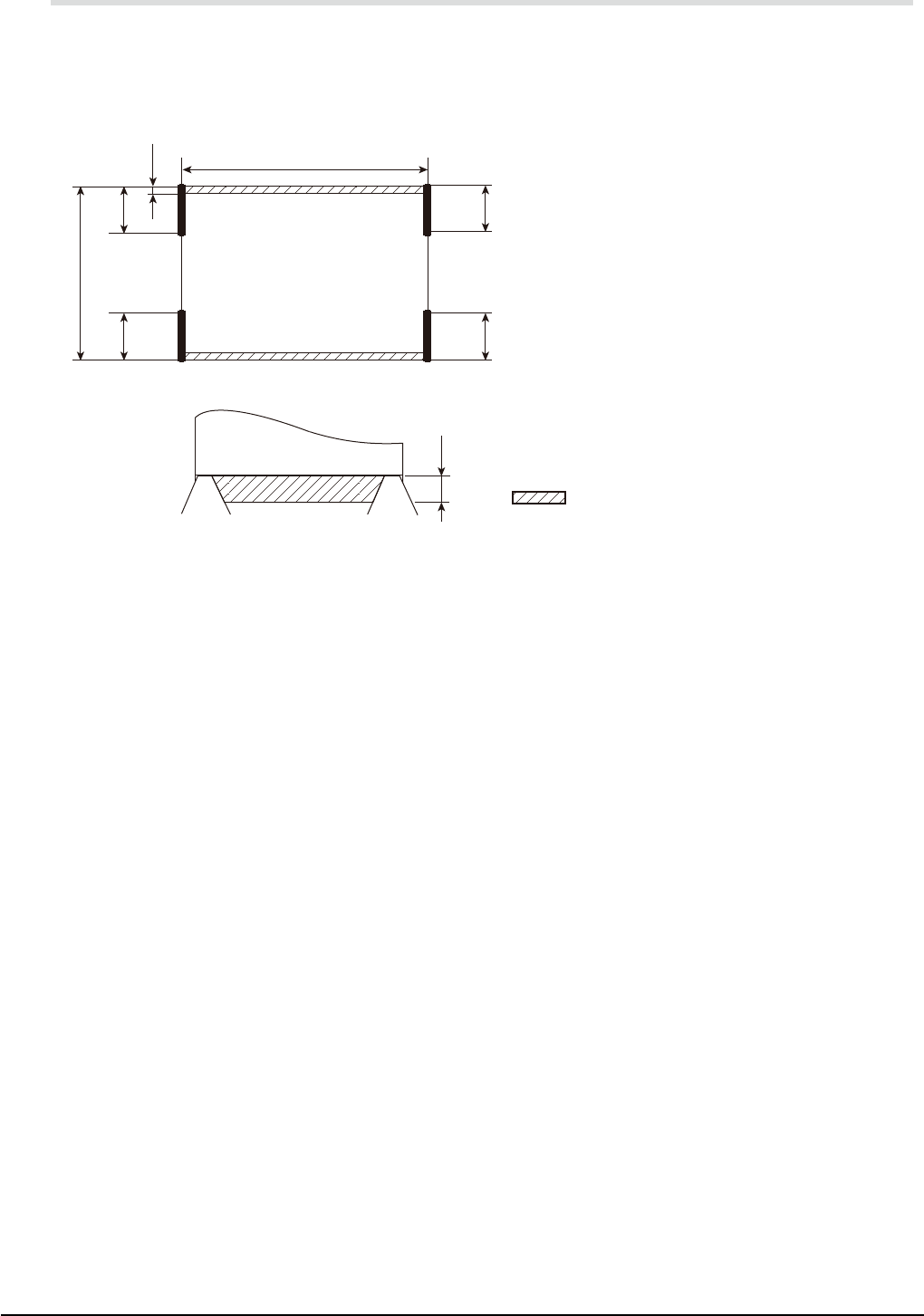

11.8 Unmountable areas on board
As illustrated below, the board includes areas where no components can be mounted due to the interference
with the conveyor rail, particularly with the board clamp claws.
Additionally, 30mm-straight zones expressed by "A" to "D" are required for the board edge to halt against
the stopper. The stopper is installed at a position of "A" to "D" depending on the machine configuration
determined by the conveyor type, board transport direction, and conveyor reference.
Rear
"Mounting not possible" range
Lmm
W
A
C
B
D
3mm
3mm
PCB suppressing PCB suppressing
Dual-stage & single-lane model
A : Right-to-left transport and front conveyor reference
B : Left-to-right transport and front conveyor reference
C : Right-to-left transport and rear conveyor reference
D : Left-to-right transport and rear conveyor reference
* Rear conveyor reference is a special order item.
33
11. Specications
YSM20R (SESMK18400-00) v2.001
11.9 Applicable board thickness
0.4 to 3.0mm
11.10 Applicable board weight
0.65kg or less per sheet
* Consult us for board weights exceeding 0.65kg.
11.11 Recommended board material
Glass fiber reinforced epoxy resin
* Consult us for other materials.
11.12 Allowable board warp
0.5mm
1.0mm
Upward warp: 0.5mm or less
Downward warp: 1.0mm or less
* Warps which exceed the above values (particularly the upward warp) may significantly reduce the
component mounting accuracy. An excessive warp may cause interference with the head, nozzle,
or camera, so use caution.
11.13 Board slits and holes
The conveyor is equipped with sensors (light transmission type) to check the position of boards being
conveyed. The position of the boards may not be detected correctly if they have slits and holes.
Consult us when using such boards.
34
11. Specications
YSM20R (SESMK18400-00) v2.001

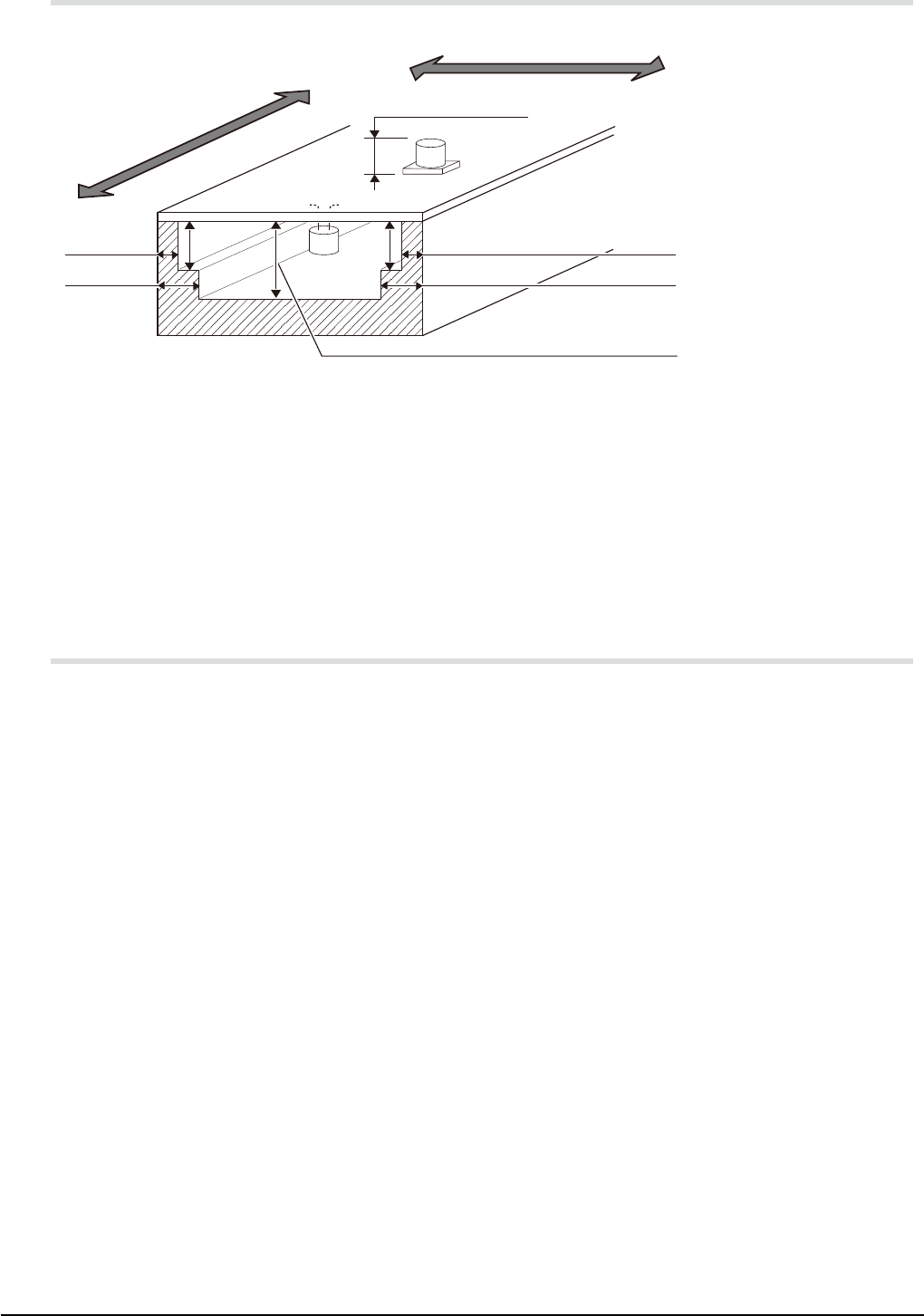

11.14 Restrictions on mounting components on boards
Component height
(For details about mountable
component height, see below.)
3.5mm
Max.30mm
W direction
L direction
Rear
Front
5.5mm
3.5mm
5.5mm
H
H
：
19mm
(Dual-stage conveyor)
17.5mm
(Single lane)
H
Upper side of board: See "11.5.1 Height of mountable components".
* No components can be placed in areas of 3mm from both ends in the board transport direction.
See also the figure in "11.8 Unmountable areas on board".
Back side of board: 30mm or less
* No components can be placed in areas of 3.5mm from both ends in the board transport direction.
No components can be mounted in the shaded areas in the above figure.
11.15 Board transport speed
50 to 500mm / sec (Speed setting can be changed.)
* The transport speed may vary depending on the board weight.
