12. General specications

YSM20R (SESMK18400-00) v2.001

[GATE OUT] : When this machine is ready for operation, it outputs this board unloading request ON

(conduct) signal to the pre-process machine.

[BUSY OUT] : This output signal informs the pre-process machine that this machine is loading a board.

[BA IN] : This input signal informs this machine that the pre-process machine is ready to unload a board.

The pre-process machine output is a relay contact (dry contact : no-voltage circuit).

[UR IN] : This input signal informs this machine that the pre-process machine is running in automatic mode.

The pre-process machine output is a relay contact (dry contact: no-voltage circuit).

[LR OUT] : This output signal informs the pre-process machine that this machine is running in automatic

mode.

[LE OUT] : This signal is used for the Advanced (extended) GATE 2 specifications when the "inter-machine

board standby function" used between mounters is enabled. This output signal informs the pre-

process machine that a board is at the standby position between this machine and pre-process

machine. The cable with a yellow marking put close to the connector should be used for the

machine-to-machine cable.

[LS OUT] : This signal is used for the Advanced (extended) GATE 2 signal specifications only when the

"priority lane signal output" setting is enabled.

When using the dual-lane, this output signal is used to select the priority lane on the pre-process

machine that unloads the next board. (Example of pre-process machine: dual-lane branching

conveyors, solder printers, etc.) The cable with a yellow marking put close to the connector should

be used for the machine-to-machine cable.

Machine-to-machine signal specifications (between this machine and pre-process machine)

* Previous Interface

Relay output

DC+24V

PNP input

Input

Relay output

Input

Relay output

Input

I/O BOARD

Previous Interface on this machineNext Interface on pre-process machine

Previous Interface connector

AMP: 206043-1

(Receptacle 14 pins)

12. General specications

YSM20R (SESMK18400-00) v2.001

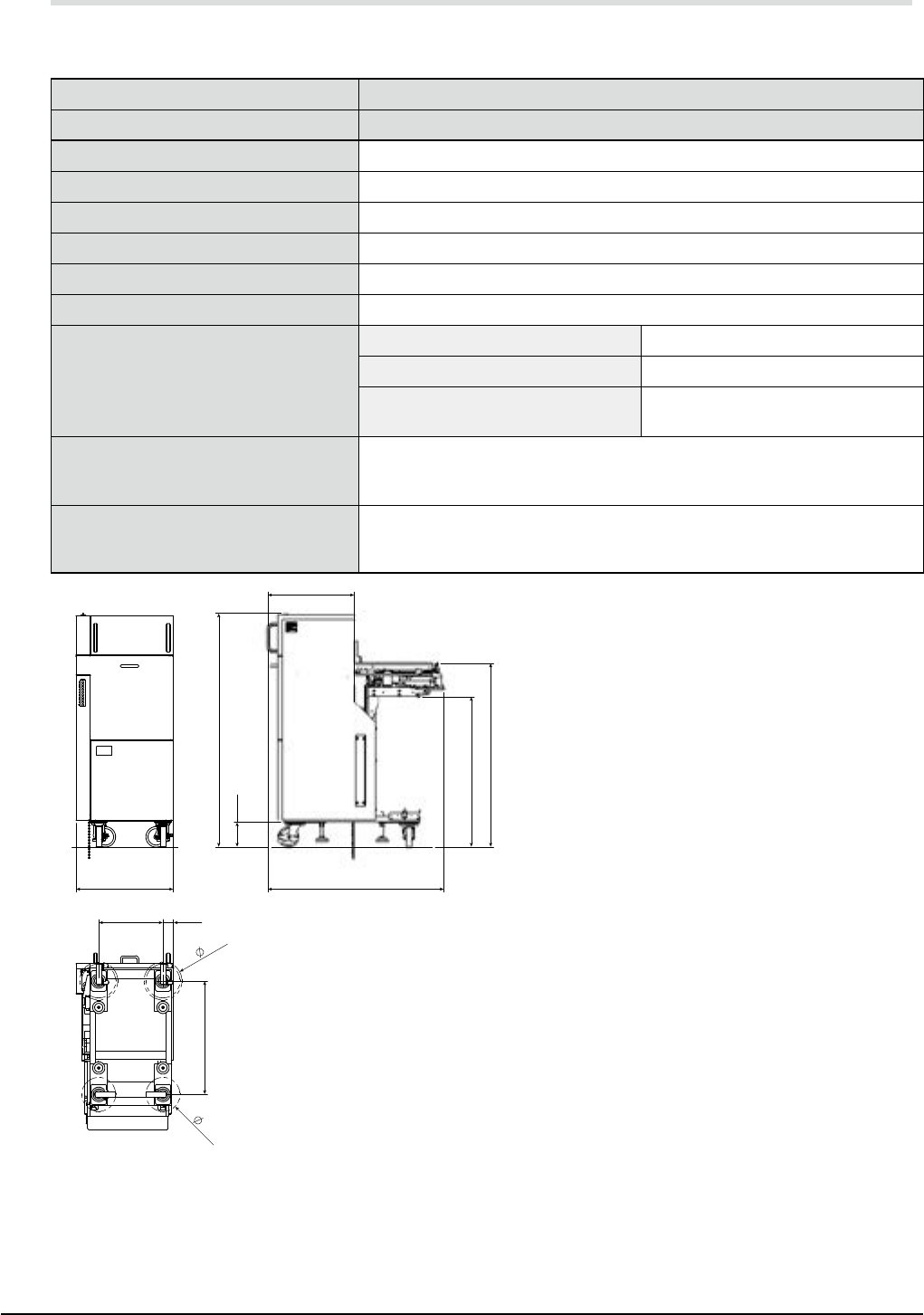

12.13 Carriage type tray supply unit

The cATS10 is compatible with the YSM20R-2 and YSM20R-1, and can be installed on the front and rear of

the machine.

Unit cATS10 (Carriage type tray supply unit)

Type KLX-000, KLX-100

Outline dimensions L480 x W870 x H1,150 mm

Weight Approx. 160kg

Power supply / air supply source Supplied from this machine

Component pickup head See the illustration on the following page.

Component supply format Tray loaded components

Maximum tray size L335 x W230mm

Allowable height <Tray + components>

* Height of mountable components

depends on the head type. For details,

see "11.5.1 Height of mountable

components".

With a 12.5mm pallet pitch 8.5mm or less

With a 25mm pallet pitch 20mm or less

With a 37.5mm pallet pitch 32mm or less

Number of component types

Number of magazine racks that can be stored: 1 set

Number of pallets that can be stored: Maximum of 10

* Each magazine rack can be replaced at a time.

Maximum loading weight

Maximum loaading weight (940g) = Standard pallet (approx. 440g) + tray and

electronic components (500g or less)

* When special-order pallets are used, check the weight of each pallet itself.

1150

123

740

905

316

558

868

427

479

* The magazine racks and pallets are available in two types: standard type and IT-Option type (with

barcode).

* The pallets used for the cATS are identical with the YS pallets.

* One recovery pallet (option) can be used in each magazine rack.

Select using QFP recovery pallet in "1. Machine Configuration".

12. General specications

YSM20R (SESMK18400-00) v2.001

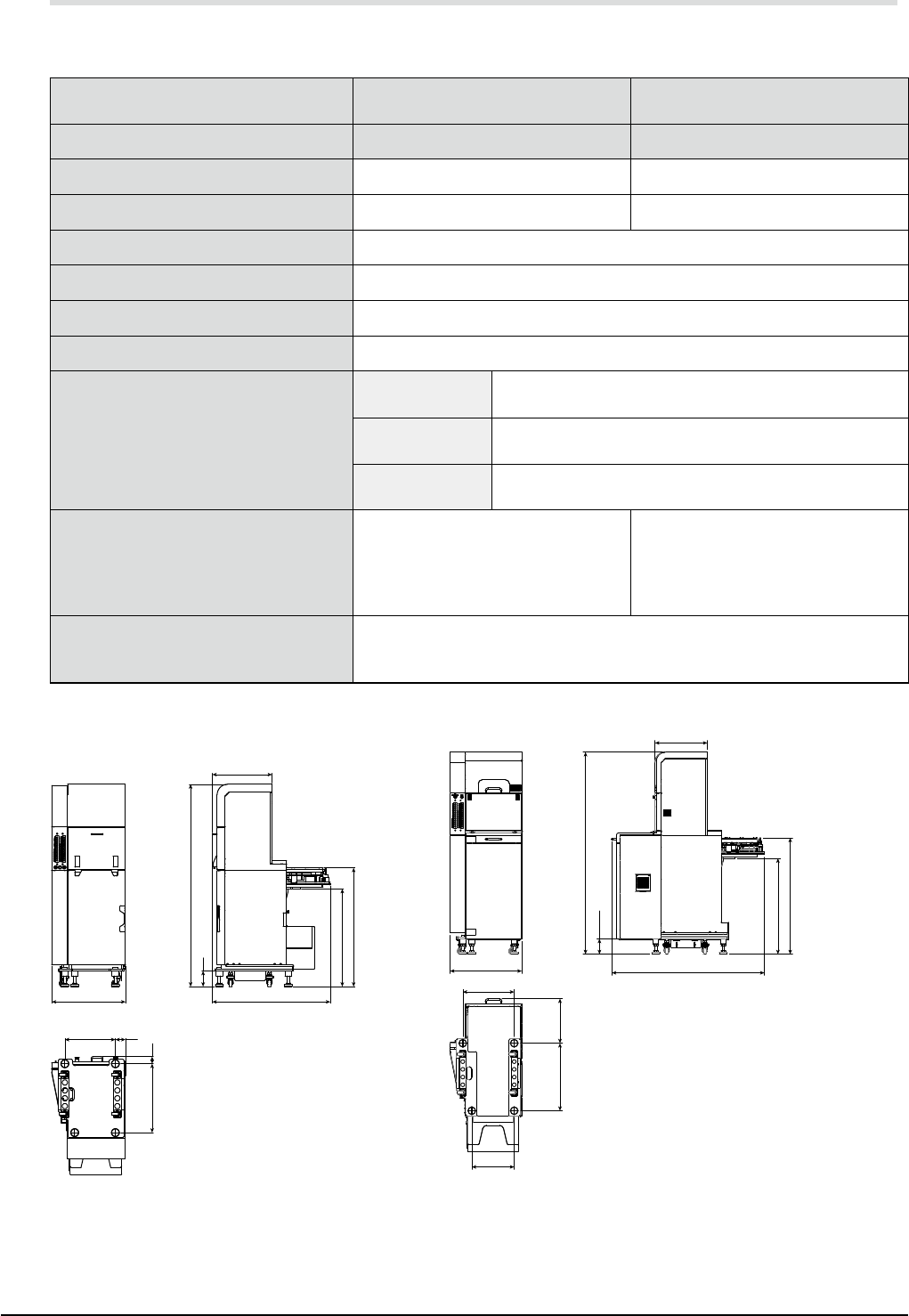

12.14 Fixed type tray supply unit

sATS30 and sATS30NS are compatible with the YSM20R-2 and YSM20R-1, and can be installed on the front

and rear of the machine.

Unit

sATS30

(Fixed type tray supply unit)

sATS30NS

(ATS for nonstop tray replacement)

Type KMA-000 KMH-000

Outline dimensions L562 x W899 x H1,542 mm L562 x W1,187 x H1,542 mm

Weight Approx. 250kg Approx. 290kg

Power supply / air supply source Supplied from this machine

Component pickup head See the illustration on the following page.

Component supply format Tray loaded components

Compatible tray size L335 x W230mm or smaller

Allowable height <Tray + components>

* Height of mountable components

depends on the head type.

For details, see "11.5.1 Height of

mountable components".

With a 12.5mm

pallet pitch

8.5mm or less

With a 25mm

pallet pitch

20mm or less

With a 37.5mm

pallet pitch

32mm or less

Number of component types

Number of magazine racks that can

be stored: 2 set

Number of pallets that can be stored:

Maximum of 30

* Each magazine rack can be replaced at a time.

Number of magazine racks that can

be stored: 2 set

Number of pallets that can be stored:

Maximum of 30

* Allow pallet supply at any time by supply station.

Maximum loading weight

Maximum loaading weight (940g) = Standard pallet (approx. 440g) + tray and

electronic components (500g or less)

* When special-order pallets are used, check the weight of each pallet itself.

sATS30 sATS30NS

562

1542

120

455

899

745

905

77385

54525

562

1572

120

407

1187

745

905

525 347

400

330

* The magazine racks and pallets are available in two types: standard type and IT-Option type (with

barcode).

* The pallets used for the cATS are identical with the YS pallets.

* One recovery pallet (option) can be used in each magazine rack.

Select using QFP recovery pallet in "1. Machine Configuration".
