13. References and details
YSM20R (SESMK18400-00) v2.001
13.2 Nozzle

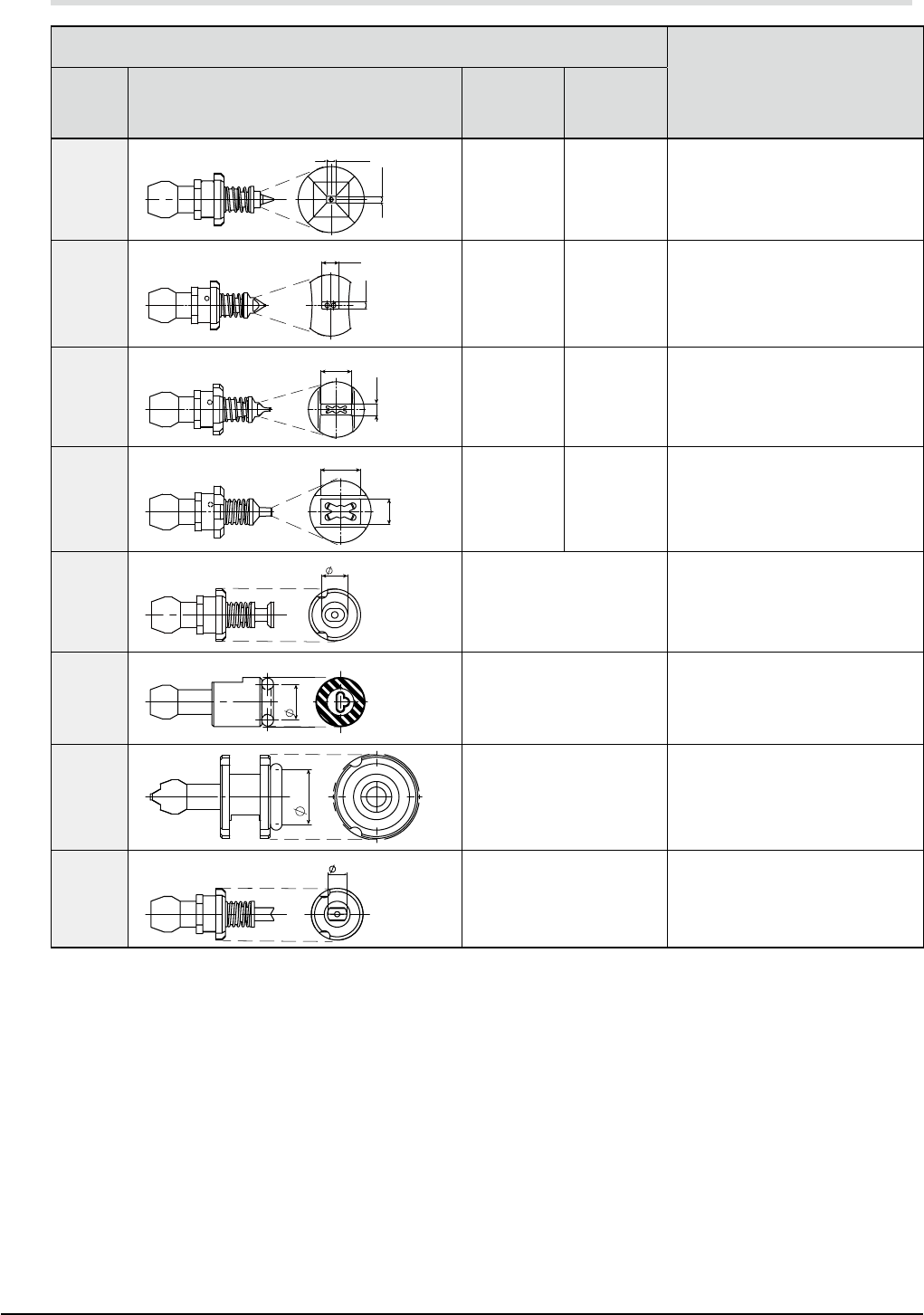

"Narrow-pitch" 31X nozzle
Parts number
Type Outer shape
Applicable
Components
(mm)
Applicable
Components
(inch)
3110A
310A
3010A
3110A
0.25
0.35
0402
dedicated
01005
dedicated
KHY-M77A0-A0X,
NZL.310 / 3010 / 3110
311A
0.3
0.7
311A
0603
dedicated
0201
dedicated
KHY-M7710-A4X,
NOZZLE 311A ASSY.
312A
1.2
0.45
312A
1005
1608
* Default
setting
0402
0603
KHY-M7720-A3X,
NOZZLE 312A ASSY.
313A
1.95
1.25
313A
2012
3216
3225
0805
1206
1210
KHY-M7730-A2X,
NOZZLE 313A ASSY.
314A
303A
314A
4
SOP
KHY-M7740-A0X,
NOZZLE 303A / 314A AS.
315A
5.7
304A
315A
QFP
(□32mm or less)
KHY-M7750-A0X,
NOZZLE 304A / 315A AS.
318A
8.9
307A
318A
Large component
(□32mm to 45X100mm)
* HM head can be attached only
H3 / H8
KHY-M7780-A0X,
NOZZLE 307A / 318A AS.
317A
306A
317A
3
Cylindrical components
* With V-cut
KHY-M7770-A0X,
NOZZLE 306A / 317A AS.
* Select either nozzle for the head to be used. The nozzle must be selected exclusively.
* According to the restrictions on operating program, 31X nozzle and 30X nozzle cannot be mixed within
one head.
67
13. References and details
YSM20R (SESMK18400-00) v2.001

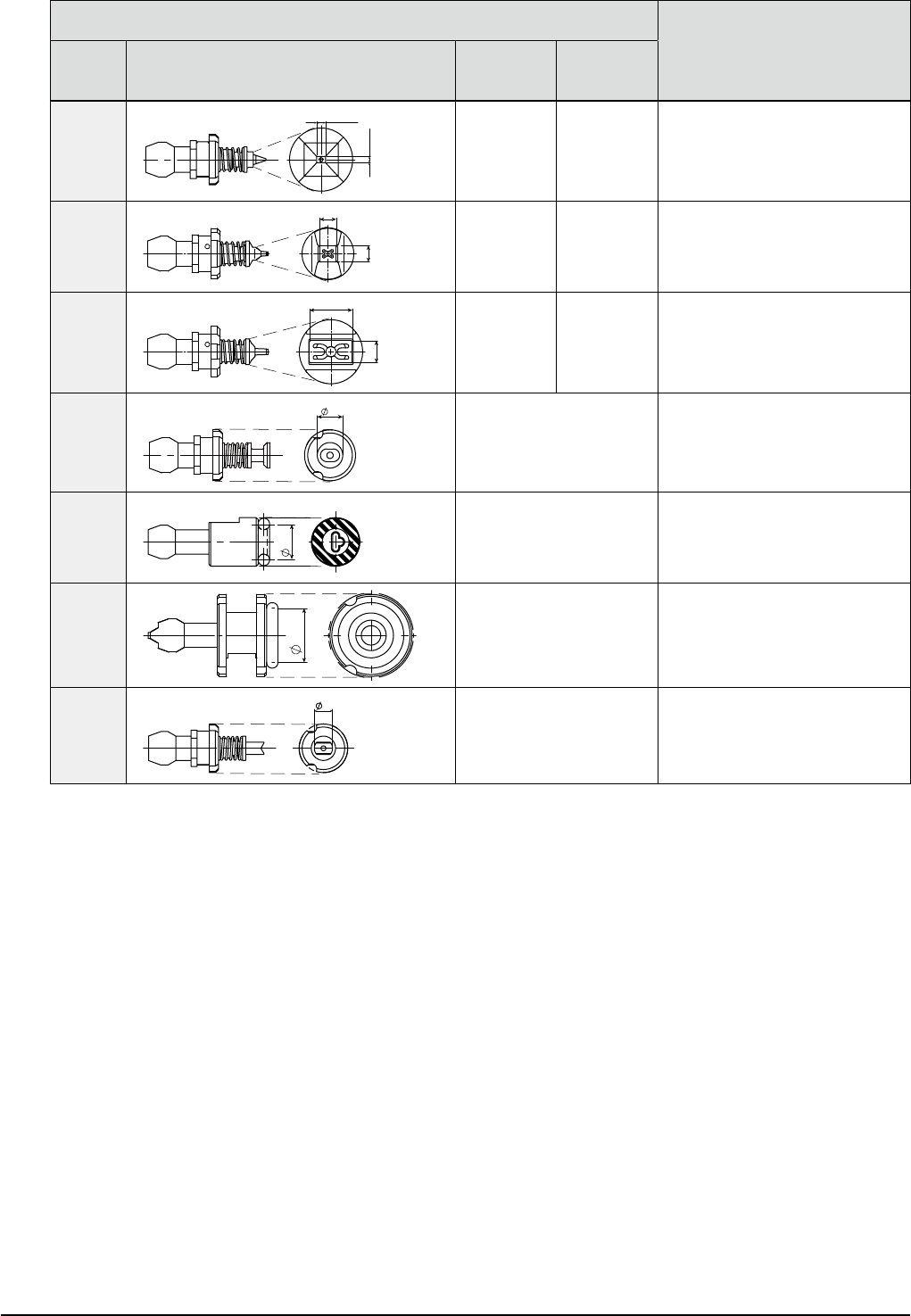

Standard 30X nozzle
Parts number
Type Outer shape
Applicable
Components
(mm)
Applicable
Components
(inch)
3010A
310A
3010A
3110A
0.25
0.35
0402
dedicated
01005
dedicated
KHY-M77A0-A0X,
NZL.310 / 3010 / 3110
301A
0.65
0.65
301A
0603
1005
* Default
setting
0201
0402
KHN-M7710-A4X,
NOZZLE 301A ASSY.
302A
1.7
0.9
302A
1608
2012
3216
0603
0805
1206
KHN-M7720-A3X,
NOZZLE 302A ASSY.
303A
303A
314A
4
SOP
KHY-M7740-A0X,
NOZZLE 303A / 314A AS.
304A
5.7
304A
315A
QFP
(□32mm or less)
KHY-M7750-A0X,
NOZZLE 304A / 315A AS.
307A
8.9
307A
318A
Large component
(□32mm to 45X100mm)
* HM head can be attached only
H3 / H8
KHY-M7780-A0X,
NOZZLE 307A / 318A AS.
306A
306A
317A
3
Cylindrical components
* With V-cut
KHY-M7770-A0X,
NOZZLE 306A / 317A AS.
* Select either nozzle for the head to be used. The nozzle must be selected exclusively.
* According to the restrictions on operating program, 31X nozzle and 30X nozzle cannot be mixed within
one head.
68
13. References and details
YSM20R (SESMK18400-00) v2.001
Installation nozzle (2-beam specs.)
Item Details
Installation nozzle
* Write when no nozzle station is provided.
* According to the restrictions on operating program,
31X nozzle and 30X nozzle cannot be mixed within
one head.
* The initial setting is either 312A or 301A.
* For narrow pitch mounting, install 312A nozzles for
the number of heads. For standard pitch mounting,
install 301A nozzles for the number of heads. (When
no nozzle station is provided.)
Type Outer shape Applicable (Metric)
"Narrow-
pitch" 31X
nozzle
3110 A 0402
311A 0603
312A 1005 / 1608
313A 2012 / 3216 / 3225
314A SOP
315A QFP(□32mm or less)
318A
QFP
* HM head can be attached
only H2 / H8
317A Cylindrical components
Standard
30X
nozzle
3010A 0402
301A 0603 / 1005
302A 1608 / 2012 / 3216
303A SOP
304A QFP(□32mm or less)
307A
QFP
* HM head can be attached
only H2 / H8
306A Cylindrical components
Front head * Table A
HM head
12 12 12 12 12 12 12 12 12
H1 H3 H5 H7H2 H10H8 H9H6H4
FM head
24 24 24 24
Left FID Camera
H4H2 H5H3H1
Rear head * Table B
HM head
12 12 12 12 12 12 12 12 12
Left FID Camera Right FID Camera
H1H2H3H4H5H6H7H8H9H10
FM head
24 24 24 24Left FID Camera Right FID Camera
H1H2H3H4H5
