Technical data
Electrical ratings, energy consumption and
compressed air supply

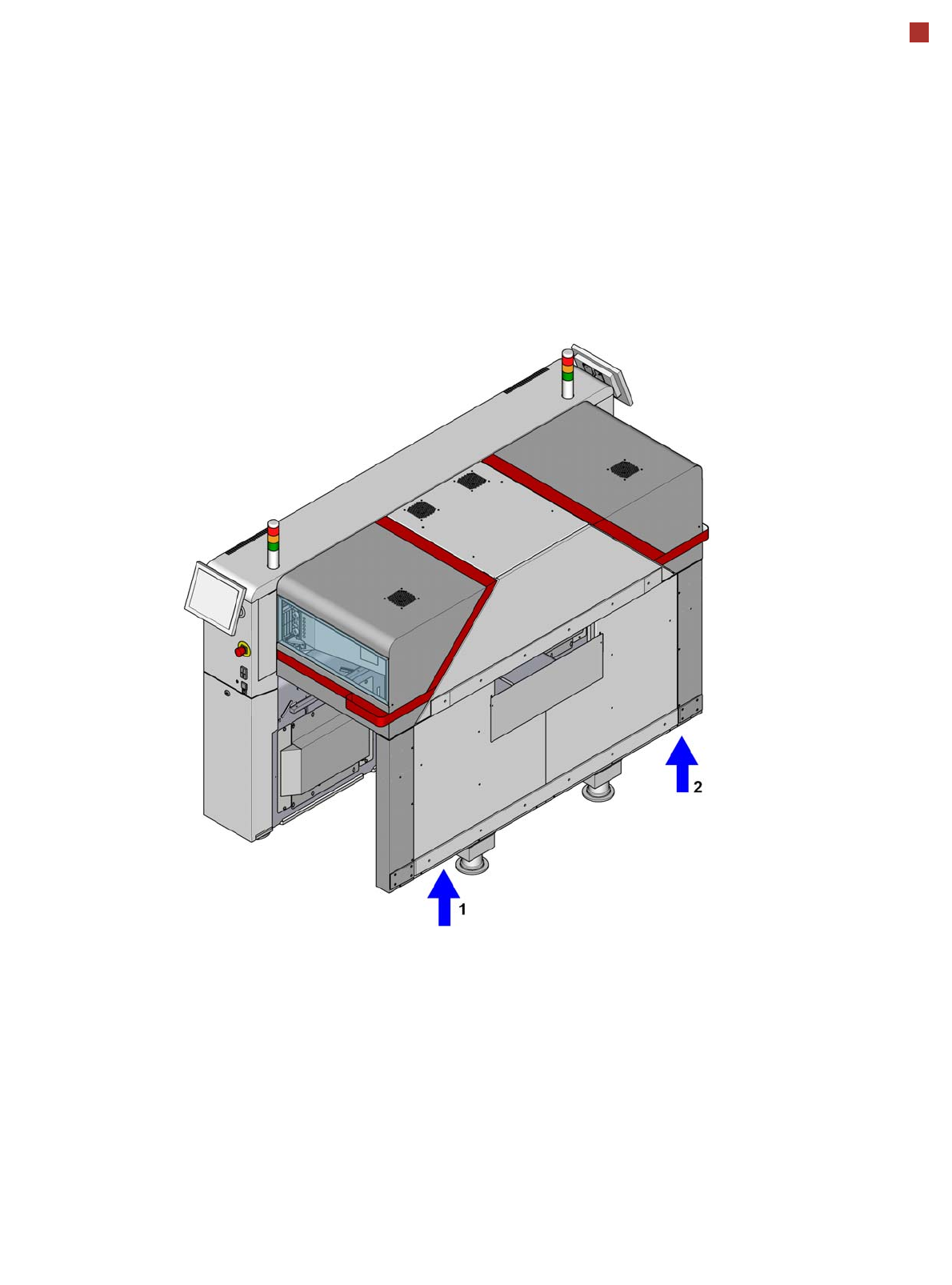

1 = Electrical connection
2 = Compressed air connection
The connections are run into the machine from below and then connected to the power supply
or pneumatic unit terminals.
32
Technical data
Dimensions and setup conditions
Length
a
Without conveyor extension and with hand guard
With input conveyor extension
b
With output conveyor extension
With input and output conveyor extension)
a) Measured at the outer contour of the machine protection.
b) Only at the first machine in the line.
1000 mm
1260 mm
1604 mm
1864 mm
Width
Outer contour of machine protection (table "inside")
With monitor
Outer contour of machine protection (table location 1 "outside")
Machine frame
2232 mm
2386 mm
2324 mm
2048 mm
Height of machine (for PCB conveyor height 950 mm)
Up to upper edge of machine protection
With 2-color indicator lamp
With 3-color indicator lamp
Without indicator lamp (height of packaging)
With folded-up short protective cover 45 degrees position
With folded-up short protective cover 60 degrees position
With folded-up short protective cover 45 degrees position
With folded-up short protective cover 60 degrees position
1500 mm
1690 mm
1735 mm
1500 mm
1960 mm
2070 mm
2050 mm
2175 mm
Machine ground clearance
(for PCB conveyor height 900 mm)
(for PCB conveyor height 930 mm)
(for PCB conveyor height 950 mm)
120 mm ± 15 mm
150 mm ± 15 mm
170 mm ± 15 mm
Weight
SIPLACE TX micron (machine with component trolley)
SIPLACE TX micron (fully equipped with feeder modules)
2050 kg
2150 kg
Location
c
With tables, outside
c) Measured at the outer contour of the machine protection and without conveyor extension.
2.23 m²
2.33 m²
Even surface load
Characteristic surface load
6.75 kN/m²
7.70 kN/m²
Number of machine feet 4
Max. noise emissions 75 dB (A)
Room temperature Between
+18°C and +25°C (± 2K)
Atmospheric humidity 30% to 75 % (no higher than 45% on
average to prevent any possibility of con-
densation on the machine)
33
Technical data
Machine dimensions

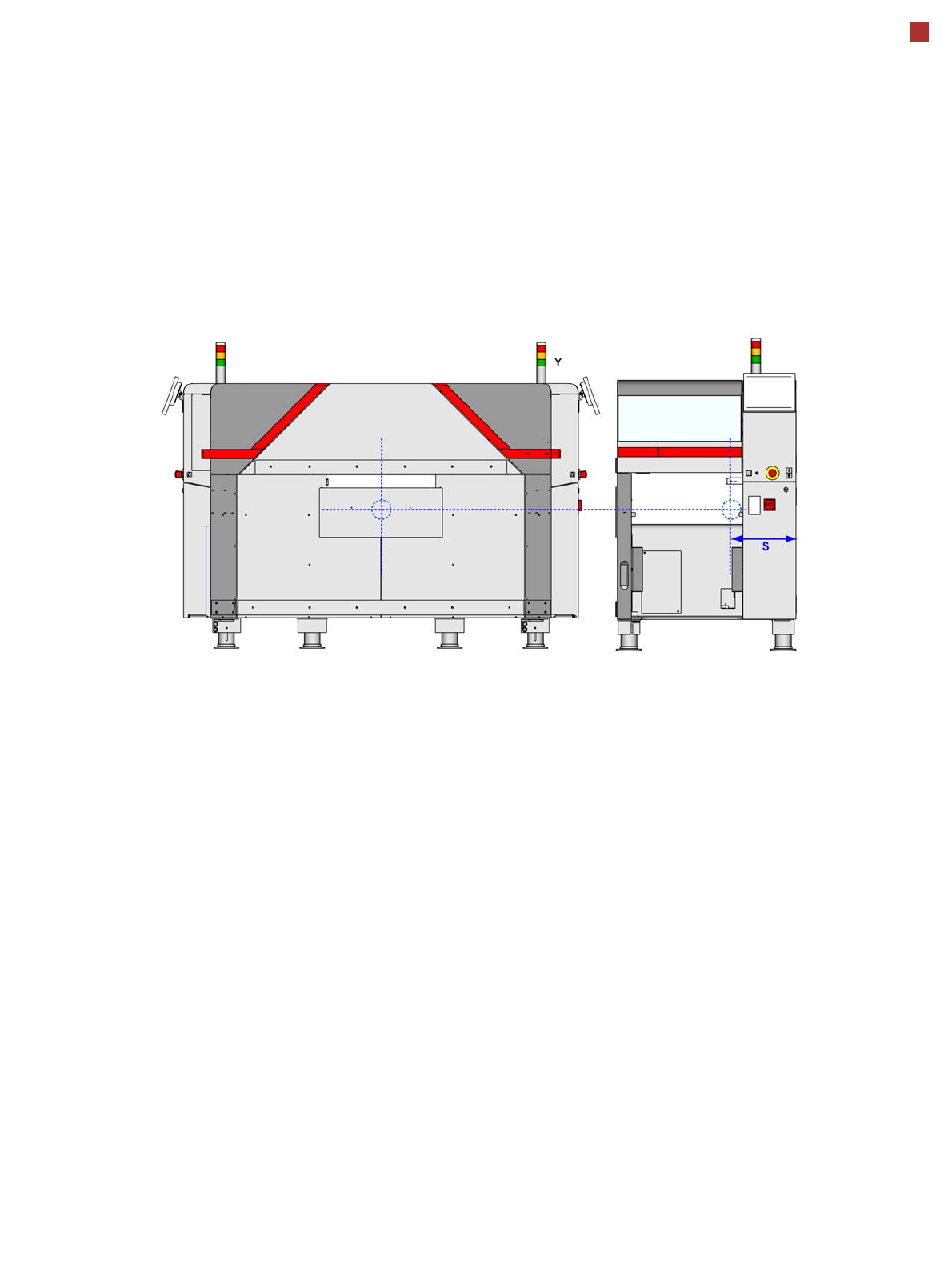

Machine center of gravity
Center of gravity S = 420 mm / H = 750 mm
