5 Overview of technical data Maximum values Placement pe rformanc e IPC value Benchmark value 62,500 comp./h 78,000 comp./h Component range 0201 (metric) to 6 mm x 6 m m Min. lead pitch 50 µm Min. lead width 25 µm Min. b…
5
Overview of technical data
Maximum values
Placement performance
IPC value
Benchmark value
62,500 comp./h
78,000 comp./h
Component range 0201 (metric) to 6 mm x 6 mm
Min. lead pitch 50 µm
Min. lead width 25 µm
Min. ball pitch 50 µm
Min. ball diameter 25 µm
Placement accuracy ± 15 µm (3σ)
Feeding capacity (component trolley) 80 SIPLACE SmartFeeder 8 mm X / Xi
Board format (length x width) 375 mm x 460 mm
Camera 6 illumination levels
Machine base: Telegray
(RAL 7047)
Covers: Pearl dark gray
(RAL 9023)
Covers: Telegray
(RAL 7047)

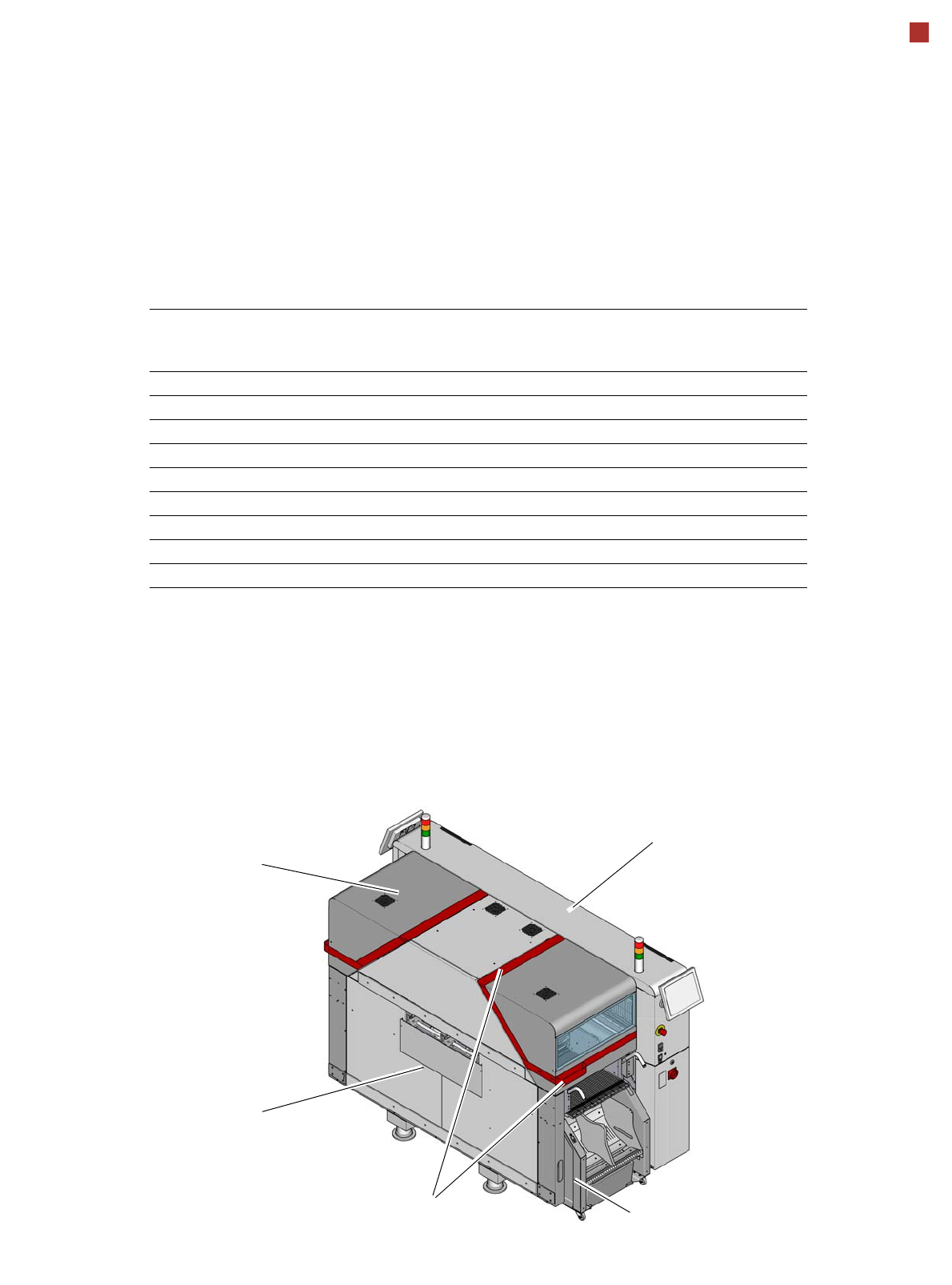

Machine colors for SIPLACE TX micron
Component trolley: Pearl dark gray
(RAL 9023 )
Handles/strips: Ruby red
(RAL 3003)
6
SIPLACE TX micron
Machine description
The latest generation of
SIPLACE placement mod-
ules set placement perfor-
mance, floorspace
performance and placement
accuracy records.
The innovative high-end
placement platform
SIPLACE TX micron
achieves new benchmarks in
placement performance and
productivity per area. The
compact design of the
SIPLACE TX micron sup-
ports precise scaling of line
performance in small steps.
The SIPLACE TX micron
placement machines are
available in three different
variants and two different
accuracy classes:
• SIPLACE TX2 micron
(588502)
• SIPLACE TX2i micron
(588500)
• SIPLACE TX2i micron 15
(588515)
Each gantry has one place-
ment head. The
SIPLACE TX micron sup-
ports two accuracy classes
for enhanced placement
accuracy, these being for 20/
25 µm or 25/15 µm. A sepa-
rate machine type is avail-
able for placement accuracy
of up to 15 µm.
Maximum accuracy
To achieve maximum accu-
racy, the
SIPLACE TX micron place-
ment machines are equipped
with high resolution scales
on the main axes and the
C&P20 M2 head. A highly
rigid PCB conveyor and an
additional fiducial rail are
also used.
To reach placement accu-
racy of 15 µm, the boards are
placed "close to the roots",
with the help of a mechanical
stabilizer (vacuum tool).
The SIPLACE TX micron
covers the entire range of
common components with
only two placement heads.
The ideal addition to the high
speed SIPLACE SpeedStar
is the SIPLACE Multistar
placement head.
The user enjoys a board
conveyor with flexible
SIPLACE dual conveyor.

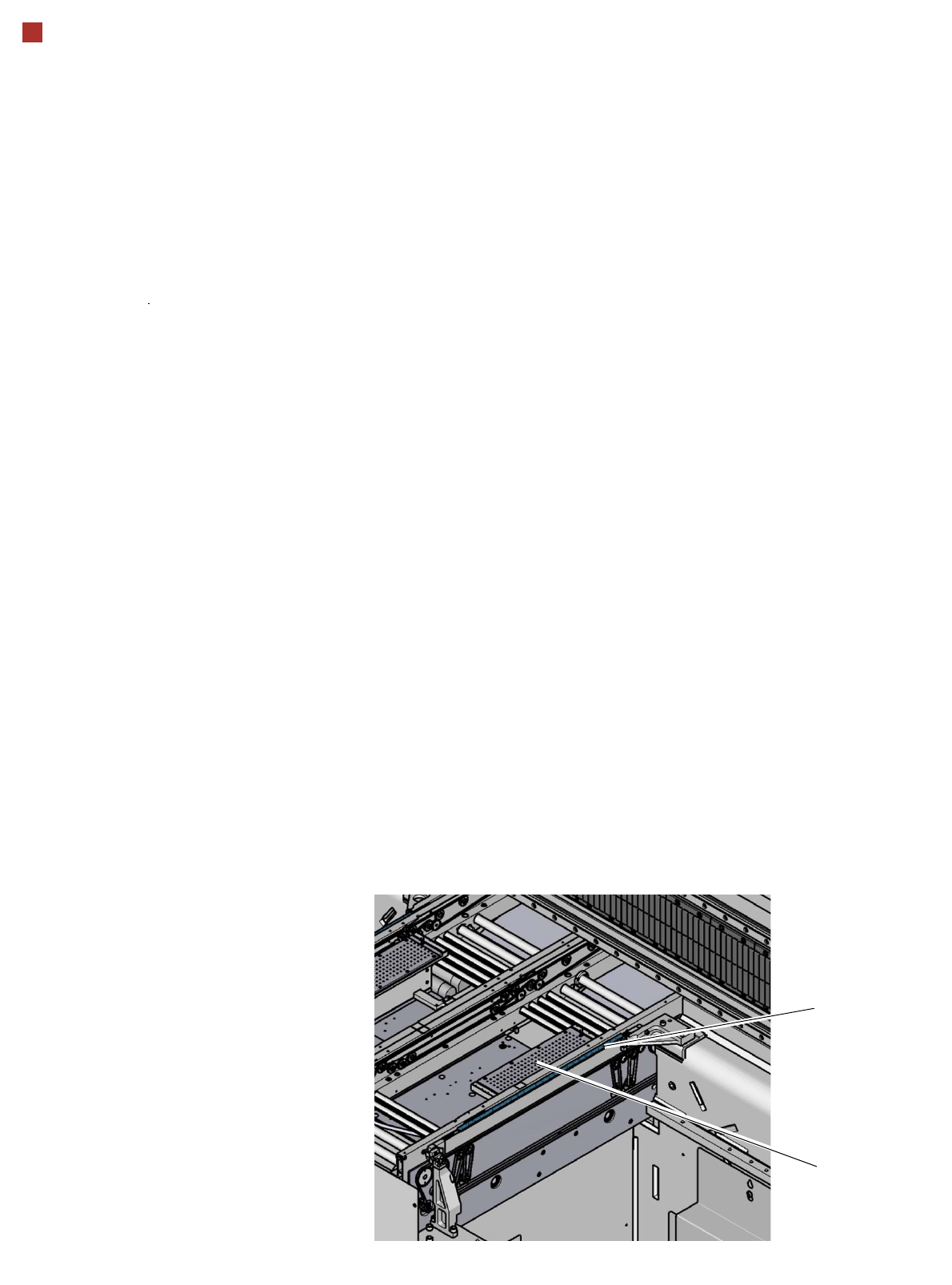

Vacuum tool
Fiducial rail
