Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 203 0949005D ASSY_CONN_NO 1 209490005E-003 204 0949005A ASSY_LAN_CABLE 1 209490005E-004 205 221AA031 ROHS_HEX-SCT 2 209490005E-005 206 221HA005 W ASHER 2 209490005E-006 20…
Fig. D1-3
OP
パネル
OP Panel
1306-001
216
215
218
218
214
217
219
224
225
227
231
229
229
204
226
228
222
228
227
227
228
229
226
225
224
10
24B1
10G
FG
24A6
10B
FG
10
10
24A6
24A6
24A6
24A6
10
24B1
10G
FG
220
220
211
212-03
221
212-04
212-05
212-06
212-01
212-02
207
206
205
212
213
213-03
221
213-04
213-05
213-06
213-01
213-02
203
208
203
208

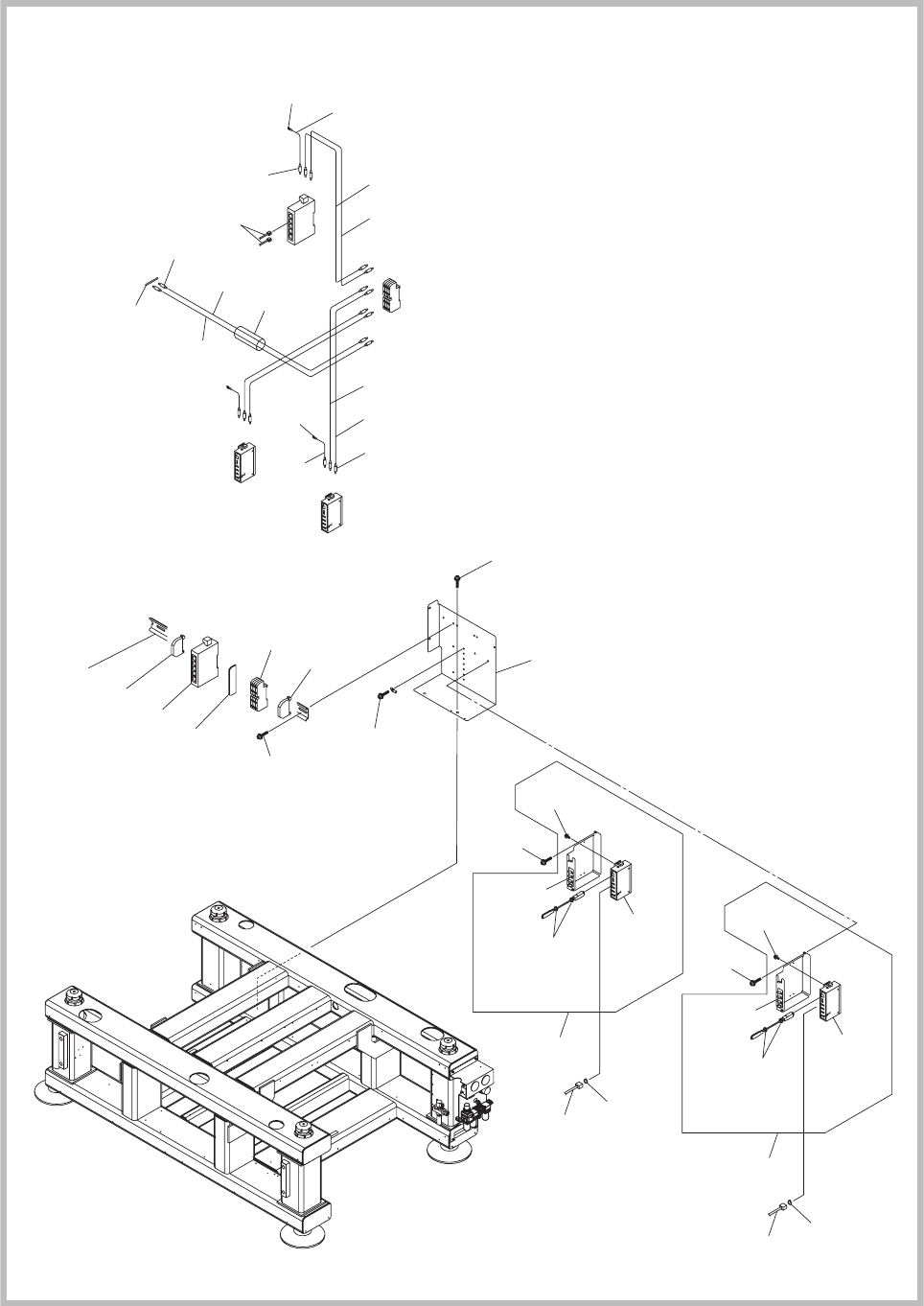

Fig. D1
電装部１
ELECTRICAL SECTION 1
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
203 0949005D ASSY_CONN_NO 1 209490005E-003
204 0949005A ASSY_LAN_CABLE 1 209490005E-004
205 221AA031 ROHS_HEX-SCT 2 209490005E-005
206 221HA005 WASHER 2 209490005E-006
207 221HA303 ROHS_WASHER 2 209490005E-007
208 23N30737 ACCESS_WIRING(M 15 209490005E-008
209 23N30738 ACCESS_WIRING(M 10 209490005E-009
210 0920E302 ACCESS_WIRING 10 209490005E-010
211 0949A02W OP_PANEL_RF 1 309490005G-001
212 0949005B ASSY_USBHUB_F 1 309490005G-002
212 -01 0949A02Q USB_HUB 1 309490005B-001
212 -02 0949A02V USB_BRACKET 1 309490005B-002
212 -03 221DA051 SEMS_PANHEADSCR 4 309490005B-003
212 -04 23N20103 TUBE_WIRING 2 309490005B-004
212 -05 23N30737 ACCESS_WIRING(M 3 309490005B-005
212 -06 0949A03X USB_CABLE 1 309490005B-006
213 0949005C ASSY_USBHUB_B 1 309490005G-003
213 -01 0949A02Q USB_HUB 1 309490005C-001
213 -02 0949A02V USB_BRACKET 1 309490005C-002
213 -03 221DA051 SEMS_PANHEADSCR 4 309490005C-003
213 -04 23N20103 TUBE_WIRING 2 309490005C-004
213 -05 23N30737 ACCESS_WIRING(M 3 309490005C-005
213 -06 0949A03X USB_CABLE 1 309490005C-006
214 23N30500 DIN_RAIL 1 309490005G-004
215 1005BA5Y USB_HUB 1 309490005G-005
216 23N30609 ACCESS_WIRING 1 309490005G-006
217 4J320185 TERMINAL 4 309490005G-007
218 23N10027 BRACKET_WIRING 2 309490005G-008
219 23N30610 ACCESS_WIRING 2 309490005G-009
220 221DA053 MACHINE_SCREW 5 309490005G-010
221 221AA101 ROHS_HEX-SCT 4 309490005G-011
222 4W201738 CORD 1 309490005G-012
224 4J300015 CAB_JOINTTERMIN 3 309490005G-014
225 23N20109 TUBE_WIRING 3 309490005G-015
226 0949A00Y CORD 3 309490005G-016
227 0980A20E CORD 1 309490005G-017
228 0980A20F CORD 1 309490005G-018
229 23N20103 TUBE_WIRING 19 309490005G-019
230 23N30524 ACCESS_WIRING 1 309490005G-020
231 23N30737 ACCESS_WIRING(M 5 309490005G-021
GS-OP600
Fig. D1
Fig. D1-3
1306-001
