KLC-100_YSi-X_HD_pl - 第48页
16 7 Cover Conveyor KLC-1208 18 7 18 17 13 10 12 16 17 12 3 1 6 19 12 12 14 2 1 1 15 1 1 14 1 1 15 12 1 1 8 12 13 16 9 8 5 4 No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date 1 KLC-M913K-00 COVER1,HNS. …
15
7

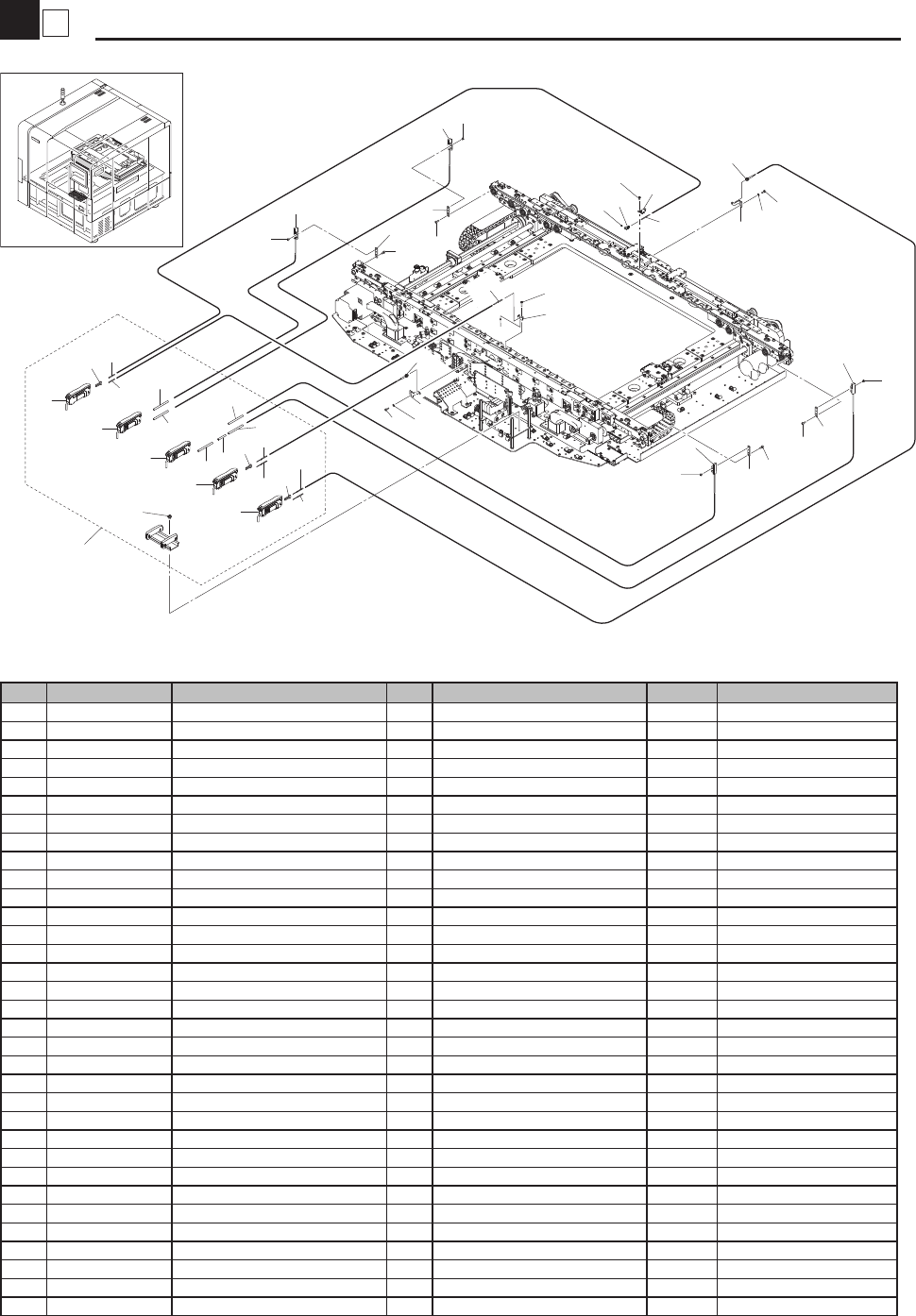

Conv.-Sensor Assy
Conveyor
KLC-1304
29
30
4
6
32
5
6
9
8
3
28
26
3
28
26
1
10
15
15
21
16
17
15
25
25
24
22
18
19
20
23
11
12
13
14
24
27
31
2
7
7
2
31
26
26
31
2
26
31
26
7
2
7
32
33
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLC-M91K0-00 CONV. SENSOR ASSY 1
2 KLC-M912M-00 PLATE,SENSOR 4
3 KLC-M9165-00 BRACKET,SENSOR 2
4 KLC-M915T-00 PALTE1,SENSOR 1
5 KLC-M915J-00 HOLDER,SENSOR 1
6 KLC-M9191-00 SENSOR HEAD 1 2
7 KLC-M9192-00 SENSOR HEAD 2 4
8 KLC-M9193-00 SENSOR HEAD 3 1
9 KLC-M9194-00 SENSOR HEAD 4 1
10 KLC-M652P-00 SENSOR PCB CHK1 ASSY 1
11 KLC-M652P-11 SENSOR PCB CHK2 ASSY 1
12 KLC-M652P-21 SENSOR PCB CHK3 ASSY 1
13 KLC-M653J-00 SENS.CLAMP DWN1 ASSY 1
14 KLC-M653J-11 SENS.CLAMP DWN2 ASSY 1
15 KLC-M919A-00 FABER ADAPTER 3
16 KLC-M9195-00 TUBE 1
17 KLC-M9196-10 TUBE 1
18 KLC-M9196-20 TUBE 1
19 KLC-M9196-30 TUBE 1
20 KLC-M9196-40 TUBE 1
21 KLC-M9196-50 TUBE 1
22 KLC-M9197-10 TUBE 1
23 KLC-M9197-20 TUBE 1
24 KLC-M9198-10 TUBE 2
25 KLC-M9198-20 TUBE 2
26 91312-03008 BOLT,HEX.SOCKET HEAD 12 M3X8
27 90990-11J001 SCREW,PAN HEAD W/W 9
28 92902-03600 WASHER PLAIN 4
29 98902-03006 SCREW BINDING HEAD 2
30 98902-03012 SCREW BINDING HEAD 2
31 98502-03004 SCREW PAN HEAD 8
32 92A08-02303 SET SCREW M2x3 2
33 KLC-M915K-00 HOLDER,SENSOR 1
16
7
Cover
Conveyor
KLC-1208
18
7
18
17
13
10
12
16
17
12
3
1
6
19
12
12
14
2
11
15
11
14
11
15
12
11
8
12
13
16
9
8
5
4
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLC-M913K-00 COVER1,HNS. 1
2 KLC-M913L-00 COVER2,HNS. 1
3 KLC-M913M-00 COVER4,HNS. 1
4 KLC-M913N-00 COVER1,NIPPLE 1
5 KLC-M913P-00 COVER2,NIPPLE 1
6 KLC-M913X-00 COVER,VALVE. 1
7 KLC-M9149-00 COVER1,BELT 1
8 KLC-M914C-00 BRACKET1,COVER 2
9 KLC-M914D-00 COVER2,BELT 1
10 KLC-M914E-00 COVER3,BELT 1
11 KLC-M914G-00 WASHER 15
12 KLC-M914K-00 SCREW 19
13 90563-04J080 SPAER BLOT 4
14 90563-24J320 SPACER 6
15 90563-24J600 SPACER BOLT 9
16 91312-04008 BOLT HEX.SOCKET HEAD 4 M4X8
17 97602-04310 SCREW,PAN HEAD W/W 4
18 98902-03004 SCREW BINDING HEAD 2
19 98902-04006 SCREW BINDING HEAD 4
1
8
Controller
Controller
KLC-1304
1
1617
22
18
33
13
15
29
2
12
32
8
29
11
3
29
29
5
27
29
21
29
4
6
20
7
29
23
19
24
25
26
30
28
31
9
10
14
28
31
9
10
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLB-M4101-00 PLATE,BOX 1 1
2 KLB-M4102-00 PLATE,BOX 2 1
3 KLB-M4103-00 PLATE,BOX 3 1
4 KLB-M4104-00 PLATE,BOX 4 1
5 KLB-M4105-00 STAY,ATX 1
6 KLB-M4106-00 STAY,HDD 1
7 KLB-M4109-00 BRKT.,HDD 1
8 KLB-M4114-00 WING BOLT 2
9 LC1-M40A2-00 SPACER,HED 4
10 LC1-M40A3-00 H.E.D. 4
11 KKH-M4108-00 GOM,BOARD 1
12 KKH-M4209-12 SYSTEM UNIT ASSY 1
13 KKH-M441H-A0 VISION BOARD SET 1
14 KGA-M4187-00 FAN GUARD 119MM 1
15 KLB-M4108-00 BRKT,BOARD 2 1
16 KKH-M4107-00 BRKT,PORT 1
17 KKH-M4106-00 BRKT,PORT 1
18 KLB-M4530-01 REMOTE IF BOARD ASSY 1
19 KLB-M6185-00 FAN MOTOR ASSY 1
20 KLB-M53J1-A0 HDD UNIT SET 1
21 LE3-M65E5-00 ATX POWER SUPPLY 1
22 KKH-M534M-00 HNS COM2 1
23 91312-04008 BOLT HEX.SOCKET HEAD 2 M4X8
24 91312-04012 BOLT,HEX.SOCKET HEAD 2 M4X12
25 92902-04200 WASHER PLAIN 2
26 95302-04600 NUT HEXAGON 2
27 97602-03306 SCREW,PAN HEAD W/W 12
28 97602-03316 SCREW,PAN HEAD W/W 4
29 97602-04306 SCREW,BIN.HEAD W/W. 11
30 90990-08J022 SCREW, PAN HEAD 4
31 90990-28J126 WASHER,PLAIN 2
32 90990-05J025 SPACER BOLT 8
33 KLB-M4530-21 REMOTE IF BOARD ASSY 1
