User Manual SIPLAC E CS 5 Oper ator, Line engineer, Service engineer Software version SR.101.xx 06/2003 US Edition 5.8 Refilling components 121 5.8 Refilling component s The onl ine help con tains infor mation on ref ill…
5 Operator, Line engineer, Service engineer User Manual SIPLACE CS
5.7 Avoiding track errors Software version SR.101.xx06/2003 US Edition
120
5.7.4 Component coordinate system and pick-up angle
5

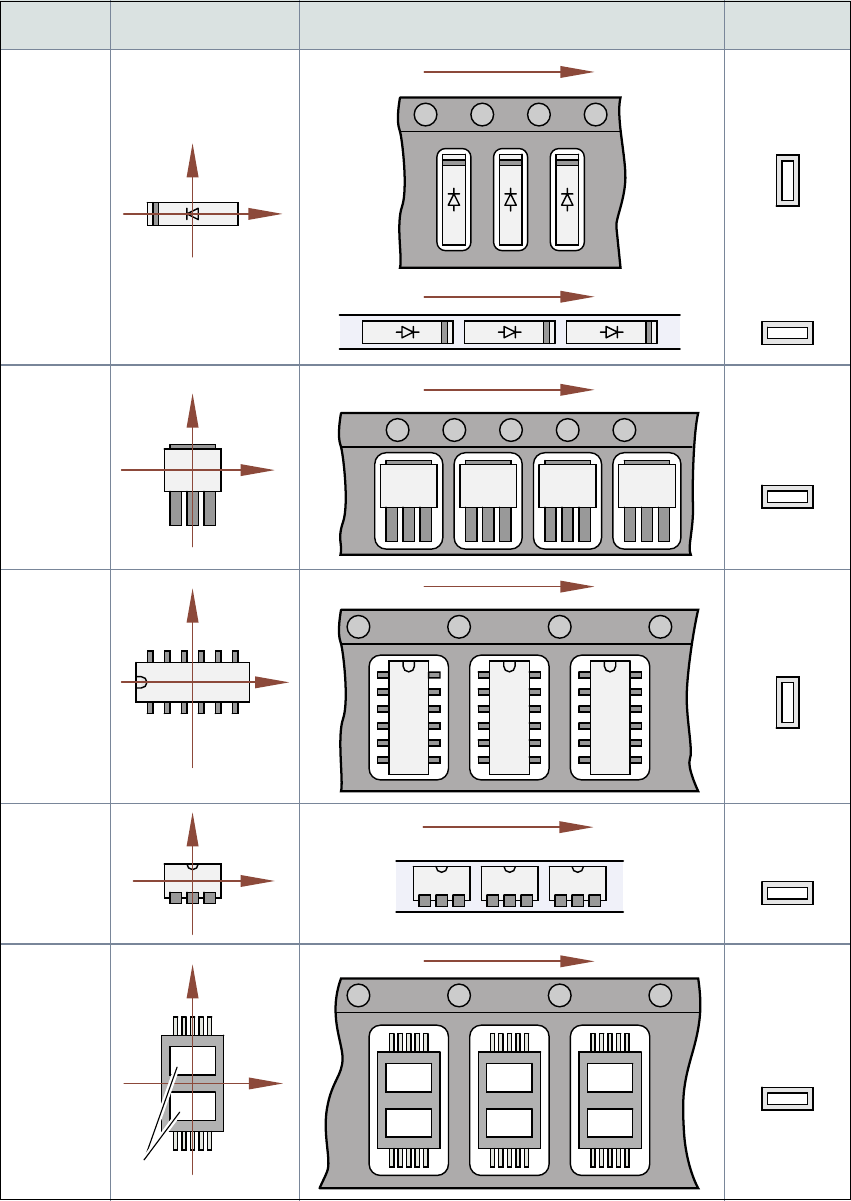

Fig. 5.7 - 2 Position of the component and its pick-up angle
Special
component
Stick
magazine:
Chip-
components
with polarity
0402
2220
The anode must be
aligned with the +X
coordinate.
Package
form
Coordinate system Position in the feeder
Pick-up angle/
nozzle angle
Tape:
SOT23
Stick
magazine:
Tape:
Tape:
SO-IC
DIL-IC
SOT 194
Tape:
Holes
Y
X
Y
X
Y
X
Y
X
Y
X
90°
90°
0°
90°
-90°
0°
User Manual SIPLACE CS 5 Operator, Line engineer, Service engineer
Software version SR.101.xx 06/2003 US Edition 5.8 Refilling components
121
5.8 Refilling components
The online help contains information on refilling components with and without barcodes.
Æ With tape feeders, make sure that you always splice on a new tape early enough so that the
feeders do not run out of components.
Æ However, do not splice the tapes too early because if you wind the tape onto the new reel after
splicing the end of the old tape, the reel with the new tape may be overfilled. The tape could
then slip off the reel and become tangled. Under certain circumstances, this could cause pick-
up errors and prolonged down times.
Æ Always insert spindles when using tape reels of 7" and larger (see Fig. 5.4 - 3) and make sure
that the dividing plates are inserted correctly (see Fig. 5.4 - 3
).
5 Operator, Line engineer, Service engineer User Manual SIPLACE CS
5.9 Docking the component trolley in or out Software version SR.101.xx06/2003 US Edition
122
5.9 Docking the component trolley in or out
5.9.1 Safety instructions on docking and undocking the component trolley
5
Fig. 5.9 - 1 Safety instructions on the component trolley
