6.3 Setting up the feeders
6.3.1 Preparing the component table and feeder for set-up
Æ Select the setting range for the feeder to be used (see Vibrator configuration).
Æ Move the placement head to the waiting position and press the emergency stop button.
Æ Open the protective covers.
Æ Clean the contact surface for the feeders and the contact surface for the feeders on the com-
ponent table.
RISK OF INJURY
Avoid removing components from the magnetic rail of the component table with your fingers.
You may hurt yourself with tiny splinters of metal. 6
Æ Remove loose components with a short-bristled brush.
Æ Handle the feeders carefully when you insert them into or remove them from the component
table. Do not allow the supporting surfaces of the feeders to bang against the edges of the
component table.
Æ Place the feeder on the previously selected track on the component table (see Vibrator config-
uration).
6.3.2 Inserting the feeder
Æ Insert the feeder so that the back of the feeder is held by the centering ball and the front is fixed
in place by the corresponding centering pin on the component table. Make sure that the feeder
is placed on the component table in the correct position for its width.
Æ Check that the feeder is firmly seated on the component table.
Æ Connect the feeder plug to the socket beneath the location.
PLEASE NOTE 6
When you connect the feeder, make sure that you use the right socket for the location since
the feeder receives the control pulse via this socket. The feeder may not work correctly if it
is not connected to the right socket. 6
6 Component handling User Manual SIPLACE CS
6.3 Setting up the feeders Software version SR.101.xx06/2003 US Edition
142
Æ Close the protective covers, release the EMERGENCY STOP button and switch the controller
on again.
Æ Carry out a refill check if necessary.
Æ Continue placement.

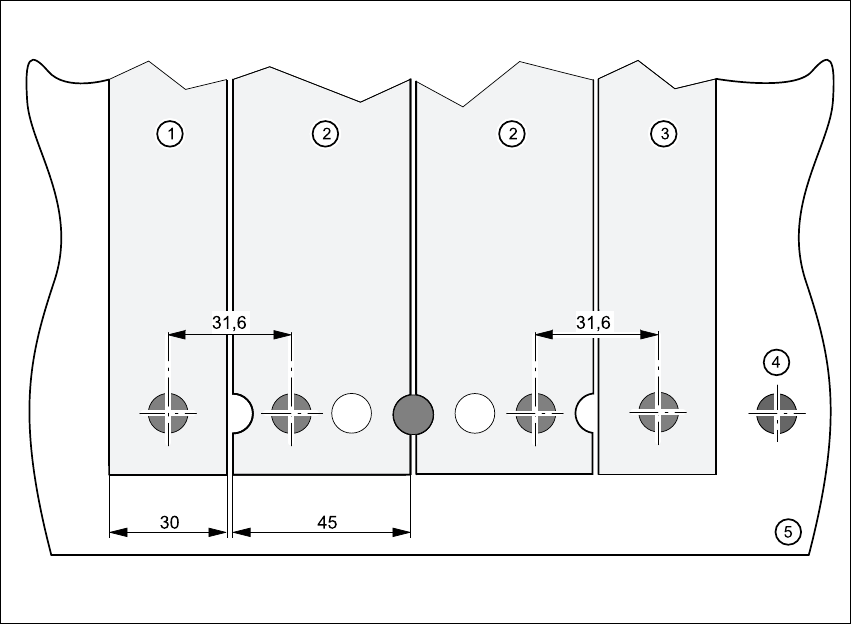

Fig. 6.3 - 1 Inserting 30 or 45 mm wide feeders on the component table
(1) Feeder, 30 mm wide
(2) Feeder, 45 mm wide
(3) Feeder, 30 mm wide
(4) Centering ball
(5) Component feeder table
User Manual SIPLACE CS 6 Component handling
Software version SR.101.xx 06/2003 US Edition 6.4 Component trolley
143
6.4 Component trolley
6.4.1 Structure
The component trolley consists essentially of a chassis, a component feeder table on which the
feeder is mounted, a communication unit, a tape container and a waste container. Docking the
component trolley in or out is described in Section 5.9
, page 122 onwards.

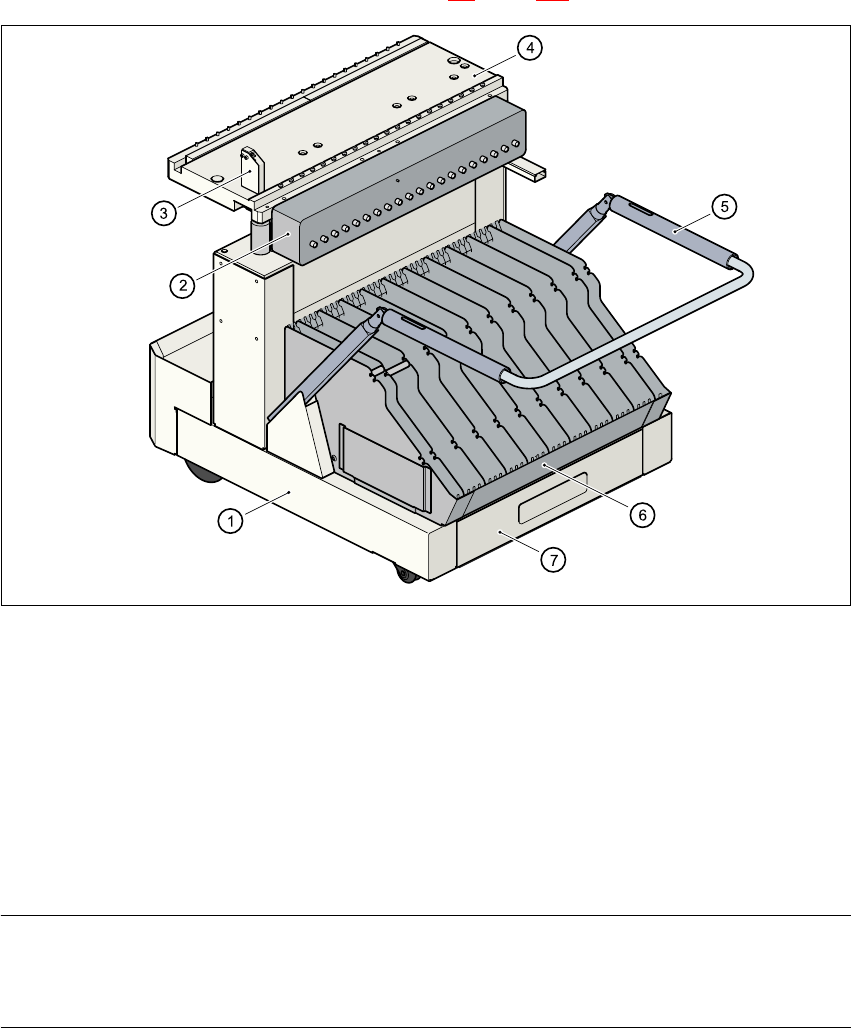

Fig. 6.4 - 1 Component trolley
(1) Component trolley
(2) Communication unit
(3) Control button for raising the component feeder table
(4) Component feeder table
(5) Handle for locking and lowering the component feeder table
(6) Tape container
(7) Waste tape container
NOTE ON OPERATIONAL SAFETY
All component trolleys must be docked on the machine in order to operate it. If they are not, the
machine stays in EMERGENCY STOP status. The placement process is interrupted.
