2 Operational safety User Manual SIPLACE CS
2.1 Safety instructions Software version SR.101.xx06/2003 US Edition
20
Æ NEVER place your head or arms in the gantry and lifting table traveling range while the station
is switched on!
Æ For your own safety, wear work clothes that conform to the guidelines of the professional as-
sociation, i.e. no wide sleeves etc.
Æ Reduce the risks by not wearing scarves, chains or ties at your work post.
Æ People with long hair must wear a protective head covering.
WARNING 2
The system is electrically driven. When electrical devices are in use, certain parts carry dangerous
voltage levels.
Æ Switch off at the main switch and disconnect the placement system from the power supply be-
fore carrying out any work on live components.
Æ Lock the systems as described in Section 2.9, page 57.
There is a risk of death, severe injury and/or considerable damage to equipment if these instruc-
tions are not followed.
2.1.5.3 Safety of plant and equipment
Æ Never make changes, however minor, unless you are totally aware of the effect they will have
on the overall functioning of the system.
Æ The stations must always be set up, retooled and maintained by appropriately trained person-
nel.
Æ Only use SIEMENSDEMATIC original spare parts and authorized accessories. The use of
other parts will affect safety and will invalidate the liability for any consequential damage.
Æ Do not make modifications to the safety equipment. In particular, NEVER bypass circuit-break-
ers or remove safety devices.
2.1.6 Safety instructions for laser units
Permission to operate components that are classified as lasers is withdrawn if
– mechanical damage to the unit is observed, or
– any work is done on the mechanical or electrical parts of the unit.
Even damaged or missing screw locking paint on laser components (e.g. cover plates, fas-
teners, adjusting potentiometer) counts as work.
– Only SIEMENSDEMATIC AG service engineers, or the machine owner's service engineers
who have been trained by SIEMENSDEMATIC are allowed to replace laser components.
– Repairs to laser units are carried out at the SIEMENSDEMATIC factory exclusively.
User Manual SIPLACE CS 2 Operational safety
Software version SR.101.xx 06/2003 US Edition 2.1 Safety instructions
21
2.1.7 Important notes on environmentally-friendly disposal of materials
and components
SIPLACE systems are manufactured using only materials and parts that can be easily separated
and disposed of in an environmentally-friendly way. Hazardous materials are not necessary for the
installation, dismantling or operation of the system.
NOTE 2
The owner of the system has sole responsibility for the proper environmentally-friendly disposal
of machines, working materials, consumables and wear parts.
Æ Please observe your national statutory provisions for waste disposal and environmental pro-
tection.
2 Operational safety User Manual SIPLACE CS
2.2 Warning labels Software version SR.101.xx06/2003 US Edition
22
2.2 Warning labels
2.2.1 Warning labels W201, W203, W204, and W206 on the machine
The warning labels are made from soft PVC film, and are abrasion-proof, light-fast and resistant
to water and weathering.
Their design meets the requirements of ISO 3864-2 and ANSI Z535.4.
2

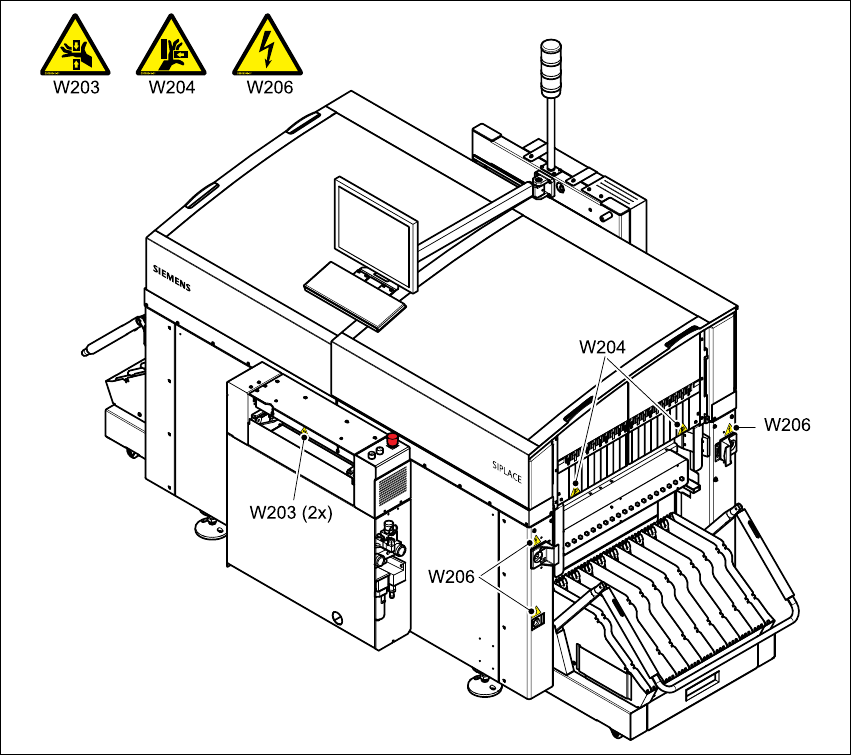

Fig. 2.2 - 1 Warning labels on the machine - part 1
Pos. W203 part no. 03009342-01
Pos. W204 part no. 03009343-01
Pos. W206 part no. 03009345-01
