2 Operational safety User Manual SIPLACE CS
2.2 Warning labels Software version SR.101.xx06/2003 US Edition
26
2.2.1.1 Warning label W201
2
Pos. W201 in Fig. 2.2 - 2 (number per placement system: 1)
2.2.1.2 Warning label W203
2
Pos. W203 in the figures 2.2 - 1, 2.2 - 2, 2.2 - 3 and 2.2 - 4 (number per placement system: 4)
2.2.1.3 Warning label W204
2
Pos. W204 in the figures 2.2 - 1, 2.2 - 2, 2.2 - 3 and 2.2 - 4 (number per placement system: 4)
2
2
2
2
2
2
SAFE OPERATION OF THE MACHINE
Safe operation of the machine depends absolutely on the
operator being familiar with the user manual and safety
instructions and putting them into effect.
2
2
DANGER OF CRUSHING!
Reaching in here can lead to injuries to the arms and
hands.
Do not reach into the machine while it is running
2
2
DANGER OF CRUSHING!
Reaching in here can lead to injuries to the arms and
hands.
Do not reach into the machine while it is running
User Manual SIPLACE CS 2 Operational safety
Software version SR.101.xx 06/2003 US Edition 2.2 Warning labels
27
2.2.1.4 Warning label W206
2
Pos. W206 in the figures 2.2 - 1, 2.2 - 2, 2.2 - 3 and 2.2 - 4 (number per placement system: 8)
2.2.2 Warning label W205
2
Pos. W205 in Fig. 2.2 - 5 (number per placement system: 8)
WARNING 2
If you wish to do work on the tape cutter, you must disconnect the machine from the mains supply
and the compressed air supply.
Wait until the operating pressure has dropped to 0 MPa.
Wear robust protective gloves when working on the tape cutter. 2
2
2
DANGEROUS VOLTAGES!
The labeled parts are still live when the main power switch is off.
Disconnect the machine from the mains before servicing it.
NAFTA region: RISK OF ELECTRIC SHOCK OR BURN!
2
2
2
RISK OF CUTTING!
Danger of cutting is present even when the machine
is switched off
2 Operational safety User Manual SIPLACE CS
2.2 Warning labels Software version SR.101.xx06/2003 US Edition
28
2.2.2.1 Warning label W205 on the tape cutter
2

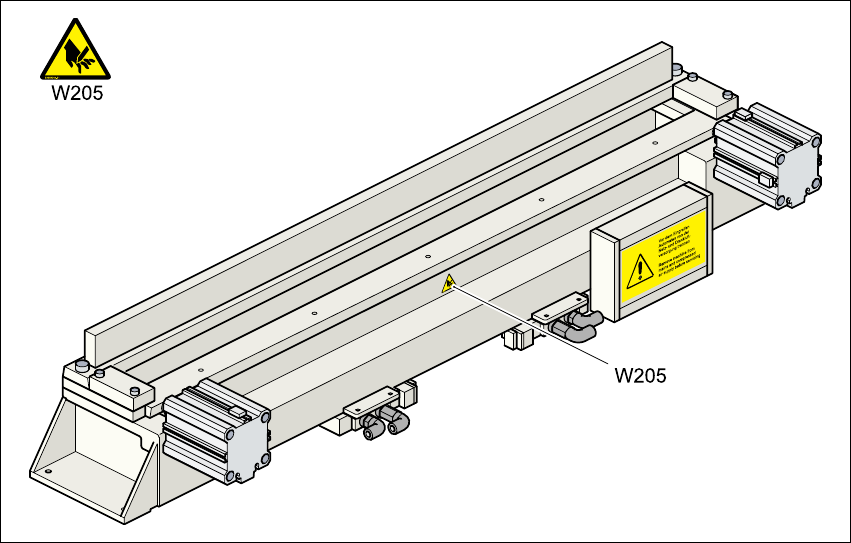

Fig. 2.2 - 5 Warning label W205 on the top of the tape cutter
2
Pos. W205 part no. 03009344-01
