2 Operational safety User Manual SIPLACE CS
2.2 Warning labels Software version SR.101.xx06/2003 US Edition
30
2.2.3 Warning label W207
2
Pos. W207 (number per machine: 2)
2.2.3.1 Warning label W207 on the servo unit Macrolon panel
2

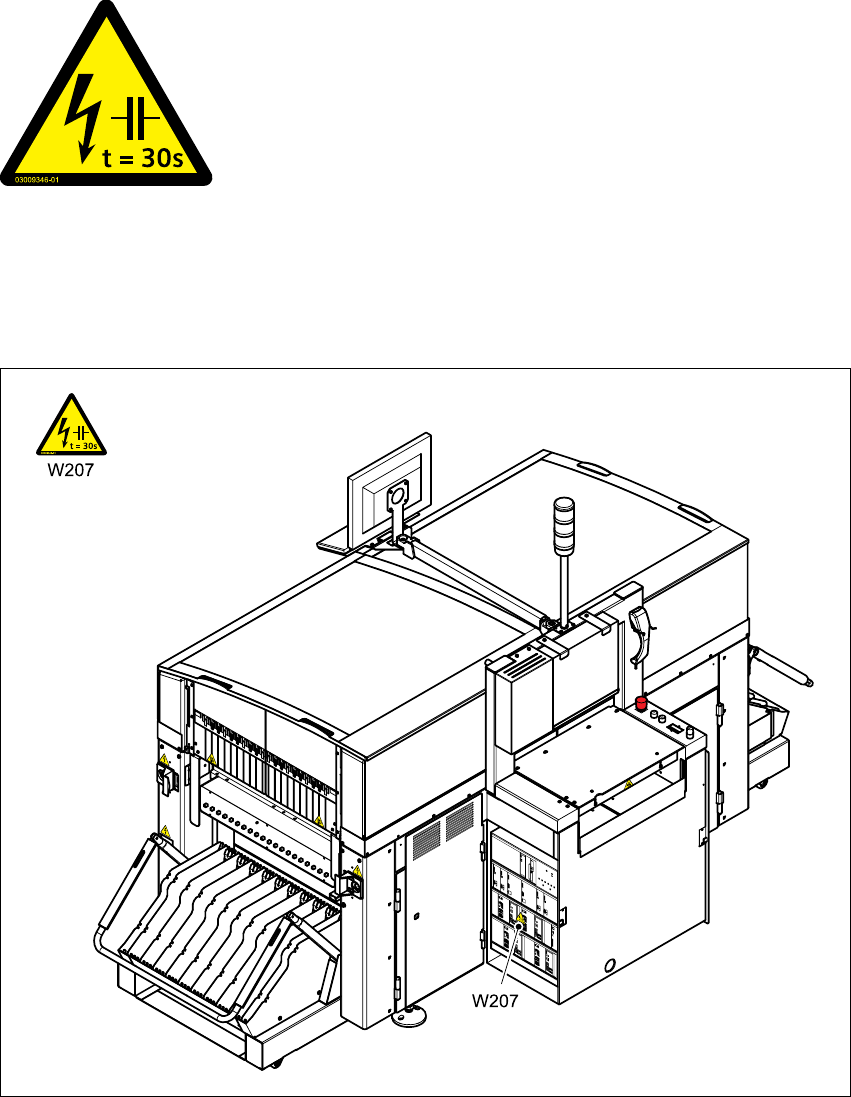

Fig. 2.2 - 7 Warning label W207 on the servo unit Macrolon panel
2
Pos. W207, part no. 03009346-01
2
MAIN POWER VOLTAGE!
Switch off the main power switch and wait 30 seconds until the
capacitors have discharged.
NAFTA region: RISK OF ELECTRIC SHOCK OR BURN!
"
*
*
!
*
!
!
!
User Manual SIPLACE CS 2 Operational safety
Software version SR.101.xx 06/2003 US Edition 2.2 Warning labels
31
2.2.3.2 Warning label W207 on the PCB conveyor control unit
2

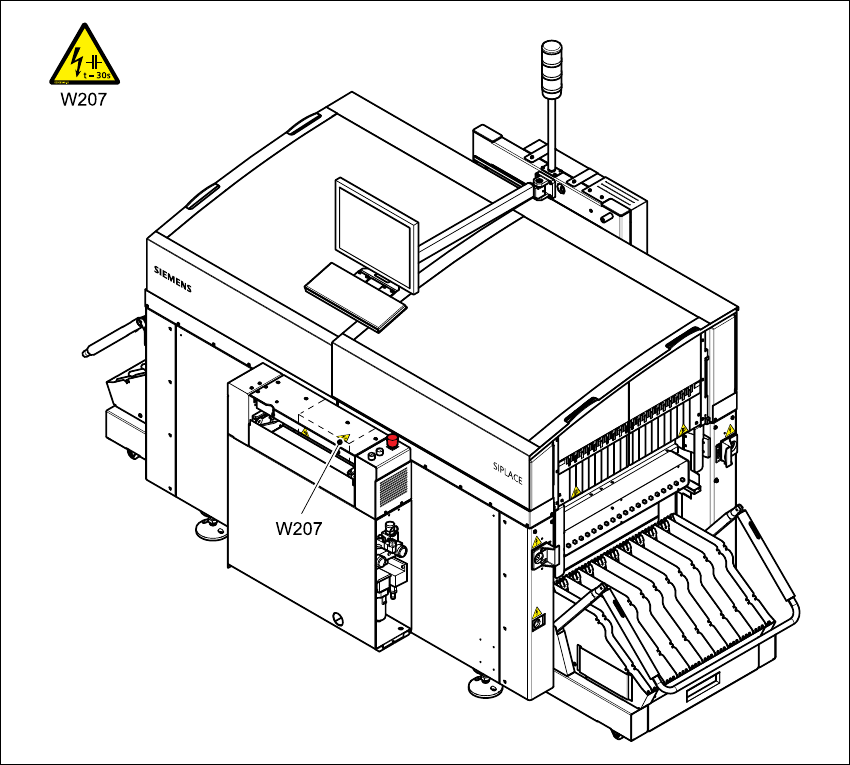

Fig. 2.2 - 8 Warning label W207 on the PCB conveyor control unit
2
Pos. W207, part no. 03009346-01
2 Operational safety User Manual SIPLACE CS
2.2 Warning labels Software version SR.101.xx06/2003 US Edition
32
2.2.4 Warning label W211 on the CEKON plug
2
Pos. W211 (number per machine: 1)
2

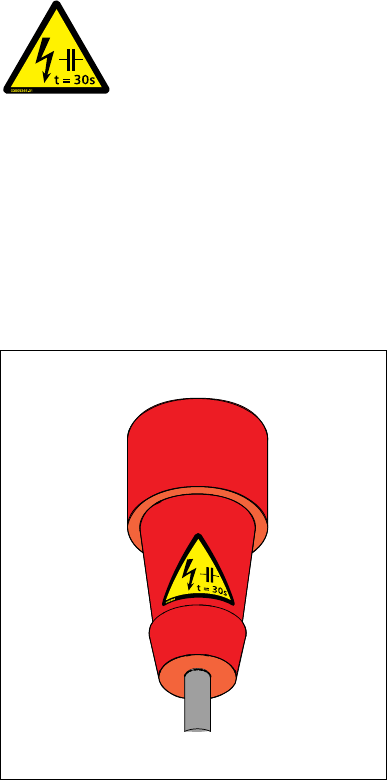

Fig. 2.2 - 9 Warning label W211 on the CEKON plug
2
Pos. W211, part no. 03009351-01
2
RESIDUAL VOLTAGE!
Wait 30 seconds after disconnecting the main power plug from the mains to
allow any residual voltages to dissipate.
NAFTA region: Hazardous Voltage
Residual power at plug prongs and wire ends will cause death or serious in-
jury. Avoid contact with power plug and/or wire ends for 30 seconds
