3 Technical data User Manual SIPLACE CS 3.2 The line conc ept Sof tware version SR.101.x x06/2003 US Edition 66 3.2 The line conc ept 3.2.1 Overvie w Up to 5 plac ement mac hines from the SI PLACE Com pact families c an …
User Manual SIPLACE CS 3 Technical data
Software version SR.101.xx 06/2003 US Edition 3.1 Description of the machine
65
3.1.1 Technical data - machine overview
3
*) The CS can be equipped to place 0201 components. Please consult the factory if you require this.
Placement procedure Collect&Place
Component range
*)
6-segment-Collect&Place head with
standard component vision camera
Max. component height
From 0,6 mm x 0,3 mm to 18,7 mm x 18,7 mm
(0201 to PLCC44, SO32, DRAM)
6 mm (10,7 mm available upon request)
Maximum placement rate (Benchmark)
with two 6-segment Collect&Place heads 20,000 comp/h
6-segment Collect&Place head
Angular accuracy
Placement accuracy
± 0,7°/ 4 σ
± 90 µm / 4 σ
PCB format
(length x width) 50 mm x 50 mm to 508 mm x 460 mm
(2" x 2" to 20" x 18")
Long board: length up to 610 mm (24") (available
upon request)
PCB thickness 0.5 mm to 4.5 mm
PCB changeover time 2.5 sec
Feeder capacity 118 tracks à 8 mm
Component supply
Types of feeder
Component trolley
Component tapes, stick magazines, bulk cases,
(see chapter 6
)
Operating system Microsoft Windows XP / RMOS
Connection Inline or stand alone
Space required 4 m² / module
3 Technical data User Manual SIPLACE CS
3.2 The line concept Software version SR.101.xx06/2003 US Edition
66
3.2 The line concept
3.2.1 Overview
Up to 5 placement machines from the SIPLACE Compact families can be linked to form a line.
3.2.2 Technical data – line concept
3
System SIPLACE placement lines
Modules SIPLACE CS, SIPLACE CF
Peripherals Input/output stations
Screen printers
Soldering ovens
Inspection stations, etc.
Component range From 0201 to 18,7 mm x 18,7 mm (CS)
From 0201 to 55 mm x 55 mm (CF)
PCB conveyor Automatic width adjustment
PCB format (length x width) 50 mm x 50 mm to 508 mm x 460 mm
(2" x 2" to 20" to 18")
Placement rate Depends how modules are connected in series
Line software SIPLACE C Pro
Space required 4 m² / module
User Manual SIPLACE CS 3 Technical data
Software version SR.101.xx 06/2003 US Edition 3.3 Electrical and pneumatic connection points
67
3.3 Electrical and pneumatic connection points
3

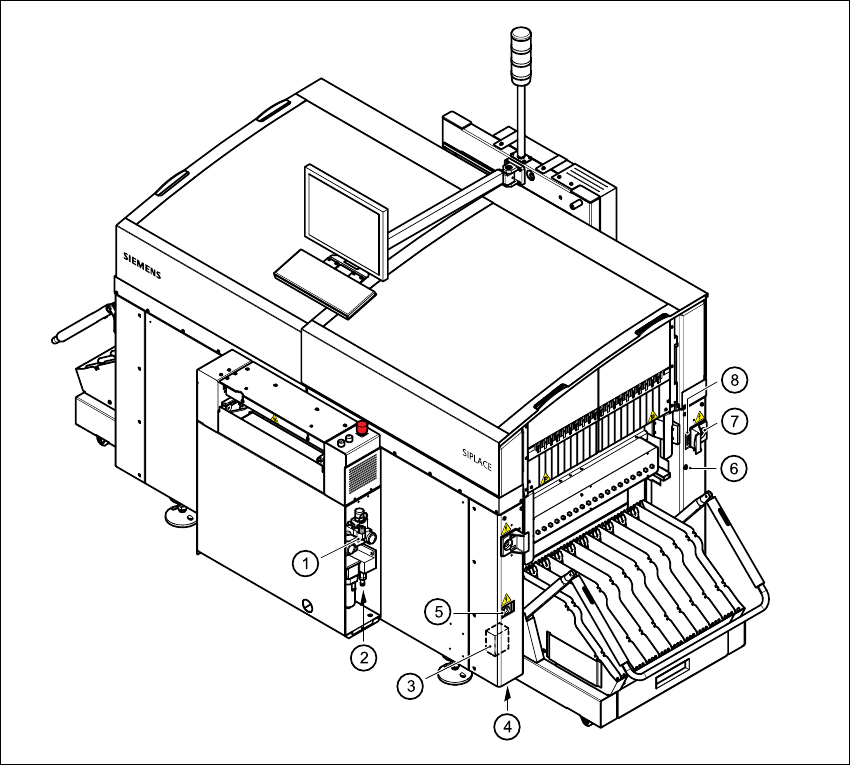

Fig. 3.3 - 1 Electrical and pneumatic connection points on the placement system part 1
3
(1) Compressed air unit
(2) Connection for compressed air line
(3) Main power filter Z1
(4) Hole for power cable
(5) Service socket
(6) Compressed air connection for component trolleys
(7) Power supply connection for component trolley
(8) Communications connection for component trolley
