User Manual SIPLAC E CS 3 Technical data Software version SR.101.xx 06/2003 US Edition 3.4 Technical data – ratings 69 3.4 T echn ical dat a – r atings 3.4.1 T echnical dat a – electrical ratings 3 3.4.2 T echnical dat a…
3 Technical data User Manual SIPLACE CS
3.3 Electrical and pneumatic connection points Software version SR.101.xx06/2003 US Edition
68
WARNING
Never disconnect compressed air lines while they are pressurized. Risk of injury! 3

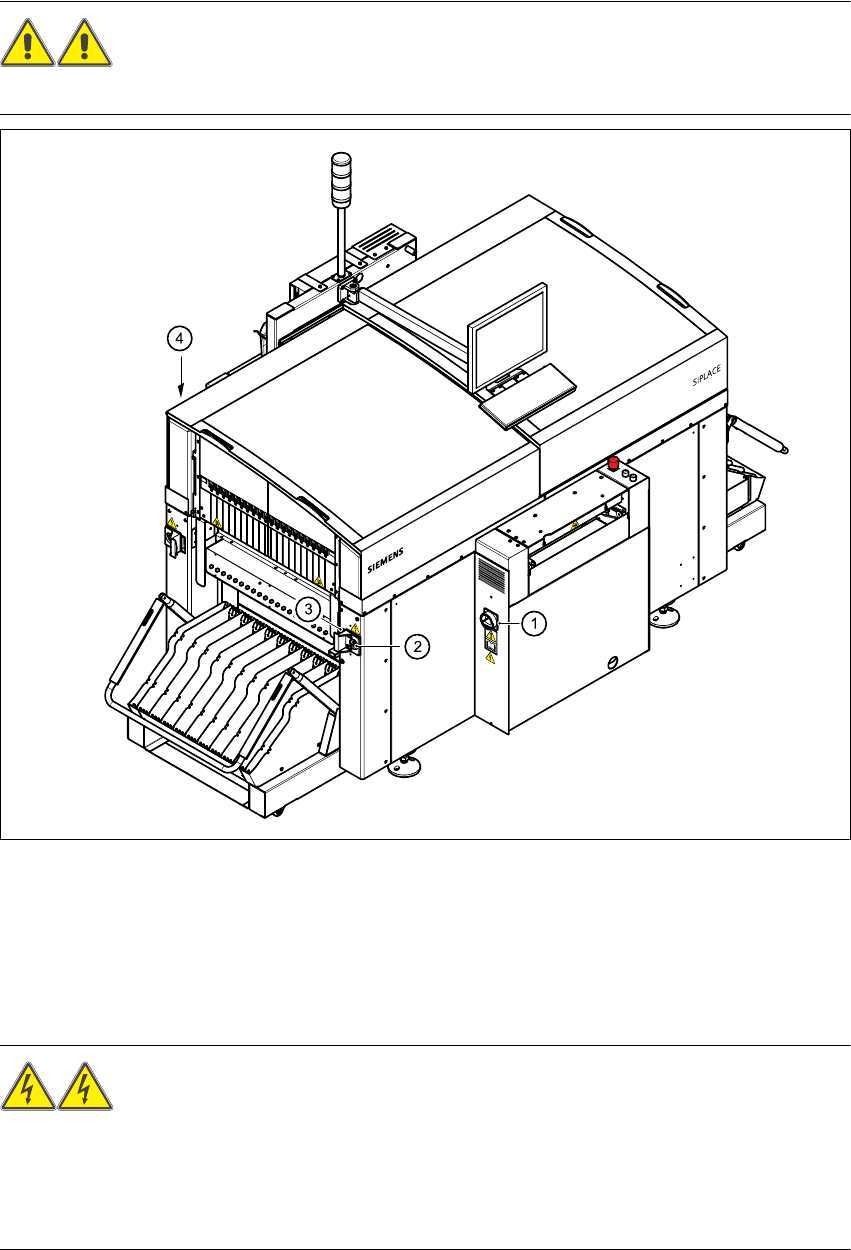

Fig. 3.3 - 2 Electrical and pneumatic connection points on the placement system part 2
(1) Main power switch
(2) Power supply connection for component trolley
(3) Communications connection for component trolley
(4) LAN connection (RJ45) in the control unit 45
WARNING
The placement system is supplied with 3 x 400 V~ or 3 x 208 V~ US version) ± 5%, 50/60 Hz
main power voltage. This means that some parts of the system carry potentially lethal voltages
- even when switched off at the main power switch. Death, serious injury or considerable damage
may result if this automatic placement system is handled incorrectly. 3
User Manual SIPLACE CS 3 Technical data
Software version SR.101.xx 06/2003 US Edition 3.4 Technical data – ratings
69
3.4 Technical data – ratings
3.4.1 Technical data – electrical ratings
3
3.4.2 Technical data – compressed air supply
3
3.4.3 Technical data – compressed air specification
Maximum particle size by density, based on ISO/DIS 8573-1 (class 1)
3.4.4 Technical data – noise emissions
3
3.4.5 Technical data – permissible ambient factors
3
Supply voltage 3 x 400 VAC ± 5 %; 50/60 Hz (Europe)
3 x 208 VAC ± 5 %; 50/60 Hz (U.S.A.)
3 x 200 VAC ± 5 %; 50/60 Hz (Japan)
Fuses 3 x 16 A (3 x 400 VAC, 3 x 208 VAC, 3 x 200 VAC)
Total connected load 5 kVA
Total power 2 kW
Power failure Max. 20 msec
Compressed air pressure Min. 0.55 MPa (5.5 bar) to 1.0 MPa (10 bar), ½"-connection
Compressed air consumption 400 Nl/min.
Operating pressure Set to 0.52 MPa (5.2 bar)
Particle size 0.1 µm
Particle density 0.1 mg/m³
Maximum oil content (class 1) Particle density 0.01 mg/m³
Pressure dewpoint (class 4) Dewpoint +3°
Max. noise emission 74dB(A)
Room temperature Between 15°C and 35°C
Atmospheric humidity 30 to 80%
(but no higher than 45% on average in order to prevent any
possibility of condensation on the machine).
3 Technical data User Manual SIPLACE CS
3.5 Dimensions and weight of the placement system Software version SR.101.xx06/2003 US Edition
70
3.5 Dimensions and weight of the placement system
3.5.1 Dimensions of the placement system
3

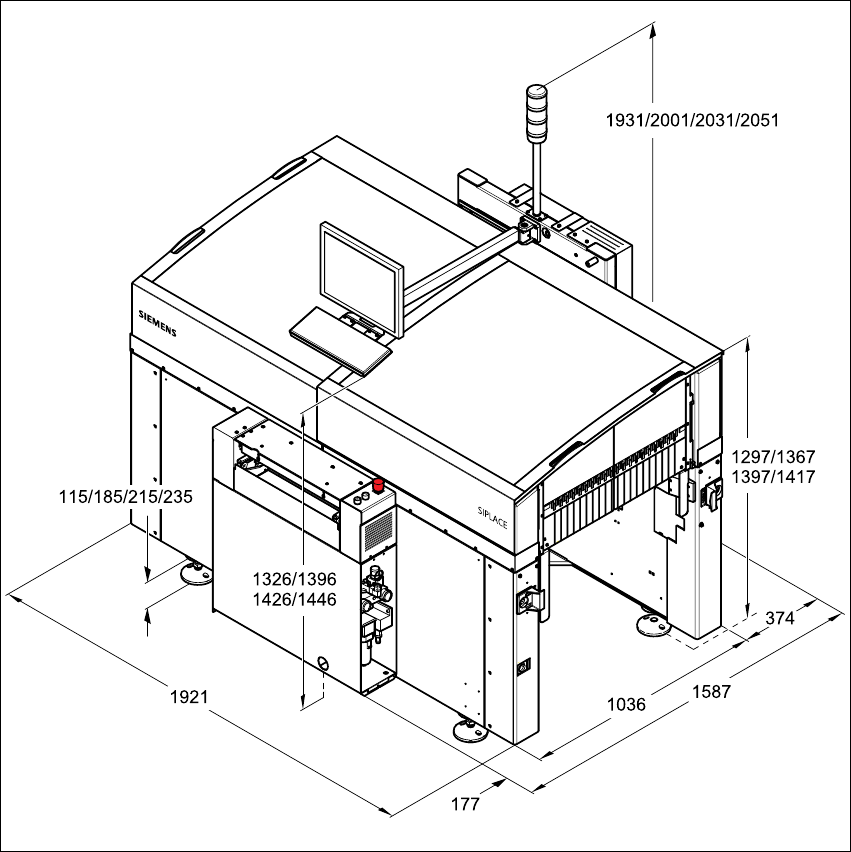

Fig. 3.5 - 1 Dimensions of the placement system in millimeters
