User Manual SIPLAC E CS 3 Technical data Software vers ion SR.101.xx 06/2003 US Edition 3.5 Dimens ions and weight of the plac ement system 71 3.5.2 The placement system’ s cente r of gravity 3 Fig. 3.5 - 2 The placement…
3 Technical data User Manual SIPLACE CS
3.5 Dimensions and weight of the placement system Software version SR.101.xx06/2003 US Edition
70
3.5 Dimensions and weight of the placement system
3.5.1 Dimensions of the placement system
3
Fig. 3.5 - 1 Dimensions of the placement system in millimeters
User Manual SIPLACE CS 3 Technical data
Software version SR.101.xx 06/2003 US Edition 3.5 Dimensions and weight of the placement system
71

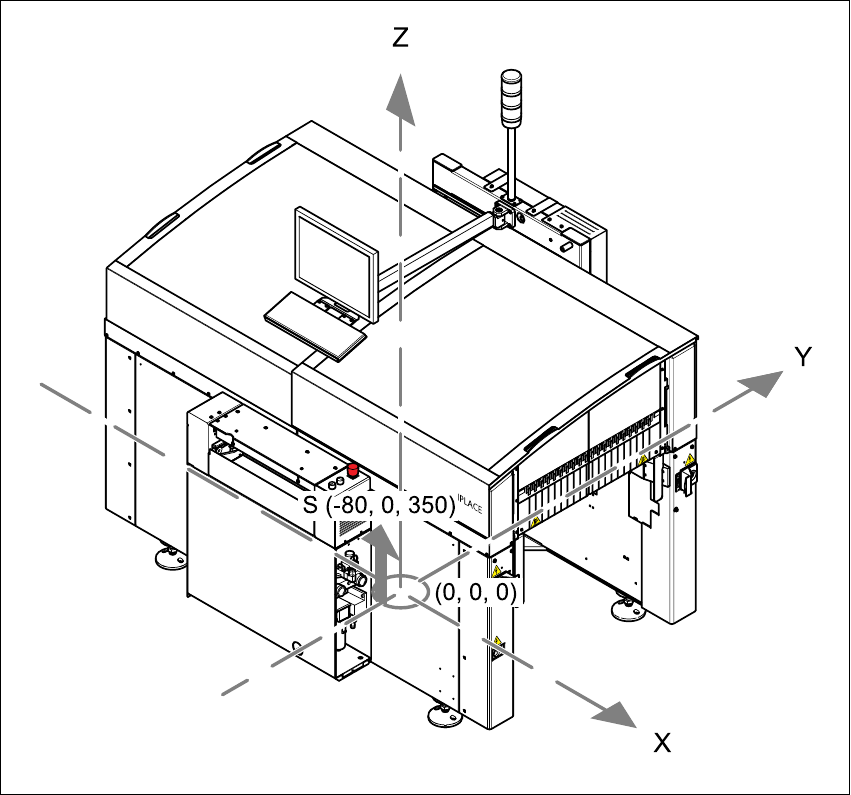

3.5.2 The placement system’s center of gravity
3
Fig. 3.5 - 2 The placement system’s center of gravity
X coordinate - 80 mm
Y coordinate 0 mm
Z coordinate 350 mm high
T PCB transport direction
These center of gravity coordinates relate to placement systems with a PCB transport height of
830 mm.
3 Technical data User Manual SIPLACE CS
3.5 Dimensions and weight of the placement system Software version SR.101.xx06/2003 US Edition
72

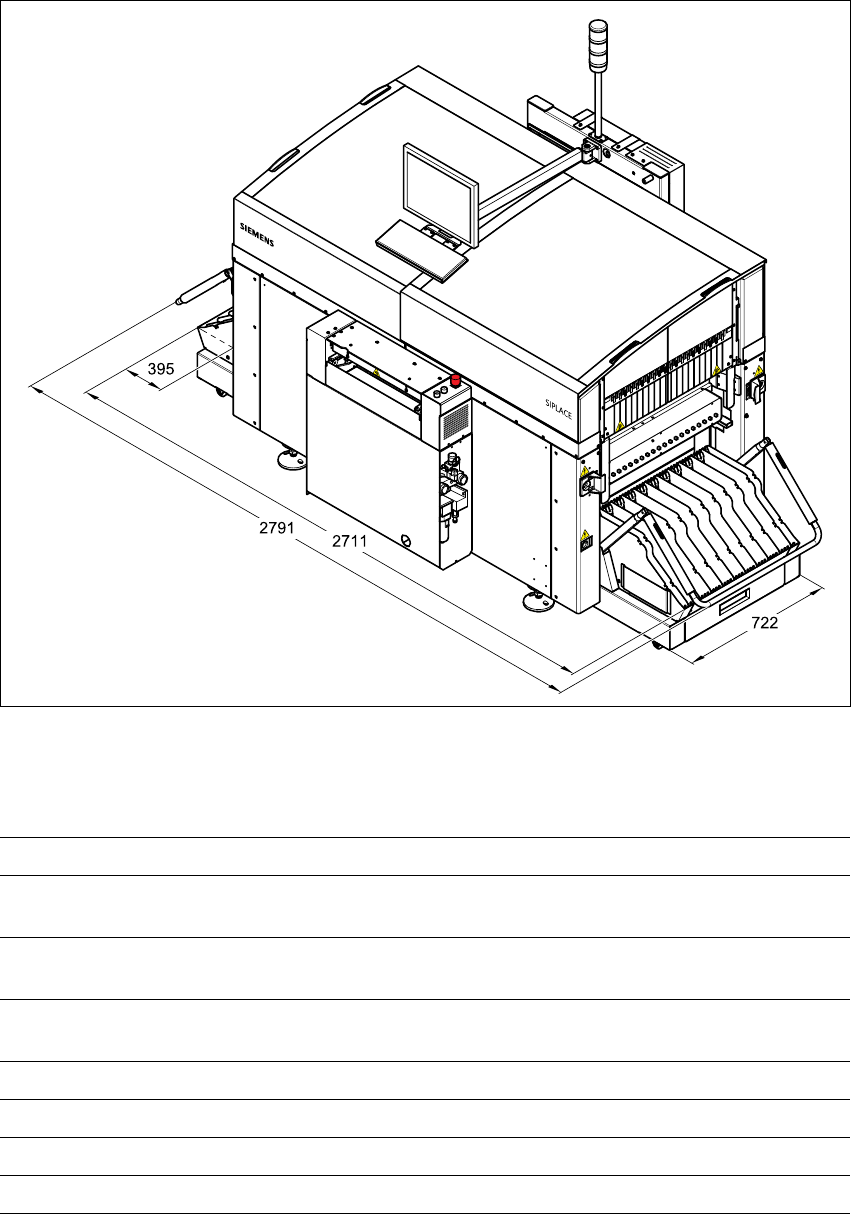

3.5.3 Dimensions of the placement system with component trolley
3
Fig. 3.5 - 3 Dimensions of the placement system with component trolley in millimeters
3.5.4 Technical data - dimensions, weight of the placement system
3
Length 1587 mm including conveyor belts
Width 1921 mm
2711 mm with component trolley
Height with warning lamp 1931 mm (standard height) /
2001 mm / 2031 mm/ 2051 mm SMEMA
Ground clearance 115 mm (standard height) /
185 mm / 215 mm/ 235 mm SMEMA
Weight of basic module 1500 kg
Weight fully equipped Approx. 2000 kg
Admissible load per unit area on foundation 1000 kg/m² min.
Load per unit area on mounting feet 4.42 kg/cm²
