4 Configuration Installation and Configuration Guide SIPLACE Explorer

4.1 Standard Monitoring Application (SMA) Edition 05/2007 EN

→ The added production lines will be shown in the Line Configuration - Edit Line List dialog

box.

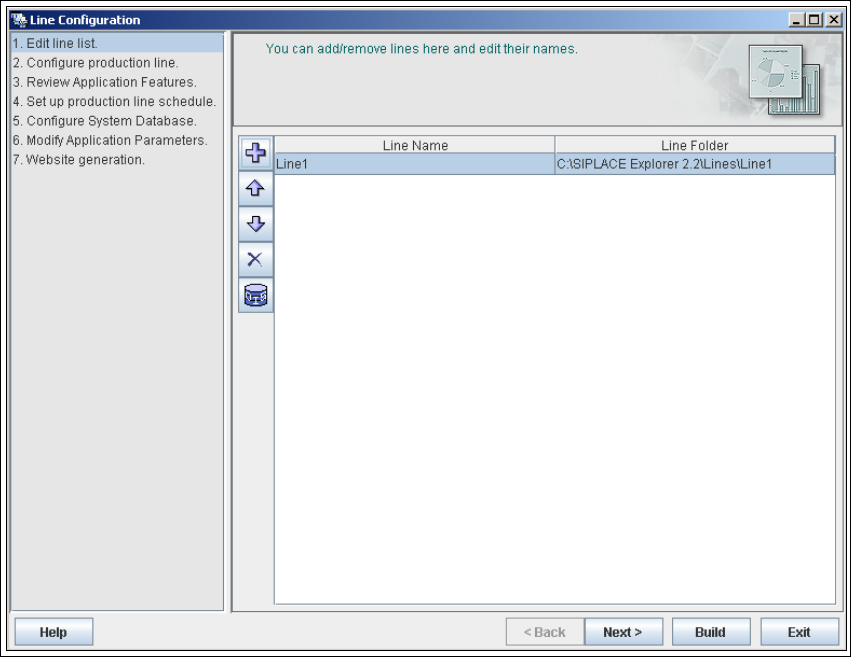

Fig. 4 - 5 Step 1: edit line list

→ Specify the line name and the path at which the configured monitoring application is to be

stored for this production line. A *.gms file with the configuration settings for this line application

will then be saved at the specified path.

→ Click on Next to continue with the next step.

Installation and Configuration Guide SIPLACE Explorer 4 Configuration

Edition 05/2007 EN 4.1 Standard Monitoring Application (SMA)

4.1.1.3 Step 2 - Configure Production Line

→ This is where you can configure your production line. Select the relevant production line at

Select Line and specify the parameters for access to the SIPLACE OIS database.

→ If you have already configured another application for your production line, you can import the

line configuration from that existing application (.gms file). The equipment information will be

adopted from this imported data.

→ This data will be automatically adopted during line import from the OIS.

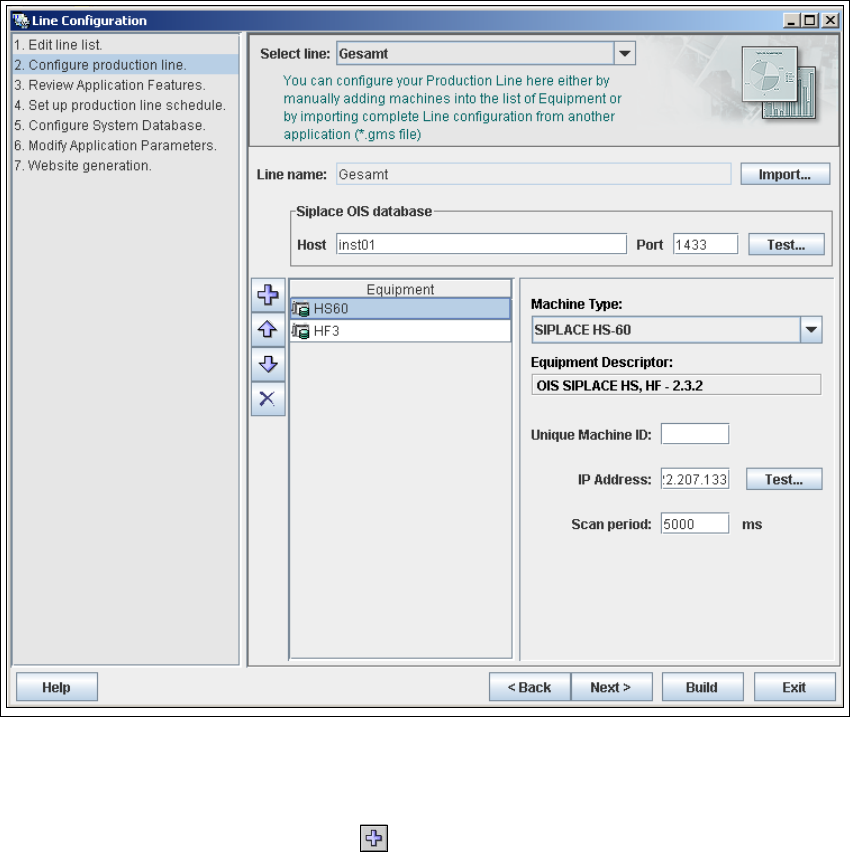

Fig. 4 - 6 Step 2 - configure production line

→ If you have not imported the line configuration from OIS, you will need to manually configure

all machines in the production line. Repeat the procedure for each machine in the line.

– Click on the Add equipment icon in the toolbar. The Select Equipment Descriptor

and Name dialog box will appear.

– Select the equipment description and edit the name for the selected machine.

4 Configuration Installation and Configuration Guide SIPLACE Explorer

4.1 Standard Monitoring Application (SMA) Edition 05/2007 EN

→ If you have not imported the line configuration from OIS, you will need to configure the machine

properties for each machine in the production line, as follows:

– Select the machine from the Equipment list on the left.

– Specify the machine properties from the window on the right.

→ For each type of equipment, you will be presented with a different box of properties. You will

need to specify the following values:

– Unique Machine ID (MID)

Specify the MID for the equipment concerned. The MID can be found on the equipment

label.

The MID is automatically entered during OIS import and OIS versions from 4.1 onwards.4

– IP address

The IP address will be automatically entered during OIS import.

– The IP address and scan period for equipment available via SIPLACE OIS database. The

scan period defines the frequency with which SIPLACE Explorer checks the data in the OIS/

SIS database in order to import new data from that database. We recommend a scan period

of 60 secs.

→ After specifying the equipment properties, check the data consistency of the equipment with

OIS. To do this, click on the Test button.

The system will check whether the specified MID and IP address already exist in OIS. If this is

not the case, you will have to correct the MID and IP address accordingly. MID checks can only

be performed from OIS version 4.1 onwards. If you do not correct data inconsistencies, the

data monitored with SIPLACE Explorer will be stored in the database with their uncorrected

data inconsistencies. 4

→ When all machines in the production line have been defined and the data consistency has

been checked with OIS, click on the Next button to continue with the next step.
