Installation and Configuration Guide SIPLACE Explorer 4 Configuration
Edition 05/2007 EN 4.2 Configuring the Factory Configuration Utility
79
4.2.2 Configuring Production Lines
The SIPLACE Explorer Factory Configuration Utility can be used to add production lines to an ex-
isting list of lines to be monitored. This is performed by calling up the relevant production line data
from the SIPLACE Explorer host. A list of the lines already configured in SIPLACE Explorer will
be provided via the connection to the SIPLACE Explorer host. 4
NOTE
We do not recommend that you change the production line data in SIPLACE Explorer Factory
Configuration Utility. If you do so, you must also adjust/synchronize this data in the SIPLACE
Explorer host. 4
After editing the data in the Factory Configuration Utility, save the modified data in the factory da-
tabase in which all Factory Configuration Utility data are stored. During data backup, data is sent
between the SIPLACE Explorer line host and the factory host. To be more exact, the sequence of
transfer is from the SIPLACE Explorer factory host to the line host and from the SIPLACE Explorer
line host to the SIPLACE Explorer factory host. 4
Transfer of data from SIPLACE Explorer factory host to SIPLACE Explorer line host: 4
– Factory Calendar
– Factory database settings
– Central user management, with e-mail accounts
Transfer of data from SIPLACE Explorer line host to SIPLACE Explorer factory host: 4
– Line names
– Line URLs
4 Configuration Installation and Configuration Guide SIPLACE Explorer
4.2 Configuring the Factory Configuration Utility Edition 05/2007 EN
80
4.2.2.1 How to Configure Production Lines and Their Properties
→ Select the Production Lines tab.
4
Fig. 4 - 36 Factory Configuration Utility - production lines
→ Now add the production lines by clicking on the Add Line icon.
Installation and Configuration Guide SIPLACE Explorer 4 Configuration
Edition 05/2007 EN 4.2 Configuring the Factory Configuration Utility
81

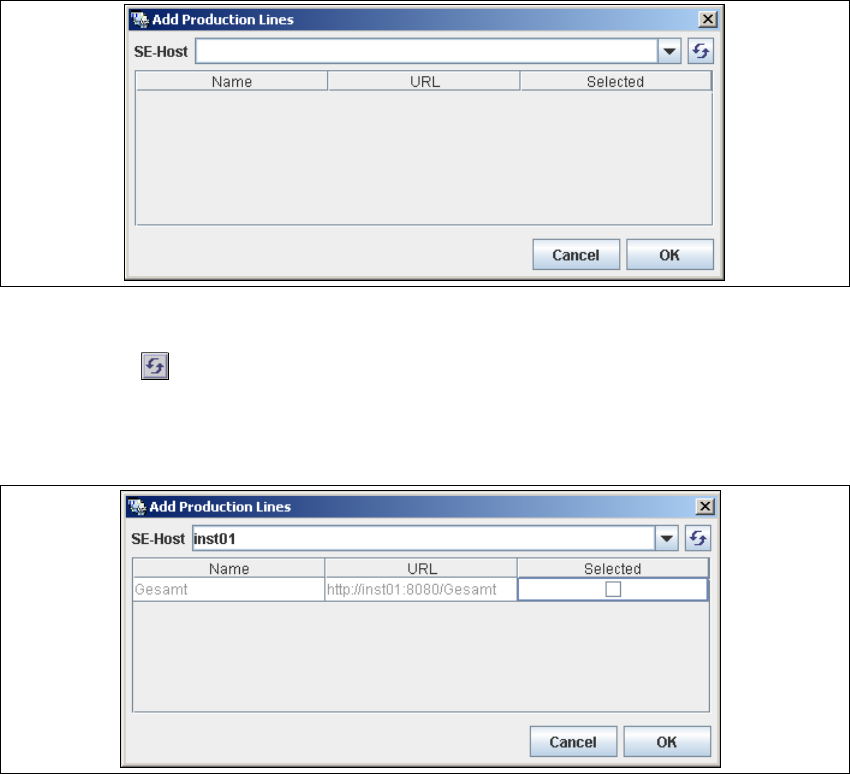

The Add Production Lines dialog box will open: 4
4
Fig. 4 - 37 Factory Configuration Utility - Add Production Lines
→ Enter the name or IP address of the SIPLACE Explorer host in the SE-Host field and click on
the Refresh icon.
If a connection to the specified host can be established, a list of all available production lines
will be shown. The Name and URL will be shown for each line. 4
4
Fig. 4 - 38 Factory Configuration Utility - add production lines
→ Now select the required production lines by enabling the relevant checkbox(es) in the Selected
column.
→ Confirm your choice with OK.
