4 Setting up and commissioning
4.3 Setting up the machine
60 Instruction Guide ASM ProcessLens 02/2017
4.3 Setting up the machine
4.3.1 Warning instructions
DANGER
Only ASM SMT Solutions engineers or qualified people are permitted to set up and
commission the machine
► Always follow the applicable accident prevention regulations.
► If you still need to perform assembly work to the underside of the machine, take
appropriate measures to secure the machine first. The forklift must not be used as the
only support.
► Make sure that the inspection head is positioned over the PCB conveyor area so that
you do not restrict your head movement during assembly, thus excluding the risk of in-
jury.
► Two people will be needed to adjust the height of the machine:
► One person to carry out the necessary assembly work and the other person to watch
the raised machine during assembly and ensure that it does not move.
► Wear special safety boots to protect your feet.
4 Setting up and commissioning
4.3 Setting up the machine
Instruction Guide ASM ProcessLens 02/2017 61
4.3.2 Lifting and transporting the machine with the forklift truck

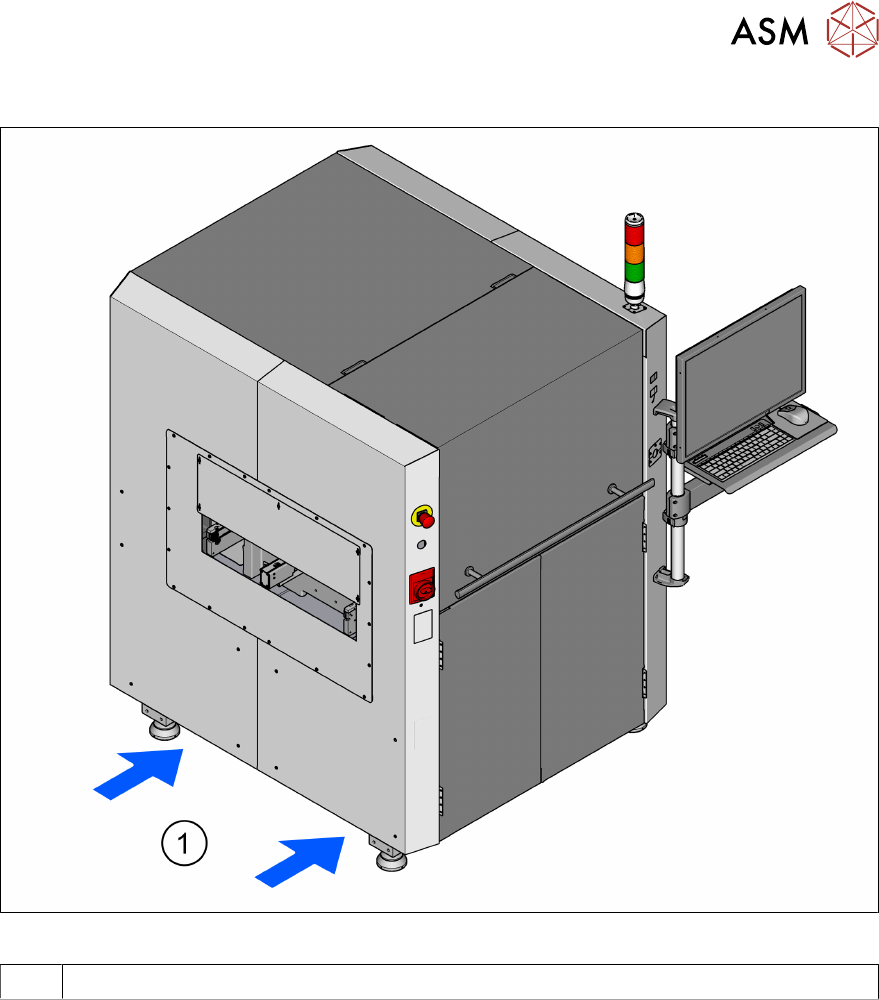

Fig.38: Contact surfaces - forks parallel to the direction of PCB transport
1 Contact surface for forklift truck forks
► Position the forklift truck at right angles to the PCB conveyor and open the forks until the con-
tact surfaces of the machine lie evenly on the forks.
4 Setting up and commissioning
4.3 Setting up the machine
62 Instruction Guide ASM ProcessLens 02/2017
WARNING
Risk of injury
Please note the following points before you raise the machine in order to avoid irreversible
damage to the machine
► The forks must be aligned parallel to the PCB conveyor.
► Make sure to push the forks all the way through. Not pinching cables. There is an area
in the center of the machine's base plate where there is a fan. If the forks are not go-
ing through fully, they could lift up the machine and be in contact with the fan and not
the machine's base plate which means the fan would get destroyed.
► The forks may only be opened to a degree which ensures that they are still within the
contact area of the machine underside (see 4.1.5.3 "Forklift attachment points on the
machine" [}56]).
► Do not increase the distance between the forks so that the machine is lifted outside
this contact surface. This would lead to deformation of the machine frame and/or dam-
age to the cables and leads.
► Make sure that the forks are evenly loaded when you lift the machine.
► A firm support between the forks and machine will prevent the machine tilting when it
is raised. This will also prevent a one-sided load on the machine feet, which would de-
form the fixing of the machine feet. We recommend that a second person watch the
machine as it is raised, and make sure that the machine does not tip to one side when
lifted with the forklift.
WARNING
Transporting the machine
When you are transporting the machine, make sure that all the feet are clear of the floor. If
they are not clear, the feet will drag along the floor or bump into obstacles. This could dam-
age the machine foot fixing in the machine frame.
► With the forklift, raise the machine approximately 35 cm. This prevents the risk of any
injuries to your feet if the machine feet are unintentionally lowered.
4.3.3 Fitting attached parts
The machine is delivered with the monitor, keyboard and tower lamp dismantled. To fit these com-
ponents, proceed as follows:
●
To fit the tower lamp see section 4.3.3.2 "Fitting the tower lamp" [}62].
●
To fit the monitor see section 4.3.3.3 "Fixing the monitors" [}62].
► Hook up the keyboard fixture and connect the keyboard.
4.3.3.1 Checking and setting the protective cover switch
► Check the function of the protective cover switch (see section 2.5.2.3 "Position of protective
switch on the machine" [}37].
► Adjust the protective cover switch if necessary (see service manual).
4.3.3.2 Fitting the tower lamp
► Remove the cover on the tower lamp base.
► Fix the connector between the machine and the tower lamp.
► Insert the tower lamp into the holder.
► Put on the cover onto the tower lamp.
4.3.3.3 Fixing the monitors
► Install and secure the monitor in the bracket using 4x M4 x 8mm screws with washer.
► Insert the power cable.
► Insert and tighten the screws of the VGA cable.
