KM8_7_2
KM8-9910 Locate Pin 7 2 Conveyor Unit 8 5 12 4 7 2 3 10 8 1 4 11 10 8 1 13 7 5 9 9 3 6 7 3 See

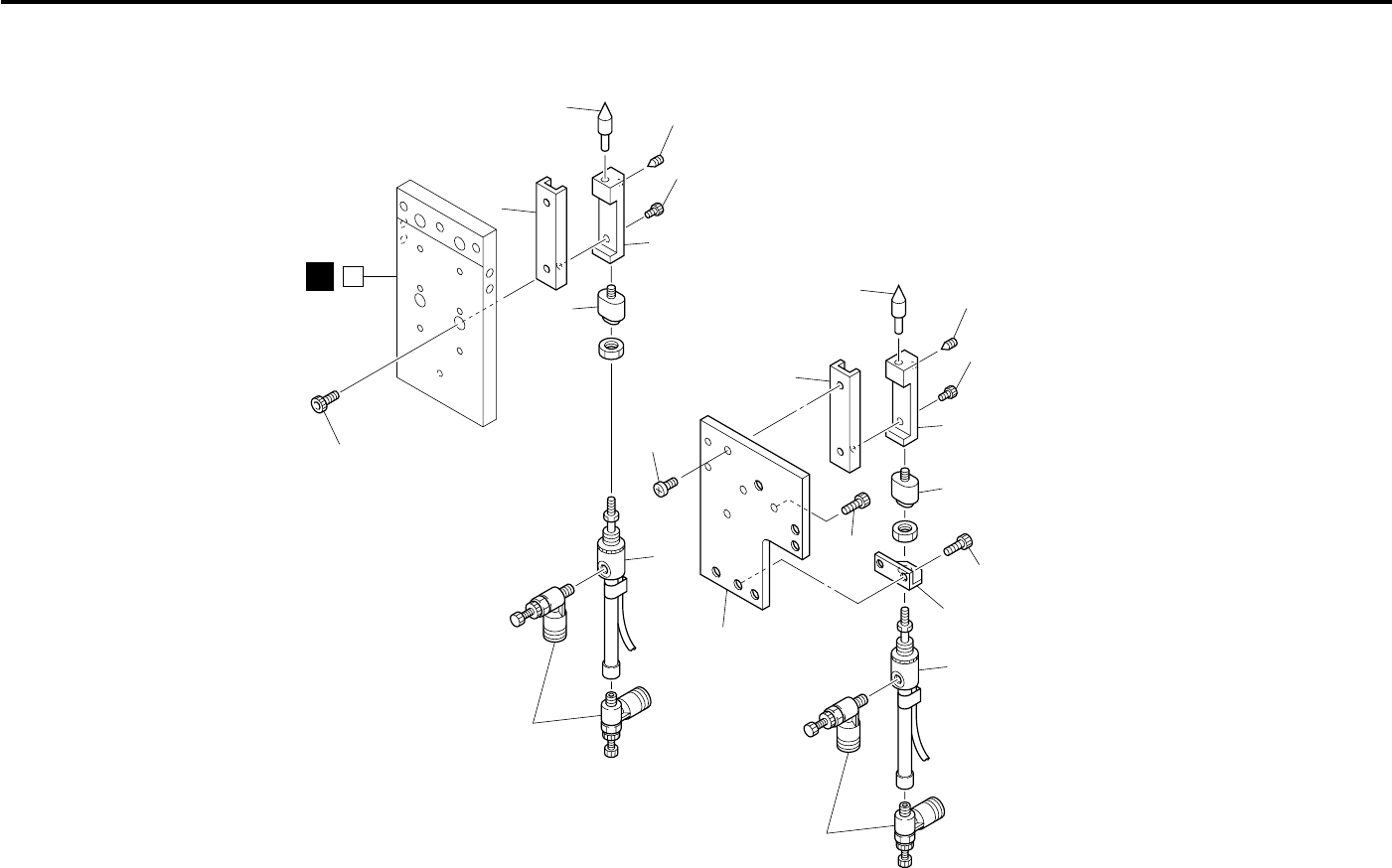

KM8-9910
Locate Pin
72
Conveyor Unit
8
5
12
4
7
2
3
10
8
1
4
11
10
8
1
13
7
5
9
9
3
6
7
3
See
KM8-9910
Locate Pin
72
Conveyor Unit
No. Part No. Part Name Q'ty Remarks No. Part No. Part Name Q'ty Remarks
1 KU0-M9172-00X HOLDER, LOCATION 2
2 KG7-M9174-00X PIN, LOCATION 1
3 KH5-M9176-00X CYLINDER 2
4 KG9-M7136-00X GUIDE 2
5 $SC4-M5A SPEED CONTROLLER 4
6 KU0-M9175-00X BRACKET, CYLINDER 1
7 KG7-M9177-00X JOINT, FLOATING 2
8 91317-03006 BOLT, HEX. SOCKET HEAD 6
9 91317-04010 BOLT, HEX. SOCKET HEAD 4
10 92A08-03006 SCREW, SET 2
11 KG7-M9174-10X PIN, LOCATION 1
12 KU0-M9173-00X PLATE2, LOCATION 1
13 KG7-M9178-00X BOLT, BUTTON HEAD 2
