1 Introduction
1.5 Tools required, measuring equipment and materials
Service Manual SIPLACE SpeedStar (C&P20 P / C&P20 M2) 03/2018 11
1.5 Tools required, measuring equipment and materials
Before starting work, make sure that all the necessary tools and materials are available.
●
As a basic configuration we recommend the "Head Maintenance Kit for CPx" [03109541‑xx]
(see below).
The HMK contains many of the tools and materials needed for service work. Any additional
materials needed will be listed separately.
Please also observe the technical information "Head Maintenance und Exchange
Kit" [DE:TI2017‑09D05] [EN:TI2017‑09E05].
●
The spare parts required can be found in the chapters concerned.
●
For more information refer to the service section of our homepage at www.siplace.com.
Head Maintenance Kit (HMK)

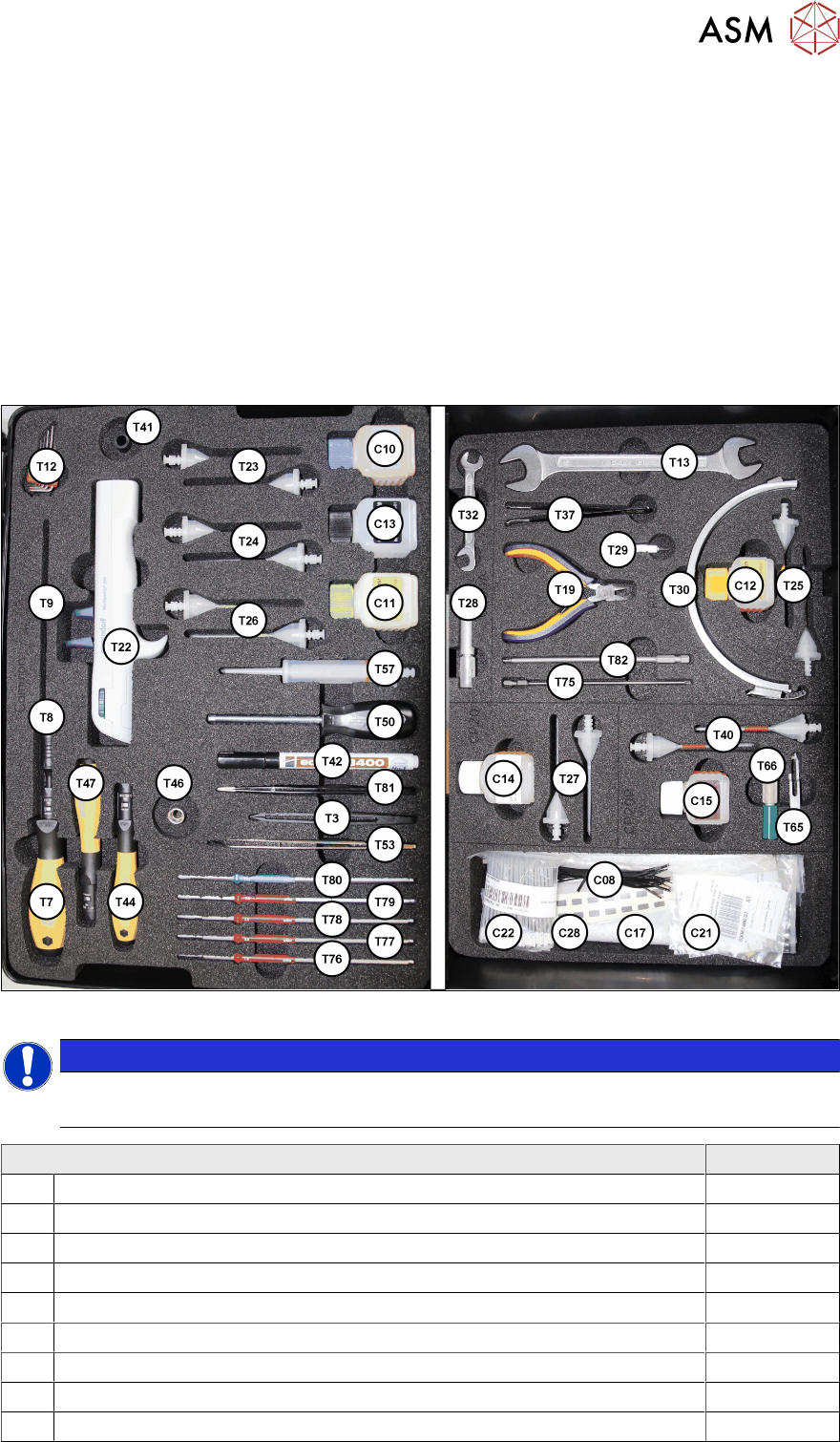

Fig.2: Overview – Head Maintenance Kit for CPx [03109541‑xx].
NOTICE
Various development stages
Your HMK may not contain all the materials shown, depending on its development stage.
Tools contained in the HMK: Item no.
T03 Anti-static tweezers, Bernstein 5-192 00377393-xx
T07 Torque screwdriver ESD 1.0-5.0 Nm 03078400-xx
T08 Bit holder for TorqueVario screwdriver 03078706-xx
T09 Extension/ straight TX20 03073256-xx
T12 Hexagon socket head cap screw driver 0.7 - 2 00320265-xx
T13 Double wrenches size 17 x 19 03109304-xx
T19 Wire cutter electronic size 110 00318673-xx
T22 Multipette M4 00386154-xx
T23 Combitips advanced 0.1 ml blue 03070440-xx
1 Introduction
1.5 Tools required, measuring equipment and materials
12 Service Manual SIPLACE SpeedStar (C&P20 P / C&P20 M2) 03/2018
Tools contained in the HMK: Item no.
T24 Combitips advanced 0.1ml black 03078990-xx
T25 Combitips advanced 0.1 ml yellow 03077923-xx
T26 Combitips advanced 0.1 ml green 03077924-xx
T29 Lubrication application tool for star bearing CPP 03078632-xx
T30 DP clamping ring for fitting the CPP front plate 03077754-xx
T32 Fork wrench size 10 03109302-xx
T37 Tweezers for filter disk CPP 03046190-xx
T40 Combitips advanced 0.1 ml red 03118173-xx
T41 Silicone hose D=12 mm L=20 mm 03058392-xx
T42 CD marker Edding 8400 03070076-xx
T44 Torque screwdriver ESD 0.1 - 0.6 Nm 00386132-xx
T46 Wrench socket size 8 - 1/4" 03122880-xx
T47 Torque screwdriver ESD 0.4 - 1.0 Nm 00386253-xx
T50 Tool to adjust torque screwdriver ---
T53 Tweezers angled 140 mm oval tips 00096487-xx
T57 Combitips advanced 10 ml orange 03109540-xx
T66 Filter disk removal device C&P20P 03108641-xx
T76 Torque interchangeable blades 1.5 mm, hexagonal 00386135-xx
T77 Torque interchangeable blades 2 mm, hexagonal 00386136-xx
T78 Torque interchangeable blades 2.5 mm, hexagonal 03090019-xx
T79 Torque interchangeable blades 3 mm, hexagonal 03109522-xx
T80 Phillips interchangeable blades PH1 03075861-xx
In addition, you need the following tools which are not included in the HMK:
Tools not contained in the HMK: Item no.
Protective cover CO sensor C&P20 P 03112729‑xx
Loctite 222 00351416‑xx
Fork wrench set 3.2 to 14 mm 00096290‑xx
Magnet removal plate for SIPLACE C&P20 A 03078491‑xx
DP change tool for the SIPLACE C&P20P 03109065‑xx
Filter disk extraction device 03108641‑xx
Tweezers, blunt 145mm size 3mm 00376493‑xx
Pipe/hose cutters Festo ZRS 7658 00381443‑xx
Feeler gauges 0.05 – 1.00 mm 00094020‑xx
Torque interchangeable blades, Pozidriv size 0 ---
Flat-bladed screwdriver size 0 ---
Tools for removing/fitting and calibrating the head, if needed (see also the
service manual for your machine)
---
1 Introduction
1.5 Tools required, measuring equipment and materials
Service Manual SIPLACE SpeedStar (C&P20 P / C&P20 M2) 03/2018 13
Materials
Materials contained in the HMK: Item no.
C08 Cable ties B=2.5mm, L=102mm Panduit 00308458-xx
C10 Lubcon Thermoplex ALN 1001/00, 50 ml (blue) 03078556-xx
C11 ISOFLEX Topas 5051 50 ml (green) 03078517-xx
C12 Klueberoil GEM 1 220N 50 ml (yellow) 03079640-xx
C13 Klueberalfa DH 3-100, 50 ml (black) 03078928-xx
C15 Klueberoil LAMORA D 220 30ml (red) 03118539-xx
C17 Whiteboard cleaner 10 pcs. 03070074Sxx
C21 Maintenance labels C&P20 - pack of 10 03067486-xx
C22 Cotton swabs 00388764-xx
C28 SM reel of labels 9x5 black matt (200 dots) 00388802-xx
In addition, you need the following materials which are not included in the HMK:
Materials not contained in the HMK: Item no.
Lint-free cloth, KM wipe 03082092-xx
Ethanol or isopropyl ---
Compressed air ---
