1 Introduction
1.5 Tools required, measuring equipment and materials
Service Manual SIPLACE SpeedStar (C&P20 P / C&P20 M2) 03/2018 13
Materials
Materials contained in the HMK: Item no.
C08 Cable ties B=2.5mm, L=102mm Panduit 00308458-xx
C10 Lubcon Thermoplex ALN 1001/00, 50 ml (blue) 03078556-xx
C11 ISOFLEX Topas 5051 50 ml (green) 03078517-xx
C12 Klueberoil GEM 1 220N 50 ml (yellow) 03079640-xx
C13 Klueberalfa DH 3-100, 50 ml (black) 03078928-xx
C15 Klueberoil LAMORA D 220 30ml (red) 03118539-xx
C17 Whiteboard cleaner 10 pcs. 03070074Sxx
C21 Maintenance labels C&P20 - pack of 10 03067486-xx
C22 Cotton swabs 00388764-xx
C28 SM reel of labels 9x5 black matt (200 dots) 00388802-xx
In addition, you need the following materials which are not included in the HMK:
Materials not contained in the HMK: Item no.
Lint-free cloth, KM wipe 03082092-xx
Ethanol or isopropyl ---
Compressed air ---
1 Introduction
1.5 Tools required, measuring equipment and materials
14 Service Manual SIPLACE SpeedStar (C&P20 P / C&P20 M2) 03/2018
2 Overview of the modules
2.1 Overview of C&P20 P/M2 parts
Service Manual SIPLACE SpeedStar (C&P20 P / C&P20 M2) 03/2018 15
2 Overview of the modules
2.1 Overview of C&P20 P/M2 parts

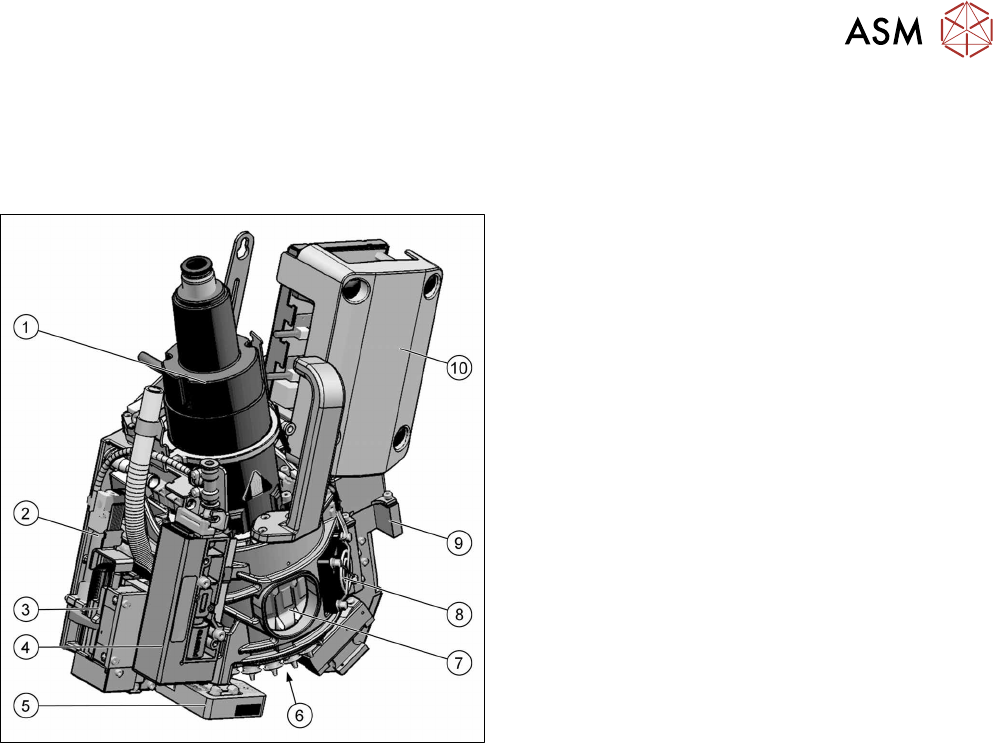

Fig.3: Overview (example of SIPLACE C&P20P shown)
●
SIPLACE C&P20P with camera [03108230‑xx]
●
SIPLACE C&P20P without camera
[03091157Sxx]
●
SIPLACE C&P20M2 with camera [03124683‑xx]
●
SIPLACE C&P20M2 without camera
[03125907‑xx]
1. Star motor body
2. Return unit [03007696-xx]
3. Z axis
4. Pressure control valve [03106620-xx]
5. Component sensor [03092400-xx]
6. Star with 20 nozzles
7. 20x DP drive
for SIPLACE C&P20P: [03102532‑xx]
for SIPLACE C&P20M2: [03153682Sxx]
8. Fan [03104369‑xx]
9. Component camera
10. Intermediate distributor [03110751Sxx]
(under the cover)
