3 Usability package

3.1 Usability package contents for SIPLACE C&P20P

Service Manual SIPLACE SpeedStar (C&P20 P / C&P20 M2) 03/2018 17

3 Usability package

Various modifications have been made to the SIPLACE C&P20P head, to make it easier to fit and

remove the SIPLACE Speedstar (C&P20P) placement head. These can be retrofitted as the so-

called "Usability Package for SIPLACE C&P20P".

3.1 Usability package contents for SIPLACE C&P20P

Fig.5: Overview of parts for SIPLACE C&P20P usability package [03122596‑xx]

Quantity Designation Master code

1 Board cover assembly for SIPLACE C&P20P 03113667-xx

4 Ball for press stud 03122667-xx

4 Spacer bolts type B i/a-M3x45-A2 03024207-xx

1 Head handle / plus - cast part 03127135-xx

1 Clamping plate for C&P20P 03117897-xx

2 Label 2 - assembly marking SIPLACE C&P20P 03122585-xx

2 Label 1 - assembly marking SIPLACE C&P20P 03122544-xx

1 Holding plate for FHE / CP20P 03117809-xx

1 Safety element RO SIPLACE C&P20P2 03139206-xx

2 ISO4762 - M1.6 x 6-A2-70 03042517-xx

3 ISO4762 - M3 x 12-A2-70 03042544-xx

2 ISO4762 - M2.5 x 4-A2-70 03042531-xx

2 ISO4762 - M2.5 x 8-A2-70 03042534-xx

2 ISO 4032 - M3-A2-70 03008162-xx

2 ISO10642 - M3 x 16-A2-70 03082818-xx

3 Usability package

3.2 Fitting the usability kit for SIPLACE C&P20P

18 Service Manual SIPLACE SpeedStar (C&P20 P / C&P20 M2) 03/2018

3.2 Fitting the usability kit for SIPLACE C&P20P

Preparation

► Remove the head from the machine. For details about removing and fitting the placement

head, refer to the service manual for your machine.

Fit the head on the head mount [03056231‑xx].

► Make sure that the component sensor protective cap is fitted.

1.1.3 "Safety instructions for the component sensor" [}6]

Conversion

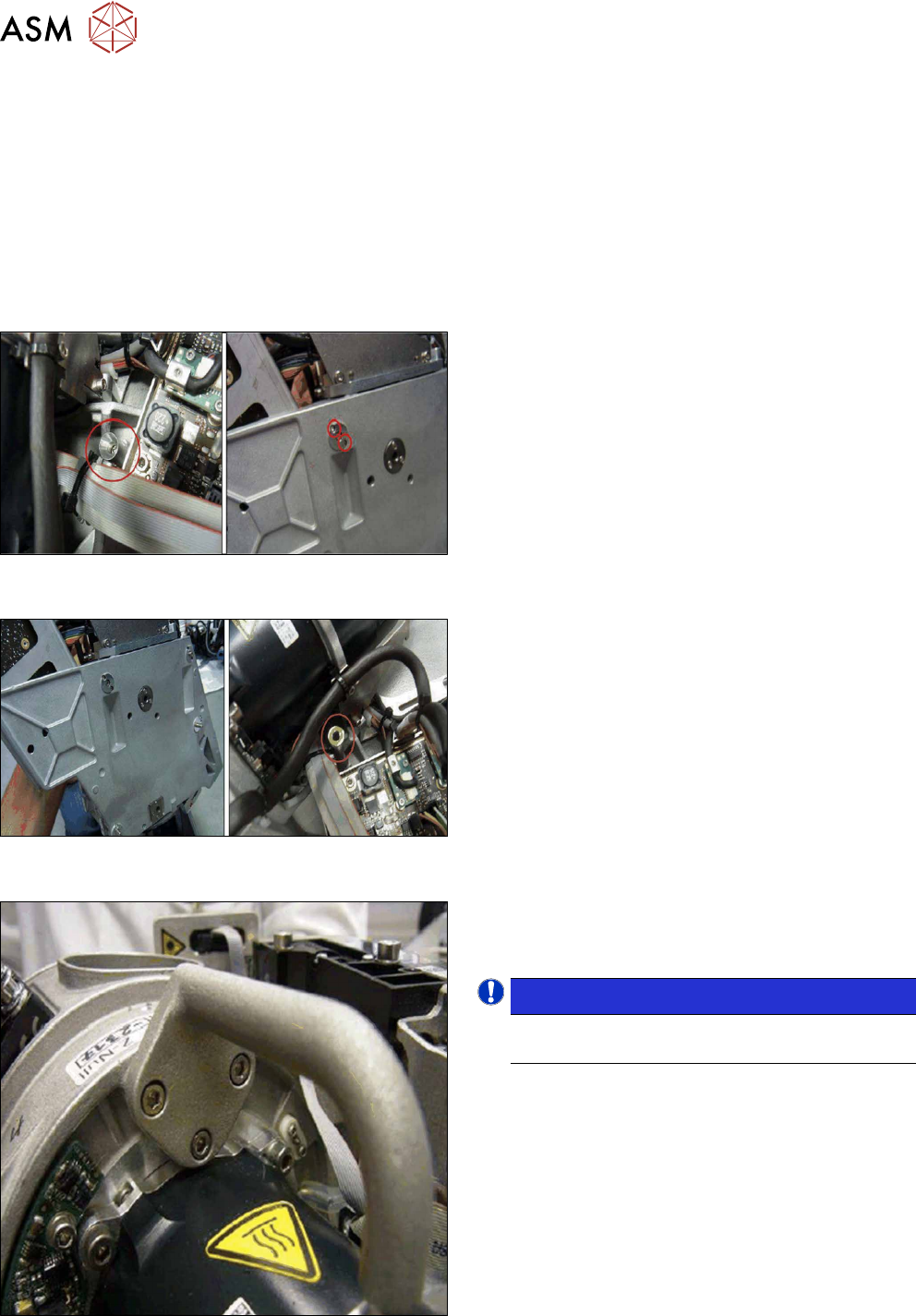

Fig.6: Replacing the safety element 1 (head front and back

sides)

► Remove the old safety element at the top right.

Fig.7: Replacing the safety element 2 (head front and back

sides)

► Fit the new "safety element RO SIPLACE

C&P20P2" [03139206‑xx] with two screws

(ISO4762-M1.6x6‑A2‑70), in place of the old

safety element.

Fig.8: Replacing the handle 1

► Dismantle the old handle. To do this, remove the

three hexagon socket fillister head screws

ISO4762M3x12

 NOTICE!

The old screws can be reused for the new

handle.

3 Usability package

3.2 Fitting the usability kit for SIPLACE C&P20P

Service Manual SIPLACE SpeedStar (C&P20 P / C&P20 M2) 03/2018 19

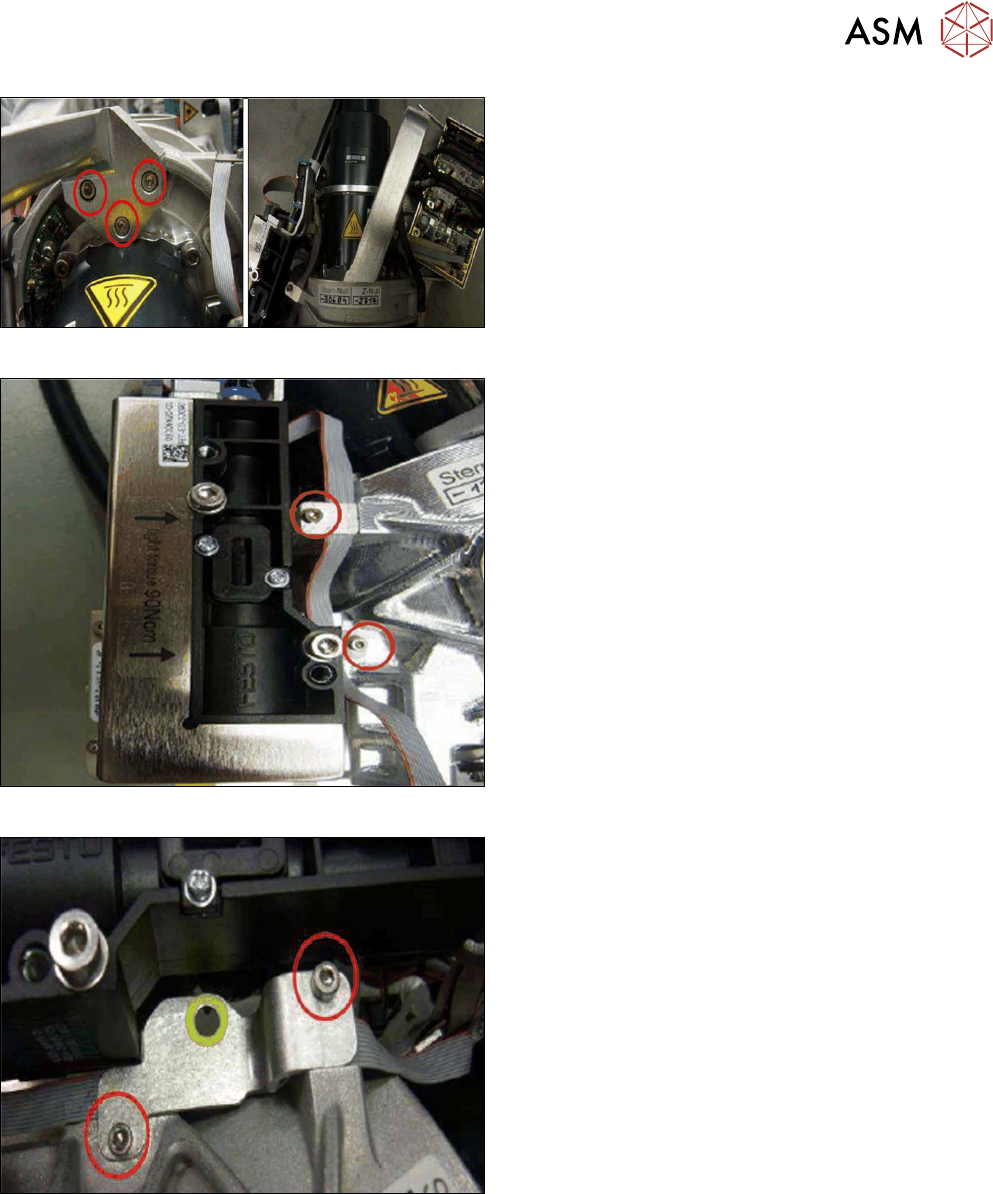

Fig.9: Replacing the handle 2

► Fit the new handle with three fillister head screws

(hexagon socket cap ISO4762M3x12) to the

head carrier.

Fig.10: Replacing the clamping plates 1

► Remove the old clamping plates.

Fig.11: Replacing the clamping plates 2

► Fit the new clamping plate to the head carrier

with two fillister head screws (hexagon socket

cap ISO4762M2.5x6).
