4 Component camera, Z axis and component sensor 4.1 Replacing the component camera Service Manual SIPLACE SpeedStar (C&P20 P / C&P20 M2) 03/2018 27 Installation ► Fit the new component camera. Tighten the four fa…
4 Component camera, Z axis and component sensor
4.1 Replacing the component camera
26 Service Manual SIPLACE SpeedStar (C&P20 P / C&P20 M2) 03/2018
Preparation
► Remove the head from the machine. For details about removing and fitting the placement
head, refer to the service manual for your machine.
Fit the head on the head mount [03056231‑xx].
CAUTION
Do not damage or contaminate the camera lens system.
► Make sure that you do not damage or contaminate the camera lens system.
► Make sure that the component sensor protective cap is fitted.
1.1.3 "Safety instructions for the component sensor" [}6]
Removal
Fig.23: Pulling the cover off
► Pull the cover(1) off the intermediate distributor.
The cover is fixed by four press studs on the stay
bolts.
NOTICE!
Older heads may not have this cover yet.
.
Fig.24: Screws fastening the component camera
► Unplug all electrical connections from the compo-
nent camera.
► Remove the four screws(2) fastening the compo-
nent camera(1).
► Carefully pull the component camera off the loc-
ating pins.
4 Component camera, Z axis and component sensor
4.1 Replacing the component camera
Service Manual SIPLACE SpeedStar (C&P20 P / C&P20 M2) 03/2018 27
Installation
► Fit the new component camera. Tighten the four fastening screws with a torque of 1.3Nm.

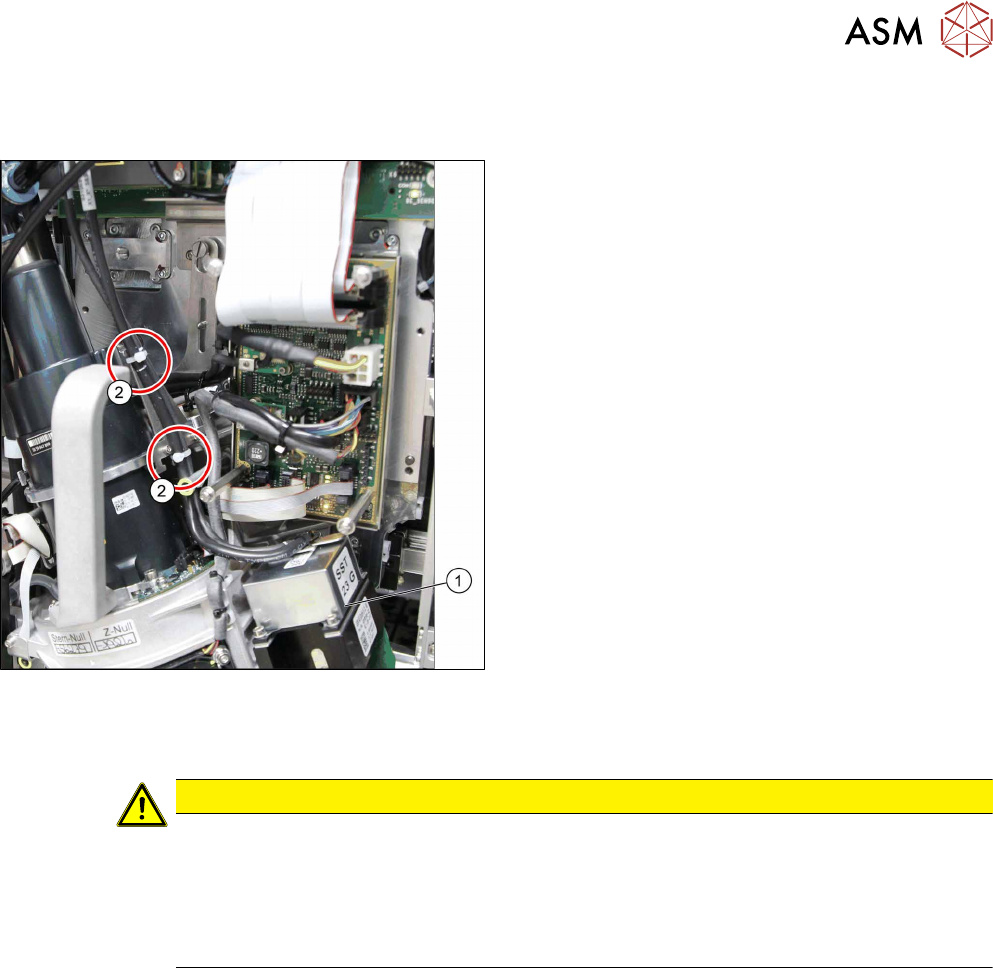

Fig.25: Cables for GigE camera
► Plug in the connection cable and fix it with cable
ties, where necessary. Pay particular attention to
the correct running of cables and positioning of
cable ties for GigE cameras.
► Follow the removal instructions in reverse order for further installation. Also observe the fol-
lowing instructions:
CAUTION
Installation instructions
► Calibrate the placement head.
This can be done using the FHE function. If the calibration data are stored in the cam-
era, a brief calibration is sufficient. If this is not the case, brief calibration will not be
suggested and standard calibration must be performed.
11.2 "Calibration" [}84]
4 Component camera, Z axis and component sensor
4.1 Replacing the component camera
28 Service Manual SIPLACE SpeedStar (C&P20 P / C&P20 M2) 03/2018
4.1.1 Board: LED driver BE VHS
The "LED driver BE VHS" board [03003002‑xx] is fitted in the following component cameras:
●
Component camera C&P (type23) 6x6 digital [03003426‑xx]
●
Component camera C&P (type41) 6x6 digital [03078957‑xx]
●
Component camera C&P (type43) 6x6 Hotlink [03122243‑xx]
Fig.26: 03003002-04
LEDs [03003002-04]
LED Color Status Signal name Description
D1 GN ON 40V_IN +40VDC operating voltage
D3 GN ON 15V+ +15VDC operating voltage
D4 GN ON 15V- -15VDC operating voltage
D5 GN ON 5V+ +5VDC operating voltage
