4 Component camera, Z axis and component sensor 4.4 Replacing the cover flex 34 Service Manual SIPLACE SpeedStar (C&P20 P / C&P20 M2) 03/2018 ► Remove the two fastening screws (2) and then take the side cover (…
4 Component camera, Z axis and component sensor
4.4 Replacing the cover flex
Service Manual SIPLACE SpeedStar (C&P20 P / C&P20 M2) 03/2018 33
Installation

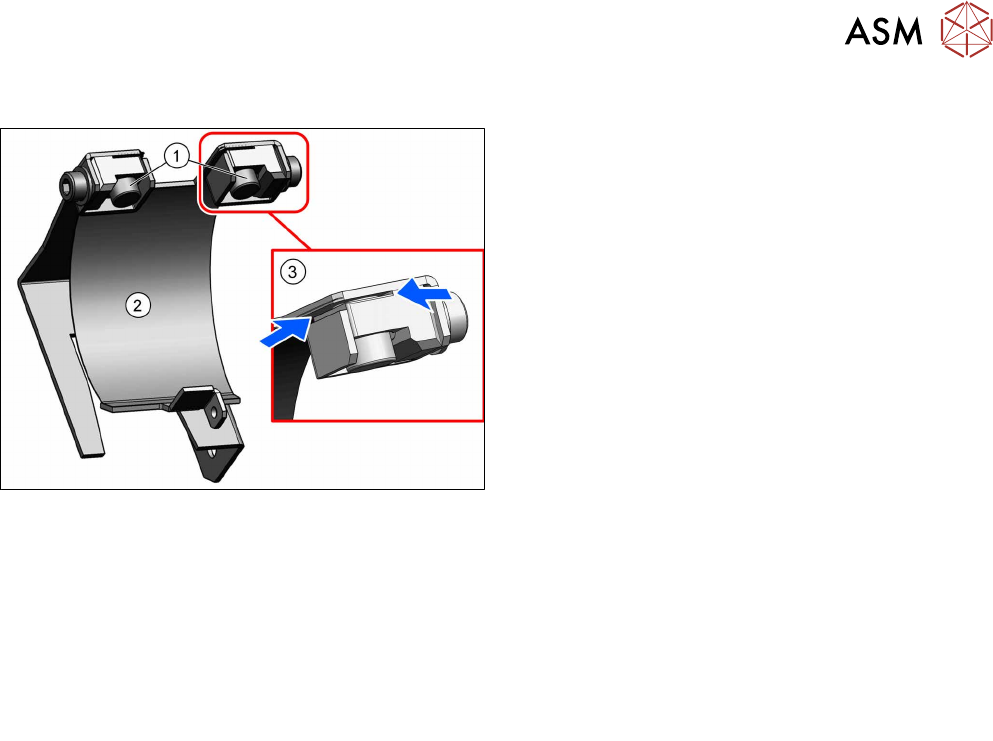

Fig.37: Inserting the magnets (shown without the rest of the
head)
► Make sure that the two ends of the cover flex(2)
are inserted properly into the slits(3).
► Fasten the cover flex with the two round mag-
nets(1).
► Follow the removal instructions in reverse order for further installation.
Also observe the installation instructions in the following section:
4.2 "Replacing the Z axis cover" [}29]
► Observe in particular the torques specified!
4.4 Replacing the cover flex
CAUTION
Sensitive lenses
The transmitter and receiver unit lenses on the component sensor are highly sensitive.
► Make sure that you do not damage or contaminate the lens system.
Parts
●
Cover flex assembly SIPLACE C&P20A [03077368‑xx]
Preparation
► Remove the head from the machine. For details about removing and fitting the placement
head, refer to the service manual for your machine.
Fit the head on the head mount [03056231‑xx].
Removal
CAUTION
Hold the head vertically
► Hold the head vertically so that no screws can fall into the Z axis
► Dismantle the Z axis cover.
4.2 "Replacing the Z axis cover" [}29]
► Dismantle the component sensor.
4.5 "Replacing the component sensor" [}36]
► Dismantle the pressure control valve.
6.1 "Replacing the PRV" [}47]
4 Component camera, Z axis and component sensor
4.4 Replacing the cover flex
34 Service Manual SIPLACE SpeedStar (C&P20 P / C&P20 M2) 03/2018
► Remove the two fastening screws(2) and then
take the side cover(1) off.
► Remove the two round magnets.
4.3 "Replacing the round magnets" [}31]
Fig.38: Screw fastening the cover flex
The cover flex(1) is fixed with a screw(2) (DIN8243 A
M1x8‑A2) and a clamping plate to the head. Depend-
ing on the head version, the clamping plate will be
loose or fixed to the frame.
► Remove the fastening screw and the clamping
plate and then take the cover flex out.
CAUTION!
Take care not to lose the screw and the
clamping plate opposite to this.
.
4 Component camera, Z axis and component sensor
4.4 Replacing the cover flex
Service Manual SIPLACE SpeedStar (C&P20 P / C&P20 M2) 03/2018 35
Installation
Fig.39: Inserting the magnets (shown without the rest of the
head)
► Insert the cover flex and fasten it to the head with
a screw (DIN8243 A M1x8‑A2).
► Make sure that the two ends of the cover flex(2)
are inserted properly into the slits(3).
► Fasten the cover flex with the two magnets(1).
► Follow the removal instructions in reverse order for further installation.
Also observe the installation instructions in the following sections:
4.3 "Replacing the round magnets" [}31]
6.1 "Replacing the PRV" [}47]
4.5 "Replacing the component sensor" [}36]
4.2 "Replacing the Z axis cover" [}29]
► Observe in particular the torques specified!
