6 Pressure control valve (PRV)
6.2 Replacing the membrane and other small parts on the PRV
54 Service Manual SIPLACE SpeedStar (C&P20 P / C&P20 M2) 03/2018

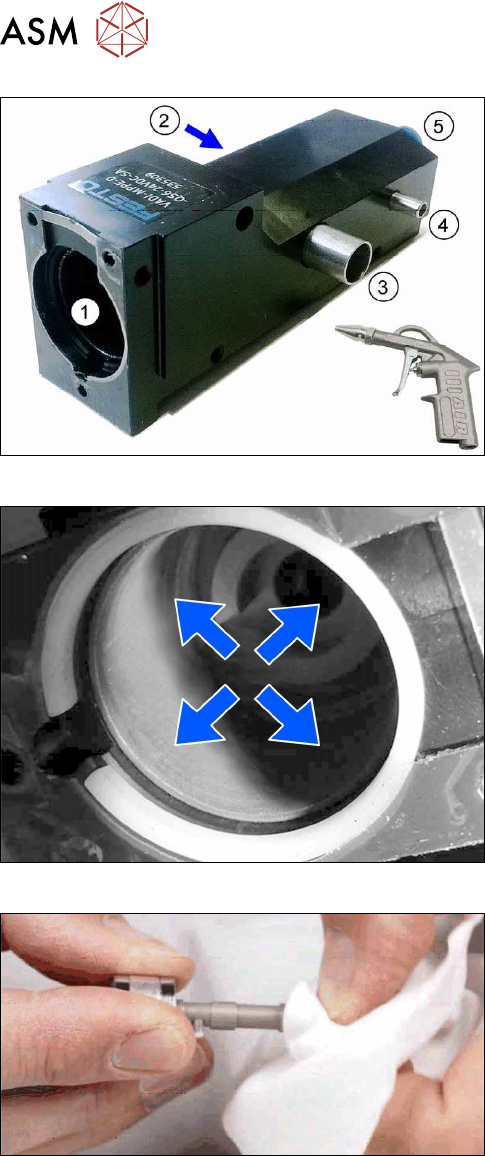

Fig.75: Blowing through the PRV
► Clean all the openings of the pressure control
valve with a compressed air pistol.
Observe the order of work:(1) to(5).
Fig.76: Cleaning the inside
► Clean the inside with a lint-free cloth soaked in
isopropyl.
Fig.77: Cleaning the plunger
► Clean the plunger with a lint-free cloth soaked in
isopropyl.
6 Pressure control valve (PRV)
6.2 Replacing the membrane and other small parts on the PRV
Service Manual SIPLACE SpeedStar (C&P20 P / C&P20 M2) 03/2018 55

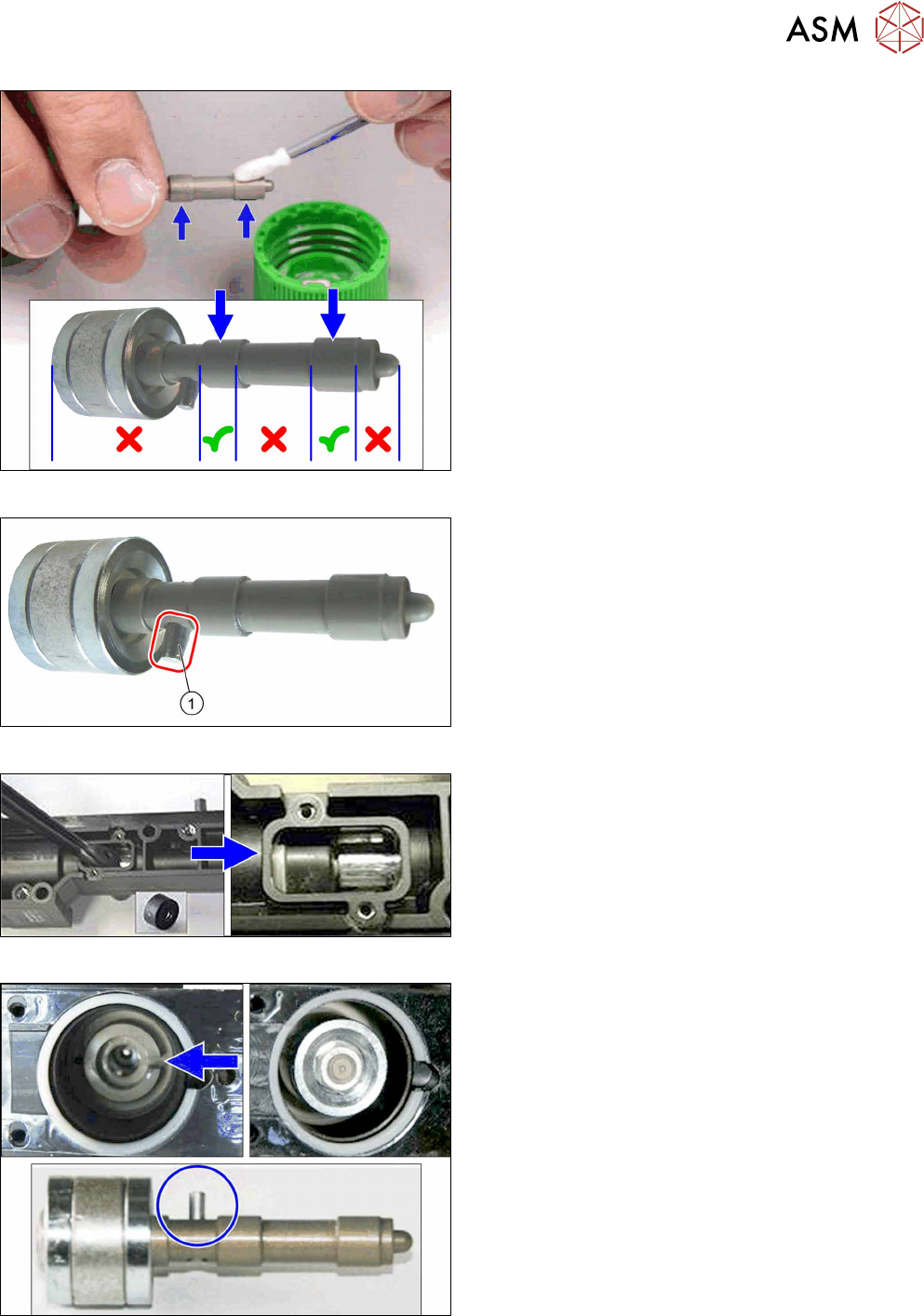

Fig.78: Greasing the plunger 1
► Grease the plunger slightly at the higher positions
with Isoflex Topas 5051.
Remove any excess grease from the gaps.
Fig.79: Greasing the plunger 2
► Grease the rotation lock pin(1) slightly with To-
pas 5051.
Fig.80: Inserting the membrane
► Insert the new membrane.
Make sure that the membrane is fitted properly at
the housing and is not damaged.
Fig.81: Inserting the plunger
► Push the valve plunger back into the PRV.
The nib of the plunger must engage in the recess
on the valve.
Check by trying to turn the plunger. If it can be
turned, the nib has not yet engaged in the recess.
6 Pressure control valve (PRV)
6.2 Replacing the membrane and other small parts on the PRV
56 Service Manual SIPLACE SpeedStar (C&P20 P / C&P20 M2) 03/2018

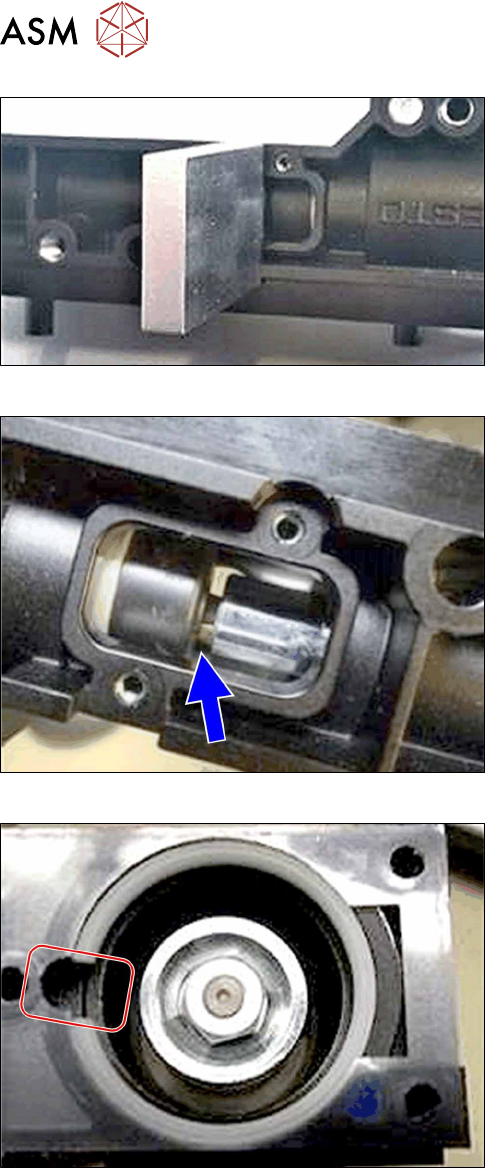

Fig.82: Tool
► Use the tool to make sure that the plunger en-
gages with the membrane.
Fig.83: Checking the membrane
► The membrane must lie on the valve plunger so
that the end of the valve plunger can be seen, as
in the diagram.
► Move the plunger back and forth to check for
ease of movement.
.
Fig.84: Inserting the plastic ring
► Make sure that the opening of the ring is level
with the groove.
