7 Holding circuit, aperture ring and silencer 7.1 Replacing the holding circuit/reflecting ring Service Manual SIPLACE SpeedStar (C&P20 P / C&P20 M2) 03/2018 67 Fig.104: Fastening the holding circuit/aperture ri…
7 Holding circuit, aperture ring and silencer
7.1 Replacing the holding circuit/reflecting ring
66 Service Manual SIPLACE SpeedStar (C&P20 P / C&P20 M2) 03/2018

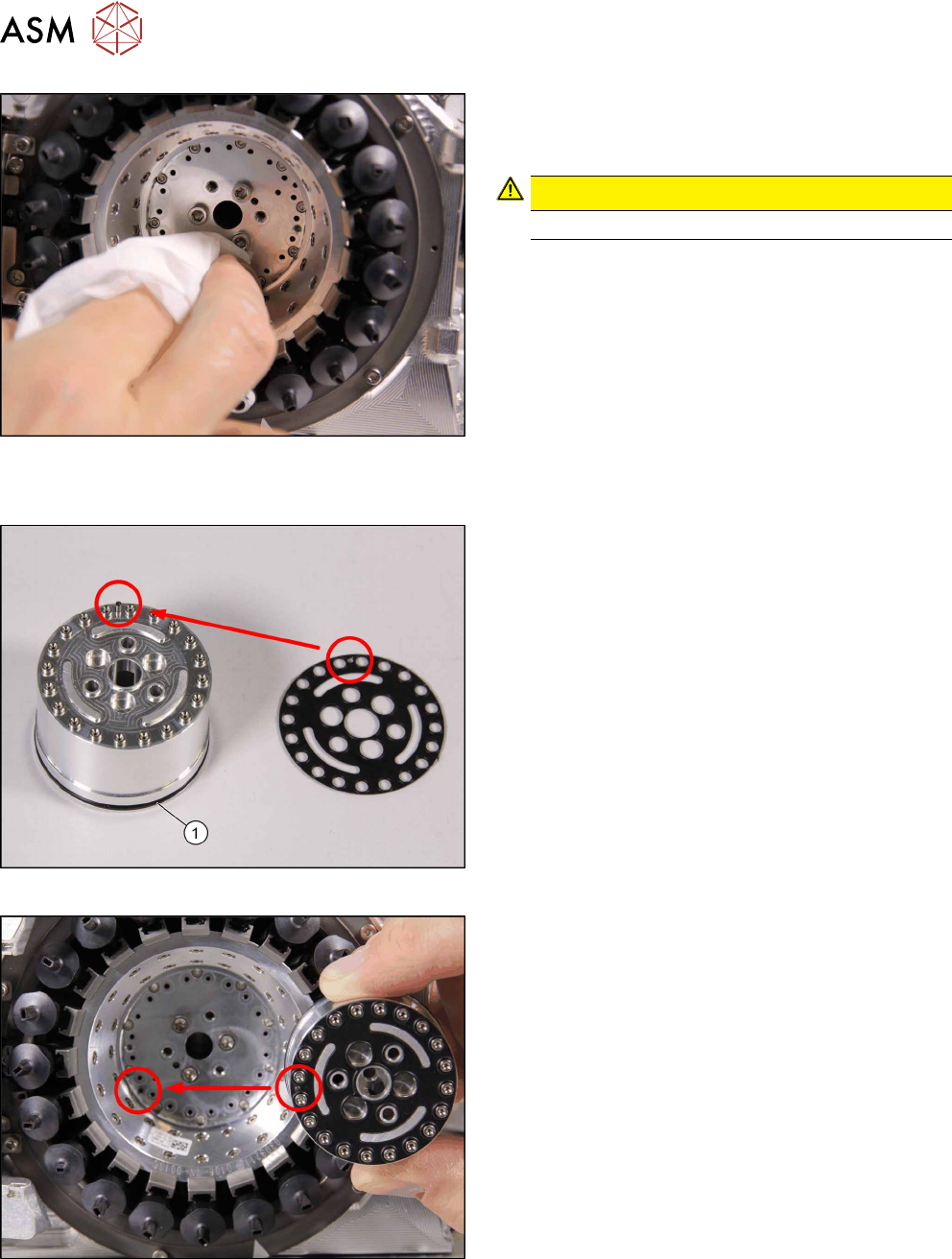

Fig.101: Cleaning
► Clean the seat of the aperture ring with a lint-free
cleaning cloth, if required.
CAUTION!
Do not use compressed air for cleaning!
.
Installation
Fig.102: O‑Ring and sealing disc
► If the O-ring (1) is damaged, replace it with a new
one.
► Correctly position the sealing disc on the aperture
ring. Make sure all openings are aligned.
Fig.103: Inserting the aperture ring
► Position the aperture ring (with sealing disc) cor-
rectly onto the locating pins in the star carrier.
7 Holding circuit, aperture ring and silencer
7.1 Replacing the holding circuit/reflecting ring
Service Manual SIPLACE SpeedStar (C&P20 P / C&P20 M2) 03/2018 67

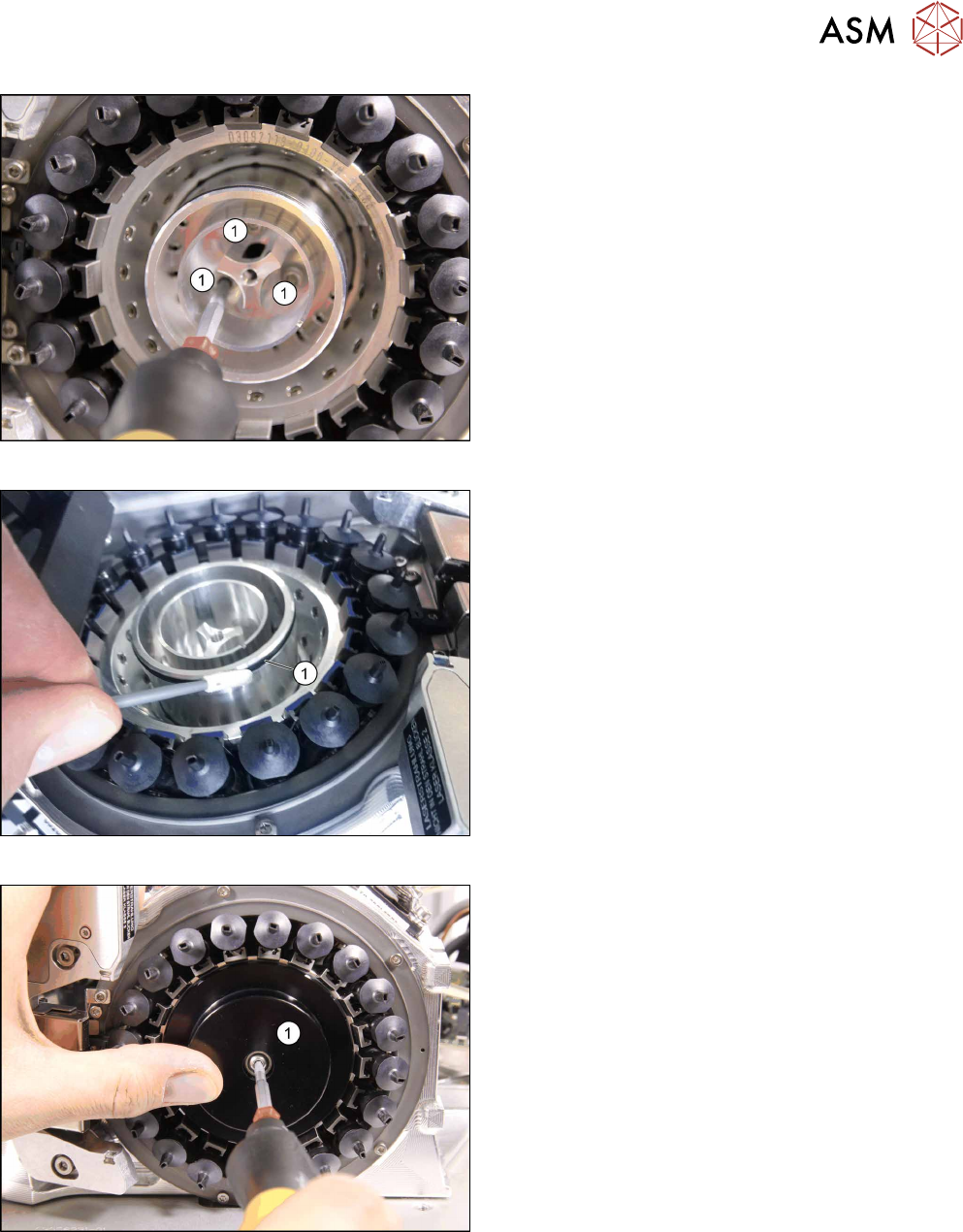

Fig.104: Fastening the holding circuit/aperture ring
► Venturi operation with holding circuit only:
Fix the holding circuit into place with the three
fastening screws. Tighten the screws to a torque
of 0.25 Ncm.
► Vacuum pump operation with aperture ring
only: Fix the aperture ring with the three fasten-
ing screws. Tighten the screws to a torque of 1.3
Ncm.
Fig.105: Greasing the O-ring
► Grease the O-ring. To do this, use a cleaning
stick coated with "Isoflex Topas 5051 50ml
(green)".
Fig.106: Fitting the cover
► Venturi operation only:
Fit the silencer. Tighten the screw fastening the
silencer only hand-tight.
► Vacuum pump operation only:
Fit the cover. Tighten the screw fastening the
cover only hand-tight.
► Follow the removal instructions in reverse order for further installation.
7 Holding circuit, aperture ring and silencer
7.2 Replacing the seal disk on the aperture ring/holding circuit
68 Service Manual SIPLACE SpeedStar (C&P20 P / C&P20 M2) 03/2018
7.2 Replacing the seal disk on the aperture ring/holding
circuit
Parts
●
Sealing disc:
Vacuum mode (aperture ring): sealing disc for SIPLACE C&P20P [03105638-xx]
Compressed air mode (holding circuit): sealing disc for SIPLACE C&P20 [03005120-xx]
●
O-ring:
Vacuum mode (aperture ring): O-ring 40x1.5 [03006234-xx]
Compressed air mode (holding circuit): O-ring 50x1.5 [03046689-xx]
Removal / installation
► Removal and installation follows the same procedure for the holding circuit/aperture ring. For
more information, read section 7.1 "Replacing the holding circuit/reflecting ring" [}61].
7.3 Replacing the silencer (venturi mode only)
Parts
●
Silencer [03043707-xx]
Overview

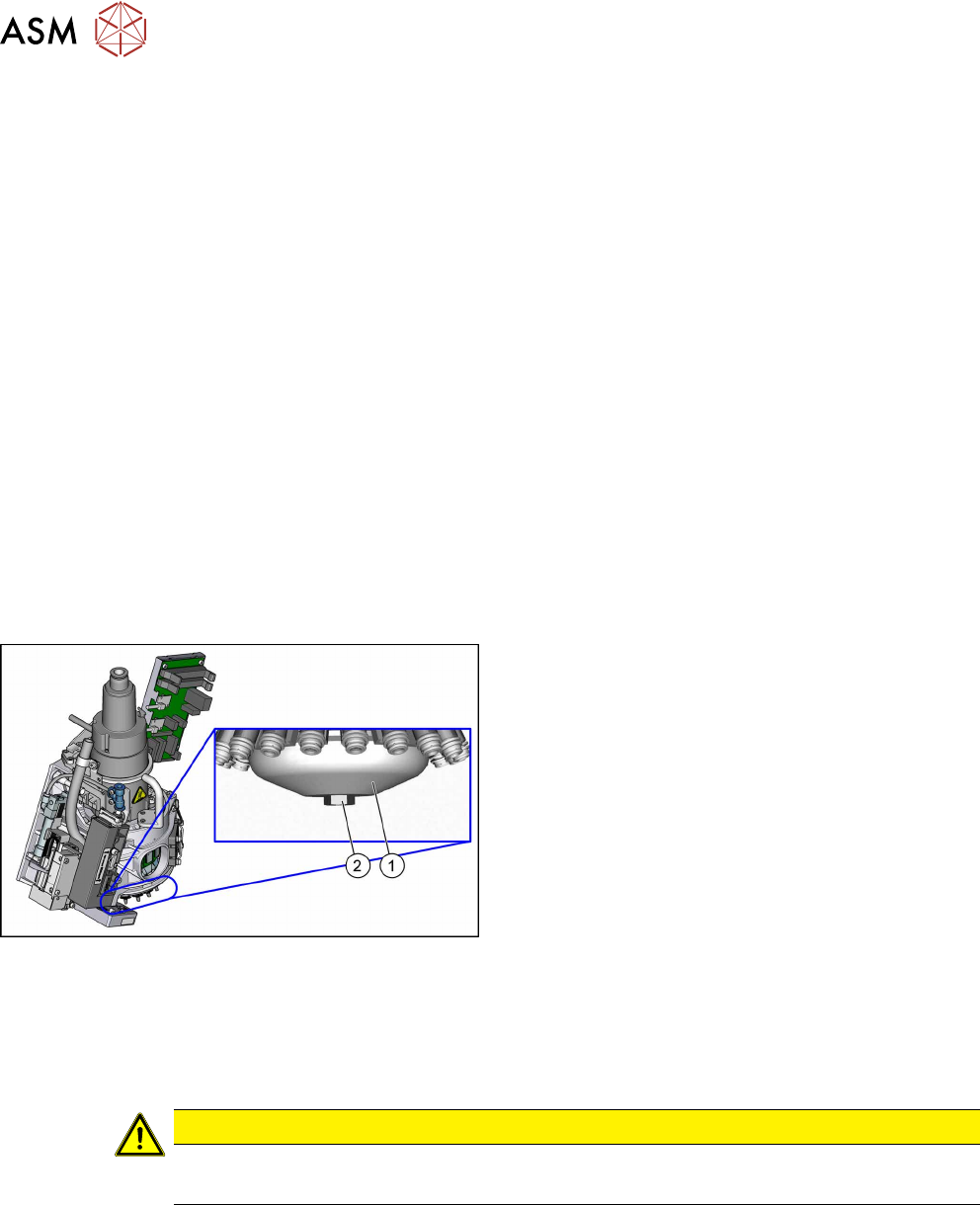

Fig.107: Silencer
1. Silencer for holding circuit
2. Fastening screw
Preparation
► Remove the head from the machine. For details about removing and fitting the placement
head, refer to the service manual for your machine.
Fit the head on the head mount [03056231‑xx].
CAUTION
Camera
► Make sure that you do not damage or contaminate the camera lens system.
► Make sure that the component sensor protective cap is fitted.
1.1.3 "Safety instructions for the component sensor" [}6]
Removal
► Remove the screw fastening the silencer.
► Carefully lever out the silencer.
