8 Return unit and return cylinder

8.3 Replacing the driver lever

Service Manual SIPLACE SpeedStar (C&P20 P / C&P20 M2) 03/2018 75

8.3 Replacing the driver lever

Parts

●

Driver lever [03007700-xx]

Overview

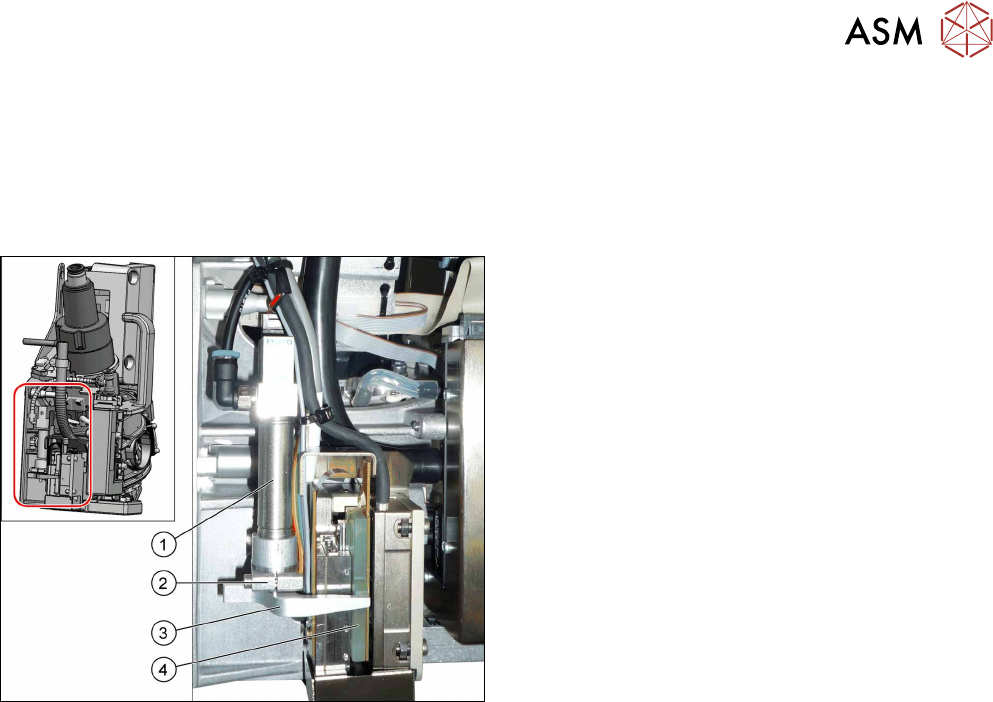

Fig.116: Overview of return unit on the head

1. Return cylinder

2. Return cylinder holder

3. Driver lever for Z axis

4. Rotor on Z motor

The return unit is installed on the Z axis and is re-

sponsible for protecting the Z axis from damage, by

moving it into a safe area in the case of unexpected

events (e.g. power cuts or machine shutdown).

Preparation

► Remove the head from the machine. For details about removing and fitting the placement

head, refer to the service manual for your machine.

Fit the head on the head mount [03056231‑xx].

► Make sure that the component sensor protective cap is fitted.

1.1.3 "Safety instructions for the component sensor" [}6]

Removal

► The return unit does not need to be dismantled when you replace the driver lever. However,

you might find it useful to do so for better access.

8.1 "Replacing the return unit" [}71]

► Remove the screw fastening the driver lever.

8 Return unit and return cylinder

8.3 Replacing the driver lever

76 Service Manual SIPLACE SpeedStar (C&P20 P / C&P20 M2) 03/2018

Installation

► Fit the driver lever fully onto the return cylinder pin and then tighten the fastening screw with a

torque of 1.15 Nm.

Make sure that the return cylinder, the holder and the driver lever are all parallel.

► If you dismantled the return unit, continue with further installation as described there (see 8.1

"Replacing the return unit" [}71]).

If not, perform the following steps:

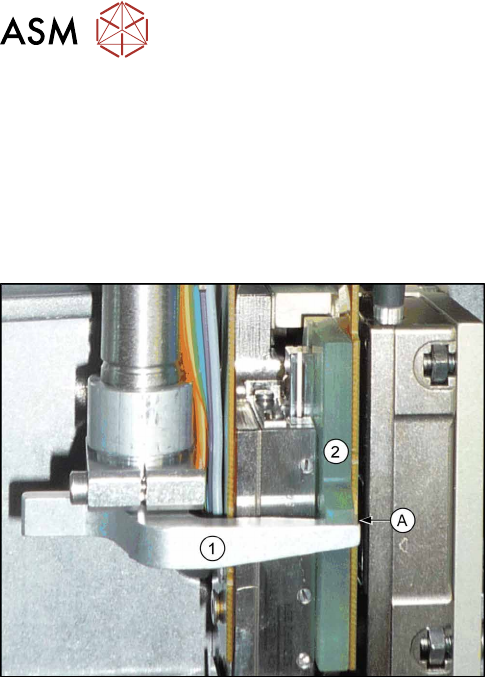

Fig.117: Inspection checks

► Perform the following checks:

●

The driver lever must lie against the Z axis.

●

Check that the star can be revolved.

●

Check the distance(A) between the driver

lever(1) and the rotor(2) of the Z motor. The dis-

tance should be approx. 0.5 mm when the Z axis

is pushed upwards.

► If there are any problems, go through the afore-

mentioned steps again.

► Follow the removal instructions in reverse order for further installation.

9 Intermediate distributor

9.1 Replacing the intermediate distributor board

Service Manual SIPLACE SpeedStar (C&P20 P / C&P20 M2) 03/2018 77

9 Intermediate distributor

9.1 Replacing the intermediate distributor board

Parts

●

For SIPLACE C&P20P: intermediate distributor board assembly SIPLACE C&P20P

[03110751Sxx]

●

For SIPLACE C&P20M2: intermediate distributor assembly SIPLACE C&P20M2

[03124689Sxx]

Overview

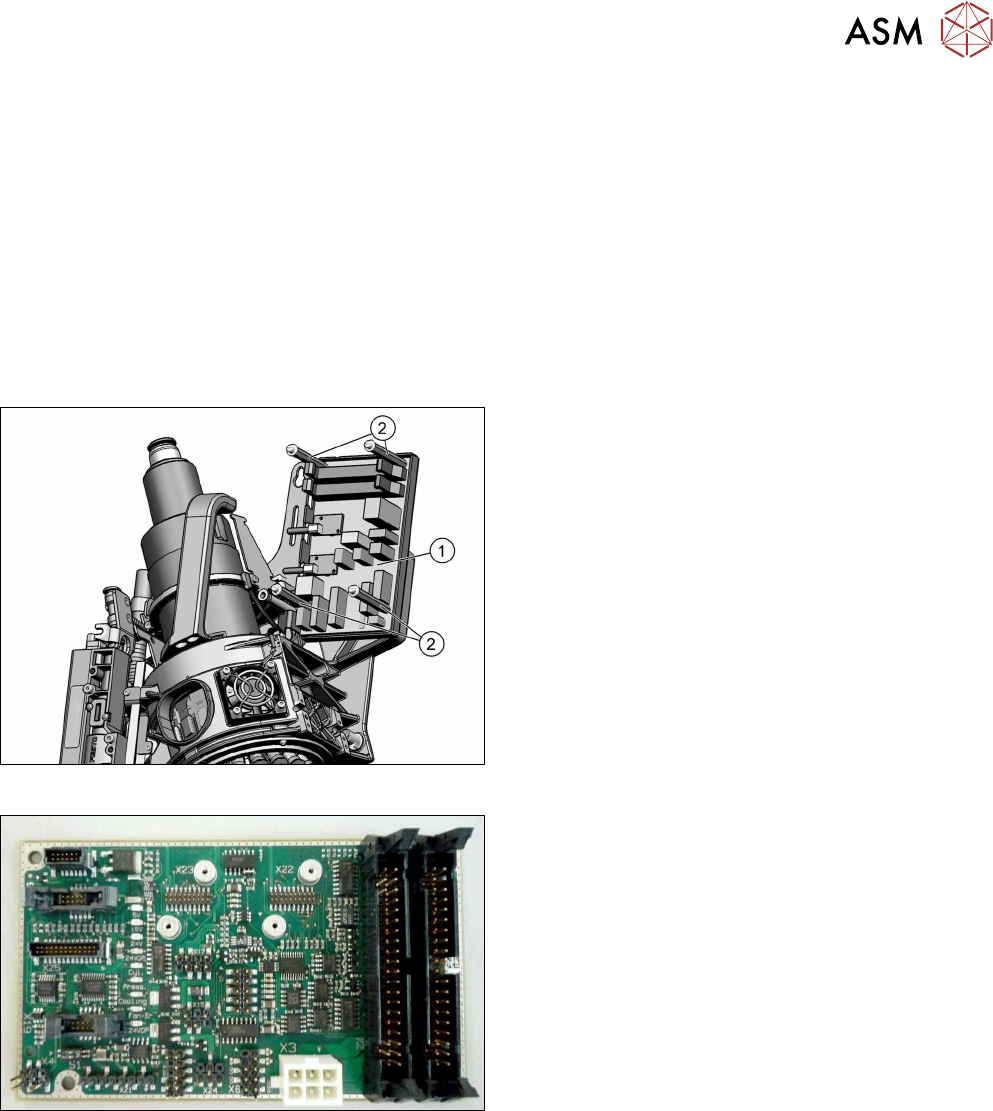

Fig.118: Overview of intermediate distributor 1

1. Intermediate distributor board assembly

SIPLACE C&P20P [03110751-xx]

2. Four fastening bolts

Fig.119: Overview of intermediate distributor 2

Intermediate distributor board assembly SIPLACE

C&P20P [03110751-xx]

Preparation

► Although this work can be performed in the machine, you might find it advisable to remove the

head so that you have better access to it.

For details about removing and fitting the placement head, refer to the service manual for your

machine.

In this case, fit the head on the head mount [03056231‑xx].

► Make sure that the component sensor protective cap is fitted when outside the machine.
