KJJ_YS100_PL - 第18页
3 4 Y -axis Moving-axis KJJ-090615 30 26 34 26 19 18 33 28 17 34 26 26 25 3 2 9 39 7 7 7 8 25 3 9 39 7 8 29 27 16 27 16 37 29 37 29 37 30 37 29 37 14 24 30 30 30 37 37 21 14 21 22 20 35 1 1 24 35 14 39 31 13 14 13 29 37 …
2
4
X-axis -Sub Assy
Moving-axis
KJJ-090615
30
37
36
4
28
5
6
30
11
9
10
10
9
16
34
34
23
19
2
2
38
24
24
24
12
33
23
34
34
32
20
8
1
18
26
31
35
17
25
16
15
7
29
32
22
3
14
13
27
33
32
21
17
35
31
39
40
38
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHW-M2211-01 FRAME X AXIS 1
2 KGS-M2276-S0 X-AXIS GUIDE SET 1
3 KHW-M2241-01 HOLDER, MOTOR X 1
4 KHW-M2242-01 HOLDER, BRG. X 1
5 KHW-M2243-00 PLATE, SLEEVE BRG. 1
6 KHW-M2240-00 SLEEVE, BRG 1
7 KHW-M224A-A0 SUPPORT UNIT 1
8 KHW-M2271-00 SCREW BALL, X AXIS 1
9
90990-26J008 BEARING 1 OK MDX0068-2007/11/22
KGS-M2245-00 BRG., ANGULAR 1
10 KHW-M224E-00 SPACER, BRG SET 1
11 KG2-M9173-00 LOCK NUT 1
12 KHW-M2261-00 HOLDER, HEAD 1
13 90K63-511403 AC SERVO MOTOR 1
14 KM0-M2220-00 COUPLING, X-AXIS 1
15 KHW-M2247-00 BASE, STOPPER 1
16 KHW-M2248-00 DAMPER 2
17 KHW-M2249-00 SPACER 6
18 KGS-M220A-30 TAPE X-AXIS 1
19 KHW-M22C1-00 COVER A, X AXIS 1
20 KHW-M22C2-00 COVER B, X AXIS 1
21 KHW-M22C3-00 COVER C, X AXIS 1
22 KHW-M22C4-00 COVER, COUPLING X 1
23 KV7-M7165-00 SEAL DON'T TOUCH 2
24 91317-04010 BOLT HEX. SOCKET HEAD 16 M4X6
25 91317-05010 BOLT HEX. SOCKET HEAD 2 M5XL10
26 91317-05018 BOLT HEX. SOCKET HEAD 4 M5X18
27 91317-06018 BOLT HEX. SOCKET HEAD 4 M6XL18
28 91317-06020 BOLT HEX. SOCKET HEAD 4 M6X20
29 91317-06025 BOLT HEX. SOCKET HEAD 4 M6X25
30 91317-06050 BOLT HEX. SOCKET HEAD 8 M6X50
31 91312-03008 BOLT HEX. SOCKET HEAD 6 M3X8
32 91312-04006 BOLT HEX. SOCKET HEAD 12 M4X6
33 91312-04016 BOLT HEX. SOCKET HEAD 34 M4XL16
34 98902-04006 SCREW BINDING HEAD 8
35 92902-03200 WASHER PLAIN 6
36 92907-06200 WASHER PLAIN 4
37 92907-06100 WASHER, SPRING 4
38 99480-06012 PIN, PARALLEL 2
39 90990-09J006 SCREW, FLAT HEAD 1 M5X12 with Rubber
40 KHW-M2271-A0 X-AXIS BS SUB ASSY 1 H012860-2009/4/23
3
4
Y-axis
Moving-axis
KJJ-090615
30
26
34
26
19
18
33
28
17
34
26
26
25
3
2
9
39
7
7
7
8
25
3
9
39
7
8
29
27
16
27
16
37
29
37
29
37
30
37
29
37
14
24
30
30
30
37
37
21
14
21
22
20
35
1
1
24
35
14
39
31
13
14
13
29
37
10
32
6
32
10
6
23
5
3
11
12
34
23
3
11
12
34
15
30
15
40
4
4
2
40
5
31
22
41
41
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHW-M2611-S1 FRAME, Y AXIS SET 1
2 KV7-M2676-S2 Y-AXIS GUIDE SET 1
3
KHW-M264A-01 HOLDER SET, Y AXIS 2 OK MD70019-2007/10/19
KHW-M264A-00 HOLDER SET, Y AXIS 2
4
90990-30J040 SHIM 2 t=0.01 OK ME10034-2008/12/19
KV7-M264S-10 SHIM, PLATE (0.01) 2
90990-30J041 SHIM
2 t=0.02
OK
ME10034-2008/12/19
KV7-M264S-20 SHIM, PLATE (0.02) 2
5 KHW-M264B-00 SUPPORT UNIT 2
6 KHW-M2671-00 SCREW BALL Y AXIS 2
7
KJJ-M2645-00 BEARING 2 OK MK70093-2013/8/1
KHW-M2645-00 BRG., ANGULAR 2
8
KHW-M264L-01 SPACER, BRG.SET 2 Change it with No.41 NG MH90039-2011/11/1
KHW-M264L-00 SPACER, BRG.SET 2
9 KGS-M2628-00 LOCK NUT 2
10 KGS-M2666-00 HOLDER, NUT Y AXIS 2
11 KGR-M2611-00 COUPLING, Y-AXIS 2
12 90K63-611404 AC SERVO MOTOR 2
13 90990-05J011 SPACER BOLT 2
14 KHW-M26C2-00 COVER B, Y AXIS 4
15 KHW-M26C6-01 SLIDER 4
16 KHW-M26C7-00 COVER C, Y AXIS 2
17 KJJ-M652A-00 SENSOR, YORG ASSY 1
18 KJJ-M652F-00 SENSOR, YOT ASSY 1
19 KHW-M2691-00 BRACKET, SENSOR 1
20 KHW-M2682-00 DOG, ORG. 1
21 KHW-M2683-00 DOG, 2ND LIMIT 2
22 KHW-M2657-00 STOPPER 2
23 90990-01J007 BOLT HEX. SOCKET HEAD 8 M6X40
24 90990-01J028 BOLT HEX. SOCKET HEAD 20
25 90990-01J029 BOLT HEX. SOCKET HEAD 8
26 90990-01J030 BOLT HEX. SOCKET HEAD 40
27 90990-12J005 SCREW BINDING HEAD 8
28 97602-03308 SCREW, PAN HEAD W/W 4 M3X8
29 91312-04008 BOLT HEX. SOCKET HEAD 19 M4X8
30 91312-04010 BOLT HEX. SOCKET HEAD 10 M4X10
31 91312-05010 BOLT HEX. SOCKET HEAD 10 M6X16
32 91312-06016 BOLT HEX. SOCKET HEAD 8 M6X16
33 91317-06012 BOLT HEX. SOCKET HEAD 2 M6X12
34 91317-06018 BOLT HEX. SOCKET HEAD 16 M6XL18
35 90201-124G9 WASHER PLAIN 20
36
37 92902-04200 WASHER PLAIN 23
38
39 99480-05010 PIN, PARALLEL 2
40 KHW-M2671-A0 Y-AXIS BS SUB ASSY 2 (Spare)
41
KHW-M2671-B1 Y AXIS BRG.SET 2 (Spare) MK60097-2013/7/8
KHW-M2671-B0 Y AXIS BRG.SET 2 (Spare) MH90039-2011/11/1
4
4

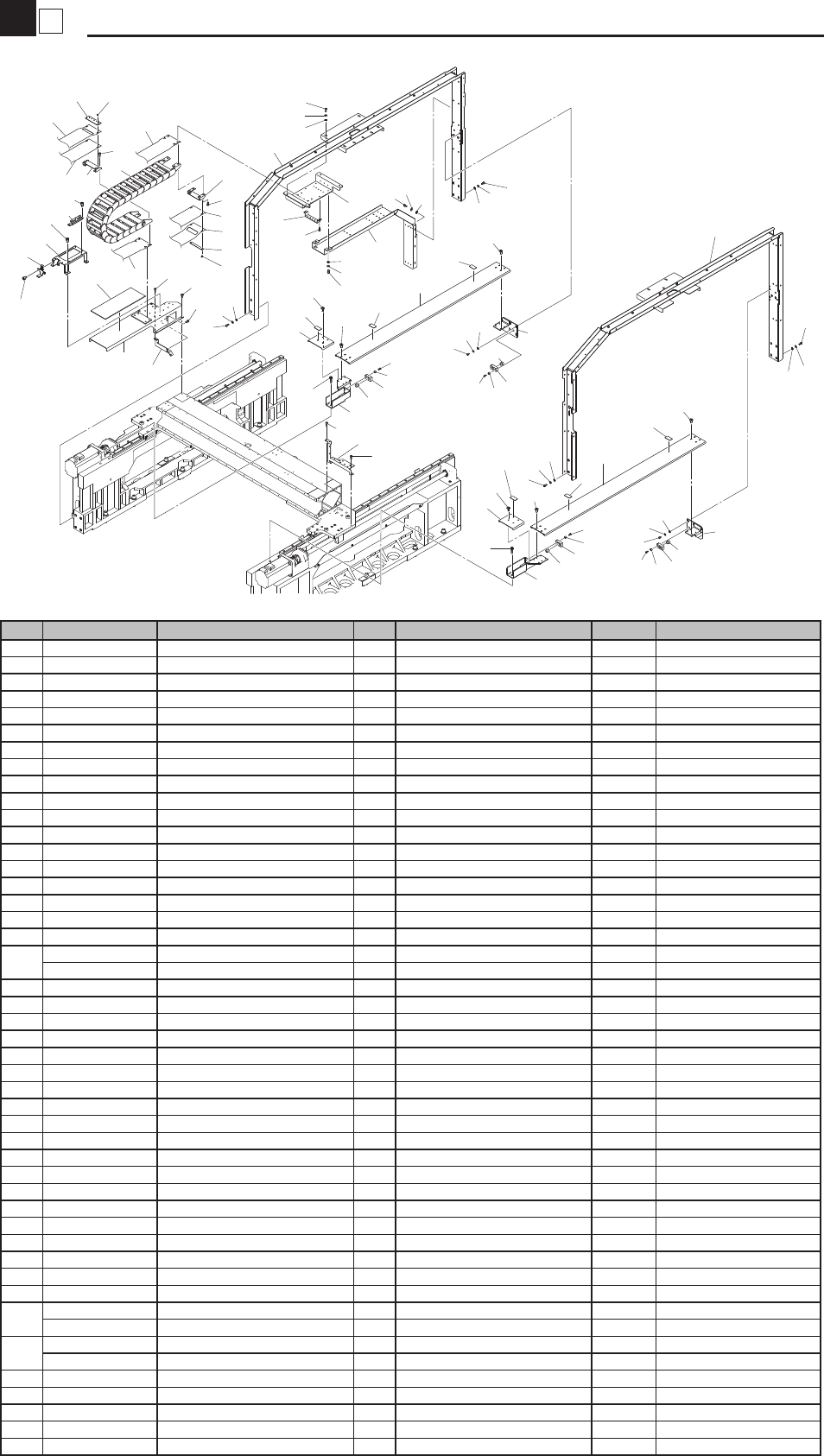

Y-axis (Duct / Frame)
Moving-axis
KJJ-090615
11
41
15
13
32
36
36
34
33
36
10
37
8
14
9
37
38
40
39
39
45
45
42
42
42
38
37
42
35
22
17
18
19
20
21
36
36
30
29
5
43
7
43
43
35
2
37
13
15
12
41
6
1
31
36
36
40
38
37
44
14
28
27
23
21
16
3
35
42
42
42
29
40
38
37
35
28
35
35
4
24
25
26
24
25
26
18
17
19
20
18
18
17
17
19
19
20
20
42
38
37
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHW-M2695-01 BRACKET B, GUIDE 1
2 KJJ-M26F1-00 FRAME 1 1
3 KJJ-M26F2-00 FRAME 2 1
4 KHW-M26F4-01 DUCT, HARNESS 1
5 KGS-M2694-00 BRACKET A, GUIDE 1
6 KGS-M260A-00 TAPE, Y AXIS 1
7 KGT-M2698-00
PLATE 1, CLAMP 1
8 KGS-M2678-A0 GUIDE, CABLE Y 1
9 KV7-M2268-00 BRACKET 1, TAPE 1
10 KV7-M2269-00 BRACKET 2, TAPE 1
11 KV7-M2266-00 PLATE, NUT 1
12 KGT-M2667-00 PLATE 1
13 KGS-M260B-00 TAPE, Y DUCT 1
14 KGS-M260C-00 TAPE 2, Y DUCT 1
15 KGS-M260D-00 TAPE 3, Y DUCT 1
16 KHW-M2655-00 BRACKET, STOPPER R 1
17 KV7-M2651-00 DAMPER, STOPPER 4
18 KHW-M2654-00 PLATE , DAMPER 4
19
90990-41J180 COLLAR 4 OK ML60128-2014/7/11
KHW-M2656-00 SPACER 8
20 91312-04008 BOLT HEX. SOCKET HEAD 8
21 91312-08020 BOLT HEX. SOCKET HEAD 4
22 KHW-M2655-10 BRACKET, STOPPER L 1
23 KHW-M2652-50 BRACKET, STOPPER 2R 1
24 91312-05010 BOLT HEX. SOCKET HEAD 8
25 92902-05200 WASHER PLAIN 8
26 90172-00J050 WASHER, EXTL. TOOTHED 8
27 KHW-M2652-60 BRACKET, STOPPER 2L 1
28 KHW-M26C1-01 COVER A, Y AXIS 2
29 KHW-M26C3-01 COVER, COUPLING Y 2
30 KHW-M26C4-00 BRKT. R, HARNESS 1
31 KHW-M26C5-00 BRKT. L, HARNESS 1
32 KJJ-M2697-00 STAY, SELECTOR 1
33 KJJ-M2698-00 PLATE 1, CLAMP 1
34 KJJ-M2699-00 PLATE 2, CLAMP 1
35 90990-12J001 SCREW BIN. HEAD W/W 22
36 91312-04006 BOLT HEX. SOCKET HEAD 18 M4X6
37 91312-06010 BOLT HEX. SOCKET HEAD 24 M6X10
38 92902-06200 WASHER PLAIN 20
39
90172-00J040 WASHER EXTL. TOOTHED 5 OK ME40115-2008/4/14
92990-04400 WASHER EXTL. TOOTHED 5
40
90172-00J060 WASHER EXTL. TOOTHED 20 OK ME40115-2008/4/14
92990-06400 WASHER EXTL. TOOTHED 20
41 98502-03004 SCREW PAN HEAD 4
42 KV7-M7165-00 SEAL DON'T TOUCH 6
43 91312-04008 BOLT HEX. SOCKET HEAD 19 M4X8
44 91312-05010 BOLT HEX. SOCKET HEAD 10 M5X10
45 92990-04200 WASHER PLAIN 5 M8X20
