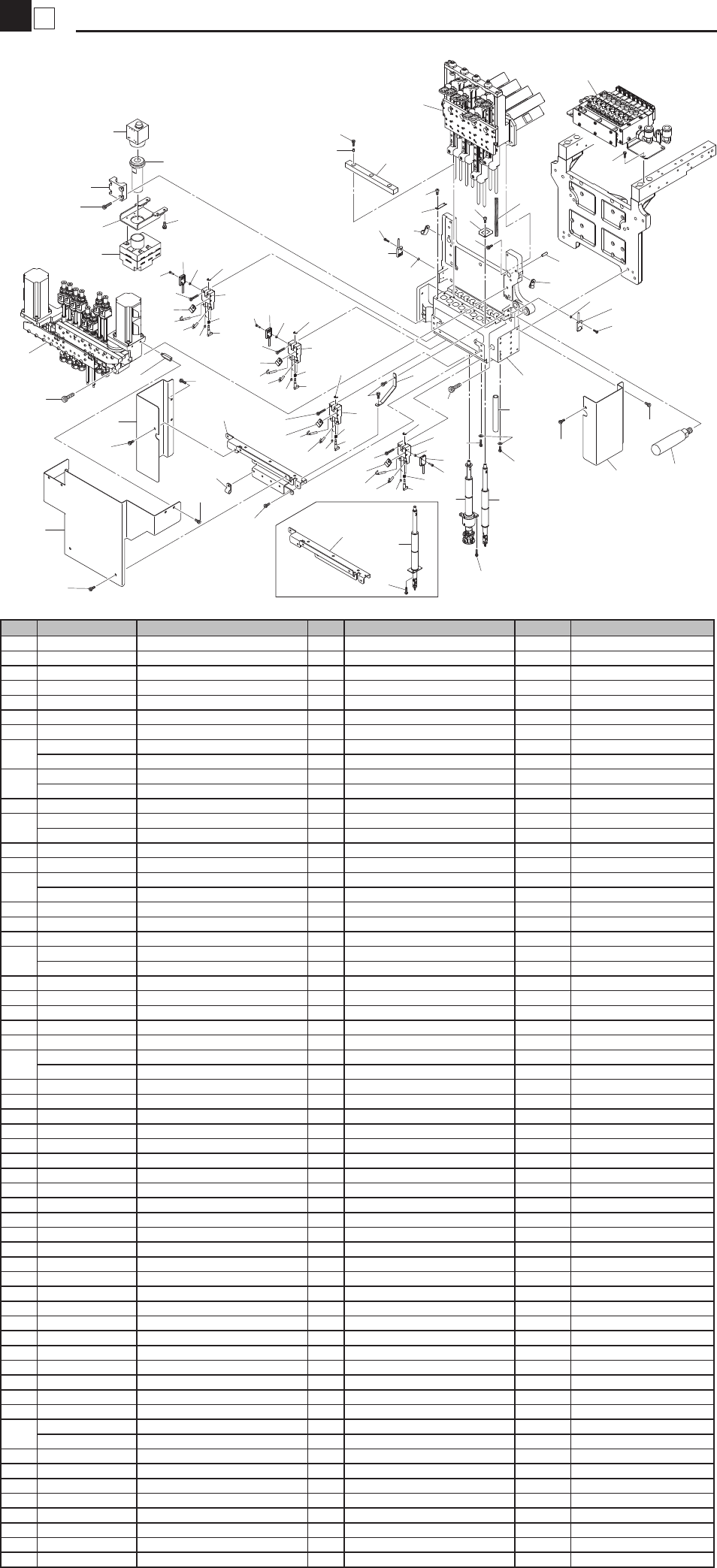

KJJ_YS100_PL - 第20页
1 5 Housing Assy Head KJJ-090901 12 31 45 25 40 27 40 40 29 41 24 21 33 33 39 39 34 39 15 32 32 46 37 32 41 16 17 16 17 28 35 24 14 14 13 37 37 36 30 4 40 40 26 10 34 34 9 8 36 47 29 6 43 9 8 29 7 36 2 11 18 19 20 23 44 …
4
4
Y-axis (Duct / Frame)
Moving-axis
KJJ-090615
11
41
15
13
32
36
36
34
33
36
10
37
8
14
9
37
38
40
39
39
45
45
42
42
42
38
37
42
35
22
17
18
19
20
21
36
36
30
29
5
43
7
43
43
35
2
37
13
15
12
41
6
1
31
36
36
40
38
37
44
14
28
27
23
21
16
3
35
42
42
42
29
40
38
37
35
28
35
35
4
24
25
26
24
25
26
18
17
19
20
18
18
17
17
19
19
20
20
42
38
37
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHW-M2695-01 BRACKET B, GUIDE 1
2 KJJ-M26F1-00 FRAME 1 1
3 KJJ-M26F2-00 FRAME 2 1
4 KHW-M26F4-01 DUCT, HARNESS 1
5 KGS-M2694-00 BRACKET A, GUIDE 1
6 KGS-M260A-00 TAPE, Y AXIS 1
7 KGT-M2698-00
PLATE 1, CLAMP 1
8 KGS-M2678-A0 GUIDE, CABLE Y 1
9 KV7-M2268-00 BRACKET 1, TAPE 1
10 KV7-M2269-00 BRACKET 2, TAPE 1
11 KV7-M2266-00 PLATE, NUT 1
12 KGT-M2667-00 PLATE 1
13 KGS-M260B-00 TAPE, Y DUCT 1
14 KGS-M260C-00 TAPE 2, Y DUCT 1
15 KGS-M260D-00 TAPE 3, Y DUCT 1
16 KHW-M2655-00 BRACKET, STOPPER R 1
17 KV7-M2651-00 DAMPER, STOPPER 4
18 KHW-M2654-00 PLATE , DAMPER 4
19
90990-41J180 COLLAR 4 OK ML60128-2014/7/11
KHW-M2656-00 SPACER 8
20 91312-04008 BOLT HEX. SOCKET HEAD 8
21 91312-08020 BOLT HEX. SOCKET HEAD 4
22 KHW-M2655-10 BRACKET, STOPPER L 1
23 KHW-M2652-50 BRACKET, STOPPER 2R 1
24 91312-05010 BOLT HEX. SOCKET HEAD 8
25 92902-05200 WASHER PLAIN 8
26 90172-00J050 WASHER, EXTL. TOOTHED 8
27 KHW-M2652-60 BRACKET, STOPPER 2L 1
28 KHW-M26C1-01 COVER A, Y AXIS 2
29 KHW-M26C3-01 COVER, COUPLING Y 2
30 KHW-M26C4-00 BRKT. R, HARNESS 1
31 KHW-M26C5-00 BRKT. L, HARNESS 1
32 KJJ-M2697-00 STAY, SELECTOR 1
33 KJJ-M2698-00 PLATE 1, CLAMP 1
34 KJJ-M2699-00 PLATE 2, CLAMP 1
35 90990-12J001 SCREW BIN. HEAD W/W 22
36 91312-04006 BOLT HEX. SOCKET HEAD 18 M4X6
37 91312-06010 BOLT HEX. SOCKET HEAD 24 M6X10
38 92902-06200 WASHER PLAIN 20
39
90172-00J040 WASHER EXTL. TOOTHED 5 OK ME40115-2008/4/14
92990-04400 WASHER EXTL. TOOTHED 5
40
90172-00J060 WASHER EXTL. TOOTHED 20 OK ME40115-2008/4/14
92990-06400 WASHER EXTL. TOOTHED 20
41 98502-03004 SCREW PAN HEAD 4
42 KV7-M7165-00 SEAL DON'T TOUCH 6
43 91312-04008 BOLT HEX. SOCKET HEAD 19 M4X8
44 91312-05010 BOLT HEX. SOCKET HEAD 10 M5X10
45 92990-04200 WASHER PLAIN 5 M8X20
1
5
Housing Assy
Head
KJJ-090901
12
31
45
25
40
27
40
40
29
41
24
21
33
33
39
39
34
39
15
32
32
46
37
32
41
16
17
16
17
28
35
24
14
1413
37
37
36
30
4
40
40
26
10
34
34
9
8
36
47
29
6
43
9
8
29
7
36
2
11
18
19
20
23
44
22
40
3
38
1
SF
33
17
16
15
15
8
49
34
8
49
5
42
29
51
29
53
29
55
39
34
32
33
17
16
15
8
49
29
57
56
54
52
50
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHW-M7111-00 HOUSING, MAIN 1
2 KHW-M7113-00 DAMPER, Z DOWN 1
3 KHW-M7114-00 COLLAR, STOPPER 3
4 KGS-M7115-03 SLEEVE, SPRING 8
5 KGS-M7116-00 SPRING, RETURN 8
6 KGS-M714T-04 PLATE, STOPPER 4
7 KGS-M714U-00 PLATE 2, STOPPER 1
8
90990-41J066 COLLAR 8 OK ME20197-2008/4/17
KV8-M71VS-00 COLLAR, SENSOR 8
9
KJJ-M653F-B0 SENSOR, Z-D.SPARE ASSY 1
KGT-M7160-A1 SENSOR, HEAD 1
10 KGS-M2256-00 GRIP 1
11
KJJ-M7120-A0 Z ASSY. 1 FNC
KJJ-M7120-B0 Z ASSY. 1 SF
12 KJJ-M7130-A0 R ASSY. 1
13 KJJ-M7140-A1 SHAFT HEAD SUB ASSY. 4 FNC
14
KJJ-M7140-B0 SHAFT HEAD SUB ASSY. 4 FNC
KJJ-M7140-C0 SHAFT HEAD SUB ASSY. 8 SF
15 KGS-M7161-00 BLOCK, CLUTCH 4
16 KGS-M7162-00 SHAFT, CLUTCH 4
17 KGS-M7163-00 SPRING, CLUTCH 4
18
KJJ-M7170-A1 EJECTOR ASSY. 1 OK MEY0069-2008/12/26
KJJ-M7170-A0 EJECTOR ASSY. 1
19 KHN-M7210-01 CCD CAMERA 1
20 KHY-M7211-00 LENS 095 1
21 KHN-M7600-00 FIDUCIAL LIGHT ASSY. 1
22 KHW-M71B2-00 STAY, FID. LIGHT 1
23 KGS-M711D-02 BLOCK, LENS HOLDER 1
24
KHW-M71C1-00 PLATE, HNS. 1 FNC
KHW-M71C1-50 PLATE, HNS. 1 SF
25 KHW-M71C2-00 COVER, CAMERA 1
26 KHW-M71C3-00 COVER, MACS 1
27 KHW-M71C5-00 COVER, HEAD 1
28 KHW-M71C7-00 STAY, HNS. 1
29 $NK-2N NYLON CLIP 13
30 92907-03200 WASHER PLAIN 9
31 90563-04J200 SPACER BOLT 2
32 90440-10J020 CIRCLIP 4
33 90990-02J007 SET SCREW 8
34 90115-02J008 BOLT HEX. SOCKET HEAD 8
35 91317-03006 BOLT HEX. SOCKET HEAD 2 M3XL6
36 91317-03008 BOLT HEX. SOCKET HEAD 18 M3XL8
37 91317-03010 BOLT HEX. SOCKET HEAD 1 M3XL10
38 91317-03012 BOLT HEX. SOCKET HEAD 3 M3XL12
39 91317-03018 BOLT HEX. SOCKET HEAD 8 M3XL18
40 91317-04006 BOLT HEX. SOCKET HEAD 12 M4XL6
41 91317-04008 BOLT HEX. SOCKET HEAD 4 M4XL8
42 91317-04010 BOLT HEX. SOCKET HEAD 4 M4XL10
43 91317-04016 BOLT HEX. SOCKET HEAD 4 M4XL16
44 91317-04022 BOLT HEX. SOCKET HEAD 4 M4XL22
45 91317-05020 BOLT HEX. SOCKET HEAD 4 M5XL20
46 91317-06020 BOLT HEX. SOCKET HEAD 4 M6XL20
47 99480-04014 PIN. PARALLEL 4 M4XL14
49
KJJ-M653F-A0 SENSOR, CL.SPARE ASSY 1 MF20115-2009/3/5
KJJ-M653G-A0 SENSOR CLUTCH SPARE 1
Old parts number on parts list.(Can not sell )
50 KJJ-M653F-C0 SENSOR H2 POS1. ASSY 1 MF20115-2009/3/5
51 KJJ-M653F-D0 SENSOR H2 POS2. ASSY 1 MF20115-2009/3/5
52 KJJ-M653F-E0 SENSOR H4 POS1. ASSY 1 MF20115-2009/3/5
53 KJJ-M653F-F0 SENSOR H4 POS2. ASSY 1 MF20115-2009/3/5
54 KJJ-M653F-G0 SENSOR H6 POS1. ASSY 1 MF20115-2009/3/5
55 KJJ-M653F-H0 SENSOR H6 POS2. ASSY 1 MF20115-2009/3/5
56 KJJ-M653F-J0 SENSOR H8 POS1. ASSY 1 MF20115-2009/3/5
57 KJJ-M653F-K0 SENSOR H8 POS2. ASSY 1 MF20115-2009/3/5
2
5
Z Assy
Head
KJJ-090615
2
2
32
39
33
37
19
32
38
20
30
28
26
24
29
27
25
23
20
38
32
19
33
39
1
37
41
9
18
4
36
18
10
5
7
6
16
16
35
17
35
17
15
22
13
21
36
32
38
38
34
34
15
8
15
15
8
40
31
12
14
40
11
11
5
7
6
3
40
42
40
(SF)
4
43
44
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHW-M7121-00 PLATE, Z MOTOR 1
2 KHW-M7122-00 PLATE, Z STAND 2
3 KHW-M7123-00 PLATE, Z GUIDE 1
4 KGS-M7124-02 GUIDE, Z 8
5 KGS-M7125-00 RACK, MAIN Z 8
6 KGS-M712N-00 SPRING, RACK 8
7 KGS-M7126-00 RACK, SUB Z 8
8 KGS-M7127-02 SPRING, RACK 8
9 KGS-M7129-03 ARM L, Z AXIS 4
10
KGS-M712A-03 ARM S, Z AXIS 4 FNC
KGS-M712A-53 ARM SF,Z AXIS 4 SF
11 KGS-M712B-02 BLOCK, STOPPER Z 1
12 KGS-M712C-01 BODY, DAMPER 4 FNC
13 KGS-M712D-01 SHAFT, DAMPER 4 FNC
14 KGS-M712F-01 SPRING, DAMPER 4 FNC
15 KGS-M712G-00 POST, SPRING S 16
16 90990-43J006 PIN 16
17 KGS-M712J-00 DAMPER, Z UP 8
18 KGS-M712K-02 GUIDE, SPRING 8
19 KGS-M712L-00 PINION, Z 8
20 KHW-M712M-00 BRACKET, MOTOR 8
21 KGS-M7153-03 ARM, SF 4
22 KGS-M7154-03 ARM, FNC 4
23 90K22-022503 AC SERVO MOTOR Z1 1
24 90K22-022904 AC SERVO MOTOR Z2 1
25 90K22-022705 AC SERVO MOTOR Z3 1
26 90K22-023306 AC SERVO MOTOR Z4 1
27 90K22-022907 AC SERVO MOTOR Z5 1
28 90K22-023408 AC SERVO MOTOR Z6 1
29 90K22-022509 AC SERVO MOTOR Z7 1
30 90K22-023110 AC SERVO MOTOR Z8 1
31 90440-10J025 CIRCLIP 4 FNC
32 99480-03010 PIN, PARALLEL 30
33 92A08-04305 SET SCREW M4X5 8
34 90115-02J005 BOLT, HEX S. H 32
35 90115-2AJ005 BOLT HEX. SOCKET HEAD 8
36 90115-2AJ010 BOLT HEX. SOCKET HEAD 16 M2.5X10
37 91317-03006 BOLT HEX. SOCKET HEAD 16 M3XL6
38 91317-03010 BOLT HEX. SOCKET HEAD 20 M3XL10
39 91317-03014 BOLT HEX. SOCKET HEAD 4 M3XL14
40 91317-03016 BOLT HEX. SOCKET HEAD 4 M3XL18
41 91317-04016 BOLT HEX. SOCKET HEAD 4 M4XL16
42 KHW-M712C-50 BOLT, STOPPER 4 SF
43 KGS-M712P-00 SPARE Z AXIS 1 4 SPARE MJ00151-2012/10/23
44 KGS-M712R-00 SPARE Z AXIS 2 4 SPARE MJ00151-2012/10/23
