KJJ_YS100_PL - 第27页
3 6 Nozzle Changer SF (Op.) Nozzle KJJ-090615 32 35 36 46 40 45 42 41 39 44 32 43 6 24 24 23 28 24 38 48 34 33 47 10 37 42 25 3 26 6 7 22 12 32 9 1 2 8 51 50 60 14 58 56 11 57 50 57 59 19 29 27 32 4 4 52 49 13 55 53 54 1…
2
6

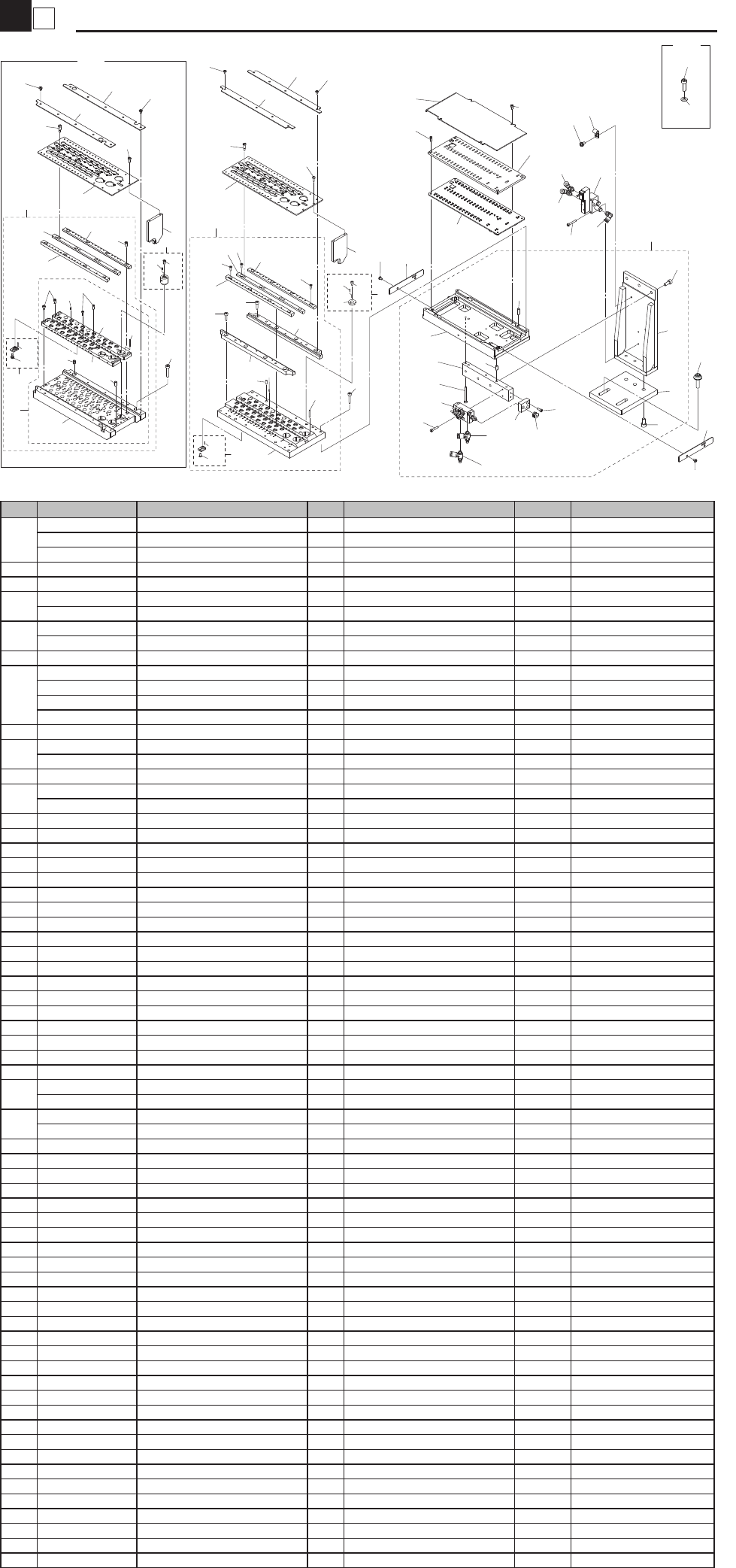

Nozzle Changer FNC (Op.)
Nozzle
KJJ-090615
32
35
36
46
40
45
42
41
39
44
32
43
6
24
24
23
28
24
38
48
30
34
33
47
10
37
42
25
3
26
6
7
22
12
32
9
1
2
8
51
50
60
14
58
11
57
50
57
59
19
29
27
32
4
4
52
49
13
55
53
54
13
13
59
15
32
9
1
2
8
51
50
14
16
11
21
17
50
18
20
19
29
12
27
32
5
4
52
49
13
55
53
54
OLD
OLD
30
31
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
KJJ-M9607-A1 PLATE, CLAMP, MARK 1 OK MF30086-2009/3/17
KJJ-M9607-01 PLATE, CLAMP 1 NG ME90144-2008/10/1
KJJ-M9607-A0 PLATE, CLAMP, MARK 1
2 KJJ-M9609-00 PLATE, JOINT, CYL. 1
3 KJJ-M9610-01 BOARD, CLEAR 1
4
KJJ-M9611-01 SHEET, GUIDE, CLAMP 1 NG ME90144-2008/10/1
KJJ-M9611-00 SHEET, GUIDE, CLAMP, L 1
5
KJJ-M9611-01 SHEET, GUIDE, CLAMP 1 NG ME90144-2008/10/1
KJJ-M9612-00 SHEET, GUIDE, CLAMP, R 1
6 KJJ-M961A-00 SHEET, SIDE 2
7
KJJ-M9622-03 PLATE, LED SHIELD 1 OK MF40047-2009/4/16
KJJ-M9622-02 PLATE, LED SHIELD 1 OK MF30150-2009/4/9
KJJ-M9622-01 PLATE, SHIELD, LED 1 OK MEX0046-2008/11/17
KJJ-M9622-00 PLATE, SHIELD, LED 1
8 KJJ-M9623-A0 SPACER2 ASSY. 3
9
KJJ-M962B-01 PIN, SLIDE 4 NG ME90144-2008/10/1
KJJ-M962B-00 PIN, SLIDE 4
10 KJJ-M9650-00 ANC STAND ASSY. 1
11
KJJ-M9655-01 NOZZLE HOLDER, AS. 1 NG ME90144-2008/10/1
KJJ-M9655-00 NOZZLE HOLDER, AS. 1
12 KHN-M9623-50 PIN 6
13 98702-03010 SCREW FLAT HEAD (+) 12
14 KHY-M9621-A0 BASE, NOZZLE D ASSY. 4
15 KJJ-M9601-01 NOZZLE HOLDER, IN. 1
16 KJJ-M9620-00 PIN,MARK 2
17 KJJ-M9636-01 NOZZLI HOLDER R 1
18 KJJ-M9638-01 NOZZLE HOLDER L 1
19 90990-19J009 NEEDLE PIN 6
20 91312-03006 BOLT HEX. SOCKET HEAD 8
21 90112-02J008 BOLT HEX. SOCKET HEAD 10
22 KJJ-M45BA-11 ANC, CTRL BOARD ASSY. 1
23 KHN-M9619-50 VALVE 1
24 $TL4-M5M JOINT 3
25 90115-2AJ008 BOLT HEX. SOCKET HEAD 4
26 91312-03006 BOLT HEX. SOCKET HEAD 4
27 91312-03008 BOLT HEX. SOCKET HEAD 2
28 91312-03020 BOLT HEX. SOCKET HEAD 2
29 91312-04020 BOLT HEX. SOCKET HEAD 4
30
90990-32J005 BOLT,FLANGE 2 M6X20 OK MM10012-2015/3/16
91312-06020 BOLT HEX. SOCKET HEAD 2
31
delete MM10012-2015/3/16
92902-06200 WASHER, PLAIN 2
32 98902-03005 SCREW, BINDING HEAD 14
33 $NK-4N NYLON CLIP 2
34 97602-04308 SCREW, PAN HEAD W/ WASHER 2
35 KJJ-M9604-00 HOLDER, BOTTOM 1
36 KJJ-M9613-00 BLOCK, CYLINDER 1
37 KJJ-M9619-01 BASE, A. N. C. 1
38 KJJ-M9628-01 PLATE, BOTTOM 1
39 KGS-M9604-00 JOINT, CYL. 1
40 KHY-M652G-00 CYLINDER, ANC ASSY 1
41 KGS-M9606-00 BLOCK, STOPPER 1
42 $SC4-M5A SPEED CONTROLLER 2
43 99480-04008 PIN, PARALLEL 2
44 91312-03008 BOLT HEX. SOCKET HEAD 2
45 91312-03016 BOLT HEX. SOCKET HEAD 2
46 91312-03035 BOLT HEX. SOCKET HEAD 3
47 91312-05012 BOLT HEX. SOCKET HEAD 3
48 91312-06012 BOLT HEX. SOCKET HEAD 3
49 90990-19J010 NEEDLE PIN 4
50 90990-19J004 NEEDLE PIN 38
51 91317-03005 BOLT HEX. SOCKET HEAD 3
52 90122-03J006 BOLT, BUTTON HEAD 4
53 KJJ-M9605-00 MIRROR, CENTER 1
54 KJJ-M9606-00 MIRROR, SIDE, L 1
55 KJJ-M9608-00 MIRROR, SIDE, R 1
56
57 KJJ-M9615-00 GUIDE,SHUTTER 2
58 99480-04008 PIN,PARALLEL:4X8 4
59 91312-04014 BOLT HEX.SOCKET HEAD 8
60 KJJ-M9623-00 SPACER,HOLDER2 1
3
6
Nozzle Changer SF (Op.)
Nozzle
KJJ-090615
32
35
36
46
40
45
42
41
39
44
32
43
6
24
24
23
28
24
38
48
34
33
47
10
37
42
25
3
26
6
7
22
12
32
9
1
2
8
51
50
60
14
58
56
11
57
50
57
59
19
29
27
32
4
4
52
49
13
55
53
54
13
13
59
15
32
9
1
2
8
51
50
14
16
56
11
21
17
50
18
20
19
29
12
27
32
5
4
52
49
13
55
53
54
OLD
OLD
30
31
30
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
KJJ-M9607-A1 PLATE, CLAMP, MARK 1 OK MF30086-2009/3/17
KJJ-M9607-01 PLATE, CLAMP 1 NG ME90144-2008/10/1
KJJ-M9607-A0 PLATE, CLAMP, MARK 1
2 KJJ-M9609-00 PLATE, JOINT, CYL. 1
3 KJJ-M9610-01 BOARD, CLEAR 1
4
KJJ-M9611-01 SHEET, GUIDE, CLAMP, L 1 NG ME90144-2008/10/1
KJJ-M9611-00 SHEET, GUIDE, CLAMP, L 1
5
KJJ-M9611-01 SHEET, GUIDE, CLAMP, R 1 NG ME90144-2008/10/1
KJJ-M9612-00 SHEET, GUIDE, CLAMP, R 1
6 KJJ-M961A-00 SHEET, SIDE 2
7
KJJ-M9622-03 PLATE, LED SHIELD 1 OK MF40047-2009/4/16
KJJ-M9622-02 PLATE, LED SHIELD 1 OK MF30150-2009/4/9
KJJ-M9622-01 PLATE, SHIELD, LED 1 OK MEX0046-2008/11/17
KJJ-M9622-00 PLATE, SHIELD, LED 1
8 KGS-M9622-A0 SPACER1 ASSY. 3
9
KJJ-M962B-01 PIN, SLIDE 4 NG ME90144-2008/10/1
KJJ-M962B-00 PIN, SLIDE 4
10 KJJ-M9650-00 ANC STAND ASSY. 1
11
KJJ-M9655-01 NOZZLE HOLDER, AS. 1 NG ME90144-2008/10/1
KJJ-M9655-00 NOZZLE HOLDER, AS. 1
12 KHN-M9623-50 PIN 6
13 98702-03010 SCREW FLAT HEAD (+) 12
14 KHY-M9621-A0 BASE, NOZZLE D ASSY. 4
15 KJJ-M9601-01 NOZZLE HOLDER, IN. 1
16 KJJ-M9620-00 PIN,MARK 2
17 KJJ-M9636-01 NOZZLI HOLDER R 1
18 KJJ-M9638-01 NOZZLE HOLDER L 1
19 90990-19J009 NEEDLE PIN 6
20 91312-03006 BOLT HEX. SOCKET HEAD 8
21 90112-02J008 BOLT HEX. SOCKET HEAD 10
22 KJJ-M45BA-11 ANC, CTRL BOARD ASSY. 1
23 KHN-M9619-50 VALVE 1
24 $TL4-M5M JOINT 3
25 90115-2AJ008 BOLT HEX. SOCKET HEAD 4
26 91312-03006 BOLT HEX. SOCKET HEAD 4
27 91312-03008 BOLT HEX. SOCKET HEAD 2
28 91312-03020 BOLT HEX. SOCKET HEAD 2
29 91312-04020 BOLT HEX. SOCKET HEAD 4
30
90990-32J005 BOLT,FLANGE 2 M6X20 OK MM10012-2015/3/16
91312-06020 BOLT HEX. SOCKET HEAD 2
31
delete MM10012-2015/3/16
92902-06200 WASHER, PLAIN 2
32 98902-03005 SCREW, BINDING HEAD 14
33 $NK-4N NYLON CLIP 2
34 97602-04308 SCREW, PAN HEAD W/ WASHER 2
35 KJJ-M9604-00 HOLDER, BOTTOM 1
36 KJJ-M9613-00 BLOCK, CYLINDER 1
37 KJJ-M9619-01 BASE, A. N. C. 1
38 KJJ-M9628-01 PLATE, BOTTOM 1
39 KGS-M9604-00 JOINT, CYL. 1
40 KHY-M652G-00 CYLINDER, ANC ASSY 1
41 KGS-M9606-00 BLOCK, STOPPER 1
42 $SC4-M5A SPEED CONTROLLER 2
43 99480-04008 PIN, PARALLEL 2
44 91312-03008 BOLT HEX. SOCKET HEAD 2
45 91312-03016 BOLT HEX. SOCKET HEAD 2
46 91312-03035 BOLT HEX. SOCKET HEAD 3
47 91312-05012 BOLT HEX. SOCKET HEAD 3
48 91312-06012 BOLT HEX. SOCKET HEAD 3
49 90990-19J010 NEEDLE PIN 4
50 90990-19J004 NEEDLE PIN 38
51 91317-03005 BOLT HEX. SOCKET HEAD 3
52 90122-03J006 BOLT, BUTTON HEAD 4
53 KJJ-M9605-00 MIRROR, CENTER 1
54 KJJ-M9606-00 MIRROR, SIDE, L 1
55 KJJ-M9608-00 MIRROR, SIDE, R 1
56 KJJ-M9602-02 NOZZLE HOLDER 1
57 KJJ-M9615-00 GUIDE,SHUTTER 2
58 99480-04008 PIN,PARALLEL:4X8 4
59 91312-04014 BOLT HEX.SOCKET HEAD 8
60 KGS-M9622-00 SPACER,HOLDER1 1
1
7

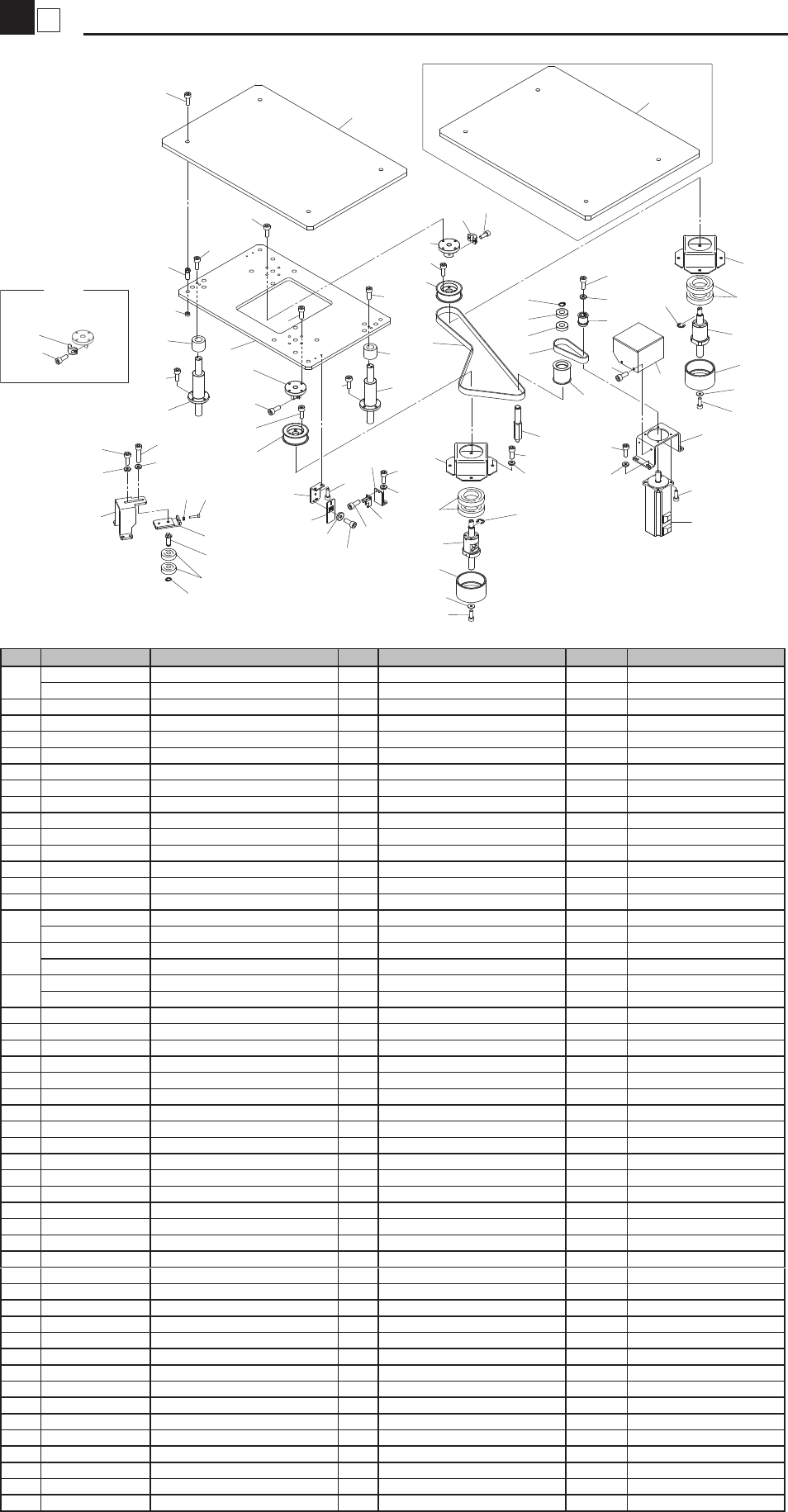

Push-Up (Single)
Conveyor Unit
KJJ-090615
4
28
3
27
15
34
4
28
3
27
15
34
46
25
39
39
41
1
41
5
39
16
17
36
20
16
36
5
37
39
44
29
29
19
26
37
11
7
8
44
44
39
45 38
9
31
47
42
21
10
30
48
34
37
24
23
40
44
30
6
35
32
22
12
13
36
34
33
18
14
43
36
43
19
2
26
37
36
17
1
39
(460)
OLD
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
KJJ-M920A-00 PLATE 1 (410) 1
KJJ-M920A-10 PLATE 1 (460) 1
2 KJJ-M920B-00 STAY 1
3 KHY-M9211-00 HOLDER, BRG. 2
4 KHY-M9212-00 HOUSING 2
5 KHW-M9215-00 PULLEY: P60-3GT 2
6 KHW-M9219-01 BRKT., MOTOR 1
7 KHW-M921A-00 BRKT., TENSIONER 1
8 KHW-M921B-00 STAY, ADJUST 1
9 KHW-M921C-00 SHAFT 1 1
10 KHW-M921D-00 BELT 234-3GT-15 1
11 KHW-M921E-00 BELT 924-3GT-15 1
12 KHY-M921G-01 BRKT., DOG 1
13 KHY-M921H-01 PLATE, DOG 1
14 KHW-M921K-00 BRKT., SENSOR 1
15
KHY-M921M-01 WASHER 2 OK MF40064-2009/4/14
KHY-M921M-00 WASHER 2
16
KHY-M921N-01 JOINT A 2 OK MEY0088-2008/12/19
KHY-M921N-00 JOINT A 2
17
Delete MEY0088-2008/12/19
KHY-M921P-00 JOINT B 2
18 KHY-M652E-00 SENSOR, PU1ORG 1
19 KHY-M9221-00 DAMPER 2
20 KHW-M9222-00 POST 1
21 KHW-M9223-00 PULLEY: P40-3GT 1
22 KJJ-M9224-00 COVER, PU MOTOR 1
23 KV7-M9205-01 PULLEY 1: P22-3GT 1
24 90990-28J076 WASHER, PLAIN 1
25 KGA-M921T-00 BOLT 4
26 KHY-M9217-00 BALL BUSH & SHAFT 2
27 KHY-M9B00-00 BALL SCREW PU 2
28 90933-01J007 BEARING 4
29 90440-01J090 CIRCLIP 2
30 90933-01J001 BEARING 2
31 90933-01J300 BEARING 2
32 90K63-331512 AC SERVO MOTOR 1
33 91312-03005 BOLT HEX. SOCKET HEAD 2
34 91312-04006 BOLT HEX. SOCKET HEAD 8
35 91312-04008 BOLT HEX. SOCKET HEAD 4
36 91312-04010 BOLT HEX. SOCKET HEAD 8
37 91312-04012 BOLT HEX. SOCKET HEAD 21
38 91312-04020 BOLT HEX. SOCKET HEAD 1
39 91312-05010 BOLT, HEX.SOCKET HEAD 13
40 91312-05012 BOLT HEX. SOCKET HEAD 8
41 91312-05016 BOLT HEX. SOCKET HEAD 8
42 91312-05020 BOLT HEX. SOCKET HEAD 1
43 92902-04200 WASHER, PLAIN 4
44 92902-05200 WASHER, PLAIN 14
45 95302-04600 NUT, HEXAGON 1
46 95602-10100 NUT, U 4
47 99009-10400 CIRCLIP 1
48 99009-12400 CIRCLIP 1
