7 7 Clamp Board (Single) One Cylinder T ype Conveyor Unit KJJ-1 109 22 20 4 25 29 5 6 26 28 14 3 10 13 13 15 7 24 16 9 23 27 19 1 1 28 26 30 30 23 21 8 8 17 18 15 13 13 28 26 1 2 12 12 1 2 R>L L>R 1 1 No. Part No. …
6
7
Clamp Board (Single)
Conveyor Unit
KJJ-090615
29
22
25
3
9
19
30
23
28
27
7
9
3
22
25
29
4
5
13
26
28
19
14
18
24
6
15
17
8
28
23
12
12
14
6
24
15
21
12
10
10
12
28
26
7
20
30
16
2
2
11
1
5
4
13
28
26
1
11
(L>R)
(R>L)
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
KHV-M9260-01 CLAMP BOARD SUB ASSY 1 ME90103-2008/10/24
KHV-M9260-00 CLAMP BOARD SUB ASSY 1
2
KHV-M9260-11 CLAMP BOARD SUB ASSY 1 ME90103-2008/10/24
KHV-M9260-10 CLAMP BOARD SUB ASSY 1
3 KHW-M916D-00 JOINT, CYL. BRKT 2
4 KHW-M916E-00 BUSH 2
5 KHV-M926F-00 SHAFT 2
6 KHW-M916H-00 JOINT, CYL. 2
7 KHW-M9261-00 PLATE1, LINK 2
8 KHW-M9262-00 PLATE, BASE S 1
9 KHW-M9263-00 CYLINDER 2
10 KHW-M9264-B0 LINK B ASSY. 2
11 KHW-M9264-A0 LINK A ASSY. 2
12 KHW-M9265-00 SPACER 4
13 KHW-M9269-00 BRKT., CYL. 2
14 KHW-M926A-00 COLLAR 2
15 KHV-M926B-00 COLLAR, JOINT 2
16 KHV-M926C-00 PLATE, BOARD CLAMP S 1
17 KHW-M926E-00 NUT 1
18 KHV-M926G-00 PLATE 2, LINK 1
19
KHW-M926M-A0 SPEED CONTROLLER 4 OK MD80134_2007/9/19
KHW-M9285-00 SPEED CONTROLLER 4
20 KV7-M9266-01 GUIDE 3
21 KV7-M926C-01 STOPPER, CYLNDER 1
22 KHW-M9167-00 BRKT., CYL. 2
23 KV7-M926K-00 BOLT, 1 12
24 90122-04J016 BOLT BUTTON HEAD 2
25 90440-10J050 CIRCLIP 2
26 91312-04010 BOLT HEX. SOCKET HEAD 3 M4X10
27 91312-04012 BOLT HEX. SOCKET HEAD 1 M4X12
28
91312-04016 BOLT HEX. SOCKET HEAD 10 ME90103-2008/10/24
91312-04014 BOLT HEX. SOCKET HEAD 10 M4X14
29 95302-06600 NUT HEXAGON 2
30 98902-03005 SCREW BINDING HEAD 4
7
7

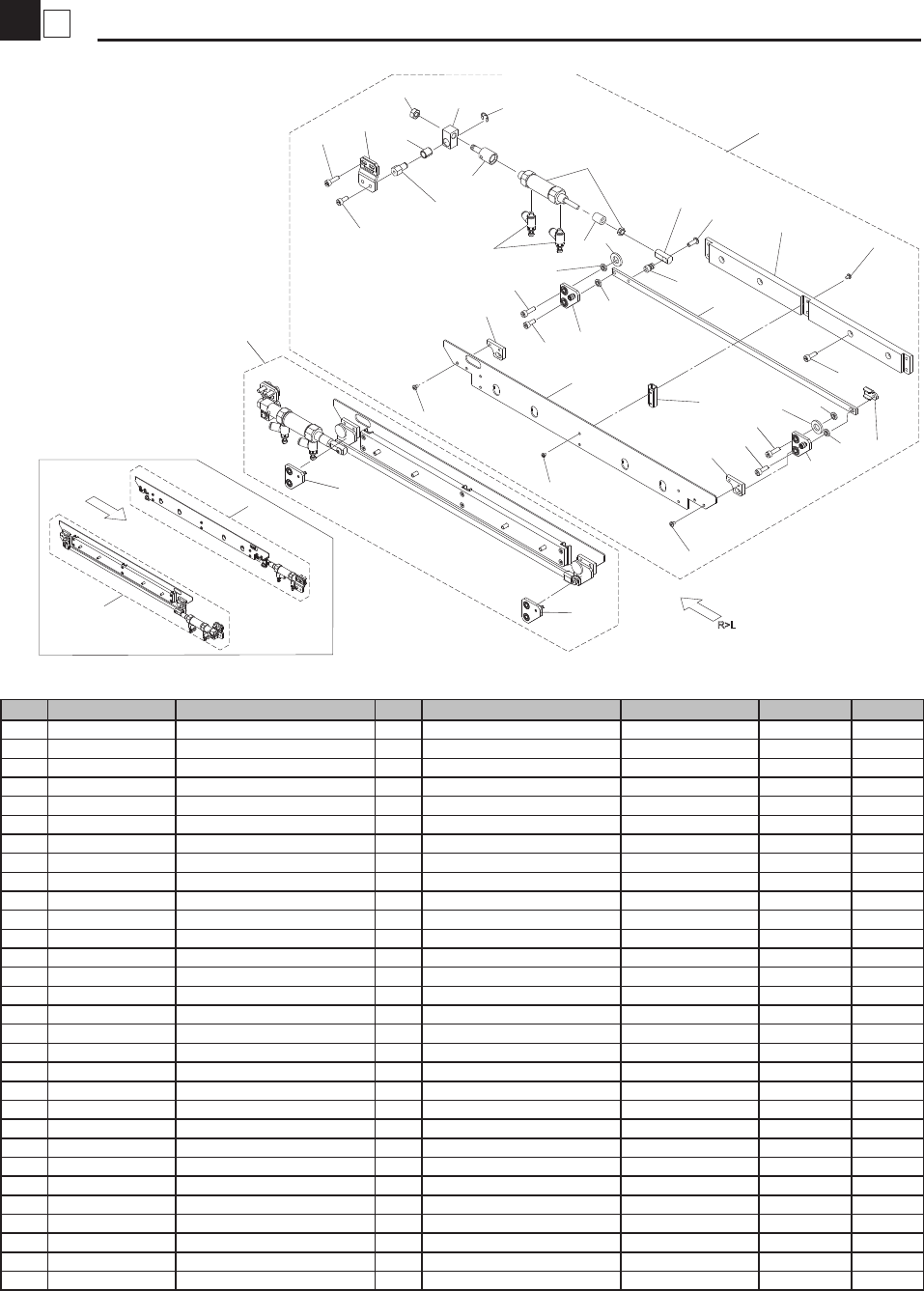

Clamp Board (Single) One Cylinder Type
Conveyor Unit
KJJ-1109
22
20
4
25
29
5
6
26
28
14
3
10
13
13
15
7
24
16
9
23
27
19
11
28
26
30
30
23
21
8
8
17
18
15
13
13
28
26
1
2
12
12
1
2
R>L
L>R
11
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHV-M9260-02 CLAMP BOARD SUB ASSY 1 (2008/12/15) MEX0060 NG
2 KHV-M9260-12 CLAMP BOARD SUB ASSY 1 (2008/12/15) MEX0060 NG
3 KHW-M9167-00 BRKT.,CYL. 2
4 KHY-M926F-00 JOINT,CYL.BRKT 2
5 KHW-M916E-00 BUSH 2
6 KHV-M926F-00 SHAFT 2
7 KHY-M926H-00 JOINT, CYL. 2
8 KHW-M9261-00 PLATE1, LINK 4
9 KHW-M9262-00 PLATE,BASE S 2
10 KHY-M9263-00 CYLINDER 2
11 KHW-M9264-B0 LINK B ASSY. 2
12 KHW-M9264-A0 LINK A ASSY. 2
13 KHW-M9265-00 SPACER 8
14 KHW-M9269-00 BRKT.,CYL. 2
15 KHW-M926A-00 COLLAR 4
16 KHV-M926B-00 COLLAR, JOINT 2
17 KHV-M926C-00 PLATE,BOARD CLAMP 2
18 KHW-M926E-00 NUT 2
19 KHV-M926G-00 PLATE 2,LINK 2
20 KHW-M926M-A0 SPEED CONTROLLER 4
21 KV7-M9266-01 GUIDE 6
22 KHY-M926M-00 STOPPER,CYLNDER 2
23 90169-02JB04 SCREW BINDING HEAD 24 M2.6X4
24 92012-04016 BOLT BUTTON HEAD 2
25 90440-10J050 CIRCLIP(E) 2
26 91312-04010 BOLT HEX.SOCKET HEAD 4
27 91312-04012 BOLT HEX.SOCKET HEAD 2 M4X12
28 91312-04016 BOLT HEX.SOCKET HEAD 16
29 95302-06600 NUT HEXAGON 2
30 98902-03005 SCREW BINDING HEAD 8 M3X5
8
7

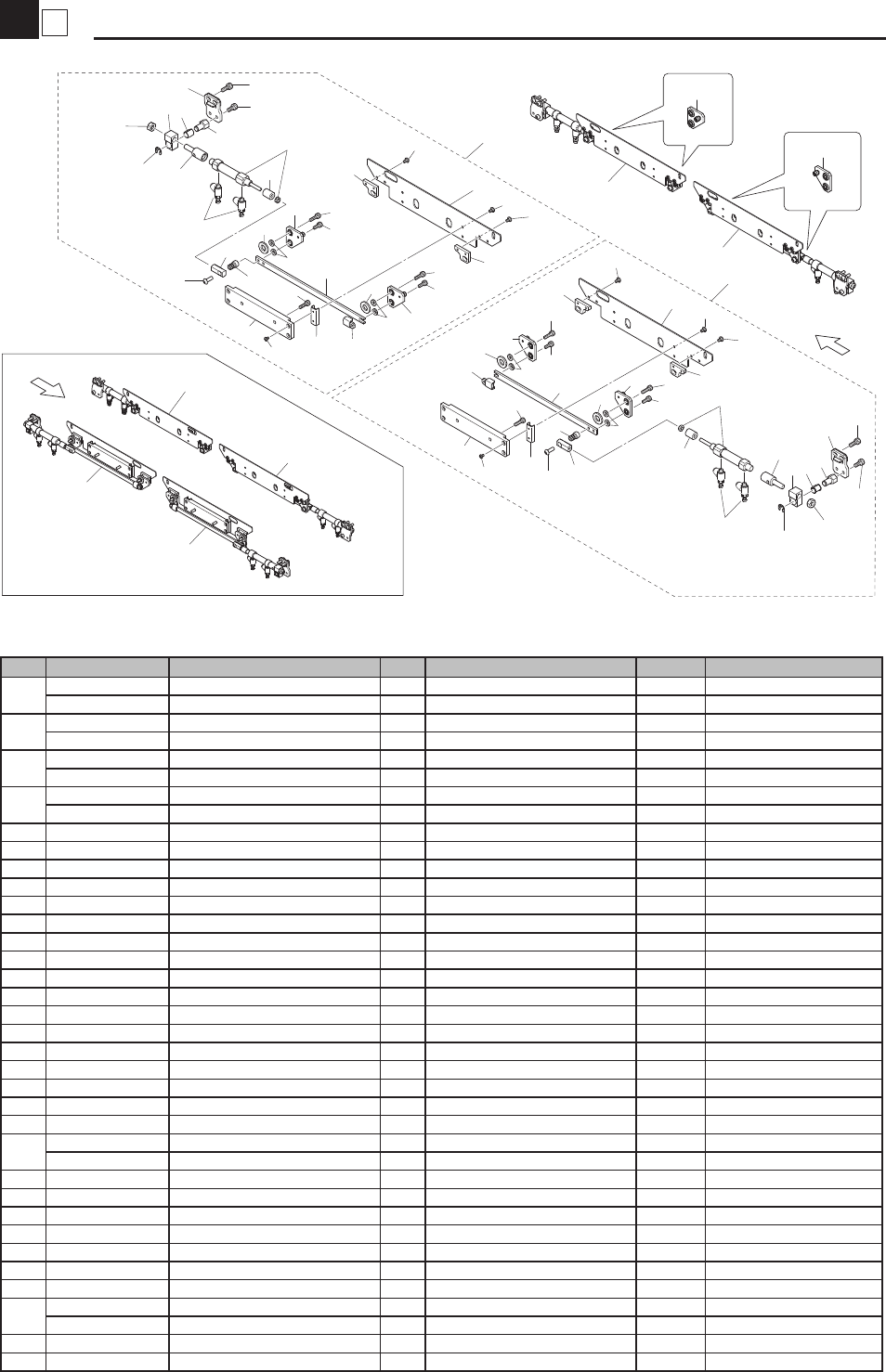

Clamp Board (Double)
Conveyor Unit
KJJ-090615
30
28
30
28
31
31
27
27
6
6
5
22
22
19
19
9
24
18
18
18
14
14
14
19
13
15
15
30
30
29
28
30
10
12
12
10
10
10
32
32
25
25
25
20
32
32
25
20
16
16
21
21
23
23
30
30
13
26
26
11
11
3
3
2
2
1
1
4
4
24
24
5
7
7
8
8
17
17
The parts in the list is the same.
29
30
28
9
13
12
(L>R)
(R>L)
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
KHV-M9260-21 CLAMP BOARD SUB ASSY 1 ME90103-2008/10/24
KHV-M9260-20 CLAMP BOARD SUB ASSY 1
2
KHV-M9260-31 CLAMP BOARD SUB ASSY 1 ME90103-2008/10/24
KHV-M9260-30 CLAMP BOARD SUB ASSY 1
3
KHV-M9260-41 CLAMP BOARD SUB ASSY 1 ME90103-2008/10/24
KHV-M9260-40 CLAMP BOARD SUB ASSY 1
4
KHV-M9260-51 CLAMP BOARD SUB ASSY 1 ME90103-2008/10/24
KHV-M9260-50 CLAMP BOARD SUB ASSY 1
5 KHW-M9167-00 BRKT., CYL. 1
6 KHW-M916D-00 JOINT, CYL. BRKT 1
7 KHW-M916E-00 BUSH 1
8 KHV-M926F-00 SHAFT 1
9 KHW-M916H-00 JOINT, CYL. 1
10 KHW-M9261-00 PLATE1, LINK 2
11 KHW-M9263-00 CYLINDER 1
12 KHW-M9264-A0 LINK A ASSY. 2
13 KHW-M9264-B0 LINK B ASSY. 2
14 KHW-M9265-00 SPACER 4
15 KHV-M9266-00 PLATE 2, LINK 1
16 KHW-M9268-00 PLATE, BASE W 1
17 KHW-M9269-00 BRKT., CYL. 1
18 KHW-M926A-00 COLLAR 2
19 KHV-M926B-00 COLLAR, JOINT 1
20 KHV-M926D-00 PLATE, BOARD CLAMP W 1
21 KHW-M926E-00 NUT 1
22
KHW-M926M-A0 SPEED CONTROLLER 2 OK MD80134_2007/9/19
KHW-M9285-00 SPEED CONTROLLER 2
23 KV7-M9266-01 GUIDE 2
24 KV7-M926C-01 STOPPER, CYLNDER 1
25 KV7-M926K-00 BOLT, 1 8
26 90122-04J016 BOLT BUTTON HEAD 1
27 90440-10J050 CIRCLIP 1
28 91312-04010 BOLT HEX. SOCKET HEAD 2 M4X10
29 91312-04012 BOLT HEX. SOCKET HEAD 1 M4X12
30
91312-04016 BOLT HEX. SOCKET HEAD 6 ME90103-2008/10/24
91312-04014 BOLT HEX. SOCKET HEAD 6 M4X14
31 95302-06600 NUT HEXAGON 1
32 98902-03005 SCREW BINDING HEAD 4
