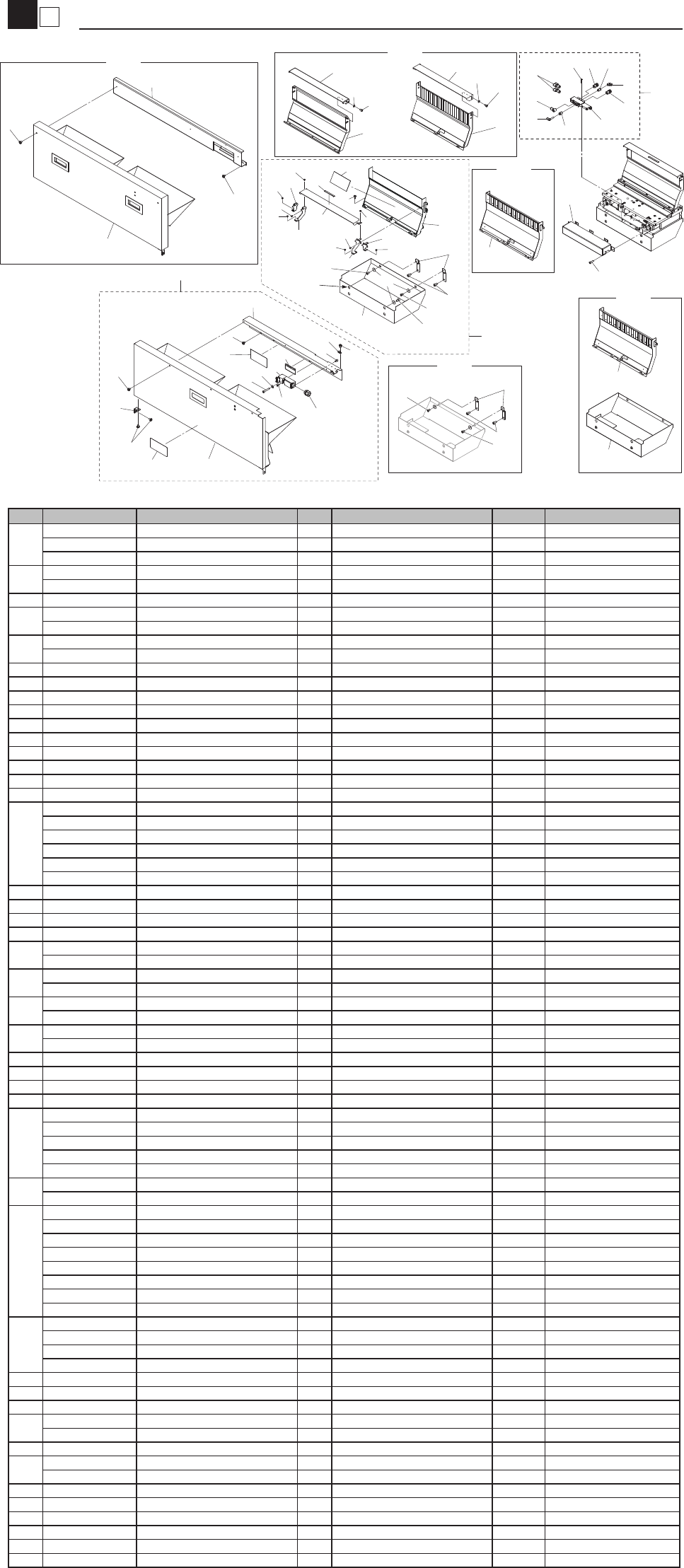

KJJ_YS100_PL - 第43页
1 10 Side V iew Unit (Op.) Side V iew Unit KJJ-090615 5 6 7 10 10 1 1 9 9 8 12 13 14 15 16 17 18 28 29 19 19 20 21 25 24 27 26 31 20 22 23 1 1 4 1 1 30 2 3 No. Part No. Part Name Q'ty Remarks Compati. Revision No.-d…
1
9
Blow Station Sel.
Blow Station
KJJ-090615
25
6
25
6
5
29
29
10
10
22
18
16
1
27
27
12
19
31
2
7
26
28
30
17
14
24
11
24
11
8
5
3
for SF HEAD
4
15
13
FNC, S-ATS
9
23
20
21
22
28
30
OLD
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHW-M9901-00 BASE, B. STN. 1
2 KHW-M9902-00 PLATE, BASE 1
3 KHW-M9903-01 BLOCK, BLOW ST. 1 FNC
4 KHW-M9903-50 BLOCK, BLOW ST. 1 SF
5 KHW-M9904-00 BRACKET, SENSOR 2
6 KHW-M9905-00 PLATE, REFLECT 2
7 KHW-M9906-A0 VALVE ASSY. 1
8 KHW-M99D3-00 STAND, DUMP BOX 1 SF
9 KJJ-M99D5-00 STAND, DUMP BOX 1 FNC S-ATS
10 KJJ-M652R-00 SENSOR, BLOW ST ASSY 1
11 90990-41J066 COLOR, SENSOR 4
12 KGR-M9934-01 INLINE FILTER 1
13 KGS-M99D0-00 DUMP BOX ASSY. 1 SF
14 K40-M8598-10 PLUG 1 1
15 $PF JOINT 1
16 $TL6-01M JOINT 1
17 $TL6-02 JOINT 1
18 $NK-2N NYLON CLIP 5
19 KGR-M9934-F0 FILTER SPARE 1
20 KHW-M9931-00 EXHUST BOX 1
21 KHW-M9932-00 PLATE, TUBE CLAMP 1
22 97602-04308 SCREW, PAN HEAD W/W 7
23 97602-05310 SCREW, PAN HEAD W/W 4
24 90115-02J006 BOLT HEX. SOCKET HEAD 4
25 90122-03J008 BOLT BUTTON HEAD 4
26 91312-03020 BOLT HEX. SOCKET HEAD 2 M3X20
27 91312-04008 BOLT HEX. SOCKET HEAD 6 M4X8
28
91312-06016 BOLT HEX. SOCKET HEAD 2 M6X16 MM10012-2015/3/16
91312-06016 BOLT HEX. SOCKET HEAD 4
29 91317-04010 BOLT HEX. SOCKET HEAD 4 M4X10
30
92902-06200 WASHER PLAIN 2 MM10012-2015/3/16
92902-06200 WASHER PLAIN 4
31
90990-32J008 BOLT,FLANGE 2 M6X16 OK MM10012-2015/3/16
90990-32J010 BOLT,FLANGE 2 M6X14 ( S-ATS,Non R.bank ,MTF ) OK MM10012-2015/3/16
1
10
Side View Unit (Op.)
Side View Unit
KJJ-090615
5
6
7
10
10
11
9
9
8
12
13
14
15
16
17
18
28
29
19
19
20
21
25
24
27
26
31
20
22
23
11
4
1
1
30
2
3
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KGS-M7901-00 BRACKET, SV LIGHT 2
2 KGS-M7902-01 PLATES, S, VIEW LIGHT 1
3 KHN-M7903-00 DIFFUSER, SV. LIGHT 1
4 KHL-M7905-02 SV. LIGHT BOARD ASSY 1
5 KJJ-M66KB-10 HNS, X-FLEX 1 S; VIEW
6 90K41-000240 SEAL, DON'T TOUCH 1
7 90563-0AJ040 SPACER, BOLT 3
8 90166-02JA04 SCREW, PAN HEAD 3
9 99480-04008 PIN PARALLEL: 4X10 8
10 91317-04008 BOLT HEX. SOCKET HEAD 2
11 91317-04025 BOLT HEX. SOCKET HEAD 8
12
KJJ-M7910-00 BASE, S. VIEW CAMERA 1 OK MF40163-2009/4/28
KGS-M7910-00 BASE, S. VIEW CAMERA 1
13 KGS-M7911-00 STAY 1, S. VIEW CAMERA 1
14 KGS-M7912-01 STAY 2, S. VIEW CAMERA 1
15 KHN-M7210-01 CCD CAMERA 1
16 KGS-M7914-00 LENS, S. VIEW 1
17 KGS-M7915-00 COVER, S. VIEW CAMERA 1
18 KJJ-M66K0-00 HNS, S. VIEW CAMERA 1
19 99480-04008 PIN, PARALLEL 2
20 91317-05012 BOLT HEX. SOCKET HEAD 6
21 91317-04010 BOLT HEX. SOCKET HEAD 4
22 90115-02J008 BOLT HEX. SOCKET HEAD 4
23 90990-28J002 WASHER PLAIN 4
24 92907-05200 WASHER PLAIN 2
25 92907-04200 WASHER PLAIN 4
26 91317-04006 BOLT HEX. SOCKET HEAD 4
27 KV7-M7165-00 SEAL DON'T TOUCH 2
28 $NK-4N NYLON CLIP 1
29 90990-11J003 SCREW PAN HEAD W/W 1
30 KJJ-M79A0-00 S. VIEW LIGHT ASSY 1
31 KJJ-M79B0-00 S. VIEW CAMERA ASSY 1
1
11
Tape Cutter 24 (384) -1
Tape Cutter
KJJ-1108
32
39
Fig.1
Fig.3
Fig.2
36
31
OLD
OLD
Fig.4
OLD
7
7
3
15
1
15
11
4
14
5
2
17
6
10
8
9
13
12
37
35
32
34
31
31
18
26 21 22
23
21
19
25
20
24
22
27
28
3638
29
33
38
3638
38
30
7
1
2
8
29
32
39
36
36
40
44
43
40
40
40
40
40
36
31
Non Bolt to
this hole
36
36
38
30
OLD
OLD
31
42
41
16
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
KJJ-M11C6-A2 COVER, SUB ASSY 1 OK MF50081-2009/5/27
KJJ-M11C6-A1 COVER, SUB ASSY 1 NG ME00122-2008/11/3
KJJ-M11C6-A0 COVER, SUB ASSY 1
2
KHY-M1325-01 COVER 25 1 NG ME00122-2008/11/3
KJJ-M1325-10 COVER 25 1
3 KJJ-M11C8-00 BRKT. , CUTTER COVER 2
4
KJJ-M5126-F0 SAFETY SW UNIT ASSY 1 OK MFX0093-2009/12/1
KJJ-M5126-00 SAFETY SWITCH 1
5
KGS-M5126-02 SCREW (M3X8) 1 OK ME70188-2008/7/25
KGS-M5126-01 SCREW 1
6 KW7-M643A-00 SC LOCK 1
7 90990-12J001 SCREW BIN. HEAD W/W 6
8 90990-12J004 SCREW, BIN. HEAD W/W 3
9 91312-04006 BOLT HEX. SOCKET HEAD 2
10 91312-04025 BOLT HEX. SOCKET HEAD 2
11 92902-04200 WASHER, PLAIN 2
12 97602-04308 SCREW, PAN HEAD W/WASHER 2
13 $NK-3N NYLON CLIP 2
14 90K41-000350 LABEL, ALERT 1
15 90K41-000730 LABEL, ALERT 2
16
KJJ-M3T50-32 SLOPE ASSY, 384 4 OK ML20100-2014/3/13
KJJ-M3T50-31 SLOPE ASSY, 384 4 OK MJ10035-2012/3/30
KJJ-M3T50-30 SLOPE ASSY, 384 4 NG H015520-2011/1/26
KJJ-M3T50-10 SLOPE ASSY, 384 4 OK MH20066-2011/3/3
KJJ-M3T00-R0 SLOPE ASSY, 384 4 OK H014096-2010/3/10
KJJ-M3T00-F0 SLOPE ASSY, 384 4
17 KJJ-M3T00-J0 SAFETY COVER ASSY 2
18 KHY-M3T00-E0 CUTTER VALVE ASSY 2
19 KHY-M3T0C-00 CUTTER VALVE 1
20 $SLH6-01 JOINT 1
21
$KM-10 MUFFLER 2 NG MF30188-2009/3/30
$KM-11 MUFFLER 2
22
$TL6-01 JOINT 2 NG MF30188-2009/3/30
$TSH6-01 JOINT 2
23
Delete MF30188-2009/3/30
$UL6M JOINT 1
24
Delete MF40063-2009/4/9
$ULA6M JOINT 1
25 $UYD6-4 JOINT 2
26 91312-03020 BOLT HEX. SOCKET HEAD 2
27 KJJ-M3T25-00 VALVE COVER 1 1
28 91312-04006 BOLT HEX. SOCKET HEAD 5
29
KJJ-M11C1-20 DUCT 1, 384 1 NG MH40008-2011/6/24
KJJ-M11C1-04 DUCT 1 1 Fig.3 OK MF50071-2009/5/20
KJJ-M11C1-03 DUCT 1 1 OK MF30092-2009/4/9
KJJ-M11C1-02 DUCT 1, 384 1 OK MF30155-2009/3/26
KJJ-M11C1-01 DUCT 1, 384 1
30
KJJ-M11C3-01 BRKT. 384, DUCT 1 2 NG MEX0004-2008/11/6
KJJ-M11C3-00 BRKT. 384, DUCT 1 2
31
KJJ-M3T53-22 UPPER COVER 1,384 1 Resin tape OK ML20100-2014/3/13
KJJ-M3T53-21 UPPER COVER 1, 384 1 OK MJ10035-2012/3/30
KJJ-M3T53-20 UPPER COVER 1, 384 1 Fig 4 NG MH40008-2011/6/24
KJJ-M3T53-12 UPPER COVER 1, 384 1 Resin tape OK ML30057-2014/5/16
KJJ-M3T53-11 UPPER COVER 1, 384 1 OK MJ10035-2012/3/30
KJJ-M3T53-10 UPPER COVER 1, 384 1 Fig.3 NG MH20066-2011/3/3
KJJ-M3T0E-20 UPPER COVER 1, 384 1 Fig.2 NG H013817-2009/12/25
KJJ-M3T0E-00 UPPER COVER 1, 384 1 Fig.1
32
KJJ-M3T51-01 UPPER COVER 2,384 1 Slope step OK MK90021-2013/10/16
KJJ-M3T51-00 UPPER COVER 2, 384 1 NG MH20066-2011/3/3
KJJ-M3T0S-10 UPPER COVER 2, 384 1 Fig.2 NG H013817-2009/12/25
KJJ-M3T0S-01 UPPER COVER 2, 384 1 Fig.1
33 KHY-M11C5-00 WASHER 6
34 90K41-000240 SEAL DON'T TOUCH 1
35 90K41-000730 LABEL, ALERT 1
36
91312-04006 BOLT HEX. SOCKET HEAD 4 OK MEX0004-2008/11/6
91312-04006 BOLT HEX. SOCKET HEAD 6
37 91312-04008 BOLT HEX. SOCKET HEAD 3
38
91312-05008 BOLT HEX. SOCKET HEAD 9 OK MEX0004-2008/11/6
91312-05008 BOLT HEX. SOCKET HEAD 8
39 92902-04600 WASHER, PLAIN 7
40 98902-04008 SCREW BINDING HEAD 8 MH20066-2011/3/3
41 KHY-M3T52-00 FES STAY L 1 MH20066-2011/3/3
42 KHY-M3T52-10 FES STAY R 1 MH20066-2011/3/3
43 KHY-M3T52-20 FIX STAY L 1 MH20066-2011/3/3
44 KHY-M3T52-30 FIX STAY R 1 MH20066-2011/3/3
