KJJ_YS100_PL - 第57页
1 14 Exterior , etc Exterior , etc KJJ-1001 1 1 12 21 22 19 12 6 25 29 30 28 26 27 20 5 23 4 2 7 10,1 1 24 3 13,14,15,16,17,18 31 8 9 1,32 No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date 1 KGT -M5106-…
4
12

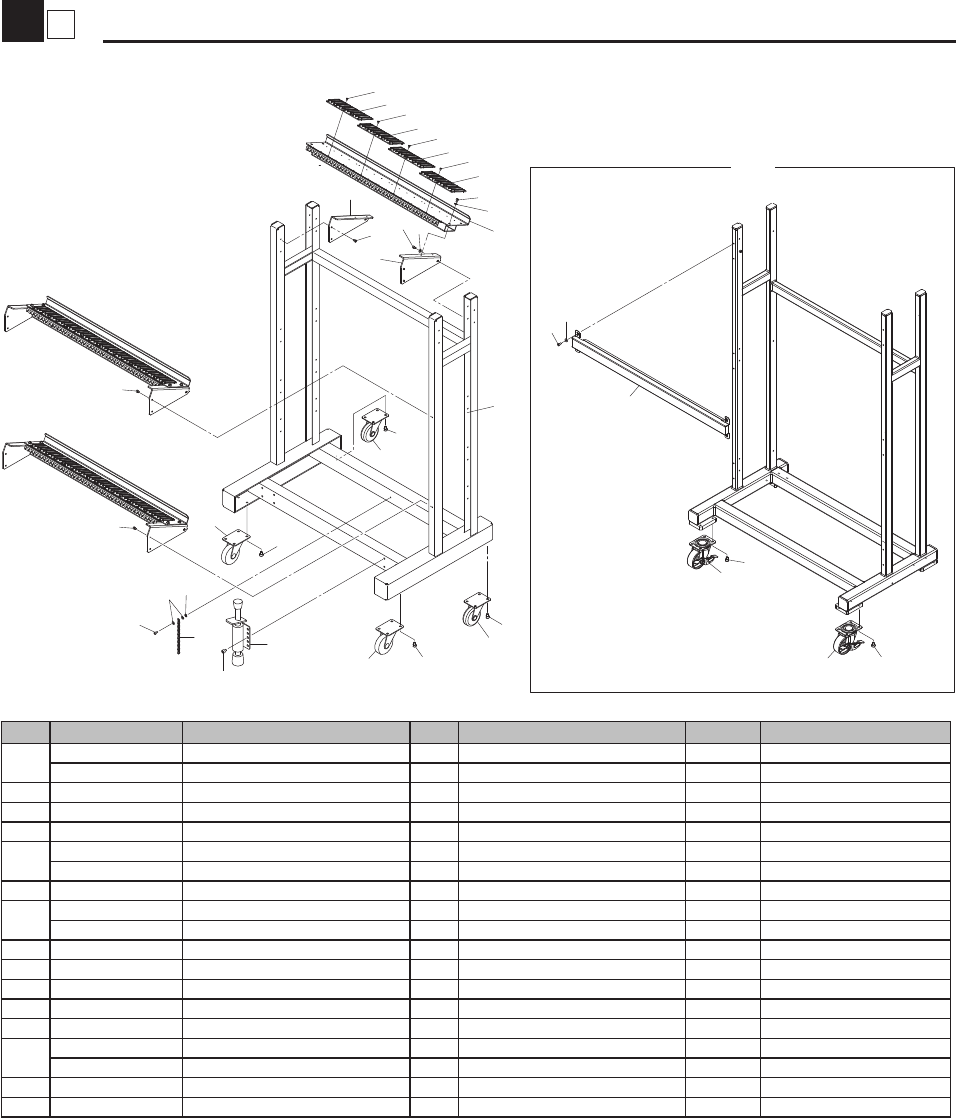

FDR Stand
FDR
KJJ-090615
12
8
12
12
12
8
128
8
4
11
11
11
3
1
9
11
2
9
6
6
6
6
10
10
10
10
12
127
7
5
9
11
11
11
9
15
13
14
OLD
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
KHJ-MK001-10 MAIN FRAME 1 OK MF10093-2009/2/10
KHJ-MK001-01 MAIN FRAME 1
2 KHJ-MK002-00 FEEDER-48 PLATE (12) 3
3 KHJ-MK003-00 BRACKET, 1 3
4 KHJ-MK004-00 BRACKET, 2 3
5
Delete MF10093-2009/2/10
KHJ-MK005-00 STAY, FEEDER 3
6 KHY-M371R-00 RAIL GUIDE 12P 12
7
Delete MF10093-2009/2/10
KHY-M374C-00 CASTER 2
8 KM0-M3741-00 CASTER 63 4
9 92902-04200 WASHER, PLAIN 32
10 98707-03006 SCREW, FLAT HEAD 120
11 91317-04008 BOLT HEX. SOCKET HEAD 31
12 91317-06008 BOLT HEX. SOCKET HEAD 24
13
KHY-M373C-10 CHAIN 1 OK MF10059-2009/3/5
KHJ-MK006-00 CHAIN ASSY 1
14 KHJ-MK007-00 STOPPER 2 MF10093-2009/2/10
15 90172-00J040 WASHER, EXTL. TOOTHED 1
1
13
Control Box
Controller
KJJ-2002
15
13
14
16
17
5
18
2
2
1
24
22
1
24
22
20
25
27
12
19
23
21
25
3
4
26
6
7
28
29
10
8
11
9
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KJJ-M411B-00 BRACKET 2 2
2 KJJ-M411A-00 PLATE 2
3 KJJ-M4119-00 BRACKET 1 FILTER 1
4 KJJ-M4120-00 BRACKET 2 FILTER 1
5
KJJ-M4510-02 MOTHER BOARD ASSY 1 OK MF60242-2009/6/25
KJJ-M4510-01 MOTHER BOARD ASSY 1
6
KHN-M5840-50 SERVO BOARD ASSY 1 STD, S-ATS
KHN-M5840-60 SERVO BOARD ASSY 1 D-YTF
7 KHN-M5840-00 SERVO BOARD ASSY 1
8
KHN-M5840-50 SERVO BOARD ASSY 1 S-ATS
KHN-M5840-70 SERVO BOARD ASSY 2 D-YTF
9
KHL-M4209-01 SYSTEM UNIT ASSY 1 STD OK ME00063-2008/10/16
KHL-M4209-00 SYSTEM UNIT ASSY 1 STD
KHL-M4209-21 SYSTEM UNIT ASSY 1 IT Option OK ME00063-2008/10/16
KHL-M4209-20 SYSTEM UNIT ASSY 1 IT Option
9-1
KLA-M4209-001 SYSTEM UNIT ASSY 1 OK MM90186-2015/10/1
KLA-M4209-020 SYSTEM UNIT ASSY 1 OK MN60077-2016/6/17
KLA-M4209-000 SYSTEM UNIT ASSY 1 ML70036-2014/7/9
KLA-M4209-010 SYSTEM UNIT ASSY 1 OK MM60187-2015/7/9
10
KHL-M441H-03 VISION BOARD ASSY 1 F/R Multi Camera
KHL-M441H-13 VISION BOARD ASSY 1 F Multi Camera
11
KHN-M4530-54 REMOTE IF BOARD ASSY 1 OK MF50046-2009/5/19
KHN-M4530-13 REMOTE IF BOARD ASSY 1 OK ME80154-2008/9/1
KHN-M4530-12 REMOTE IF BOARD ASSY 1
12 KJJ-M5880-00 DRIVER POWER ASSY 1
13 KJJ-M4454-01 RAS BOARD ASSY 1
14 KJJ-M4250-00 BACKPLANE BOARD ASSY 1
15 KHL-M4255-00 FLASH DISK 1
15-1 KLA-M4255-00 FLASH DISK 1 MJ60141-2012/7/26
16 KGS-M5303-00 SW POWER DC5 1
17 KGS-M5303-10 SW POWER DC12 1
18 KJJ-M4186-00 FAN MOTOR ASSY 1
19 KJJ-M4186-10 FAN MOTOR ASSY 1
20 KJJ-M4186-20 FAN MOTOR ASSY 1
21 KJJ-M53A9-10 FILTER 1
22 KJJ-M53A9-20 FILTER 2
23 KJJ-M53E9-10 TAPE 1
24 KJJ-M53E9-20 TAPE 2
25 91312-04006 BOLT HEX. SOCKET HEAD 8 M4X6
26 90166-12JA10 SCREW, PAN HEAD 6
27 97602-04308 SCREW, PAN HEAD W/W 63
28 KJJ-M4140-10 SERVO BOARD ASSY 1 S-ATS
29 KHN-M5840-70 DUMMY PANEL SERVO 1 D-YTF
1
14

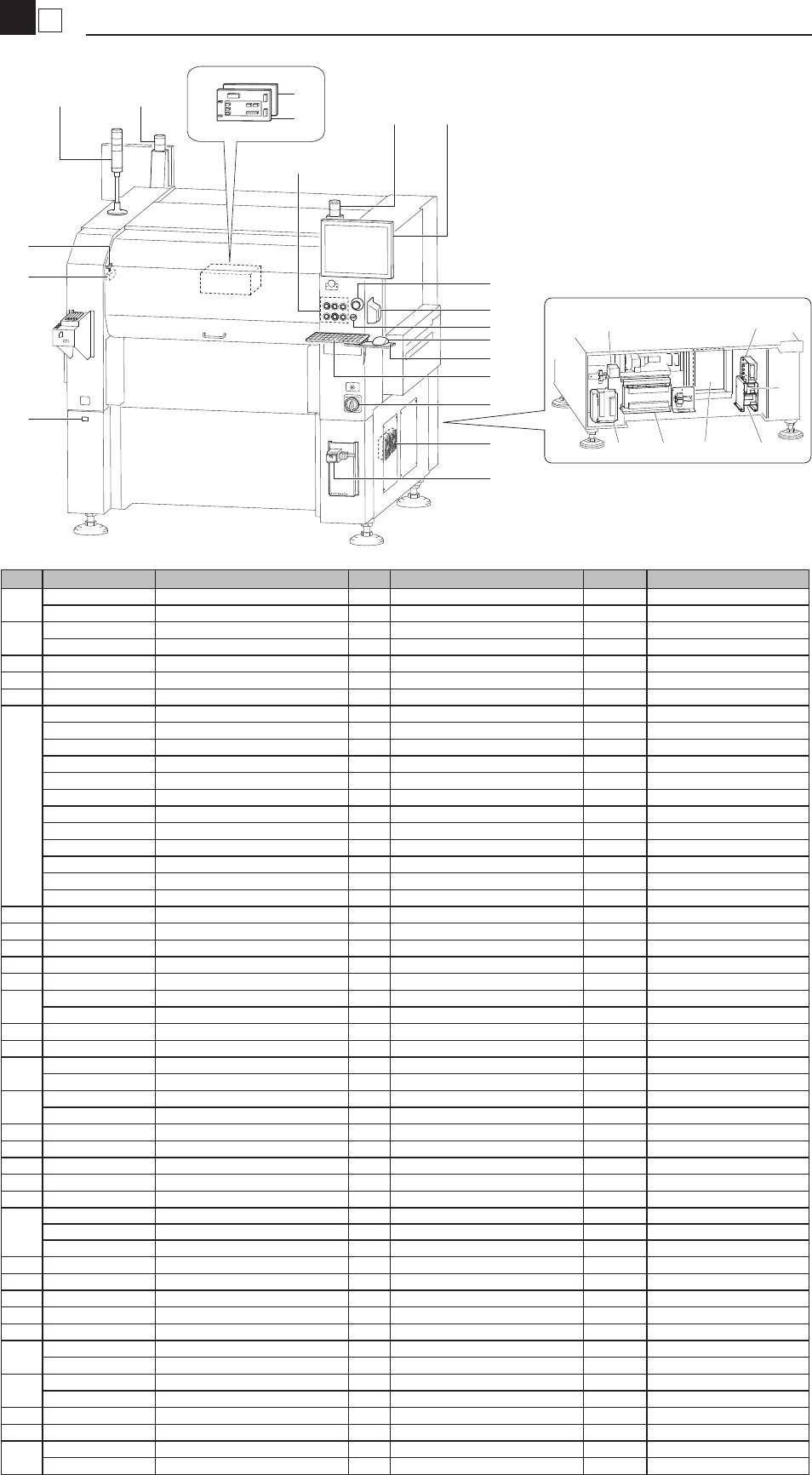

Exterior, etc
Exterior, etc
KJJ-100111
12
21
22
19
126
25
29
30 28
26
27
20
5
23
4
2
7
10,11
24
3
13,14,15,16,17,18
31
8
9
1,32
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
KGT-M5106-B0 SMT OPE.PANEL ASSY 1 DC12V (Compati.:KHW-M5106-10X) NG MJX0111-2012/11/22
KGT-M5106-02 15 NORMAL LCD" 1 AC100V
2
KW3-M5150-50 KEYBOARD J 1 Japanese
KW3-M5150-60 KEYBOARD E 1 Engrish
3 KW3-M5169-04 MOUSE 1
4 KGB-M1391-00 MOUSE PAD 1
5 KGA-M13B5-00
MOUSE POCKET ASSY 1
6
KHY-M4899-00 LIGHT 1 ASSY 1 H=1850mm Red Yellow Green
KHY-M4899-10 LIGHT 1 ASSY 1 H=1900mm Red Yellow Green
KHY-M4899-20 LIGHT 1 ASSY 1 H=2000mm Red Yellow Green
KHY-M4899-30 LIGHT 1 ASSY 1 H=2100mm Red Yellow Green
KHY-M4899-40 LIGHT 1 ASSY 1 H=2200mm Red Yellow Green
KHY-M4899-50 LIGHT 1 ASSY 1 H=2300mm Red Yellow Green
KHY-M4899-60 LIGHT 1 ASSY 1 H=1850mm White Blue Green
KHY-M4899-70 LIGHT 1 ASSY 1 H=1900mm White Blue Green
KHY-M4899-80 LIGHT 1 ASSY 1 H=2000mm White Blue Green
KHY-M4899-90 LIGHT 1 ASSY 1 H=2100mm White Blue Green
KHY-M4899-A0 LIGHT 1 ASSY 1 H=2200mm White Blue Green
KHY-M4899-B0 LIGHT 1 ASSY 1 H=2300mm White Blue Green
7 KM5-M6554-10 MAIN SWITCH 1
8 KHY-M4570-01 I/O HEAD BOARD ASSY 1
9 KHY-M5890-10 HEAD BOARD ASSY 5
10 KGA-M4187-00 FAN GUARD 119MM 6
11 KHW-M6185-00 FAN MOTOR ASSY 3
12
KGS-M4896-01 ERROR LIGHT ASSY 2 Standard Yellow
KHG-M4896-01 ERROR LIGHT ASSY 2 CE Blue
13 KGA-M669V-04 HNS, SWITCH ACTIVE 1
14 KGA-M669V-24 HNS, SWITCH START 1
15
KGA-M669V-03 HNS, SWITCH STOP 1 CE
KGA-M669V-32 HNS, SWITCH STOP 1
16
KGA-M669V-12 HNS, SWITCH ERR.CLR. 1 CE
KGA-M669V-42 HNS, SWITCH ERR.CLR. 1
17 KGA-M669V-14 HNS, SWITCH READY 1
18 KGA-M669V-54 HNS, SWITCH RESET 1
19 KGK-M6680-20 HNS, USB MEMORY 2M AS 1
20 KGK-M5138-00 SWITCH EMG ASSY 2
21 KW7-M5127-00 SAFETY SWITCH KEY 1
22
KW7-M5126-H0 SAFETY SW UNIT ASSY 2 FIX24 Type OK MFX0093-2009/12/1
KHY-M5126-G0 SAFETY SW UNIT ASSY 2 FES24 Type OK MFX0093-2009/12/1
KHY-M5126-00 SAFETY SWITCH 2
23 KGB-M3992-00 SWITCH, SELECT 2
24 KGS-M6510-00 BREAKER ASSY 1
25 KHN-M537A-00 NOIZE FILTER 1
26 KHY-M6561-A0 POWER SUPPLY 1 ASSY 1 DC24V, 600W
27 KHY-M6561-B0 POWER SUPPLY 1 ASSY 1 DC48V, 600W
28
KJJ-M4580-03 I/O CONVEYOR BOARD ASSY 1 OK MF30087-2009/3/19
KJJ-M4580-02 I/O CONVEYOR BOARD ASSY 1
29
KJJ-M5318-10 POWER TRANSFORMER 1 STD
KJJ-M5318-30 POWER TRANSFORMER 1 for UPS
30 KJJ-M5328-10 POWER TRANSFORMER 1
31 KHY-M6561-C0 POWER SUPPLY 1 ASSY 1
32
KGT-M5119-03 SMT OPE.T.PANEL ASSY 1 Touch Panel OK MK20042-2013/2/25
KGT-M5119-02 15 TOUCH LCD ASSY" 1 Touch Panel
