Page HANWHA TECHWIN 121 SLM110S Conveyor Board Interface (2/5) NO. Lev . P A RT NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 J90834166A CUT_OUTPUT_CABL E_ASSY AP5_CV022 1 2 J9083415 6A HEAD1_AIR_SOL _EX…
Page
HANWHA TECHWIN
120
SLM110S
Conveyor Board Interface (2/5)
^4`
^5` ^6`
^7`
^7`
^<` ^43`
^44`
^47`
^8`
^9`
^:`
^;`
^45`
^46`
J90834149A
AM03-004789A
Page
HANWHA TECHWIN
121
SLM110S
Conveyor Board Interface (2/5)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J90834166A CUT_OUTPUT_CABLE_ASSY AP5_CV022 1
2 J90834156A HEAD1_AIR_SOL_EXT_CABLE_ASSY AP5_CV012 1
3 J90834157A HEAD1_AIR_SOL_CABLE_ASSY AP5_CV013 1
4 AM03-013464B CONV_IF_BD_CN16_CABLE_ASSY AP5_CV005 2 J90834149A/AM03-013464A
5 J90834160A ROP_SW_INPUT_CABLE_ASSY AP5_CV016 1
6 J90834377A CRASH_SENSOR_EXT_CABLE_ASSY AP5_CV035 1
7 AM03-004789A CABLE ASSY-FL003_FLAT_CABLE_ASSY 1
8 J90834376A CRASH_SENSOR_CABLE_ASSY AP5_CV034 1
9 J90834160A ROP_SW_INPUT_CABLE_ASSY AP5_CV016 1
10 J90832936B FRONT_ARAE_SENSOR_CABLE_ASSY 1
11 J90834163A CUTTER_SEN_EXT_CABLE_ASSY_1 AP5_CV019 1
12 J90834164A CUTTER_SEN_EXT_CABLE_ASSY_2 AP5_CV020 1
13 J90833570A CUTTER_SENSOR_CABLE_ASSY SCM_CV022 1
14 J90834147A F_T_BOX_EXT_CABLE_ASSY AP5_CV003 1

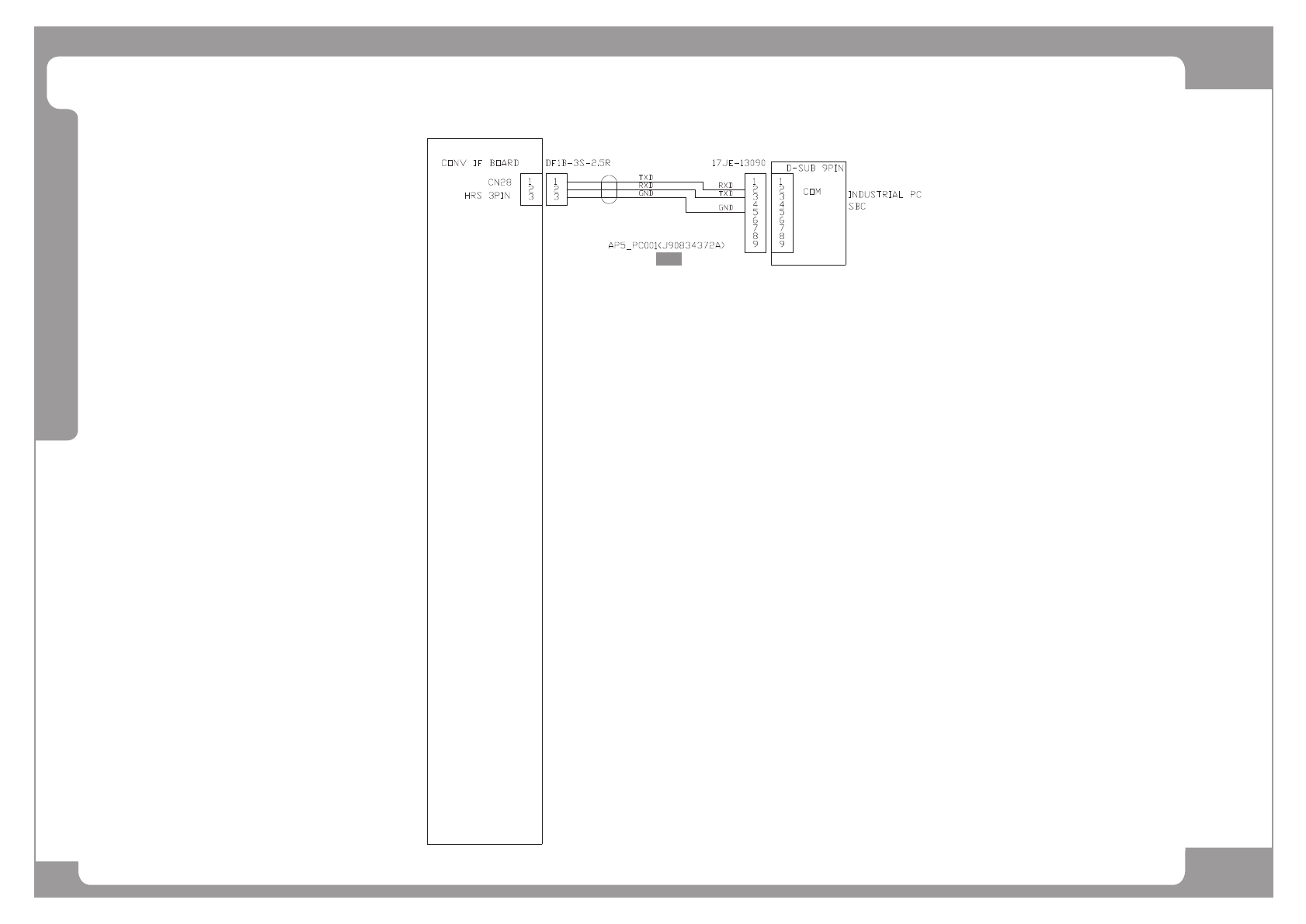

Page
HANWHA TECHWIN
122
SLM110S
Conveyor Board Interface (3/5)
^4`
