5 - 2

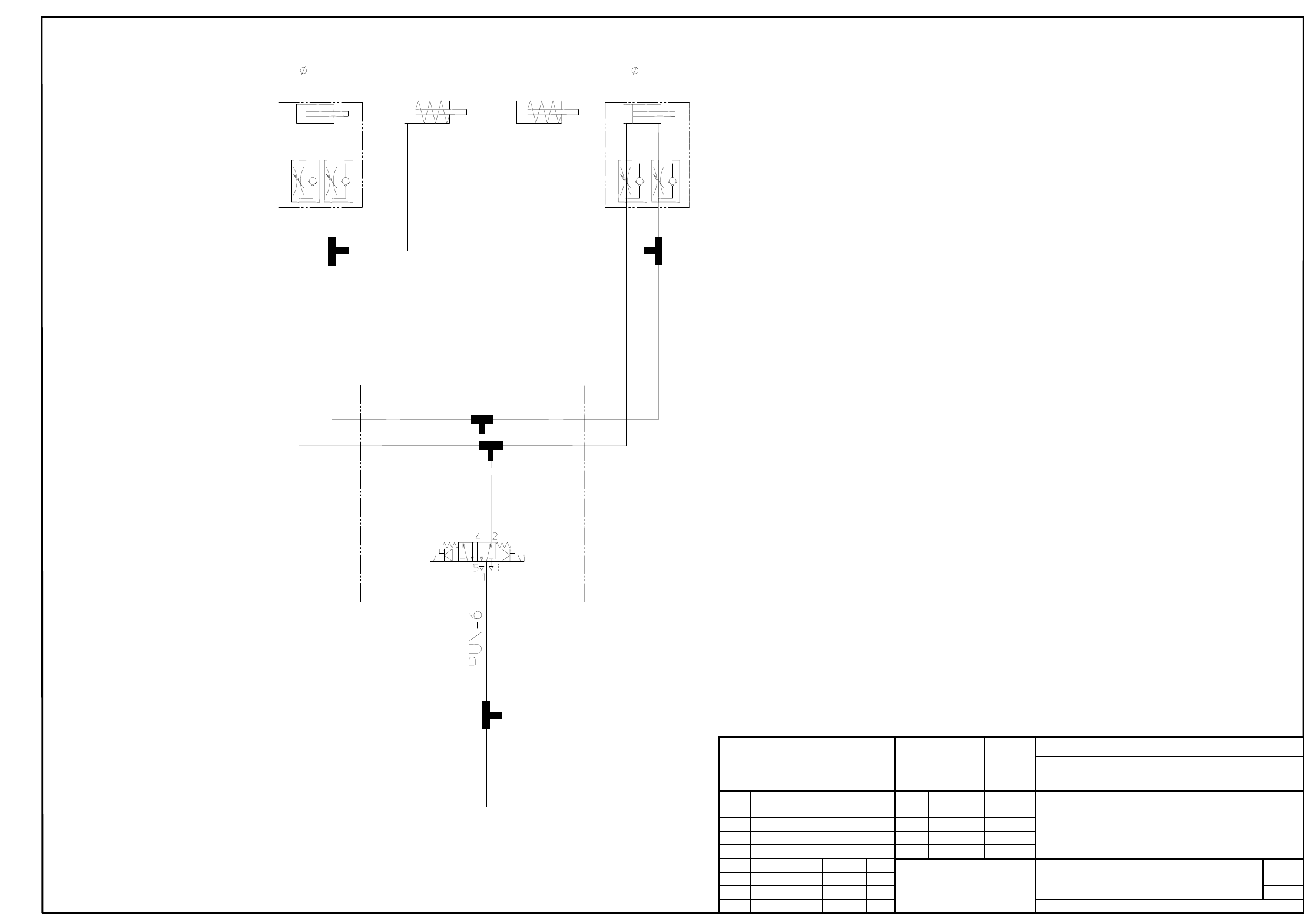

03006619-060101XD3 SIPLACE X-Serie, BE-Wagen Einzug
SIPLACE X-series, CO trolley docking unit
Scale Format A3
Date Name
Author
26.07.2006
NGWK
Check.
Norm
SIPLACE X-Series
BE-Wagen Einzug
Component trolley, docking unit
Sheet 1
402431 2006-07-26 NGWK
(Drawing number)
03006619 – 060101XD3
Sh. 1
tat. Modified Date Name
Copyright ©
ASM AS
W eiterg ab e sow ie Vervielfältig ung d ieser Unterlage, Verw er-
tung und M itteilung ihres Inhaltes nich t gestattet, sow eit nicht
ausdrücklich zugestanden. Zuw iderhandlungen verpflichten zu
Schadensersatz. A lle Rechte für den Fall der Patenterteilung
oder GM -Eintra
g
un
g
vorbehalten.
Copying of this document, and giving it to others and the use
or com m u nication of the conten ts thereof, are forbid den w ith-
out express authority. Offend ers are liable to the paym en t of
dam ages. All rights are reserved in the event of th e g ran t of
a
p
atent or the re
g
istration of the utilit
y
model or desi
g
n.
4.3
4.1
4.2
4.4
2 .2
2 .1
1
.1
CO trolley docking unit
Consumption not relevant
Do not operate during placement operation
Synchronous run of cylinders:+/-200ms
Docking out time: 2sec +500ms
Setting the pneumatic cylinders
Synchronous run of cylinders:+/-200ms
Docking in time: 2sec +500ms
Branch connection for unlocking the feeders
Left cylinder
50
Stroke 60 Stroke 60
Right cylinder
50
Left uncoupling cyl.
AEVC-20-10-P AEVC-20-10-P
Right uncoupling cyl.
CPE14-M1BH-5J-1/8
5 - 3

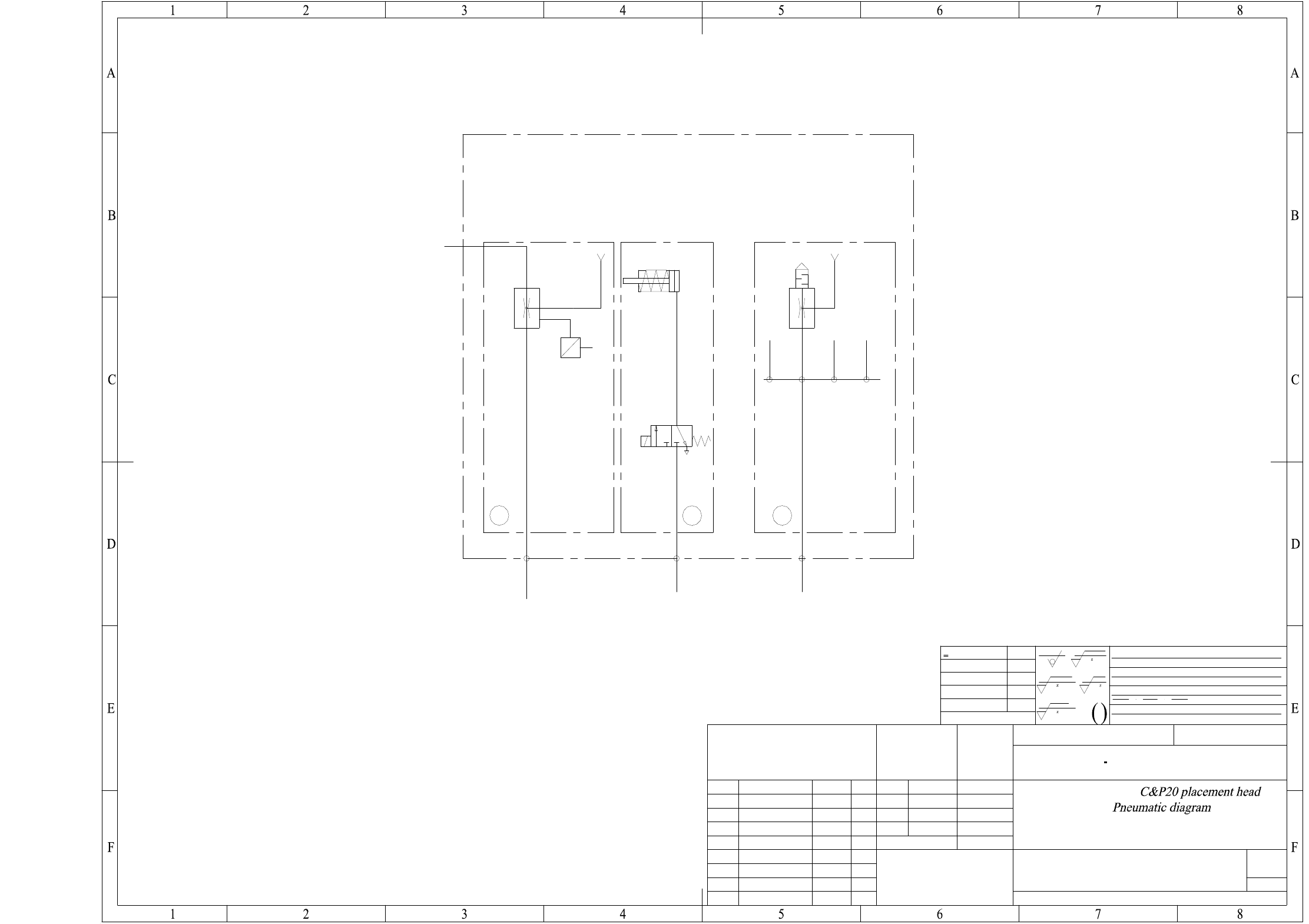

03008827-010101XD3 Bestückkopf C&P20, Pneumatikplan, SIPLACE X-Serie
C&P20 placement head, pneumatic diagram, SIPLACE X-series
(20x)
2.5 - 4.5 bar, 120 to 200 st.l/min
VHS
Return motion cyl.
Z axis
Placement circuit
X
P
V
2
13
Holding circuit
4.5 + 0.1 bar, 50 st.l/min.
To gantry cooling system
Drawings 2/A
Weitergabe sowie Vervielfältigung dieser Unterlage, Verwer-
oder GM-Eintragung vorbehalten.
Schadenersatz. Alle Rechte für den Fall der Patenterteilung
ausdrücklich zugestanden. Zuwiderhandlungen verpflichten zu
tung und Mitteilung ihres Inhalts nicht gestattet, soweit nicht
a patent or the registration of a utility model or design.
damages. All rights are reserved in the event of the grant of
out express authority. Offenders are liable to the payment of
or communication of the contents thereof, are forbidden with-
Copying of this document, and giving it to others and the use
NameDateModifiedStatus
DS 01
new nn.nn.nn - - -
(Material, semi-fin. products)
Degree of accuracy
FMain no. FS PS DS DT L
03008827-010101XD3
(Drawing number)
Pneumatik-Plan /
Bestückkopf C&P20 /
(Unmachined part no.)
(Model or swage no.)
Stand.
Schmid R.
Name
Date
26.02.04
Author
Check.
acc. to ISO 2768 mH
medium
Sheet
Sh.
1
1
1710xxx Xxxxx xxx xx P
Depth:0.3/
2-5 um layer (nickel-plated)
R 100
R 25
>30...120
±0.3
>120...400
>400...1000
Dimens. variations
Dimens. variations:
Scale:
±0.5
±0.8
>6...30
<6
±0.2
±0.1
HRc tempered
R 1
NN ± N
case hardened
Coordinates list:
Comprising
Format
R 6.3
Surface.:
A3
SIPLACE X-Series
GmbH & Co. KG
ASM Assembly Systems
Copyright ©
5 - 4
03048980-010101XD4 Zylinder-Ventilkombination HT
Cylinder valve combination LT
Document No.:
Dokumentennr.:
03048980-010101XD4
Change Request
No.:
Item Name:
Benennung:
Zylinder-Ventil Kombination HT
Cylinder-Valve Combination LT
Modification:
Name:
FK Lee
Date:
10.03.2006
Checked by.: Date:
Signature:
ASM AS
Copyright ©
Page 1 of 1
Copying of this document, and giving it to others and the use
or communication of the contents thereof, are forbidden with-
out express authority. Offenders are liable to the payment of
damages. All rights are reserved in the event of the grant of
a patent or the registration of the utility m odel or de sign.
Weitergabe sowie Vervielfältigung dieser Unterlage, Verwer-
tung und Mitteilung ihres Inhaltes nicht gestattet, soweit nicht
ausdrücklich zugestanden. Zuwiderhandlungen verpflichten zu
Schadensersa tz. Alle Rechte für den Fall der Patenterteilung
Eintragung vorbehalten.
-
oder GM
