9|Spare and wear parts 9.4 Positioning systems 9.4.1 Single pot positioning system (single track) Overview Fig.160: EM113-20-00 Ersa GmbH Operating Instructions_VF366_en|Rev. 14|30/11/2017 405/551
9|Spare and wear parts
9.3.8 Area-Spray head (Option)
1 2
Fig.159: EM113-41-09-00a
Pos Description Item number A B
1 "Schütze" type area spray head, round shape, 0,2 269741 x
2 Holder for area-spray head "Schütze" 276596 x
Ersa GmbH Operating Instructions_VF366_en|Rev. 14|30/11/2017 404/551
9|Spare and wear parts
9.4 Positioning systems

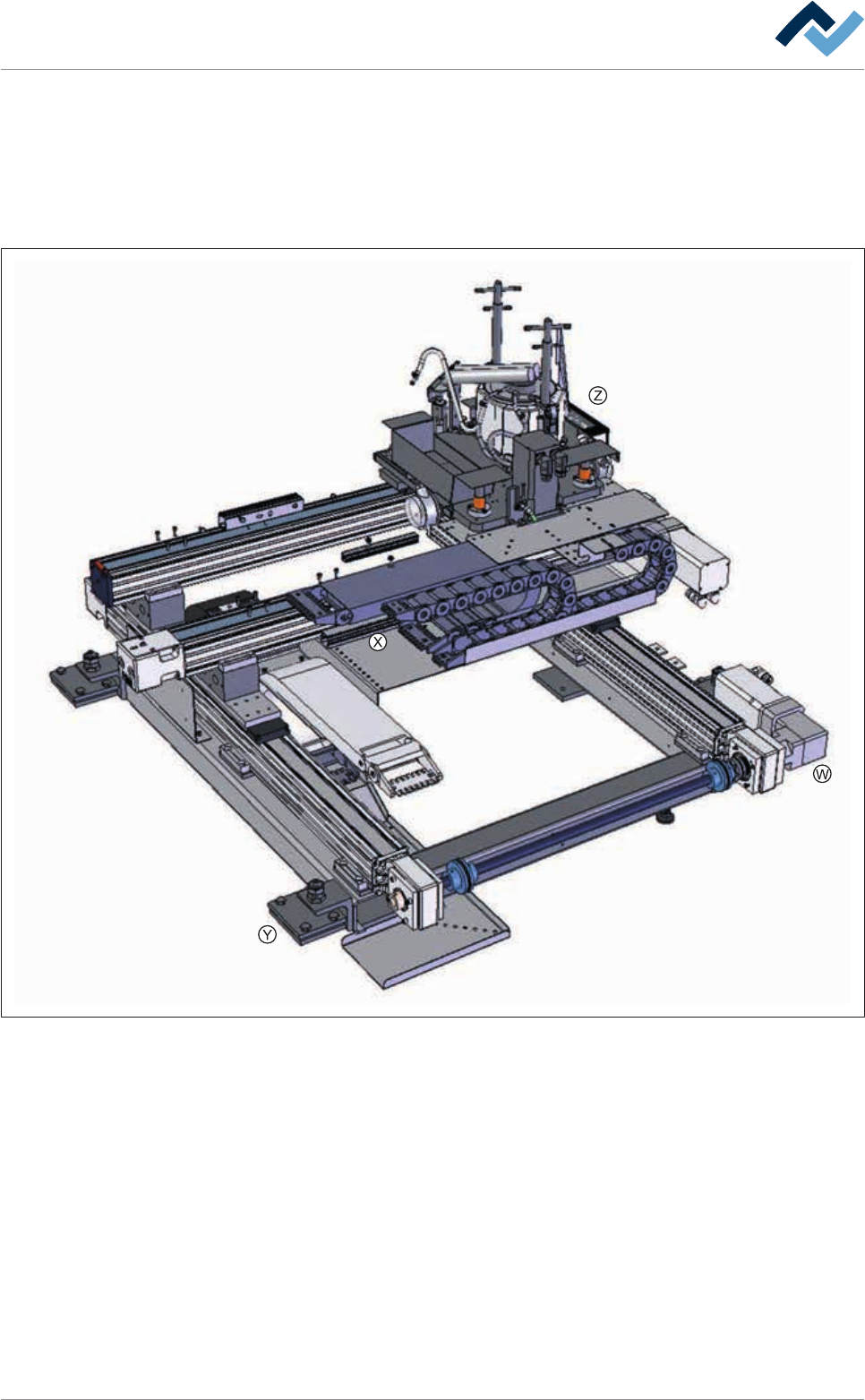

9.4.1 Single pot positioning system (single track)
Overview
Fig.160: EM113-20-00
Ersa GmbH Operating Instructions_VF366_en|Rev. 14|30/11/2017 405/551
9|Spare and wear parts

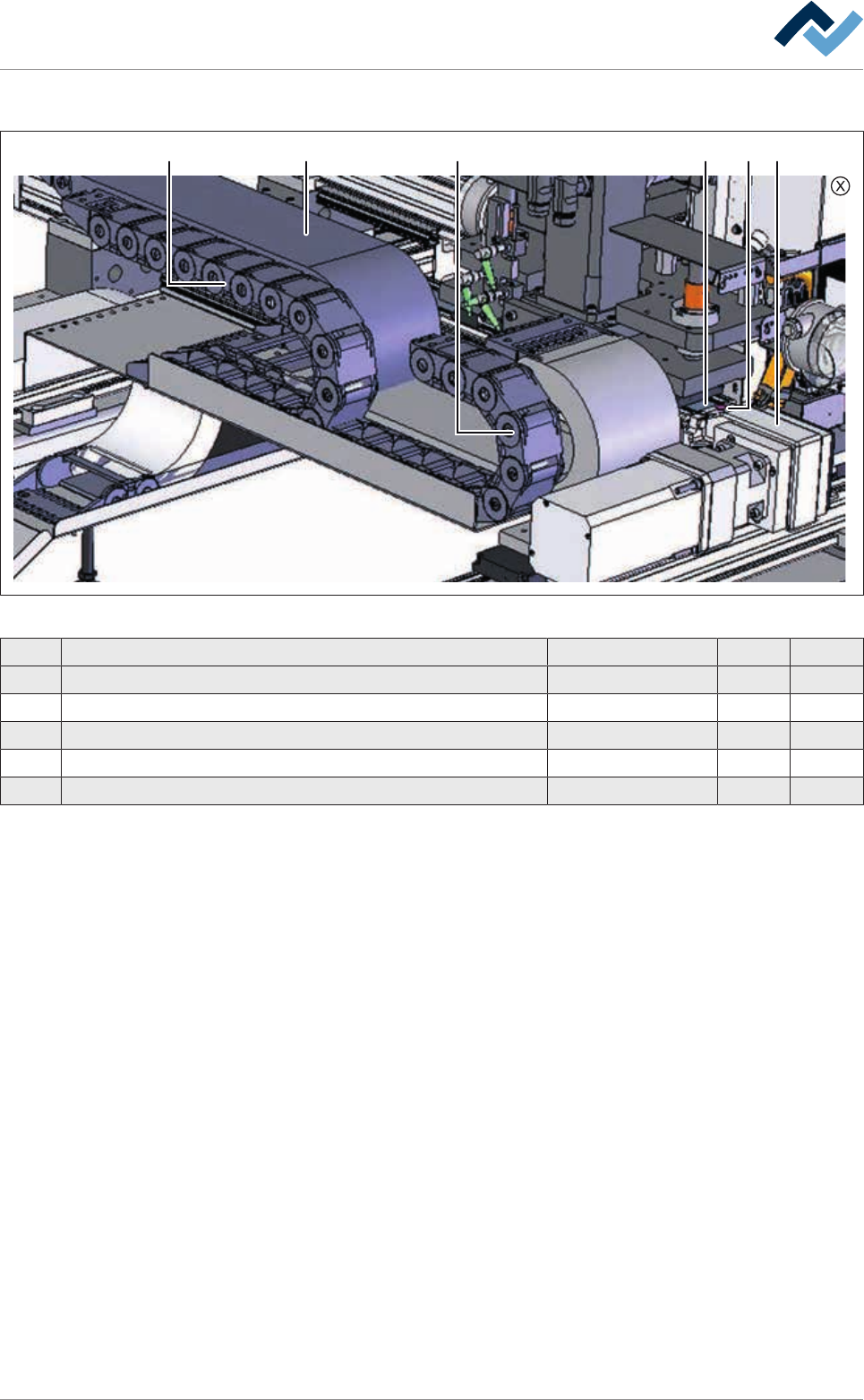

Single solder pot positioning system, view [X]
1 1 52 3 4
Fig.161: EM113-20-00Aa
Pos Description Item number A B
1 Energy chain 188754 x
2 Energy chain 188750 x
4 Tooth belt 25AT10 L = 2840 mm 216461 x
5 Wearing part package steel band deflection 175815 x
6 Blanket for positioning system: EM113-20-00A (not shown) 253569 x
Ersa GmbH Operating Instructions_VF366_en|Rev. 14|30/11/2017 406/551
