9|Spare and wear parts
9.4.3 Double pot positioning system (dual track)
Overview

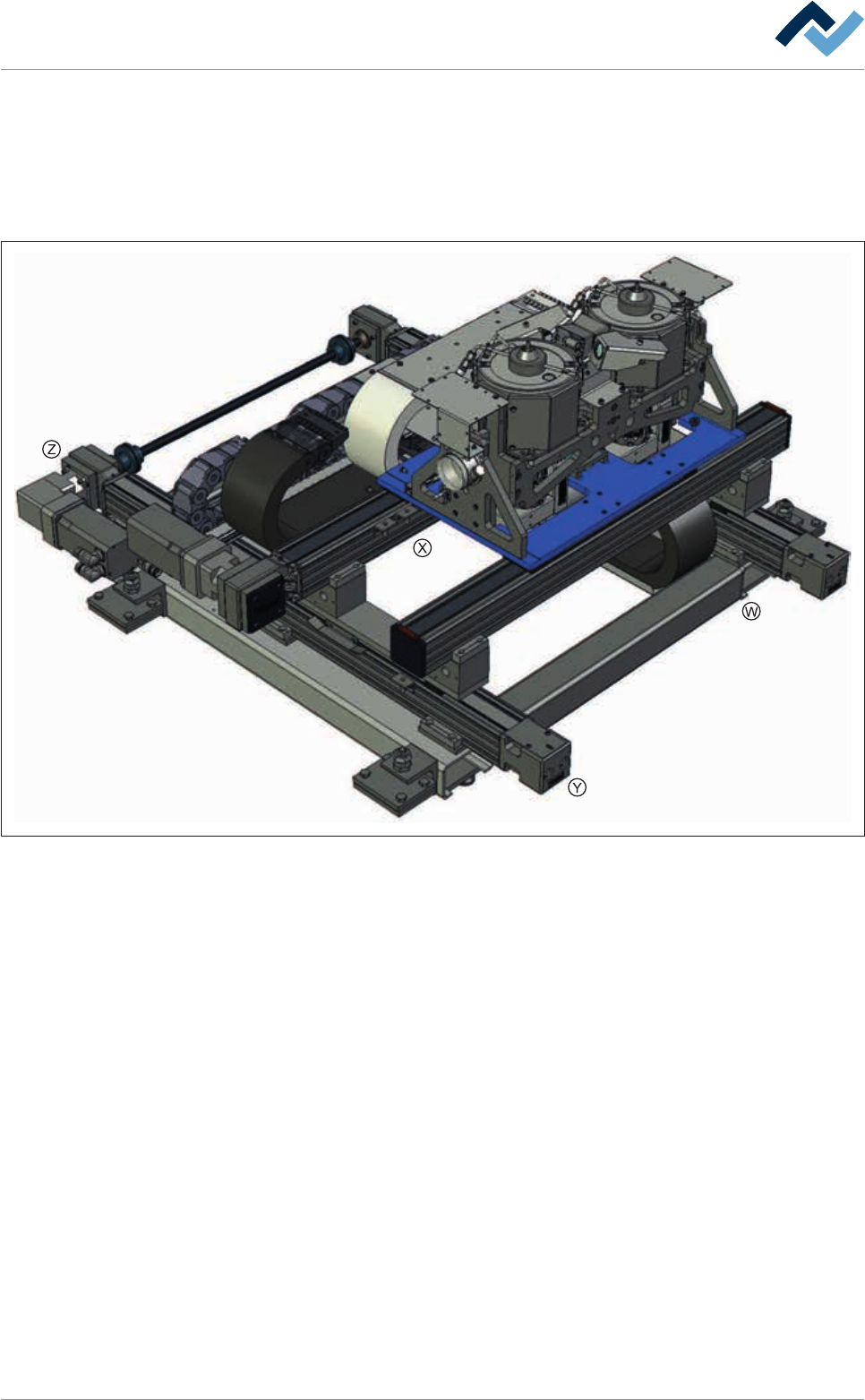

Fig.165: EM113-24-00
Ersa GmbH Operating Instructions_VF366_en|Rev. 14|30/11/2017 411/551
9|Spare and wear parts
Double solder pot positioning system, view [Z]
2 43 1
3 4
Fig.166: EM113-24-00a
Pos Description Item number A B
1 Tooth belt 25AT10 L = 2600 mm 216462 x
3 Motor/gear combination --> 2010 175816 x
3 Motor/gear combination 2010 --> 191607 x
4 Motor/gear combination --> 2010 175817 x
4 Motor/gear combination 2010 --> 191608 X
5 Energy chain 188761 x
6 Energy chain 188750 x
7 Energy chain 188754 x
Ersa GmbH Operating Instructions_VF366_en|Rev. 14|30/11/2017 412/551
9|Spare and wear parts
CAUTION
Malfunctioning possible!
If the motor/gearbox combination 175816is replaced by the 191607 one, you must
load the appropriate parameters in the driver controller. With respect to this, please
read the [100049_SSD_Drive_einrichten.pdf] in the data carrier [Product data Versa-
flow 3] document. You can find the WPLN type parameters in the [Software\Parker
\Maschinendaten\638_Versaflow3xx\Parameter] directory. If the motor/gearbox
combination 175817 is replaced by the 191608 one, no adjustment of the parameters
is necessary.
