9|Spare and wear parts 9.5.3.4 Flexible rail 2, (dual track) Overview Fig.239: EM113-339-40-00A Ersa GmbH Operating Instructions_VF366_en|Rev. 14|30/11/2017 491/551
9|Spare and wear parts

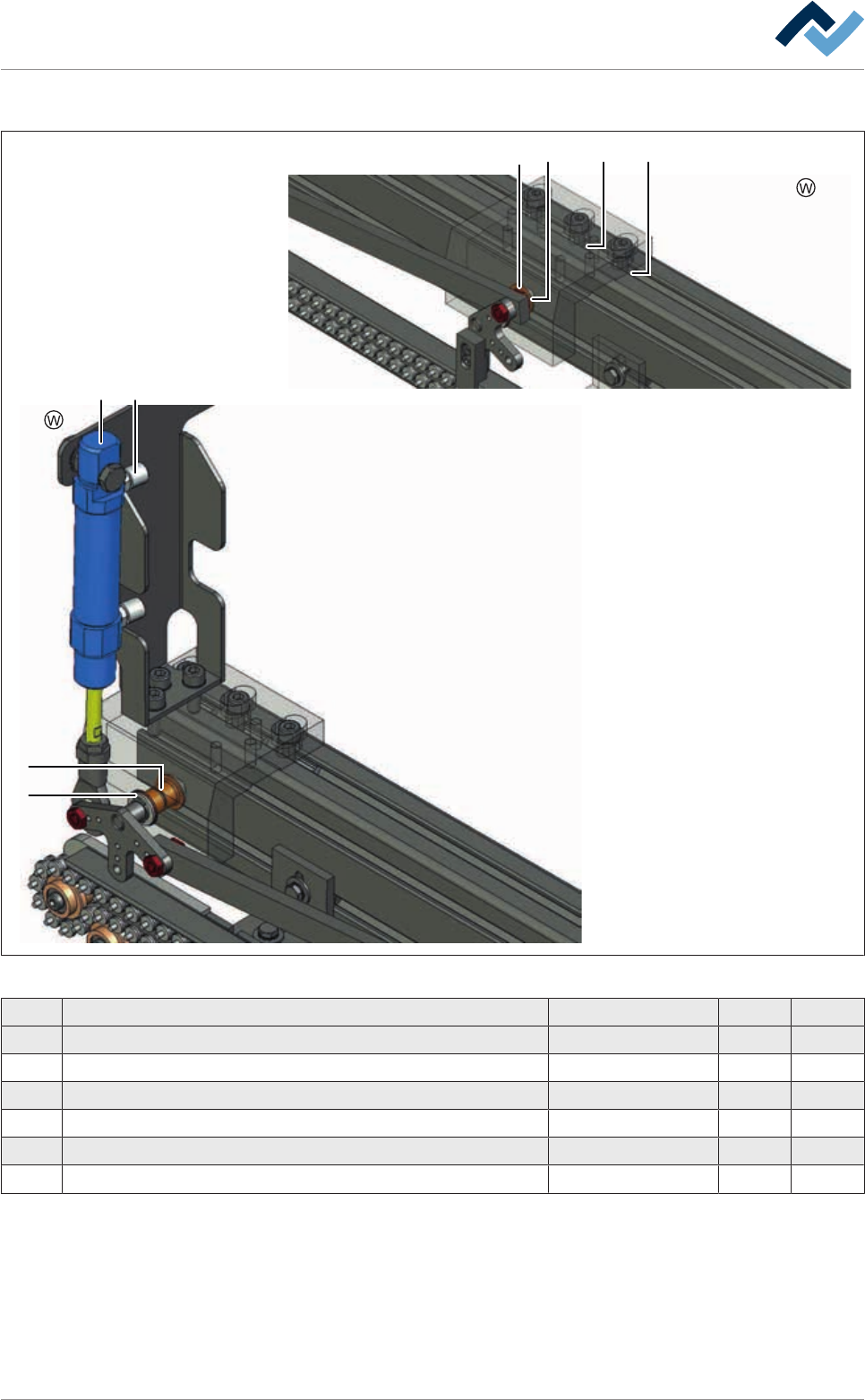

Flexible rail 1, (single track), view [W]
13
45
7
3
2 1
Fig.238: EM113-339-20-00Ag
Pos Description Item number A B
1 Groove nut STM5 * 6ZIS049 x
2 Washer 8/14X1,0 DIN988 * 6SA08X1.00 x
3 Collar bush * 143513 x
4 Straight screwing M5, stainless stell * 97965 x
5 Cylinder, 2-acting Ø 16, stroke=20 Temp. resistant * 85950 x
* Only with option [second stopper]
Ersa GmbH Operating Instructions_VF366_en|Rev. 14|30/11/2017 490/551
9|Spare and wear parts

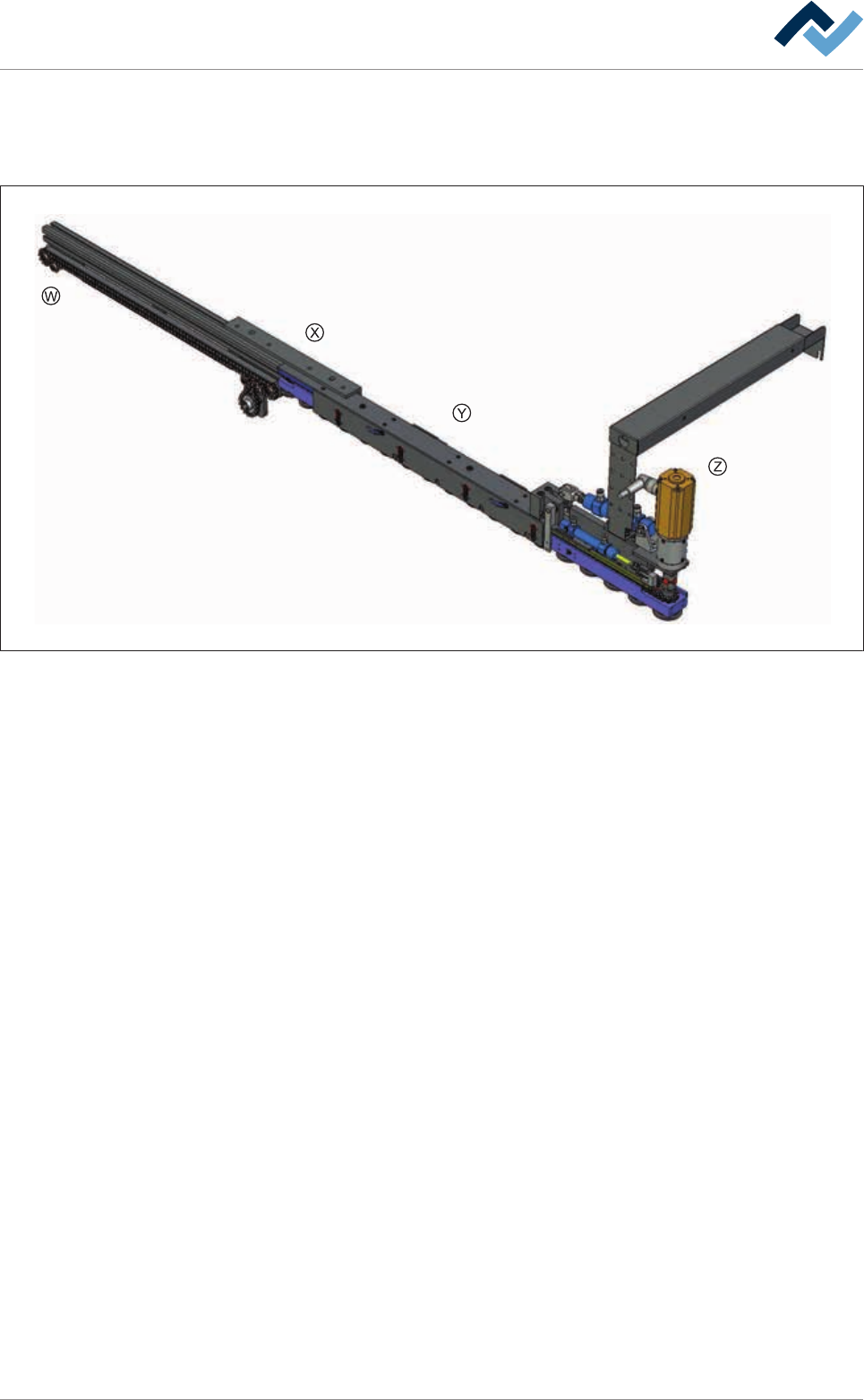

9.5.3.4 Flexible rail 2, (dual track)
Overview
Fig.239: EM113-339-40-00A
Ersa GmbH Operating Instructions_VF366_en|Rev. 14|30/11/2017 491/551
9|Spare and wear parts

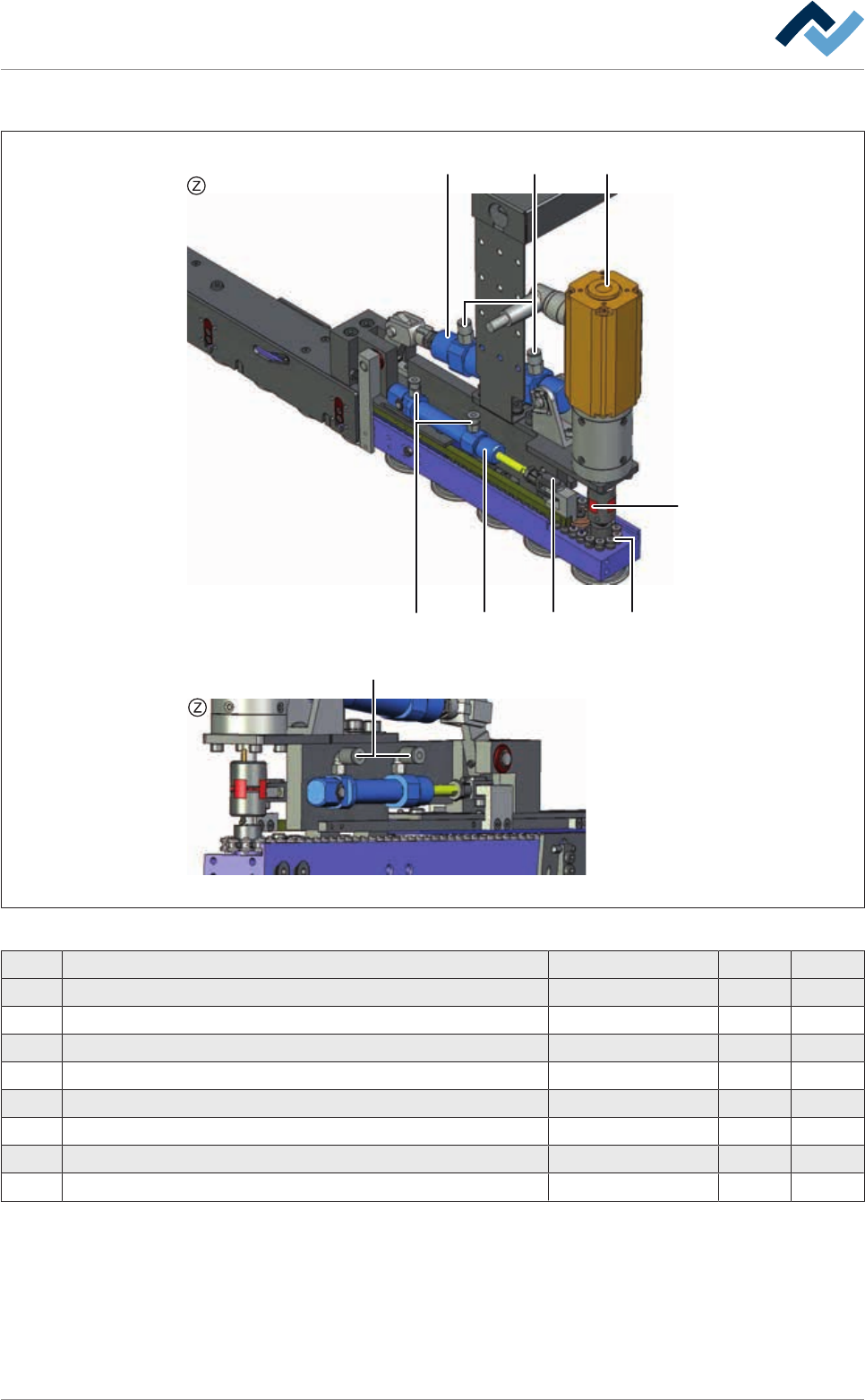

Flexible rail 2, (dual track), view [Z]
1
2
4
5 7
3
68
8
Fig.240: EM113-339-40-00Aa
Pos Description Item number A B
1 Motor, Dunker, BG44x25SI/PLG S 32:1 117869 x
2 Coupling Ø 20x30 143509 x
3 Plug-in connection Ø4 mm 1/8“ 126744 x
4 Cylinder, 2-acting Ø 20, stroke=25 Temp. resistant 43674 x
5 Cylinder, 2-acting Ø 12, stroke=25 mm 164014 x
6 Fork head G6x12 SL MBO 238057 x
7 Chain G52 05B-1 143514 x
8 Straight plug connection M5, Ø 4 mm 126369 x
Ersa GmbH Operating Instructions_VF366_en|Rev. 14|30/11/2017 492/551
