9|Spare and wear parts

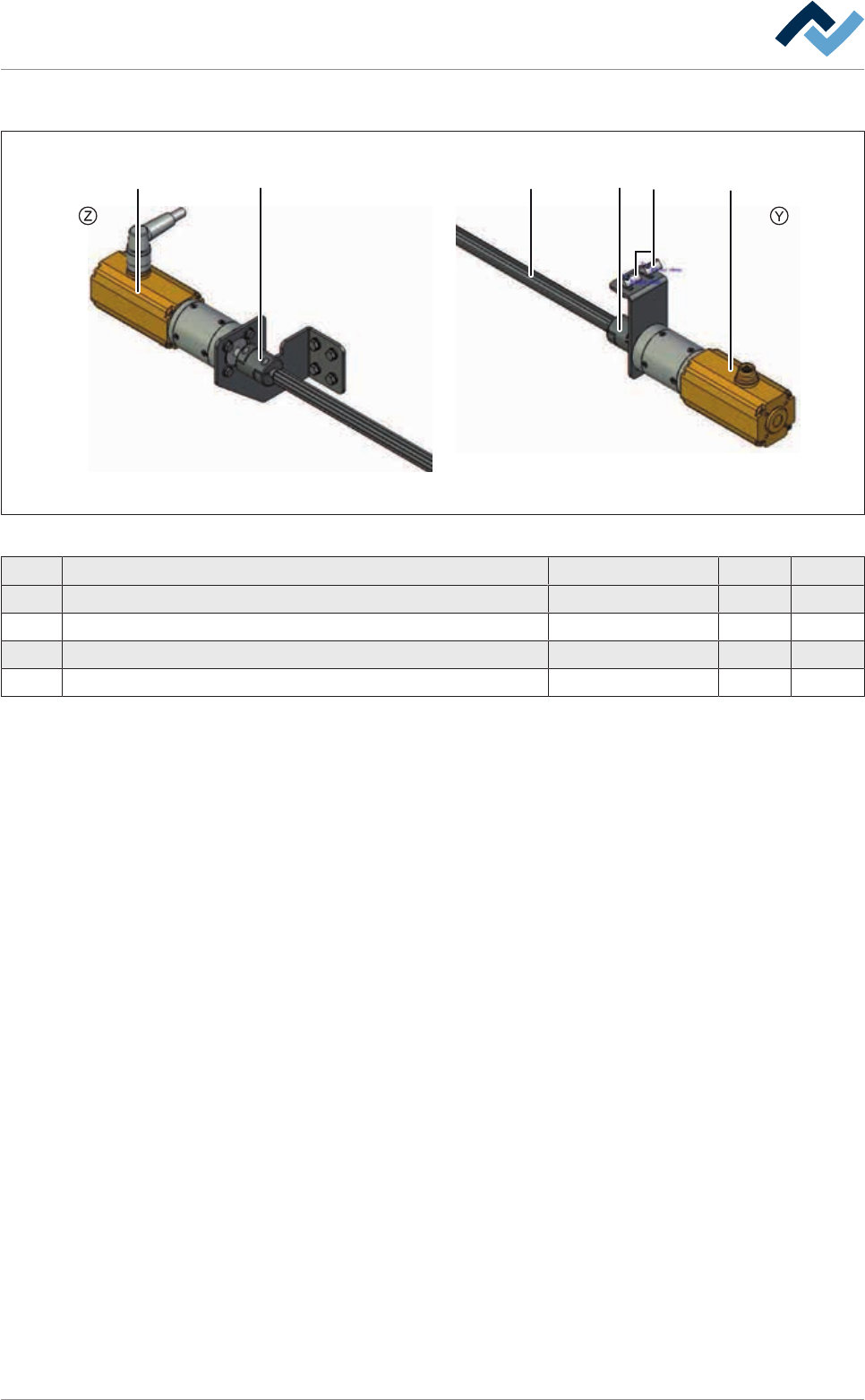

Stimulus for pin chain flux transport (Dual track), view [Z], [Y]
1
2
43
2
1
Fig.250: EM113-234-04-00a
Pos Description Item number A B
1 Compensation coupling 228630 x
2 Motor, Dunker, BG44x25SI/PLG S 32:1 117869 x
3 Spline shaft 193944 x
4 Groove nut STM5 6ZIS049 x
Ersa GmbH Operating Instructions_VF366_en|Rev. 14|30/11/2017 502/551
9|Spare and wear parts
9.6.4 Preheating conveyor pin chain drive (dual track)
1 2433 1
Fig.251: EM113-234-06-00
Pos Description Item number A B
1 Compensation coupling 228630 x
2 Motor, Dunker, BG44x25SI/PLG S 32:1 117869 x
3 Spline shaft 193944 x
4 Groove nut STM5 6ZIS049 x
Ersa GmbH Operating Instructions_VF366_en|Rev. 14|30/11/2017 503/551
9|Spare and wear parts
9.7 Preheaters
9.7.1 Dynamic IR emitter 10 x 2.2 kW
1
1
2 3 5
4
Fig.252: EM113-51-00
Pos Description Item number A B
1 Thermocouple 2xNICR-NI with double-plug 161299 x
2 IR-heater 2200 W / 230V 188703 x
3 Reflector sheet 188762 x
4 Glass plate 188764 x
5 Radiator socket 156941 x
