3 Component camera, Z axis and component sensor
3.7 Replacing the component sensor
32 Service Manual SIPLACE SpeedStar (C&P20 P2) 01/2019
4 DP drives
4.1 Replacing the clamping plate at the DP drive
Service Manual SIPLACE SpeedStar (C&P20 P2) 01/2019 33
4 DP drives
4.1 Replacing the clamping plate at the DP drive
Parts
Fig.35: Clamping plate
03005144‑xx Clamping plate
Equipment and tools
T44 00386132-xx Torque screwdriver ESD 0.1-0,6 Nm
T76 00386135-xx Torque interchangeable blades 1.5 mm, hexagonal
T --- Tools for removing/fitting and calibrating the placement head, if needed
(see also the service manual for your machine)
Preparation
► Remove the head from the machine. For details about removing and fitting the placement
head, refer to the service manual for your machine.
Fit the head on the head mount [03056231‑xx].
► Make sure that the component sensor protective cap is fitted.
1.1.3 "Safety instructions for the component sensor" [}6]
Removal
Fig.36: Clamping plate
► Remove the fastening screw(2)
(Allen1.5) and then remove the clamp-
ing plate(1).
Installation
► Fit the new clamping plate. Tighten the screw fastening the clamping plate with a torque of
0.1 Nm.
4 DP drives
4.2 Replacing the DP drive and hose
34 Service Manual SIPLACE SpeedStar (C&P20 P2) 01/2019

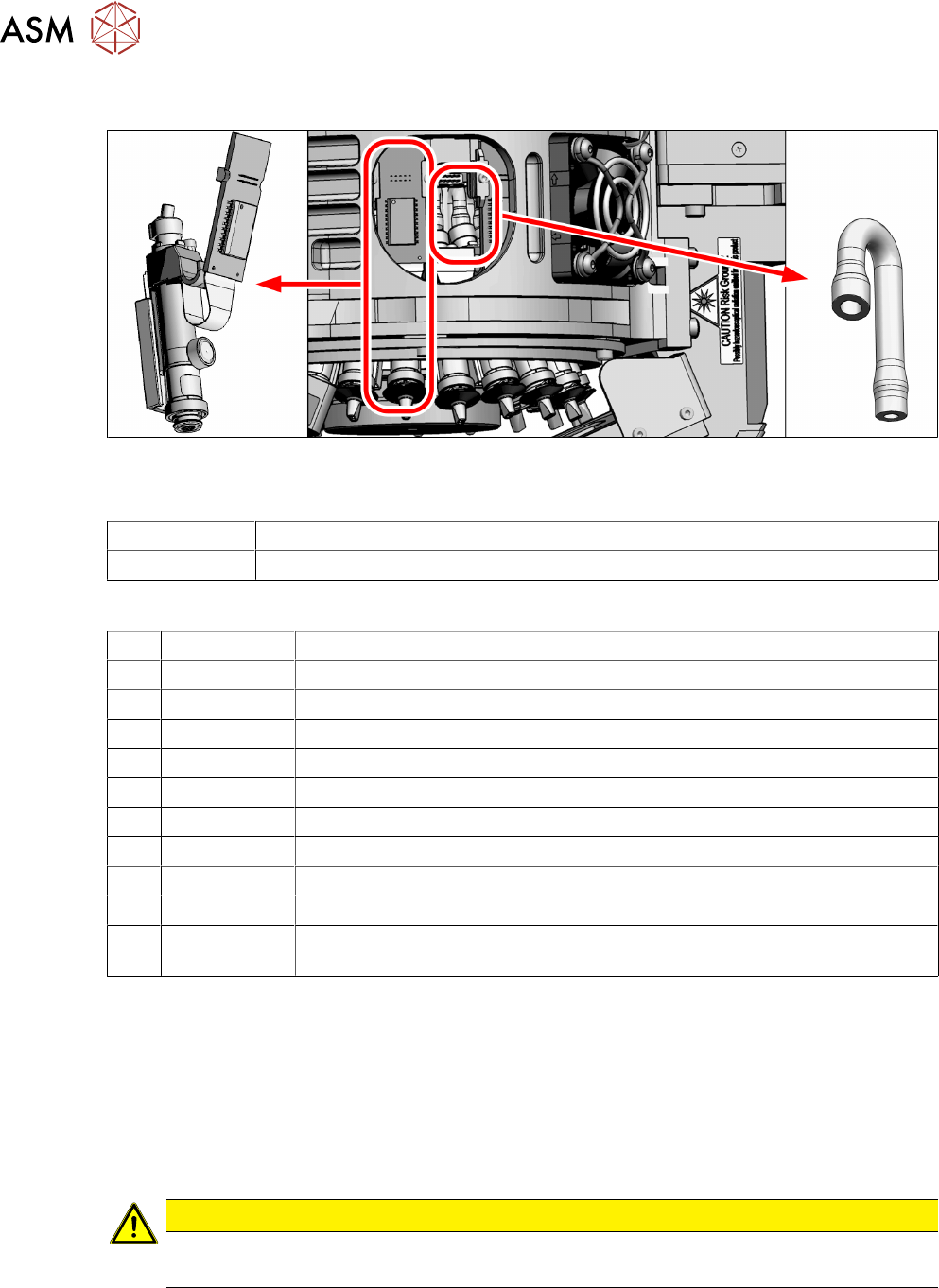

4.2 Replacing the DP drive and hose
Fig.37: DP drive and hose
Parts
03102532Sxx DP drive SIPLACE C&P20P (including screws and clamping plates)
03103784‑xx Hose, DP vacuum for SIPLACE C&P20P
Equipment and tools
T07 03078400-xx Torque Screwdriver ESD 1.0-5.0 Nm
T44 00386132-xx Torque screwdriver ESD 0.1-0,6 Nm
T47 00386253-xx Torque screwdriver ESD 0.4-1.0 Nm
T53 00096487-xx Tweezers angled 140mm oval tips
T65 03109065-xx DP change tool for the SIPLACE C&P20P
T76 00386135-xx Torque interchangeable blades 1.5 mm, hexagonal
T78 03090019-xx Torque interchangeable blades 2.5 mm, hexagonal
T81 00376493-xx Tweezers, flat/tips 3 mm wide
T98 03171857-xx Torque Allen swap blade 1.5 mm TX10
T99 03171856-xx Torque Allen swap blade 1.5 mm TX20
T --- Tools for removing/fitting and calibrating the placement head, if needed
(see also the service manual for your machine)
Preparation
► Remove the head from the machine. For details about removing and fitting the placement
head, refer to the service manual for your machine.
Fit the head on the head mount [03056231‑xx].
► Make sure that the component sensor protective cap is fitted.
1.1.3 "Safety instructions for the component sensor" [}6]
Removal
CAUTION
Tweezers, blunt 145mm size 3mm [00376493-xx]
Do not use any other tweezers for the hoses. If you do, the hoses could be damaged.
► Pull the nozzle off the segment.
► Dismantle the holding circuit/aperture ring.
► Dismantle the two clamping plate next to the DP drive circuit board.
4.1 "Replacing the clamping plate at the DP drive" [}33]
