5 Pressure control valve (PRV) 5.3 Replacing the exhaust air hose 44 Service Manual SIPLACE SpeedStar (C&P20 P2) 01/2019
5 Pressure control valve (PRV)
5.3 Replacing the exhaust air hose
Service Manual SIPLACE SpeedStar (C&P20 P2) 01/2019 43
5.3 Replacing the exhaust air hose
Parts

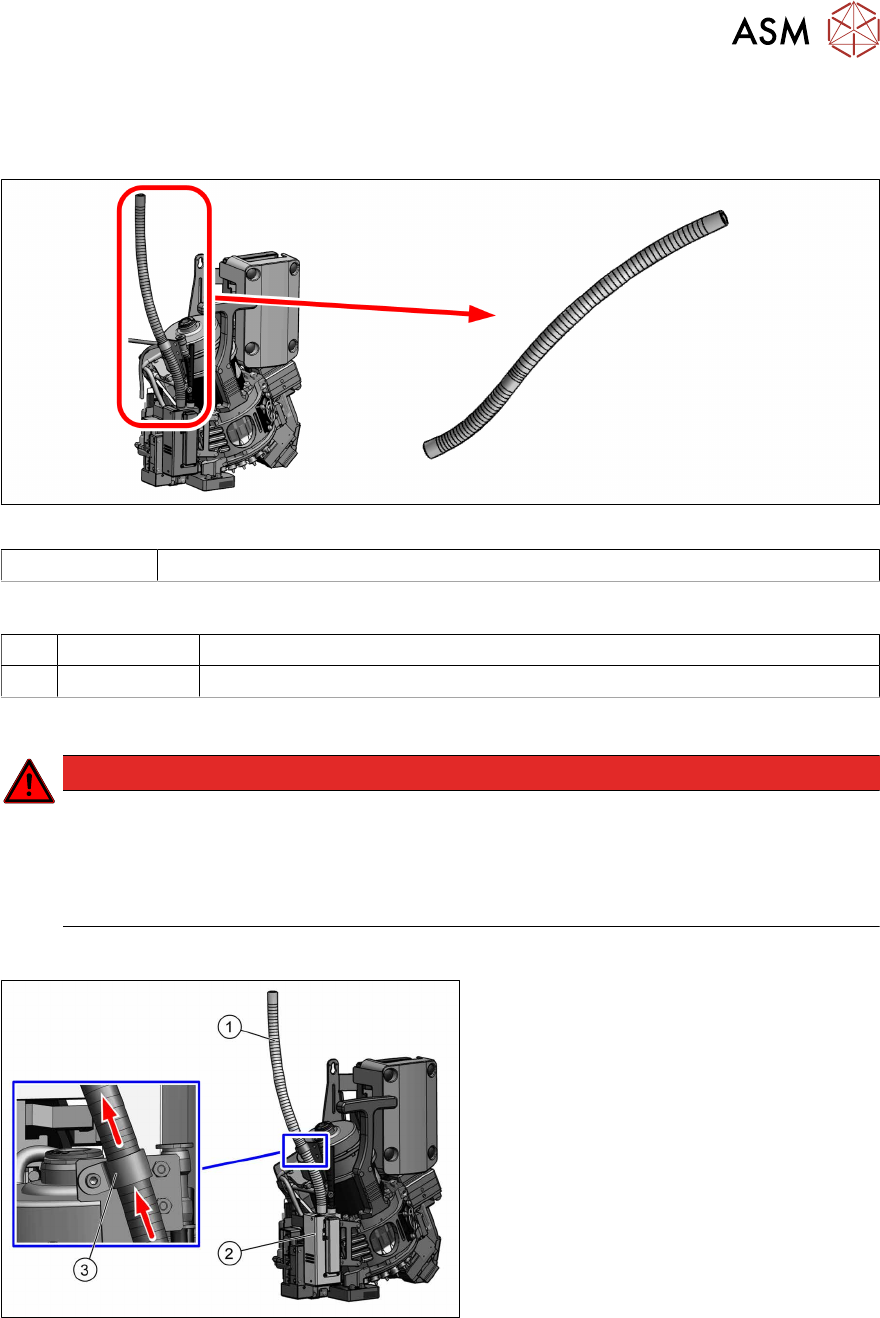

Fig.54: Exhaust air hose
03006727-xx Silicone hose, Di 8, Da 12, conductive
Equipment and tools
T 00381443‑xx Pipe/hose cutters Festo ZRS 7658
Service manual for your machine
Preparation
DANGER
Replacement in the machine
It is possible to replace the exhaust air hose inside the machine, without removing the
placement head.
► In this case, observe the safety instructions in the instruction manual and the service
manual for your machine!
Removal
Fig.55: Exhaust air hose
► Loosen the exhaust air hose(1) on the
PRV(2) and then pull it through the
hose clamp(3).
Installation
► Cut the new hose to a length of 295mm.
► Follow the removal instructions in reverse order for further installation.
5 Pressure control valve (PRV)
5.3 Replacing the exhaust air hose
44 Service Manual SIPLACE SpeedStar (C&P20 P2) 01/2019
6 Aperture ring, holding circuit and silencer
6.1 Replacing the aperture ring/holding circuit/sealing disc
Service Manual SIPLACE SpeedStar (C&P20 P2) 01/2019 45
6 Aperture ring, holding circuit and silencer
See also
2 9.3 "Replacing the holding circuit board" [}71]
6.1 Replacing the aperture ring/holding circuit/sealing disc
Parts – vacuum operation

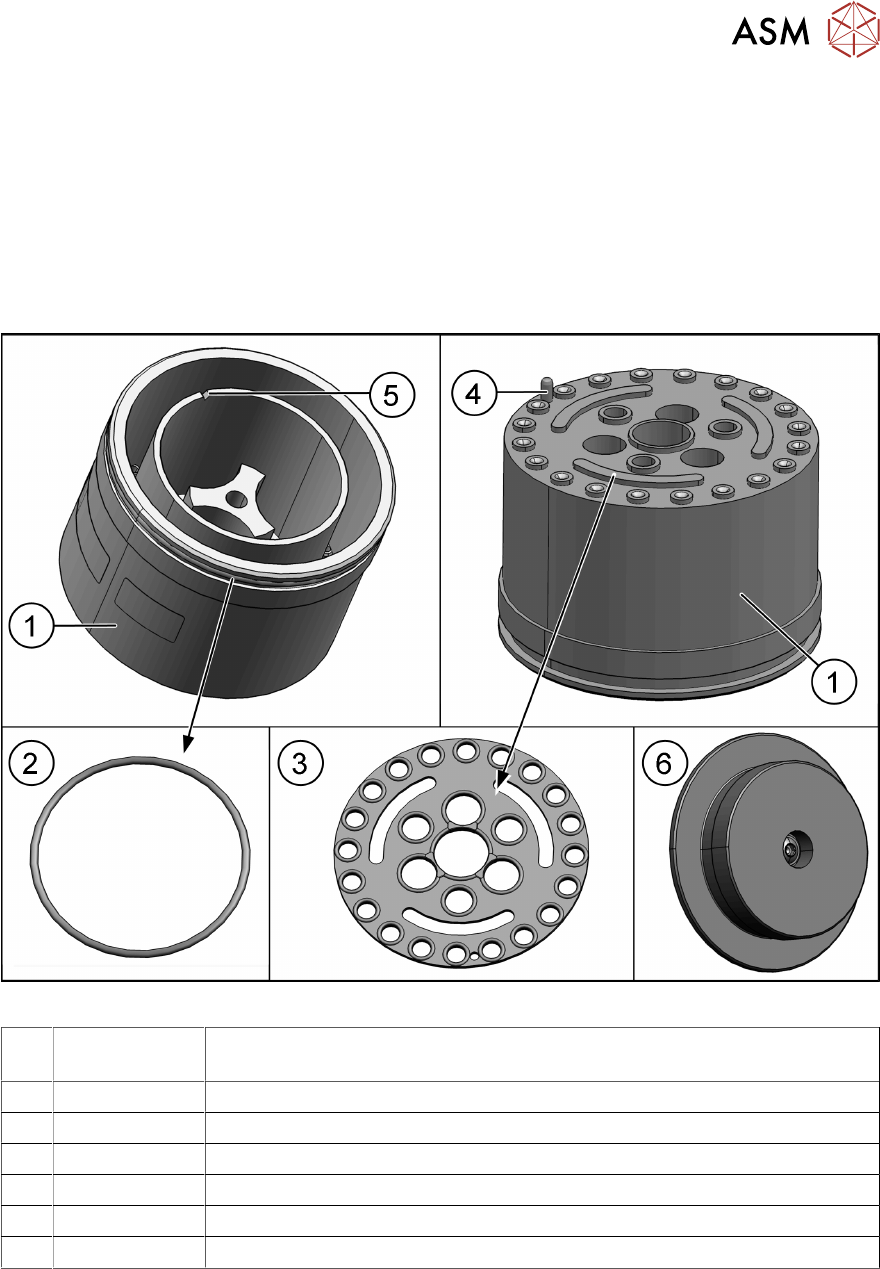

Fig.56: Aperture ring
1 03165750-xx Aperture ring assembly SIPLACE C&P20 P2 (including sealing disc and
cover)
2 03006234-xx O-Ring 40x1.5
3 03105638-xx Sealing disc C&P20P
4 --- Pins
5 --- Groove: this groove shows the position of the pin (4) for easier installation.
6 03165754-xx Cover assembly C&P20 P2
03110132‑xx Sealing gasket M4 (for cover)
