7 Screwed joint
7.1 Replacing the cover cap and grommet
Service Manual SIPLACE SpeedStar (C&P20 P2) 01/2019 55
7 Screwed joint
7.1 Replacing the cover cap and grommet
Parts
03134712-xx Cover cap
03159288-xx Grommet for star motor SIPLACE C&P20P2
Equipment and tools
T44 00386132-xx Torque screwdriver ESD 0.1-0,6 Nm
T96 03171858-xx Torque Allen swap blade 1.5 mm TX6
T --- Tools for removing/fitting and calibrating the placement head, if needed
(see also the service manual for your machine)
Preparation
► Remove the head from the machine. For details about removing and fitting the placement
head, refer to the service manual for your machine.
Fit the head on the head mount [03056231‑xx].
► Make sure that the component sensor protective cap is fitted.
1.1.3 "Safety instructions for the component sensor" [}6]
Removal

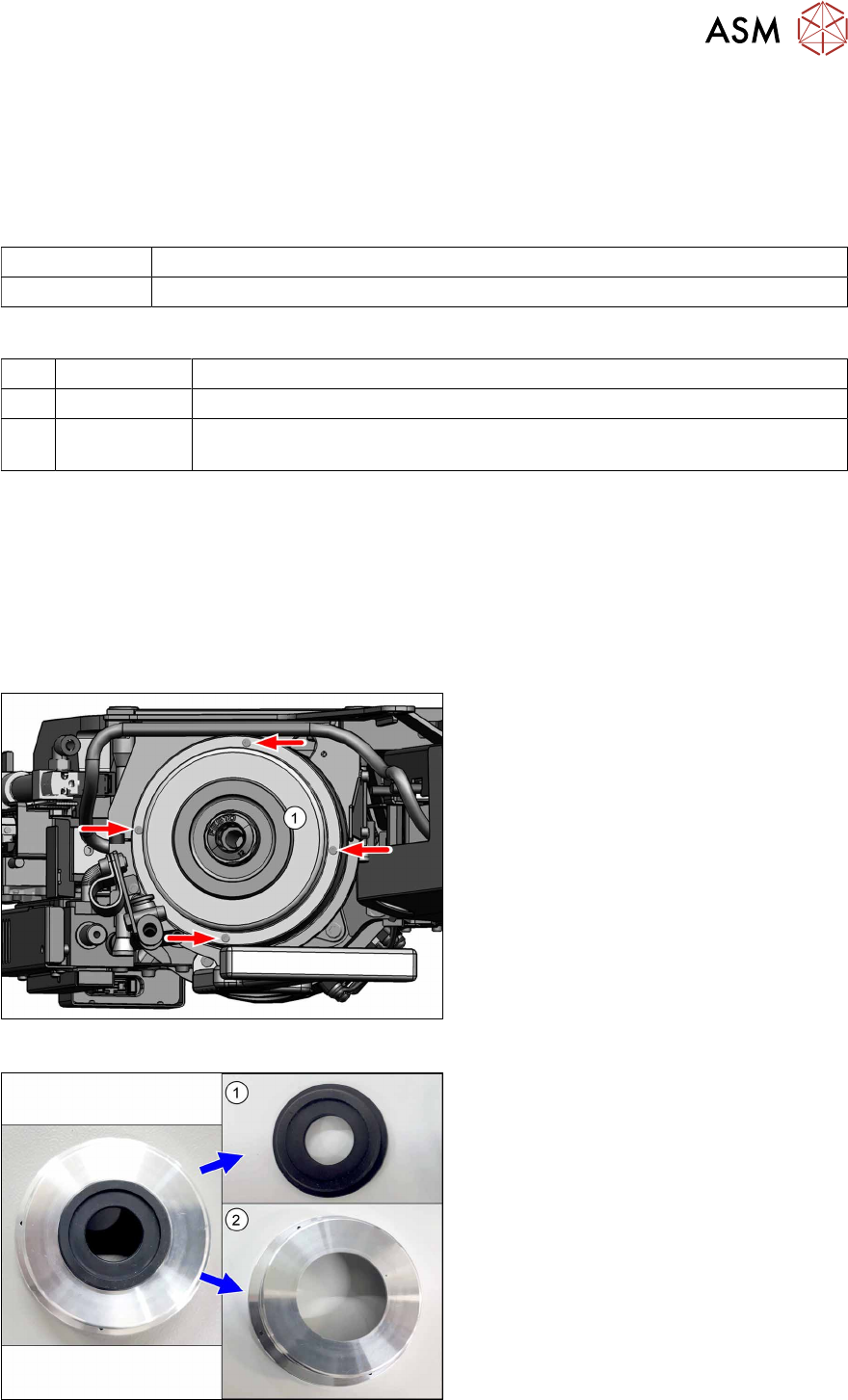

Fig.71: Cover cap
► Remove the four fastening screws
(TX6) and then remove the cover
cap(1).
Fig.72: Cover cap and grommet
► Remove the grommet(1) from the
cover cap (2).
7 Screwed joint
7.1 Replacing the cover cap and grommet
56 Service Manual SIPLACE SpeedStar (C&P20 P2) 01/2019
Installation

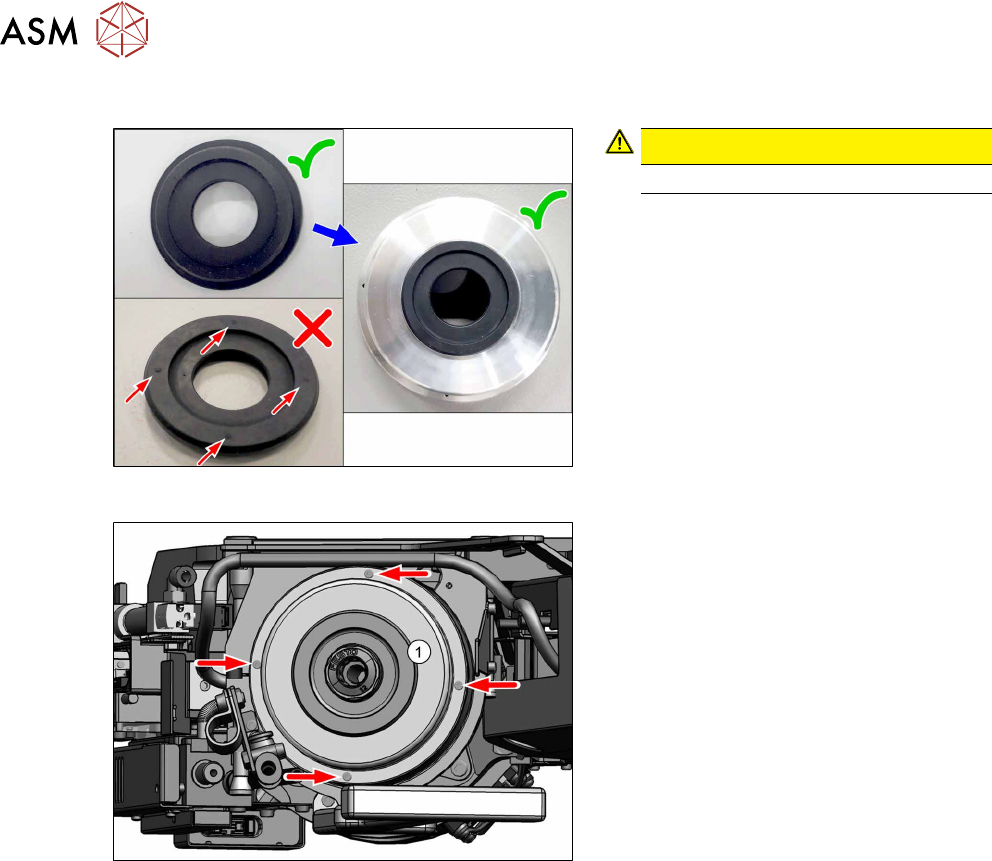

Fig.73: Inserting the grommet
 CAUTION!
The grommet may not be greased.
.
► There are four small studs on the grom-
met. Insert the grommet so that these
studs point downwards.
Fig.74: Cover cap
► Fasten the cover cap(1) into place with
four screws (TX6, M2x5, torque
0.3Nm).
7 Screwed joint
7.2 Replacing the screwed joint
Service Manual SIPLACE SpeedStar (C&P20 P2) 01/2019 57
7.2 Replacing the screwed joint
Parts

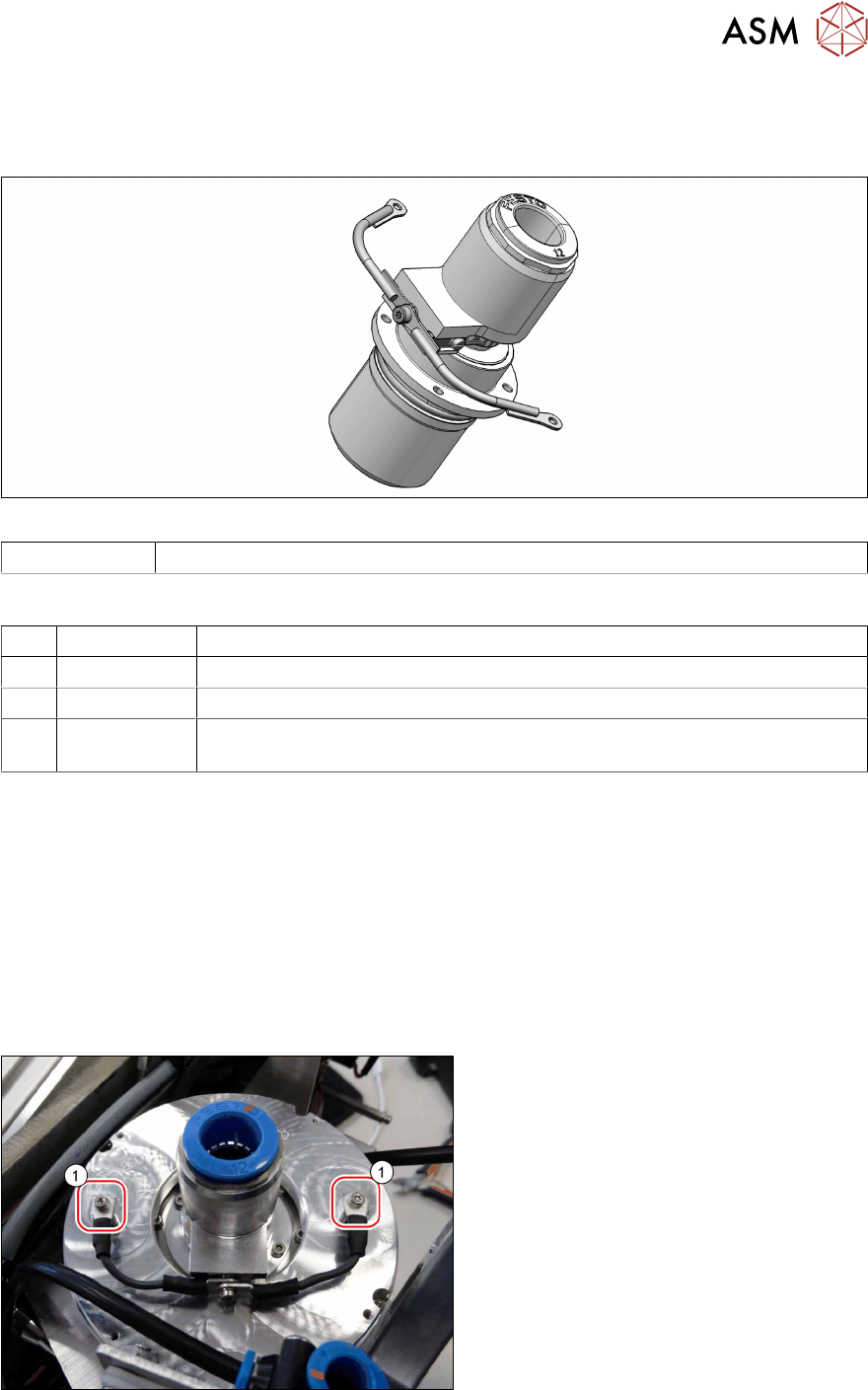

Fig.75: Screwed joint assembly
03134264-xx Screwed joint assembly SIPLACE C&P20P2
Equipment and tools
T44 00386132-xx Torque screwdriver ESD 0.1-0,6 Nm
T96 03171858-xx Torque Allen swap blade 1.5 mm TX6
C 00310259-xx Lubricant Unisilikon L 250 L 60gr tube
T --- Tools for removing/fitting and calibrating the placement head, if needed
(see also the service manual for your machine)
Preparation
► Remove the head from the machine. For details about removing and fitting the placement
head, refer to the service manual for your machine.
Fit the head on the head mount [03056231‑xx].
► Make sure that the component sensor protective cap is fitted.
1.1.3 "Safety instructions for the component sensor" [}6]
Removal
► Dismantling the cover cap
7.1 "Replacing the cover cap and grommet" [}55]
Fig.76: Ground connections
► Remove the two screws(1) (TX6)
fastening the ground connections.
Pay attention to the toothed disks.
